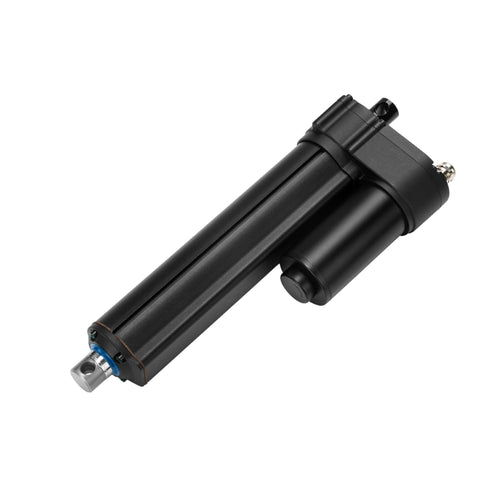

Different stroke lengths of models are available upon request, please email us at: [email protected]
This example code uses a MegaMoto Plus and an Arduino Uno to monitor the current of a linear actuator, however, similar products can be used as substitutions.
/* Code to monitor the current amp draw of the actuator, and to cut power if it rises above a certain amount. Written by Progressive Automations August 19th, 2015 Hardware: - RobotPower MegaMoto control boards - Arduino Uno - 2 pushbuttons */ const int EnablePin = 8; const int PWMPinA = 11; const int PWMPinB = 3; // pins for Megamoto const int buttonLeft = 4; const int buttonRight = 5;//buttons to move the motor const int CPin1 = A5; // motor feedback int leftlatch = LOW; int rightlatch = LOW;//motor latches (used for code logic) int hitLimits = 0;//start at 0 int hitLimitsmax = 10;//values to know if travel limits were reached long lastfeedbacktime = 0; // must be long, else it overflows int firstfeedbacktimedelay = 750; //first delay to ignore current spike int feedbacktimedelay = 50; //delay between feedback cycles, how often you want the motor to be checked long currentTimefeedback = 0; // must be long, else it overflows int debounceTime = 300; //amount to debounce buttons, lower values makes the buttons more sensitive long lastButtonpress = 0; // timer for debouncing long currentTimedebounce = 0; int CRaw = 0; // input value for current readings int maxAmps = 0; // trip limit bool dontExtend = false; bool firstRun = true; bool fullyRetracted = false;//program logic void setup() { Serial.begin(9600); pinMode(EnablePin, OUTPUT); pinMode(PWMPinA, OUTPUT); pinMode(PWMPinB, OUTPUT);//Set motor outputs pinMode(buttonLeft, INPUT); pinMode(buttonRight, INPUT);//buttons digitalWrite(buttonLeft, HIGH); digitalWrite(buttonRight, HIGH);//enable internal pullups pinMode(CPin1, INPUT);//set feedback input currentTimedebounce = millis(); currentTimefeedback = 0;//Set initial times maxAmps = 15;// SET MAX CURRENT HERE }//end setup void loop() { latchButtons();//check buttons, see if we need to move moveMotor();//check latches, move motor in or out }//end main loop void latchButtons() { if (digitalRead(buttonLeft)==LOW)//left is forwards { currentTimedebounce = millis() - lastButtonpress;// check time since last press if (currentTimedebounce > debounceTime && dontExtend == false)//once you've tripped dontExtend, ignore all forwards presses { leftlatch = !leftlatch;// if motor is moving, stop, if stopped, start moving firstRun = true;// set firstRun flag to ignore current spike fullyRetracted = false; // once you move forwards, you are not fully retracted lastButtonpress = millis();//store time of last button press return; }//end if }//end btnLEFT if (digitalRead(buttonRight)==LOW)//right is backwards { currentTimedebounce = millis() - lastButtonpress;// check time since last press if (currentTimedebounce > debounceTime) { rightlatch = !rightlatch;// if motor is moving, stop, if stopped, start moving firstRun = true;// set firstRun flag to ignore current spike lastButtonpress = millis();//store time of last button press return; }//end if }//end btnRIGHT }//end latchButtons void moveMotor() { if (leftlatch == HIGH) motorForward(255); //speed = 0-255 if (leftlatch == LOW) motorStop(); if (rightlatch == HIGH) motorBack(255); //speed = 0-255 if (rightlatch == LOW) motorStop(); }//end moveMotor void motorForward(int speeed) { while (dontExtend == false && leftlatch == HIGH) { digitalWrite(EnablePin, HIGH); analogWrite(PWMPinA, speeed); analogWrite(PWMPinB, 0);//move motor if (firstRun == true) delay(firstfeedbacktimedelay); // bigger delay to ignore current spike else delay(feedbacktimedelay); //small delay to get to speed getFeedback(); firstRun = false; latchButtons();//check buttons again }//end while }//end motorForward void motorBack (int speeed) { while (rightlatch == HIGH) { digitalWrite(EnablePin, HIGH); analogWrite(PWMPinA, 0); analogWrite(PWMPinB, speeed);//move motor if (firstRun == true) delay(firstfeedbacktimedelay);// bigger delay to ignore current spike else delay(feedbacktimedelay); //small delay to get to speed getFeedback(); firstRun = false; latchButtons();//check buttons again }//end while dontExtend = false;//allow motor to extend again, after it has been retracted }//end motorBack void motorStop() { analogWrite(PWMPinA, 0); analogWrite(PWMPinB, 0); digitalWrite(EnablePin, LOW); firstRun = true;//once the motor has stopped, reenable firstRun to account for startup current spikes }//end stopMotor void getFeedback() { CRaw = analogRead(CPin1); // Read current if (CRaw == 0 && hitLimits < hitLimitsmax) hitLimits = hitLimits + 1; else hitLimits = 0; // check to see if the motor is at the limits and the current has stopped if (hitLimits == hitLimitsmax && rightlatch == HIGH) { rightlatch = LOW; // stop motor fullyRetracted = true; }//end if else if (hitLimits == hitLimitsmax && leftlatch == HIGH) { leftlatch = LOW;//stop motor hitLimits = 0; }//end if if (CRaw > maxAmps) { dontExtend = true; leftlatch = LOW; //stop if feedback is over maximum }//end if lastfeedbacktime = millis();//store previous time for receiving feedback }//end getFeedback
This example code shows how to control up to 4 of our linear actuators with the Arduino Uno and LC-82 MultiMoto Arduino Shield, however, similar products can be used as substitutions. This code is only meant for use with actuator models within the current limitations on each channel of the MultiMoto such as the PA-14 and PA-14P.
/* Example code to control up to 4 actuators, using the Robot Power MultiMoto driver. Hardware: - Robot Power MultiMoto - Arduino Uno Wiring: - Connect actuators to the M1, M2, M3, M4 connections on the MultiMoto board. - Connect the negative (black) to the right connection, positive (red) to the left. - Connect a 12 volt source (minimum 1A per motor if unloaded, 8A per motor if fully loaded)to the BAT terminals. Ensure that positive and negative are placed in the correct spots. Code modified by Progressive Automations from the example code provided by Robot Power <a href="http://www.robotpower.com/downloads/" rel="nofollow"> http://www.robotpower.com/downloads/</a> Robot Power MultiMoto v1.0 demo This software is released into the Public Domain */ // include the SPI library: #include <SPI.h> // L9958 slave select pins for SPI #define SS_M4 14 #define SS_M3 13 #define SS_M2 12 #define SS_M1 11 // L9958 DIRection pins #define DIR_M1 2 #define DIR_M2 3 #define DIR_M3 4 #define DIR_M4 7 // L9958 PWM pins #define PWM_M1 9 #define PWM_M2 10 // Timer1 #define PWM_M3 5 #define PWM_M4 6 // Timer0 // L9958 Enable for all 4 motors #define ENABLE_MOTORS 8 int pwm1, pwm2, pwm3, pwm4; boolean dir1, dir2, dir3, dir4; void setup() { unsigned int configWord; // put your setup code here, to run once: pinMode(SS_M1, OUTPUT); digitalWrite(SS_M1, LOW); // HIGH = not selected pinMode(SS_M2, OUTPUT); digitalWrite(SS_M2, LOW); pinMode(SS_M3, OUTPUT); digitalWrite(SS_M3, LOW); pinMode(SS_M4, OUTPUT); digitalWrite(SS_M4, LOW); // L9958 DIRection pins pinMode(DIR_M1, OUTPUT); pinMode(DIR_M2, OUTPUT); pinMode(DIR_M3, OUTPUT); pinMode(DIR_M4, OUTPUT); // L9958 PWM pins pinMode(PWM_M1, OUTPUT); digitalWrite(PWM_M1, LOW); pinMode(PWM_M2, OUTPUT); digitalWrite(PWM_M2, LOW); // Timer1 pinMode(PWM_M3, OUTPUT); digitalWrite(PWM_M3, LOW); pinMode(PWM_M4, OUTPUT); digitalWrite(PWM_M4, LOW); // Timer0 // L9958 Enable for all 4 motors pinMode(ENABLE_MOTORS, OUTPUT); digitalWrite(ENABLE_MOTORS, HIGH); // HIGH = disabled / /******* Set up L9958 chips ********* ' L9958 Config Register ' Bit '0 - RES '1 - DR - reset '2 - CL_1 - curr limit '3 - CL_2 - curr_limit '4 - RES '5 - RES '6 - RES '7 - RES '8 - VSR - voltage slew rate (1 enables slew limit, 0 disables) '9 - ISR - current slew rate (1 enables slew limit, 0 disables) '10 - ISR_DIS - current slew disable '11 - OL_ON - open load enable '12 - RES '13 - RES '14 - 0 - always zero '15 - 0 - always zero */ // set to max current limit and disable ISR slew limiting configWord = 0b0000010000001100; SPI.begin(); SPI.setBitOrder(LSBFIRST); SPI.setDataMode(SPI_MODE1); // clock pol = low, phase = high // Motor 1 digitalWrite(SS_M1, LOW); SPI.transfer(lowByte(configWord)); SPI.transfer(highByte(configWord)); digitalWrite(SS_M1, HIGH); // Motor 2 digitalWrite(SS_M2, LOW); SPI.transfer(lowByte(configWord)); SPI.transfer(highByte(configWord)); digitalWrite(SS_M2, HIGH); // Motor 3 digitalWrite(SS_M3, LOW); SPI.transfer(lowByte(configWord)); SPI.transfer(highByte(configWord)); digitalWrite(SS_M3, HIGH); // Motor 4 digitalWrite(SS_M4, LOW); SPI.transfer(lowByte(configWord)); SPI.transfer(highByte(configWord)); digitalWrite(SS_M4, HIGH); //Set initial actuator settings to pull at 0 speed for safety dir1 = 0; dir2 = 0; dir3 = 0; dir4 = 0; // Set direction pwm1 = 0; pwm2 = 0; pwm3 = 0; pwm4 = 0; // Set speed (0-255) digitalWrite(ENABLE_MOTORS, LOW);// LOW = enabled } // End setup void loop() { dir1 = 1; pwm1 = 255; //set direction and speed digitalWrite(DIR_M1, dir1); analogWrite(PWM_M1, pwm1); // write to pins dir2 = 0; pwm2 = 128; digitalWrite(DIR_M2, dir2); analogWrite(PWM_M2, pwm2); dir3 = 1; pwm3 = 255; digitalWrite(DIR_M3, dir3); analogWrite(PWM_M3, pwm3); dir4 = 0; pwm4 = 128; digitalWrite(DIR_M4, dir4); analogWrite(PWM_M4, pwm4); delay(5000); // wait once all four motors are set dir1 = 0; pwm1 = 128; digitalWrite(DIR_M1, dir1); analogWrite(PWM_M1, pwm1); dir2 = 1; pwm2 = 255; digitalWrite(DIR_M2, dir2); analogWrite(PWM_M2, pwm2); dir3 = 0; pwm3 = 128; digitalWrite(DIR_M3, dir3); analogWrite(PWM_M3, pwm3); dir4 = 1; pwm4 = 255; digitalWrite(DIR_M4, dir4); analogWrite(PWM_M4, pwm4); delay(5000); }//end void loop
This example code is for combining the Wasp single-channel speed controller with the Arduino Uno to control the motion of a linear actuator, however, similar products can be used as substitutions.
/*Sample code for the Robot Power Wasp. This ESC is controlled using RC signals, with pulses ranging from 1000 - 2000 microseconds. The main loop of this program holds the actuator still for 1 second, extends for 2 seconds, stops for 1 second, retracts for 2 seconds, and repeats. Modified by Progressive Automations, using the original example code "Sweep" from the Arduino example libraries. Hardware: - 1 Wasp Controller - Arduino Uno Wiring: Control side: - Connect the red/black to +5v and GND - Connect the yellow wire to your signal pin on the Arduino (in this example, pin 9) Power Side: - Connect the +/- of the motors power supply to the +/- connections on the Wasp - Connect the +/- of the actuator to the remaining two connections This example code is in the public domain. */ #include <servo.h> Servo myservo; // create servo object to control a servo // twelve servo objects can be created on most boards int pos = 0; // variable to store the servo position void setup() { myservo.attach(9); // attaches the servo on pin 9 to the servo object } void loop() { myservo.writeMicroseconds(1500); // stop signal delay(1000); //1 second myservo.writeMicroseconds(2000); // full speed forwards signal delay(2000); //2 seconds myservo.writeMicroseconds(1500); // stop signal delay(1000); // 1 second myservo.writeMicroseconds(1000); // full speed reverse signal delay(2000); //2 seconds }
This example code utilizes our relays and Arduino Uno to control a linear actuator, however, similar products can be used as substitutions. You can read our full blog post for more detail.
const int forwards = 7; const int backwards = 6;//assign relay INx pin to arduino pin void setup() { pinMode(forwards, OUTPUT);//set relay as an output pinMode(backwards, OUTPUT);//set relay as an output } void loop() { digitalWrite(forwards, LOW); digitalWrite(backwards, HIGH);//Activate the relay one direction, they must be different to move the motor delay(2000); // wait 2 seconds digitalWrite(forwards, HIGH); digitalWrite(backwards, HIGH);//Deactivate both relays to brake the motor delay(2000);// wait 2 seconds digitalWrite(forwards, HIGH); digitalWrite(backwards, LOW);//Activate the relay the other direction, they must be different to move the motor delay(2000);// wait 2 seconds digitalWrite(forwards, HIGH); digitalWrite(backwards, HIGH);//Deactivate both relays to brake the motor delay(2000);// wait 2 seconds }
This example code uses our LC-80, Arduino Uno, any linear actuator and a power source, however, similar products can be used as substitutions. You can get more detail on the code and what it does in our blog post.
//Use the jumpers on the board to select which pins will be used int EnablePin1 = 13; int PWMPinA1 = 11; int PWMPinB1 = 3; int extendtime = 10 * 1000; // 10 seconds, times 1000 to convert to milliseconds int retracttime = 10 * 1000; // 10 seconds, times 1000 to convert to milliseconds int timetorun = 300 * 1000; // 300 seconds, times 1000 to convert to milliseconds int duty; int elapsedTime; boolean keepMoving; void setup() { Serial.begin(9600); pinMode(EnablePin1, OUTPUT);//Enable the board pinMode(PWMPinA1, OUTPUT); pinMode(PWMPinB1, OUTPUT);//Set motor outputs elapsedTime = 0; // Set time to 0 keepMoving = true; //The system will move }//end setup void loop() { if (keepMoving) { digitalWrite(EnablePin1, HIGH); // enable the motor pushActuator(); delay(extendtime); stopActuator(); delay(10);//small delay before retracting pullActuator(); delay(retracttime); stopActuator(); elapsedTime = millis();//how long has it been? if (elapsedTime > timetorun) {//if it's been 300 seconds, stop Serial.print("Elapsed time is over max run time. Max run time: "); Serial.println(timetorun); keepMoving = false; } }//end if }//end main loop void stopActuator() { analogWrite(PWMPinA1, 0); analogWrite(PWMPinB1, 0); // speed 0-255 } void pushActuator() { analogWrite(PWMPinA1, 255); analogWrite(PWMPinB1, 0); // speed 0-255 } void pullActuator() { analogWrite(PWMPinA1, 0); analogWrite(PWMPinB1, 255);//speed 0-255 }
This program can be use to continuously extend and retract the stroke of a linear actuator.
SETUP LOOP CODE void setup() { Serial.begin(9600); // initialize serial communication at 9600 bits per second pinMode(out_lim, INPUT_PULLUP); // configures pin 45 as input pin pinMode(in_lim, INPUT_PULLUP); // configures pin 53 as input pin pinMode(run_f, OUTPUT); // configures pin 25 as output pin pinMode(run_r, OUTPUT); // configures pin 30 as output pin retract(); // retracts the stroke on startup delay(500); } void extend() // this function enables the motor to run { digitalWrite(run_f, LOW); digitalWrite(run_r, HIGH); } void retract() // this function reverses the direction of motor { digitalWrite(run_f, LOW); digitalWrite(run_r, LOW); } void run_stop() // this function disables the motor { digitalWrite(run_f, HIGH); digitalWrite(run_r, HIGH); } void loop() { int out_lim_state = digitalRead(out_lim); // reads the limit switches and saves its value int in_lim_state = digitalRead(in_lim); Serial.print("outer limit switch value "), Serial.println(out_lim_state); // 0 -> limit switch is pressed Serial.print("inner limit switch value "), Serial.println(in_lim_state); // 1 -> limit switch is not pressed if (out_lim_state == 0 && in_lim_state == 1) // if outer limit switch is pressed and inner is not (extended all the way) { retract(); // retract the stroke } else if (out_lim_state == 1 && in_lim_state == 0) // if inner limit switch is pressed and outer is not (reracted all the way) { extend(); // extend the stroke } else // otherwise do nothing { } delay(5); // delay in between reads for stability }
We have data sheets, user manuals, 3D models, wiring diagrams and more in our Resources section.
Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to the datasheet. You can also contact us to speak with one of our expert engineers.
Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)
For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.
Yes, our actuators can be seamless replacements for most applications. Please contact us if you are unsure of which actuator to opt for. You will need to know the voltage rating, force rating, and stroke length needed before we can give a recommendation for a replacement actuator.
Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.
We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator
Yes. However, it is important to have sufficient voltage and current to be applied to your actuator. Here is an article that may help you further: How to Choose the Right Power Supply for your Linear Actuator
To achieve synchronous motion control, you will require feedback. We offer feedback in the forms of internal limit switches, potentiometers, or hall effect sensors. The following article highlights some Progressive Automations' products that can be used for synchronized control: Controlling Multiple Linear Actuators at the Same Time
There are a number of reasons your linear actuator may be exerting a large amount of noise including over-force, side loading or potential water infiltration. However, it may also be the case that your actuator is simply a high-force rated actuator and therefore has a loud operating noise level. For information on how to possibly overcome this loud noise, please click here. If you are concerned there may be an issue with your actuator, please contact us.
Most of our linear actuators are available for customization. Please refer to your desired product’s datasheet to view the full capabilities of its custom options. Please note there will be a lead time of approximately 20 – 25 business days for production, excluding shipping time. There will also be an additional fee for each actuator that is modified. To find out more about custom orders, please contact us.
Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.
Presently, we do not have kits available. However, if you would like a recommendation on the compatibility of certain linear actuators with control systems, please email us at [email protected] with the following information:
• Required voltage rating
• Required stroke length
• Required force rating
• Dimensional limitations of your application
• Description of your application into which the actuator(s) will be installed
Temperature may be a factor in the functionality of your linear actuator. Please ensure that you use your actuator within the specifications advised in the product datasheet. If you have a specific query related to an actuator and temperature, please contact us.
To do this, please ensure the specifications for your system are compatible with the actuator’s voltage and current ratings. If these specifications align with each other, this may be possible. Please contact us if you are unsure of which actuator to opt for.
To find this information please refer to your product’s data sheet. If your linear actuator was customized, please provide us with images of the product, including your sales order number (if possible) and email this information to [email protected]
Please click here for a list of 3D CAD models available.
The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.
Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.
To do this, please ensure the specifications for your system are compatible with the control box’s voltage and current ratings. If these specifications align, this may be possible. if you are unsure of their compatibility, please contact us.
Yes, however you need to ensure your control box can provide sufficient current draw and compatible voltage. Otherwise, you risk damaging your actuator(s).
You can use your own power supply if it provides sufficient current draw and the right voltage to your system. Otherwise, you run the risk of damaging your actuator(s) and/or control box(es).
Yes, most of our power supplies can be converted up to 230 VAC. To browse our power supply range, click here.
No, all of our mounting brackets are sold separately to our linear actuators. However, we do produce compatible mounting brackets for each of our linear actuators. To find out which mounting bracket is suitable for your linear actuator, check out your selected actuator's product page (where it will be stated), or browse our mounting bracket catalog.
For this information, please refer to our wiring diagrams.
Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.
What Does Dynamic and Static Load Ratings Mean?Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.
What Is Lateral Loading?Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
