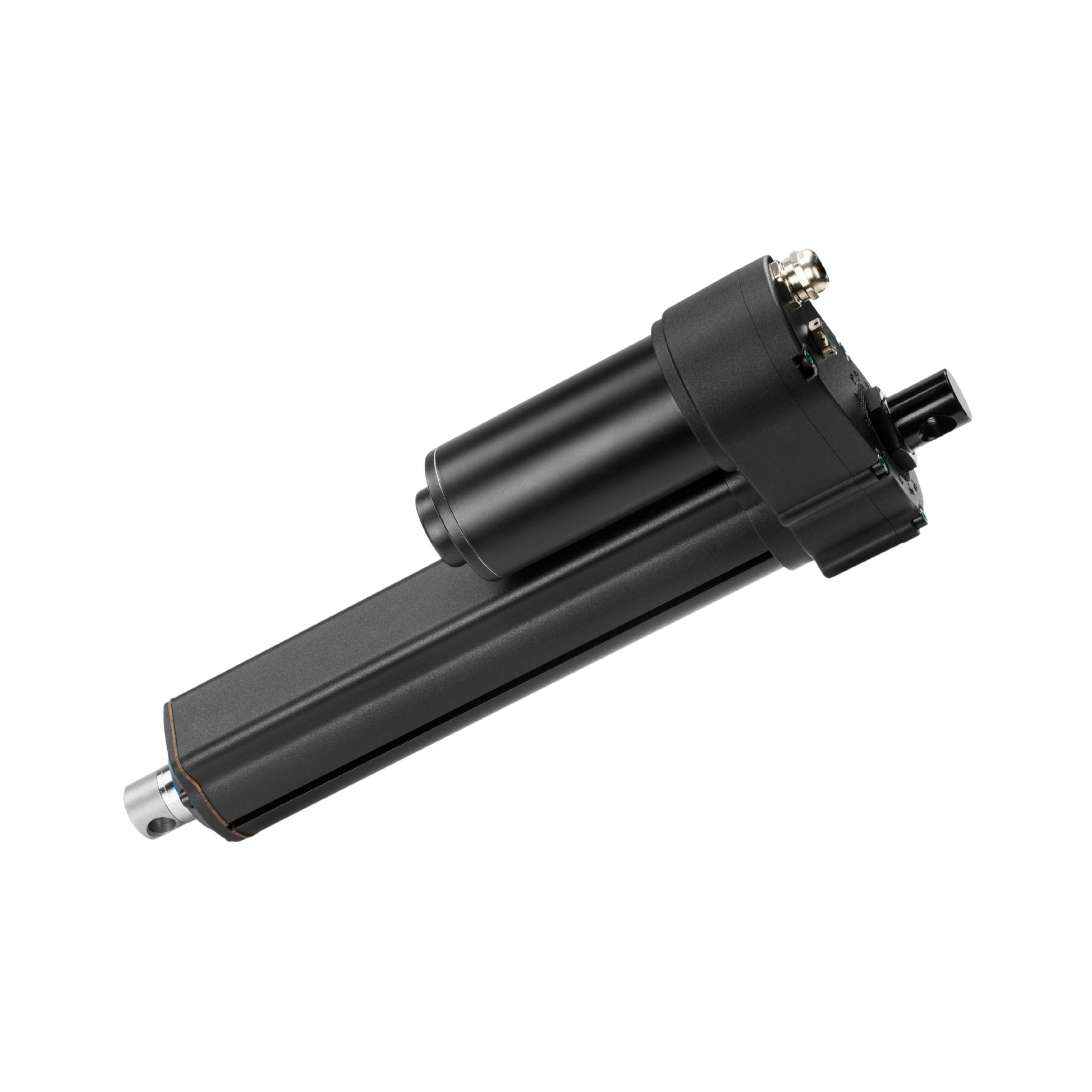

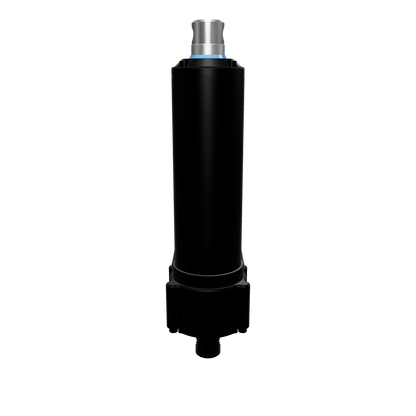

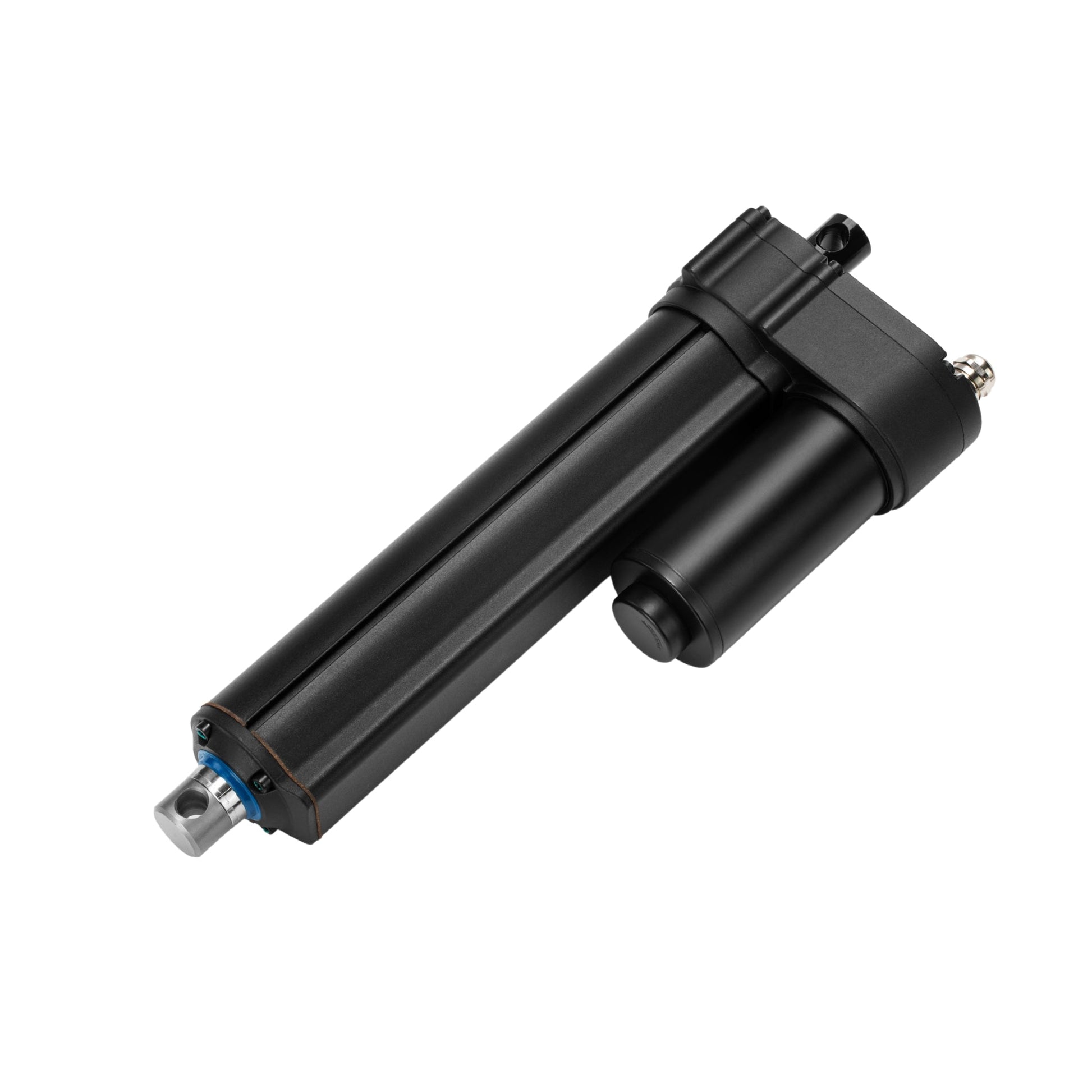

High Load Linear Actuator - Optional Feedback - New Generation
High Load Linear Actuator - Optional Feedback - New Generation
Benefits

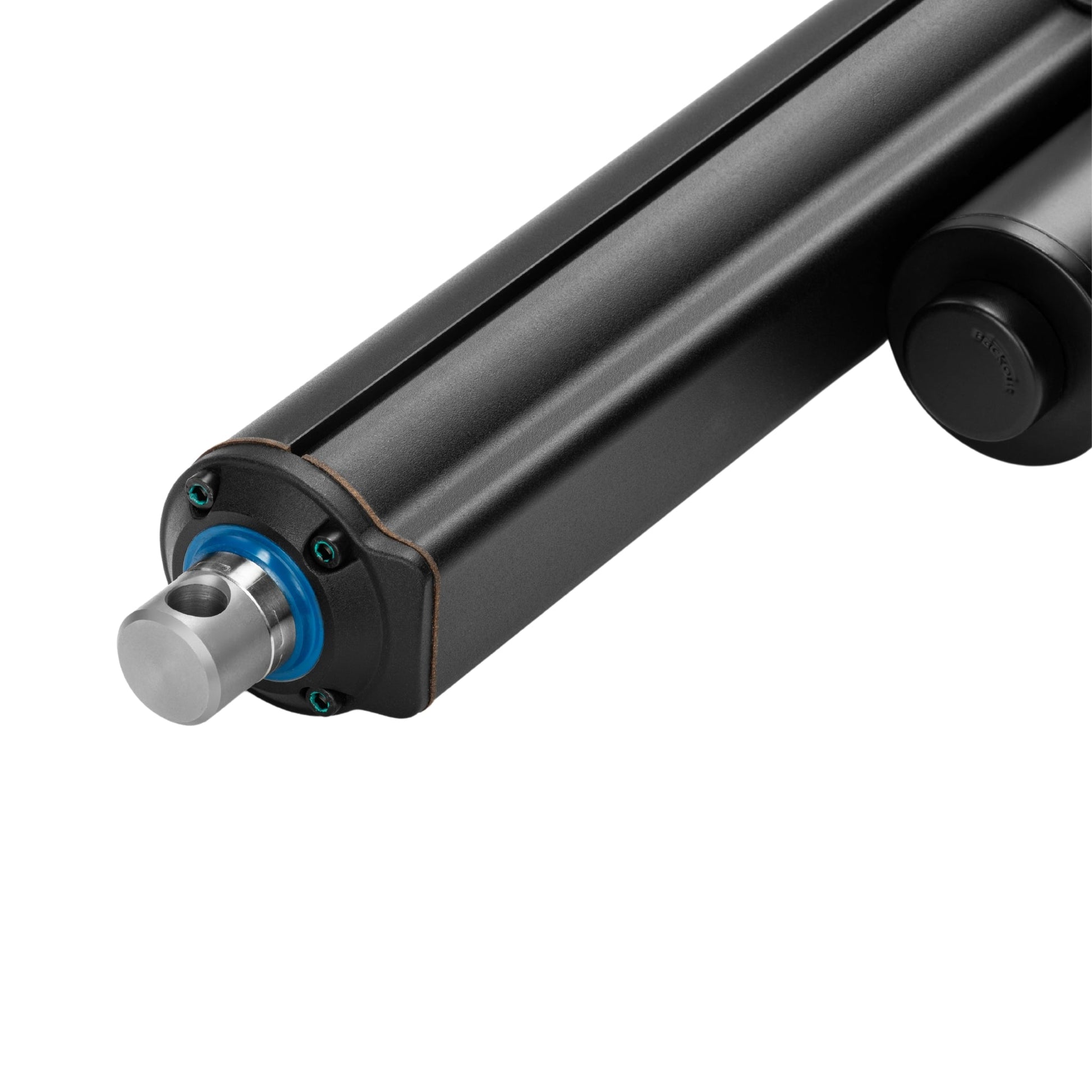

- Durable Construction: Stainless Steel (SUS304) stroke rod, Aluminum Alloy housing
- Ingress Protection Rating: IP67
- High Force Ratings: 2000-9000 N dynamic, 4000-12000 N static
- Overload Protection: Mechanical Slip Clutch
- Duty Cycle: 20%
Features
- High-quality materials
- Reliable brushed DC electric motor
- Hall Effect Feedback Optional Features

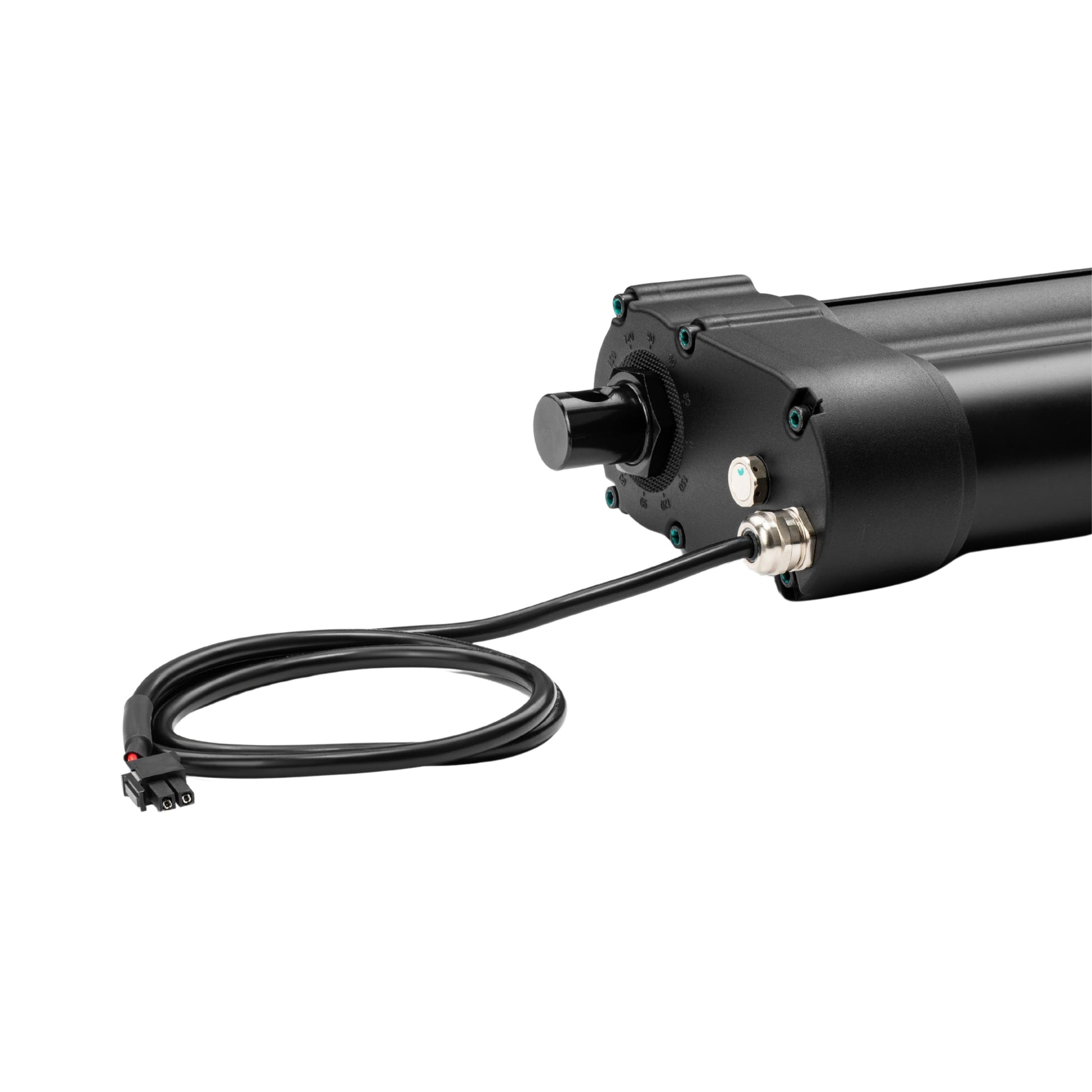

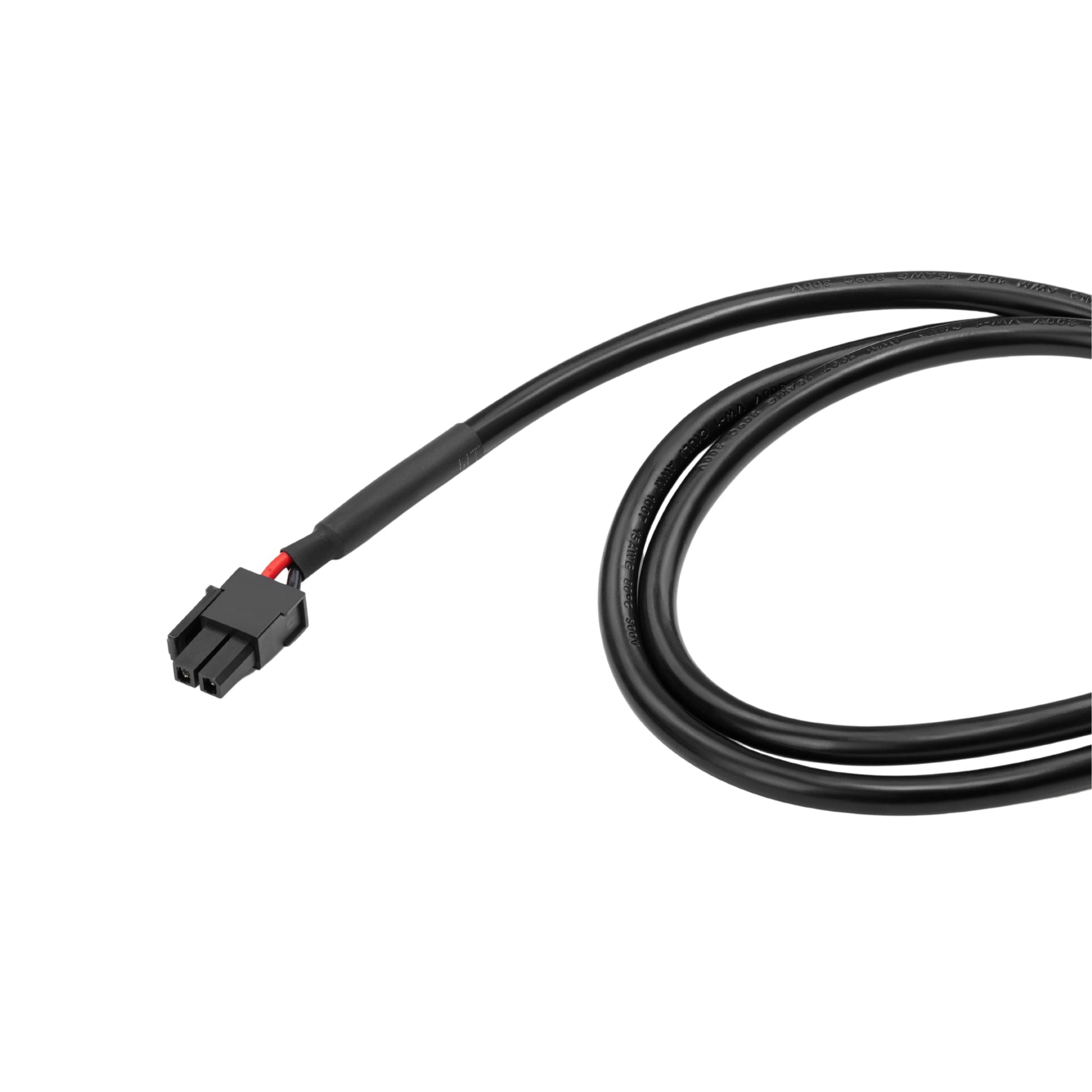

- Simple 2-wire operation
- Built-in non-adjustable limit switches
-
Mechanical Wear and Tear: Many heavy duty actuators are prone to early mechanical failures over time. The PA-HD2 actuator addresses this with robust construction and quality motors designed for longevity.
-
Safety Features: Built-in limit switches ensure the actuators automatically shut off electrical power when reaching the end of full retraction and extensions. Built-in mechanical slip clutch overload protection is also included, helping ensure user safety and avoid damage.
-
Water Ingress and Seals: Advanced seals in the PA-HD2 actuator provide robust protection against water ingress, extending the actuator's life in outdoor environments.
Key Benefits and Features of the PA-HD2
-
High Force Ratings: Designed with reliability and heavy duty capabilities to handle 2000-9000 N dynamic and 4000-12000 N static force.
- Durable Construction: Built with long-lasting materials, including a Stainless Steel (SUS304) stroke rod and Aluminum Alloy housing, ensuring reliable performance even in harsh conditions.
- Weather Protection: The IP67 protection rating provides a versatile unit able to withstand dust, water submersions while static, and harsh environments.
- Hall Feedback Options: Hall effect sensors are available as an option for applications that require positional feedback for advanced control features such as synchronous motion and memory presets.
- Integrated Limit Switches: Built-in, non-adjustable limit switches ensure precise control of the actuator's motion, enhancing safety and reliability.
-
Mechanical Wear and Tear: Many heavy duty actuators are prone to early mechanical failures over time. The PA-HD2 actuator addresses this with robust construction and quality motors designed for longevity.
-
Safety Features: Built-in limit switches ensure the actuators automatically shut off electrical power when reaching the end of full retraction and extensions. Built-in mechanical slip clutch overload protection is also included, helping ensure user safety and avoid damage.
-
Water Ingress and Seals: Advanced seals in the PA-HD2 actuator provide robust protection against water ingress, extending the actuator's life in outdoor environments.
Key Benefits and Features of the PA-HD2
-
High Force Ratings: Designed with reliability and heavy duty capabilities to handle 2000-9000 N dynamic and 4000-12000 N static force.
- Durable Construction: Built with long-lasting materials, including a Stainless Steel (SUS304) stroke rod and Aluminum Alloy housing, ensuring reliable performance even in harsh conditions.
- Weather Protection: The IP67 protection rating provides a versatile unit able to withstand dust, water submersions while static, and harsh environments.
- Hall Feedback Options: Hall effect sensors are available as an option for applications that require positional feedback for advanced control features such as synchronous motion and memory presets.
- Integrated Limit Switches: Built-in, non-adjustable limit switches ensure precise control of the actuator's motion, enhancing safety and reliability.
Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!
Quality You Can Trust – Learn MoreData Sheets

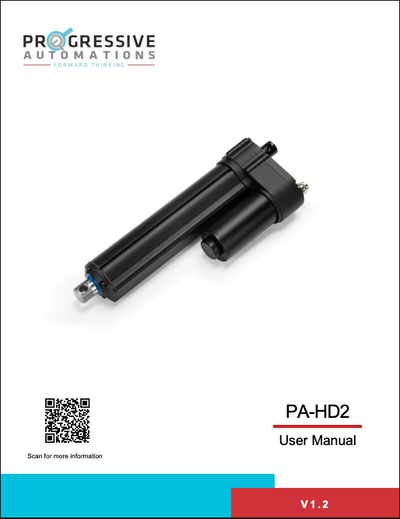

PA-HD2 Data Sheet
2D/3D models
PA-HD2 3D Models
