110 VAC - 24 VDC - One Channel Hall Effect Control Box with Presets
110 VAC - 24 VDC - One Channel Hall Effect Control Box with Presets
Benefits
- Control Type: RT-11 Wired Remote (included)
- Input Voltage: 220VAC
- Output Voltage: 24VDC
- Current Draw: 8 Amps (24VDC)
-
Control Ability: 1 Hall Effect Actuator
Features
- Overheat/duty cycle & overcurrent protection
- 10% duty cycle (Max. 2 mins on, 18 mins off)
- Single channel for one actuator
- CE, FCC Certifications
- Simple plug-n-play wiring
FLTCON-1 Specifications

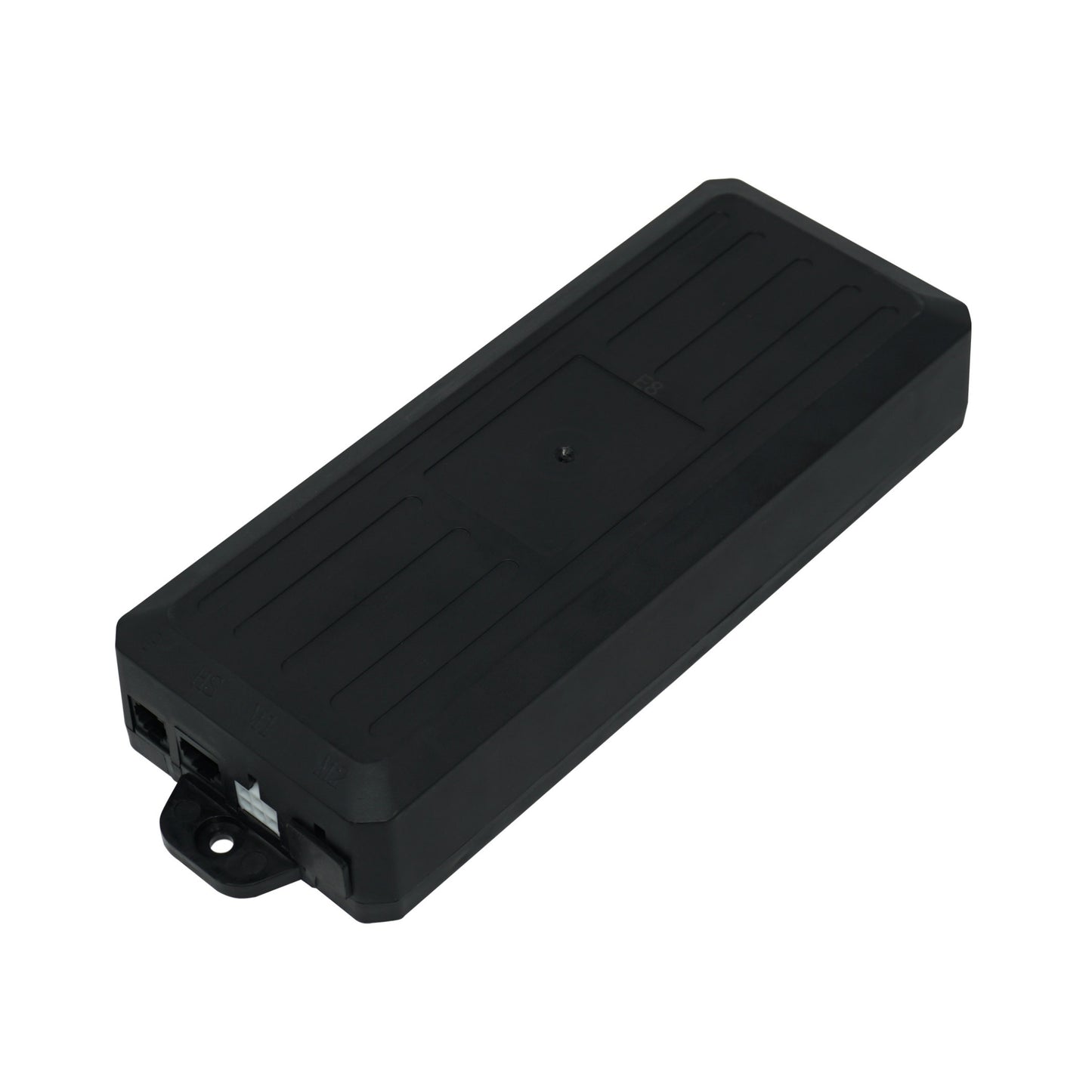

The FLTCON-1 hall effect control box is a single-channel control box that is designed to work with our 24 VDC linear actuators and lifting columns that are equipped with hall effect sensors. We’ve specifically designed this unit to overcome common challenges found in many actuator control box solutions with hall effect feedback, such as:
- Easy Setup: Plug-n-play connectors of our hall effect type actuators and FLTCON control boxes allow for fast and simple wiring to your system.
- Control Type: The FLTCON control boxes come with an RT-11 remote that offers stylish designs, an LED display, and programmable features.
- Smart Safety Features: The FLTCON series of control boxes are designed with smart safety features such as overcurrent and overheat/duty cycle protection.
Key Benefits and Features of the FLTCON-1
- Actuator Compatibility: The 24 VDC output allows compatibility with a wide range of 24 VDC type hall effect actuators.
- Input Voltage: Accepting 220VAC input voltage ensures the FLTCON-1 can plug directly into standard wall outlets for added user convenience.
- Single Hall Effect Control: One hall effect actuator can be controlled to travel with better accuracy and precision from the hall effect feedback.
- Current Draw: The FLTCON-1 control box output channel has a current draw rating of 8 Amps.
- Programmable Settings: Our FLTCON control boxes allow for programmable features such as memory presets when paired with the included RT-11 programmable wired remote.
Please contact sales@progressiveautomations.com.au for programming requirements for this product.
FLTCON-1 Specifications
The FLTCON-1 hall effect control box is a single-channel control box that is designed to work with our 24 VDC linear actuators and lifting columns that are equipped with hall effect sensors. We’ve specifically designed this unit to overcome common challenges found in many actuator control box solutions with hall effect feedback, such as:
- Easy Setup: Plug-n-play connectors of our hall effect type actuators and FLTCON control boxes allow for fast and simple wiring to your system.
- Control Type: The FLTCON control boxes come with an RT-11 remote that offers stylish designs, an LED display, and programmable features.
- Smart Safety Features: The FLTCON series of control boxes are designed with smart safety features such as overcurrent and overheat/duty cycle protection.
Key Benefits and Features of the FLTCON-1
- Actuator Compatibility: The 24 VDC output allows compatibility with a wide range of 24 VDC type hall effect actuators.
- Input Voltage: Accepting 220VAC input voltage ensures the FLTCON-1 can plug directly into standard wall outlets for added user convenience.
- Single Hall Effect Control: One hall effect actuator can be controlled to travel with better accuracy and precision from the hall effect feedback.
- Current Draw: The FLTCON-1 control box output channel has a current draw rating of 8 Amps.
- Programmable Settings: Our FLTCON control boxes allow for programmable features such as memory presets when paired with the included RT-11 programmable wired remote.
Please contact sales@progressiveautomations.com.au for programming requirements for this product.
