110 VAC - 24 VDC - 2-Sync Hall Effect Control Box with Presets

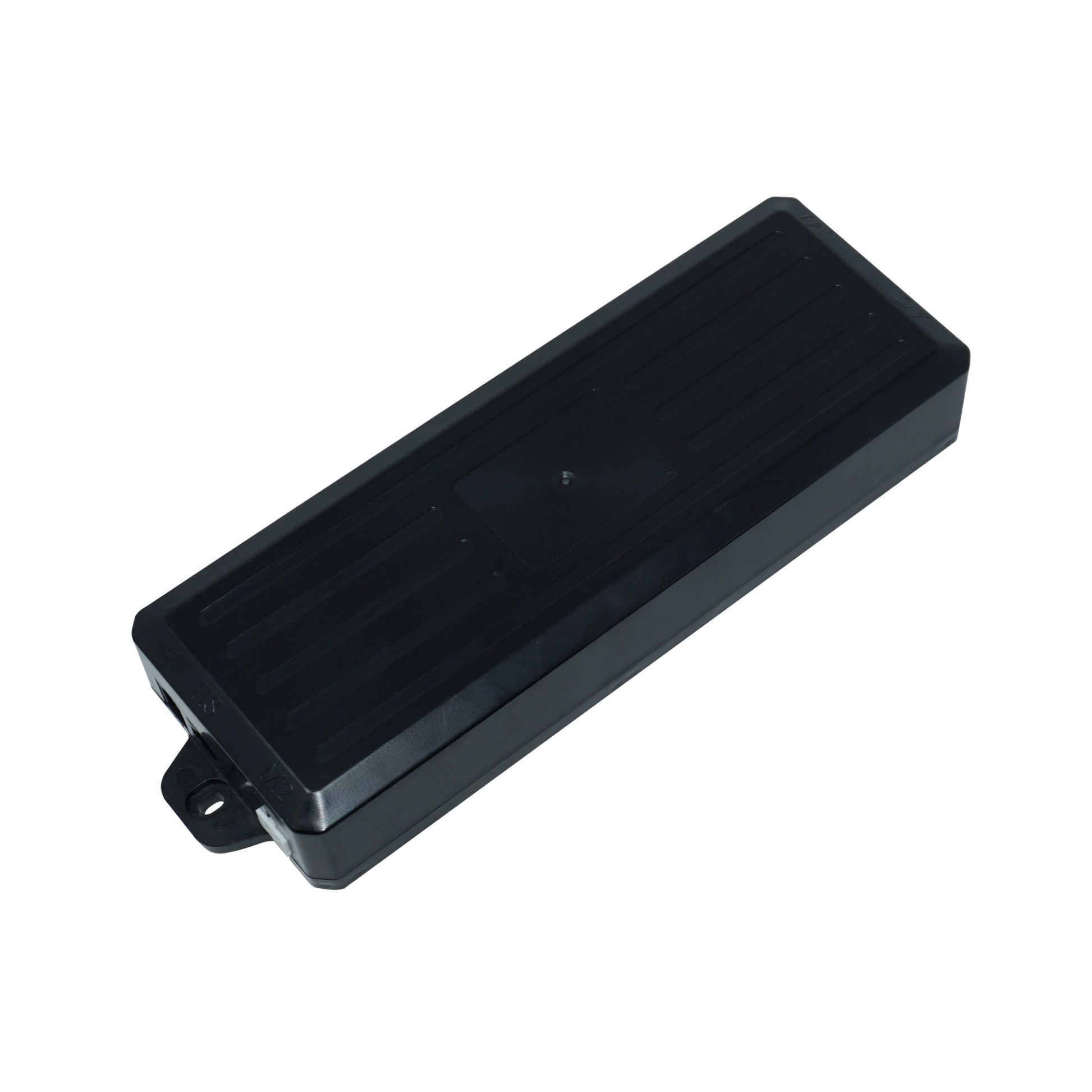

  • 110 VAC - 24 VDC - 2-Sync Hall Effect Control Box with Presets

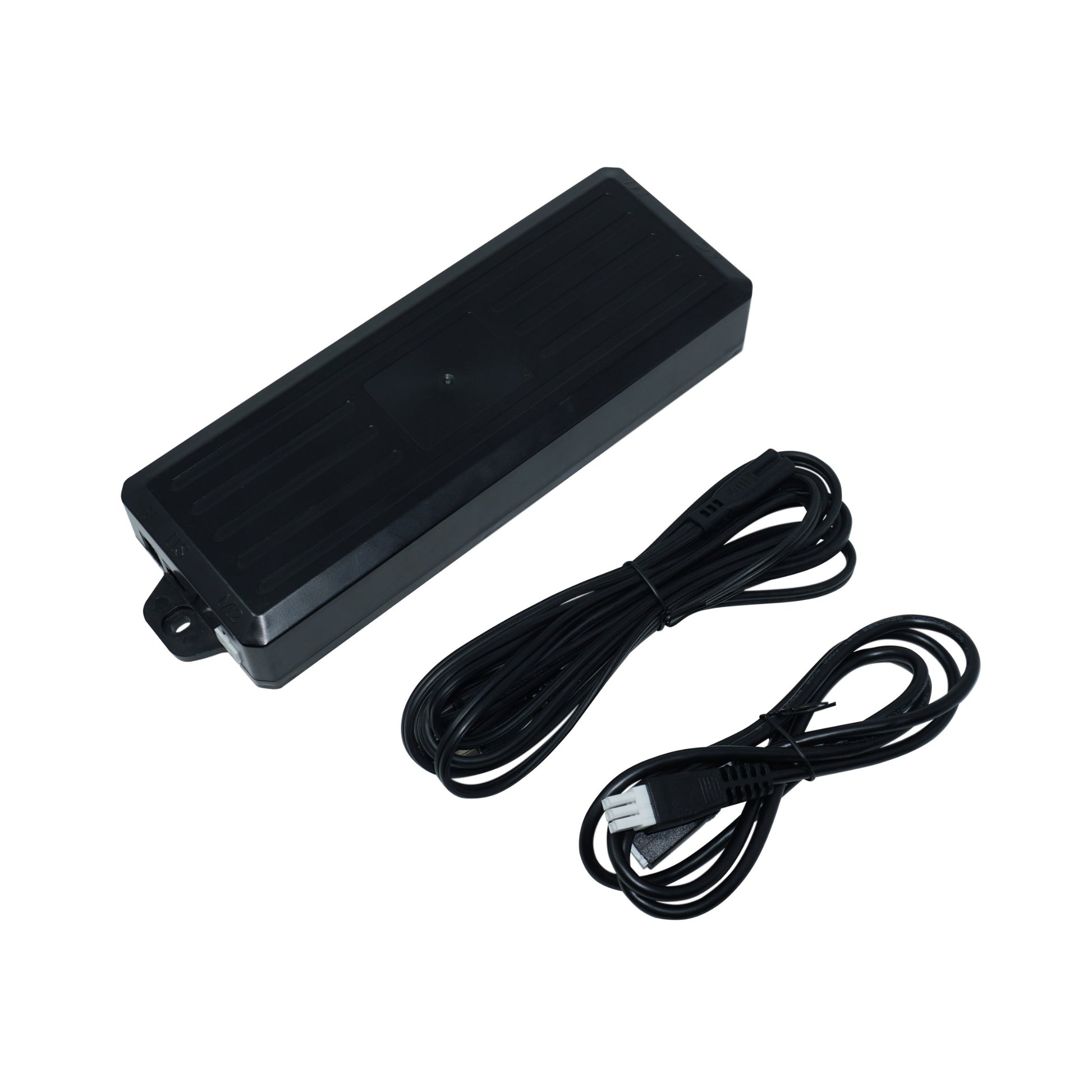

  • 110 VAC - 24 VDC - 2-Sync Hall Effect Control Box with Presets

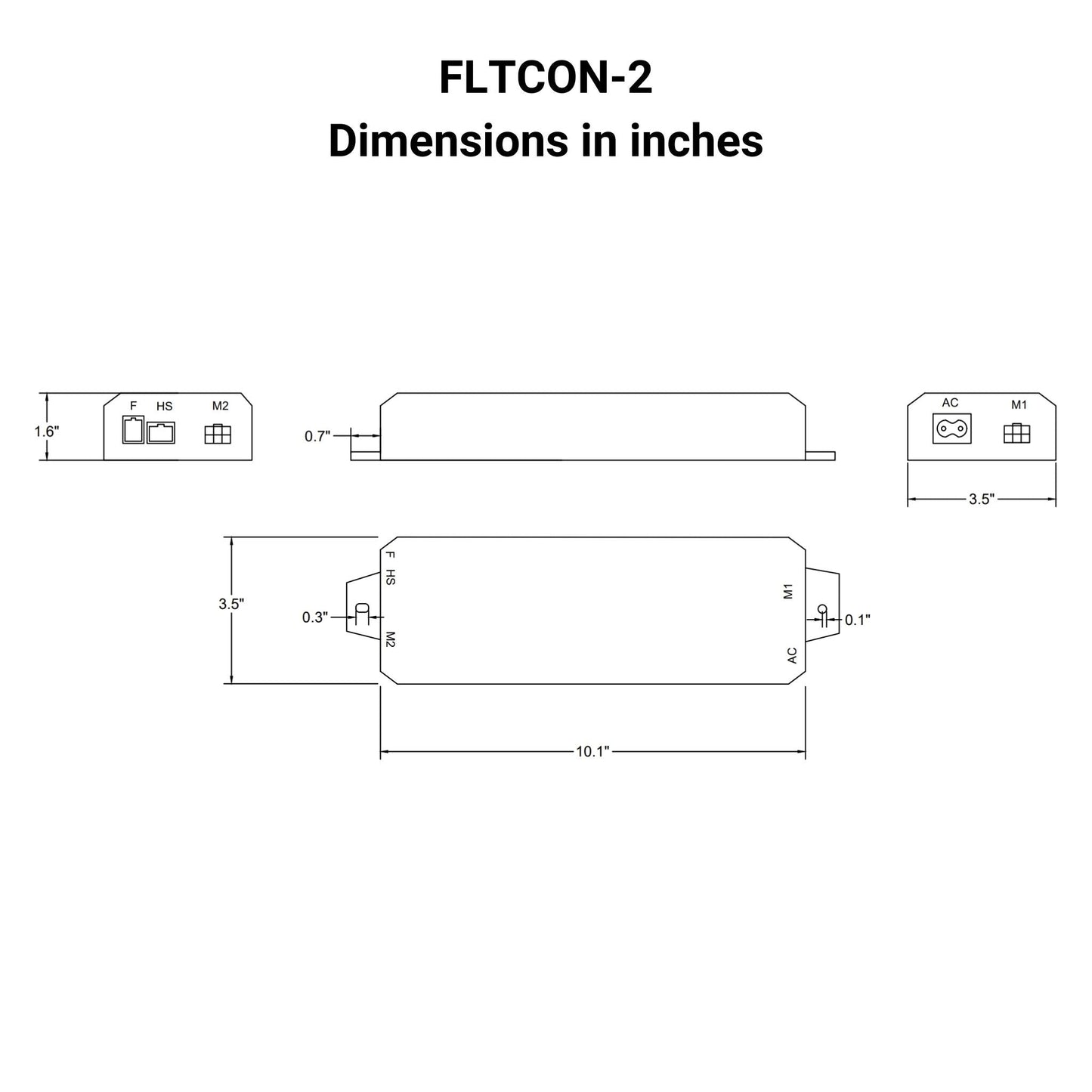

  • 110 VAC - 24 VDC - 2-Sync Hall Effect Control Box with Presets Dimensions in inches

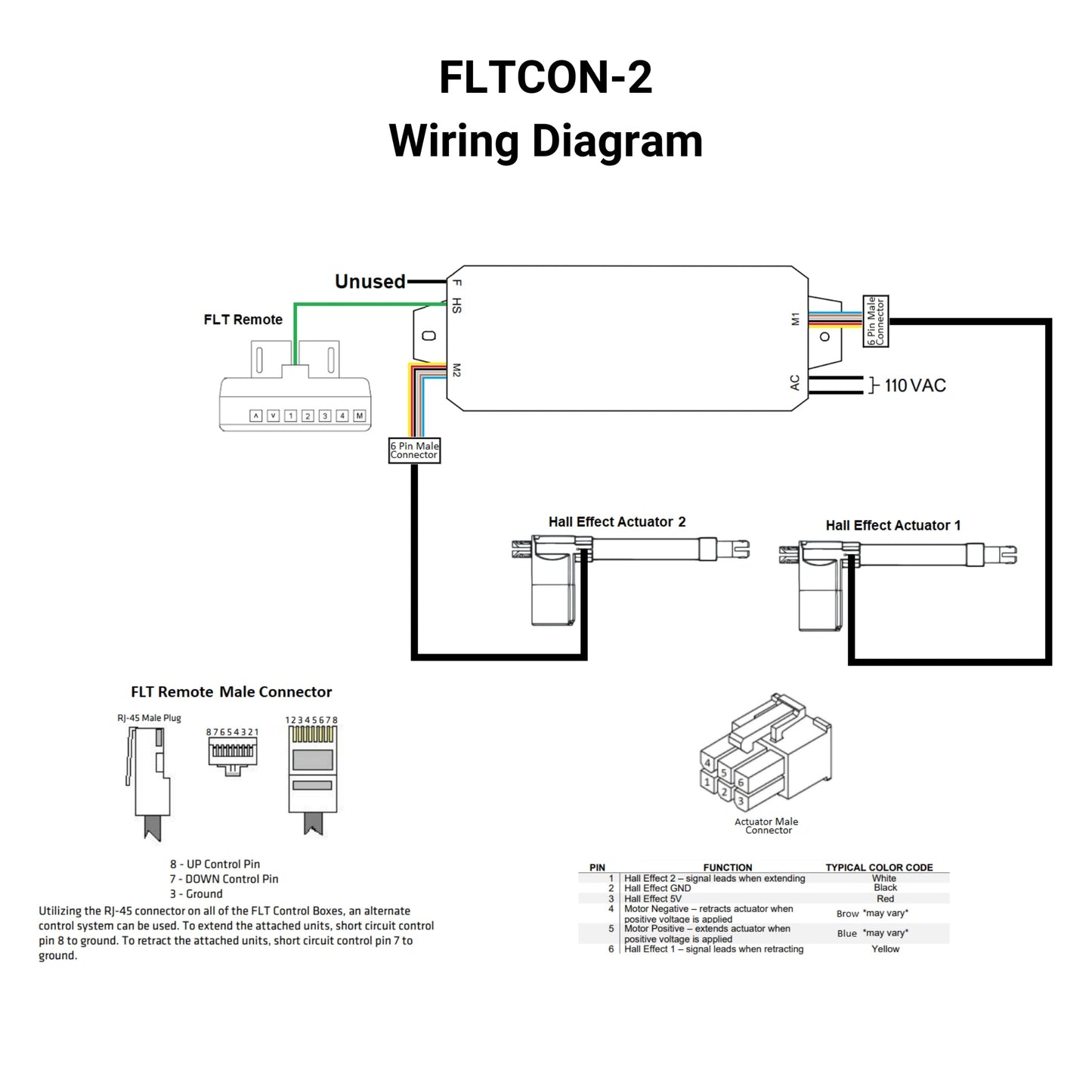

  • 110 VAC - 24 VDC - 2-Sync Hall Effect Control Box with Presets Wiring Diagram

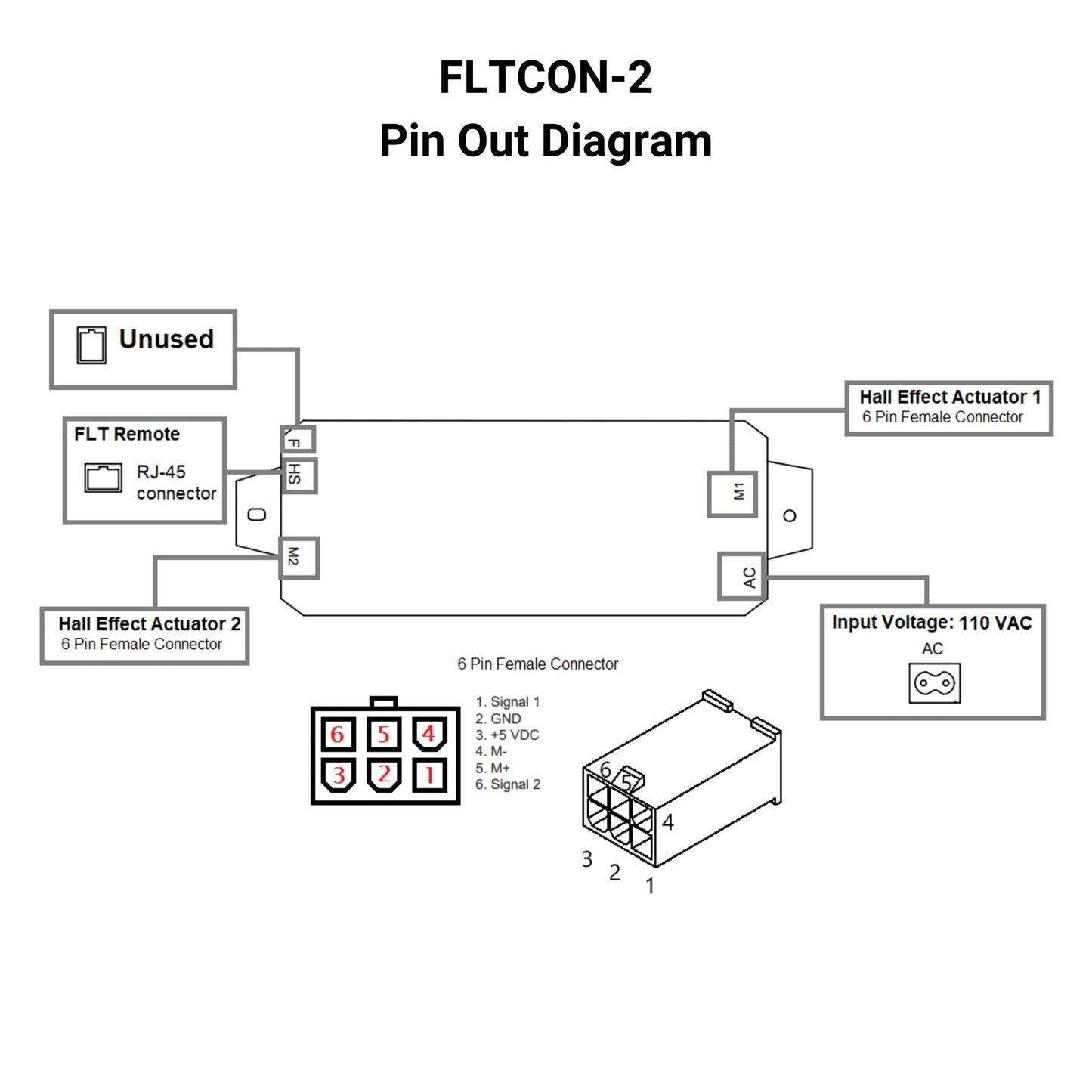

  • 110 VAC - 24 VDC - 2-Sync Hall Effect Control Box with Presets Pin Out Diagram
1 5

110 VAC - 24 VDC - 2-Sync Hall Effect Control Box with Presets

110 VAC - 24 VDC - 2-Sync Hall Effect Control Box with Presets

Benefits

  • Control Type: RT-11 Wired Remote (included)
  • Input Voltage: 220VAC
  • Output Voltage: 24VDC
  • Current Draw: 8 Amps (24VDC) per channel

  • Control Ability: 2 Hall Effect Actuators


Features

  • Overheat/duty cycle & overcurrent protection
  • 10% duty cycle (Max. 2 mins on, 18 mins off)
  • 2 channels for multiple actuators
  • CE, FCC Certifications
  • Simple plug-n-play wiring


Need more information?
Ask our experts.

Ask us
View full details
Description
FLTCON-2 Specifications

The FLTCON-2 Hall effect control box is a 2-channel control box that synchronizes the travel between two identical linear actuators or columns that are equipped with Hall effect sensors. We’ve specifically designed this unit to overcome common challenges found in many actuator control box solutions with hall effect feedback, such as:

  • Easy Setup: Plug-n-play connectors of our hall effect type actuators and FLTCON control boxes allow for fast and simple wiring to your system.
  • Control Type: The FLTCON control boxes come with an RT-11 remote that offers stylish designs, an LED display, and programmable features.
  • Smart Safety Features: The FLTCON series of control boxes are designed with smart safety features such as overcurrent and overheat/duty cycle protection.

Key Benefits and Features of the FLTCON-2

  • Actuator Compatibility: The 24 VDC output allows compatibility with a wide range of 24 VDC type hall effect actuators.
  • Input Voltage: Accepting 220VAC input voltage ensures the FLTCON-2 can plug directly into standard wall outlets for added user convenience.
  • Dual Hall Effect Control: 2 matching hall effect actuators can be simultaneously controlled to travel together synchronously.
  • Current Draw: The FLTCON-2 control box output channels have a current draw rating of 8 Amps each.
  • Programmable Settings: Our FLTCON control boxes allow for programmable features such as memory presets when paired with the included RT-11 programmable wired remote.
Please contact sales@progressiveautomations.com.au for programming requirements for this product.
FLTCON-2 Compatibility Chart Data Sheet
Overview
FLTCON-2 Specifications

The FLTCON-2 Hall effect control box is a 2-channel control box that synchronizes the travel between two identical linear actuators or columns that are equipped with Hall effect sensors. We’ve specifically designed this unit to overcome common challenges found in many actuator control box solutions with hall effect feedback, such as:

  • Easy Setup: Plug-n-play connectors of our hall effect type actuators and FLTCON control boxes allow for fast and simple wiring to your system.
  • Control Type: The FLTCON control boxes come with an RT-11 remote that offers stylish designs, an LED display, and programmable features.
  • Smart Safety Features: The FLTCON series of control boxes are designed with smart safety features such as overcurrent and overheat/duty cycle protection.

Key Benefits and Features of the FLTCON-2

  • Actuator Compatibility: The 24 VDC output allows compatibility with a wide range of 24 VDC type hall effect actuators.
  • Input Voltage: Accepting 220VAC input voltage ensures the FLTCON-2 can plug directly into standard wall outlets for added user convenience.
  • Dual Hall Effect Control: 2 matching hall effect actuators can be simultaneously controlled to travel together synchronously.
  • Current Draw: The FLTCON-2 control box output channels have a current draw rating of 8 Amps each.
  • Programmable Settings: Our FLTCON control boxes allow for programmable features such as memory presets when paired with the included RT-11 programmable wired remote.
Please contact sales@progressiveautomations.com.au for programming requirements for this product.
FLTCON-2 Compatibility Chart Data Sheet
Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Quality You Can Trust – Learn More

Data Sheets

FLTCON-2 Manual
FLTCON-2 Manual

User Manual for FLTCON-2

View
Knowledge base
Video & Articles
Videos
Related blog articles:
FLTCON Control boxes

How To Utilize FLTCON-2 & FLTCON-4 Control Boxes?

Nathan Bong

Our FLTCON control box series is primarily used to operate our table lifts and lifting column set...

Learn more

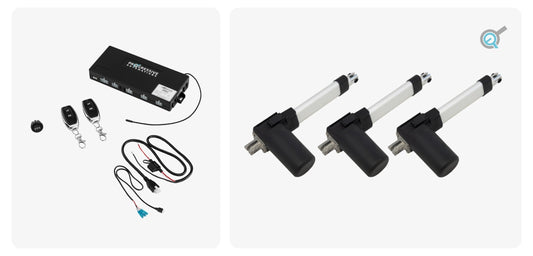

New PA-41 Control System: Controlling Multiple Linear Actuators

New PA-41 Control System: Controlling Multiple Linear Actuators

Nathan Bong

Many applications that operate with electromechanical systems require a single control system tha...

Learn more
FAQ
What actuator or lifting column models are compatible with the FLTCON-2, and how do I ensure proper synchronization?

Ensure FLTCON-2 compatibility by selecting actuators and lifting columns that have hall effect sensor feedback, 24 VDC operation, and current draw no higher than 8A each. To ensure actuator or lifting column synchronization, the setup requires two identical columns or two identical actuators paired together, similar wire length, and a reset procedure for initial setup. For more information, check our Control Boxes Compatibility Chart.

How does the FLTCON-2 synchronize two actuators or table lifts and what are the key setup requirements?

The hall effect synchronization process reads the positional feedback signals coming from the two actuators to determine their speed and adjusts the power being applied to them for the dual actuator sync effect. Key setup requirements include selecting two identical columns or two identical actuators paired together, similar wire length, and a reset procedure for initial setup.

Can the FLTCON-2 be used as a replacement for older table lift control boxes, and what should I check before replacement?

Assuming the older table lift was already previously using an FLTCON-2 with the same pinouts, mounting, power requirements, and programming requirements, a newer FLTCON-2 could be used as a replacement control box. For more information on compatibility with legacy models, reach out to our customer support team sales@progressiveautomations.com.

How do I enable Bluetooth functionality with the FLTCON-2 and what features are available in the Progressive Motion app?

Use our RT-BT1 Bluetooth Dongle to connect compatible FLTCON control boxes to your smartphone via the Progressive Motion app, available for both Android and iOS platforms. With this app, you can:

  • Adjust compatible linear actuators, lifting columns, and standing desk frames effortlessly.
  • Store and access your preferred height settings with four memory positions.
  • Manage multiple devices within a single interface for ultimate convenience.
What are the differences between FLTCON-2 and FLTCON-2-24VDC, and how do I choose the correct model for my application?

The FLTCON-2 accepts 110 VAC input voltage, while the FLTCON-2-24VDC accepts 24 VDC input voltage—choose based on the power supply types that are available around your installation.
