110 VAC - 24 VDC - 3-Sync Hall Effect Control Box with Presets
110 VAC - 24 VDC - 3-Sync Hall Effect Control Box with Presets
Benefits
- Control Type: RT-11 Wired Remote (included)
- Input Voltage: 220VAC
- Output Voltage: 24VDC
- Current Draw: 8 Amps (24VDC) per channel
-
Control Ability: 3 Hall Effect Actuators
Features
- Overheat/duty cycle & overcurrent protection
- 10% duty cycle (Max. 2 mins on, 18 mins off)
- 3 channels for multiple actuators
- CE, FCC Certifications
- Simple plug-n-play wiring

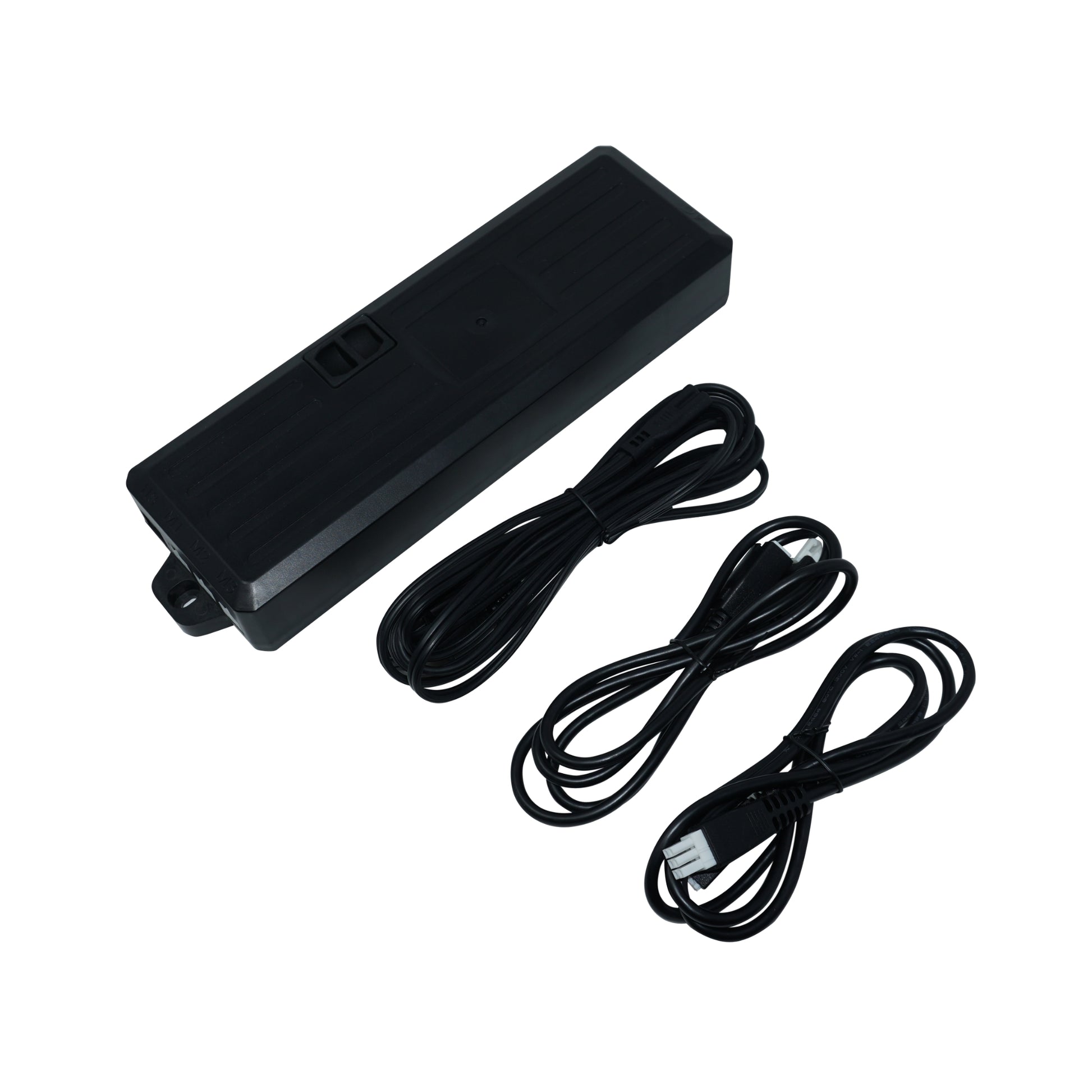

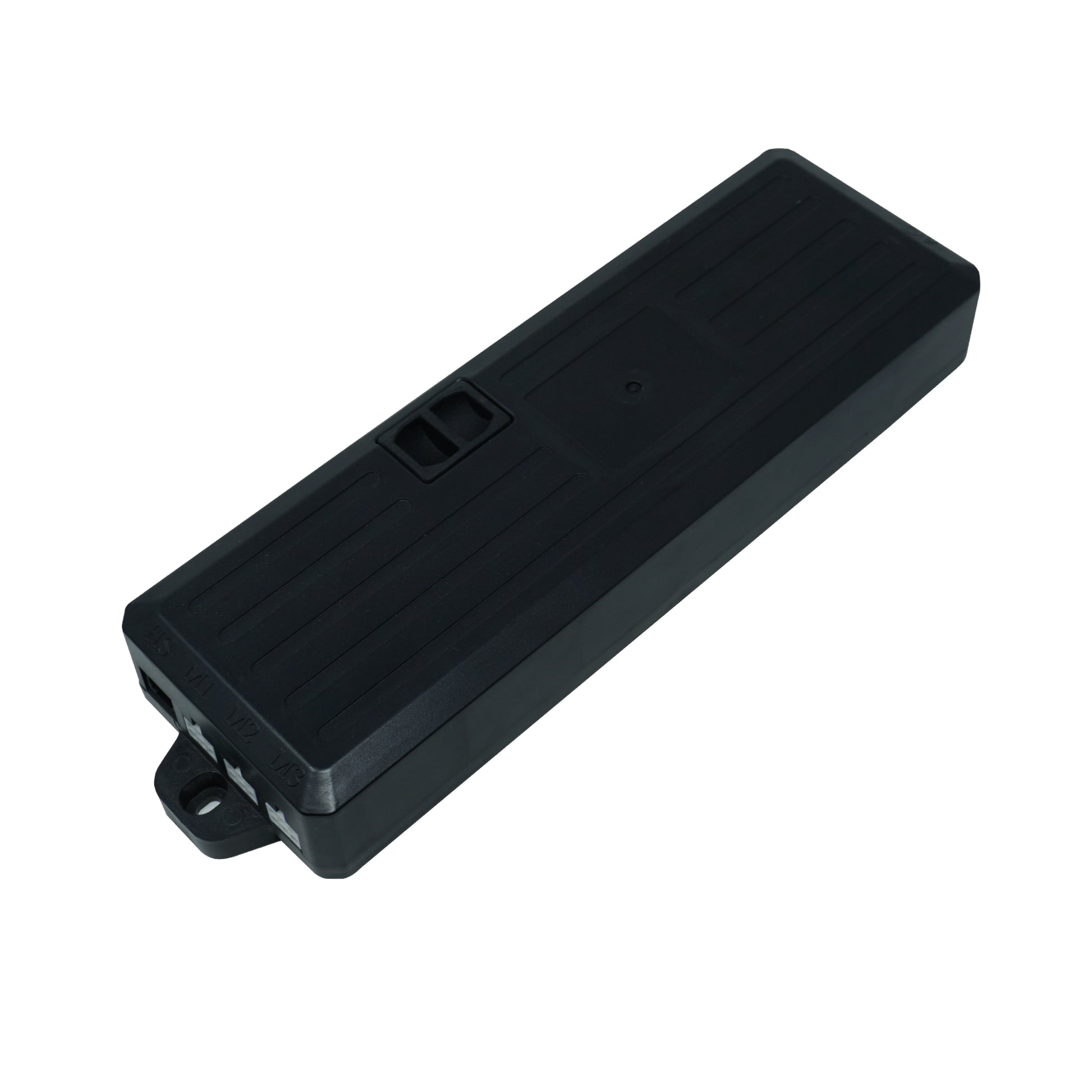

The FLTCON-3 is a hall effect control box designed to function with three identical 24 VDC hall effect linear actuators or lifting columns. We’ve specifically designed this unit to overcome common challenges found in many actuator control box solutions with hall effect feedback, such as:
- Easy Setup: Plug-n-play connectors of our hall effect type actuators and FLTCON control boxes allow for fast and simple wiring to your system.
- Control Type: The FLTCON control boxes come with an RT-11 remote that offers stylish designs, an LED display, and programmable features.
- Smart Safety Features: The FLTCON series of control boxes are designed with smart safety features such as overcurrent and overheat/duty cycle protection.
Key Benefits and Features of the FLTCON-3
- Actuator Compatibility: The 24 VDC output allows compatibility with a wide range of 24 VDC type hall effect actuators.
- Input Voltage: Accepting 220VAC input voltage ensures the FLTCON-3 can plug directly into standard wall outlets for added user convenience.
- 3 Hall Effect Control: 3 matching hall effect actuators can be simultaneously controlled to travel together synchronously.
- Current Draw: The FLTCON-3 control box output channels have a current draw rating of 8 Amps each.
- Programmable Settings: Our FLTCON control boxes allow for programmable features such as memory presets when paired with the included RT-11 programmable wired remote.
The FLTCON-3 is a hall effect control box designed to function with three identical 24 VDC hall effect linear actuators or lifting columns. We’ve specifically designed this unit to overcome common challenges found in many actuator control box solutions with hall effect feedback, such as:
- Easy Setup: Plug-n-play connectors of our hall effect type actuators and FLTCON control boxes allow for fast and simple wiring to your system.
- Control Type: The FLTCON control boxes come with an RT-11 remote that offers stylish designs, an LED display, and programmable features.
- Smart Safety Features: The FLTCON series of control boxes are designed with smart safety features such as overcurrent and overheat/duty cycle protection.
Key Benefits and Features of the FLTCON-3
- Actuator Compatibility: The 24 VDC output allows compatibility with a wide range of 24 VDC type hall effect actuators.
- Input Voltage: Accepting 220VAC input voltage ensures the FLTCON-3 can plug directly into standard wall outlets for added user convenience.
- 3 Hall Effect Control: 3 matching hall effect actuators can be simultaneously controlled to travel together synchronously.
- Current Draw: The FLTCON-3 control box output channels have a current draw rating of 8 Amps each.
- Programmable Settings: Our FLTCON control boxes allow for programmable features such as memory presets when paired with the included RT-11 programmable wired remote.
Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

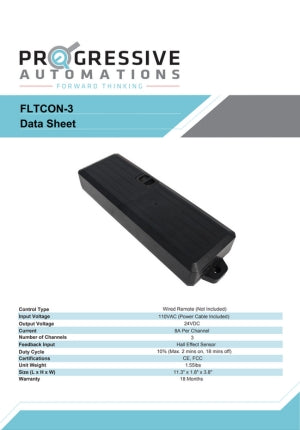

Quality You Can Trust – Learn MoreData Sheets
FLTCON-3 Manual
