110 VAC - 24 VDC - 4-Sync Hall Effect Control Box with Presets

110 VAC - 24 VDC - 4-Sync Hall Effect Control Box with Presets

Benefits

  • Control Type: RT-11 Wired Remote (included)
  • Input Voltage: 110-220 VAC
  • Output Voltage: 24VDC
  • Current Draw: 6.25A (24VDC) per channel
  • Control Ability: 4 Hall Effect Actuators


Features

  • Overheat/duty cycle & overcurrent protection
  • 10% duty cycle (Max. 2 mins on, 18 mins off)
  • 4 channels for multiple actuators
  • CE, FCC Certifications
  • Simple plug-n-play wiring


Need more information?
Ask our experts.

Ask us
View full details
Description
FLTCON-4 Specifications

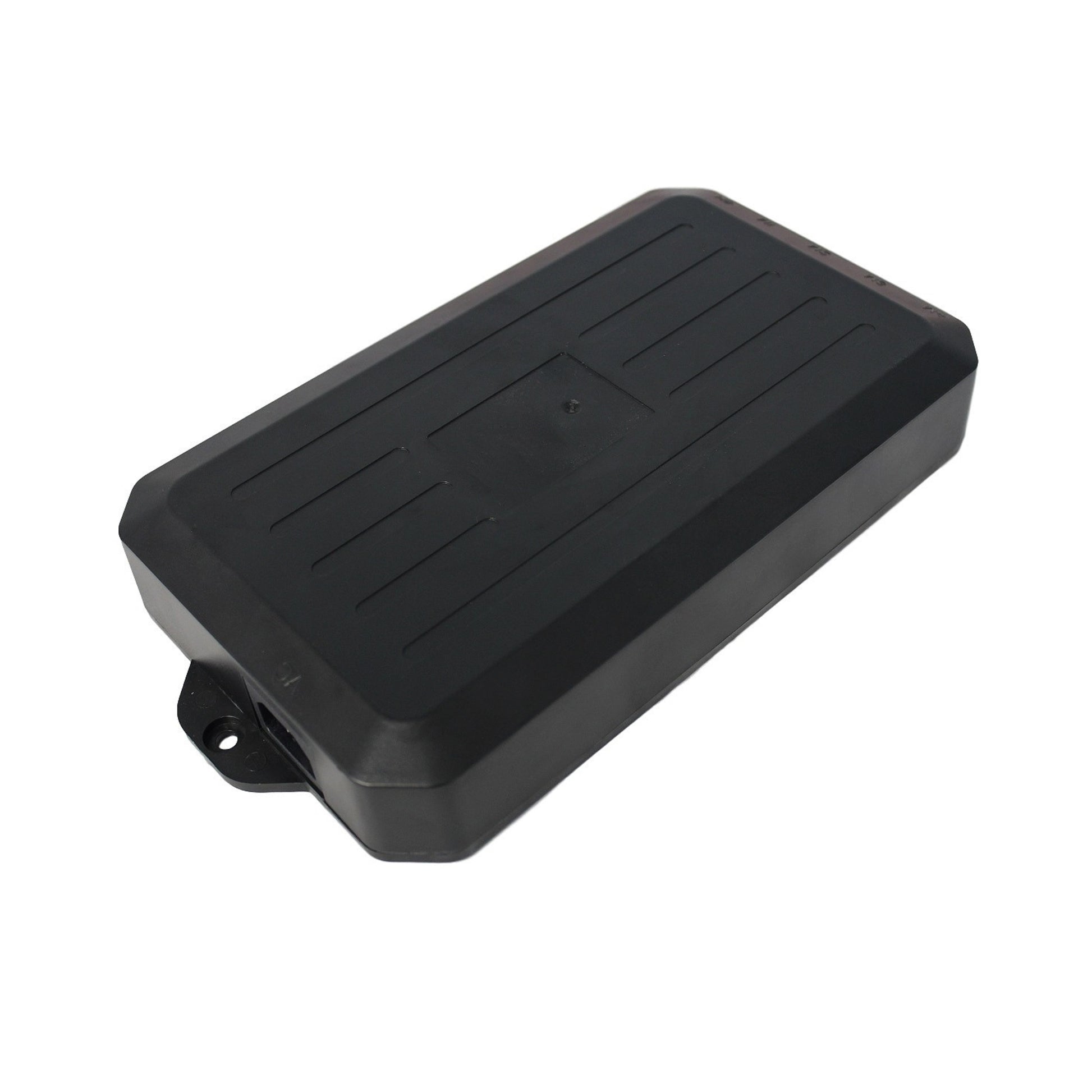

The FLTCON-4 is a hall effect control box designed to function with four identical 24 VDC hall effect linear actuators or lifting columns. We’ve specifically designed this unit to overcome common challenges found in many actuator control box solutions with hall effect feedback, such as:

  • Easy Setup: Plug-n-play connectors of our hall effect type actuators and FLTCON control boxes allow for fast and simple wiring to your system.
  • Control Type: The FLTCON control boxes come with an RT-11 remote that offers stylish designs, an LED display, and programmable features.
  • Smart Safety Features: The FLTCON series of control boxes are designed with smart safety features such as overcurrent and overheat/duty cycle protection.

Key Benefits and Features of the FLTCON-4

  • Actuator Compatibility: The 24 VDC output allows compatibility with a wide range of 24 VDC type hall effect actuators.

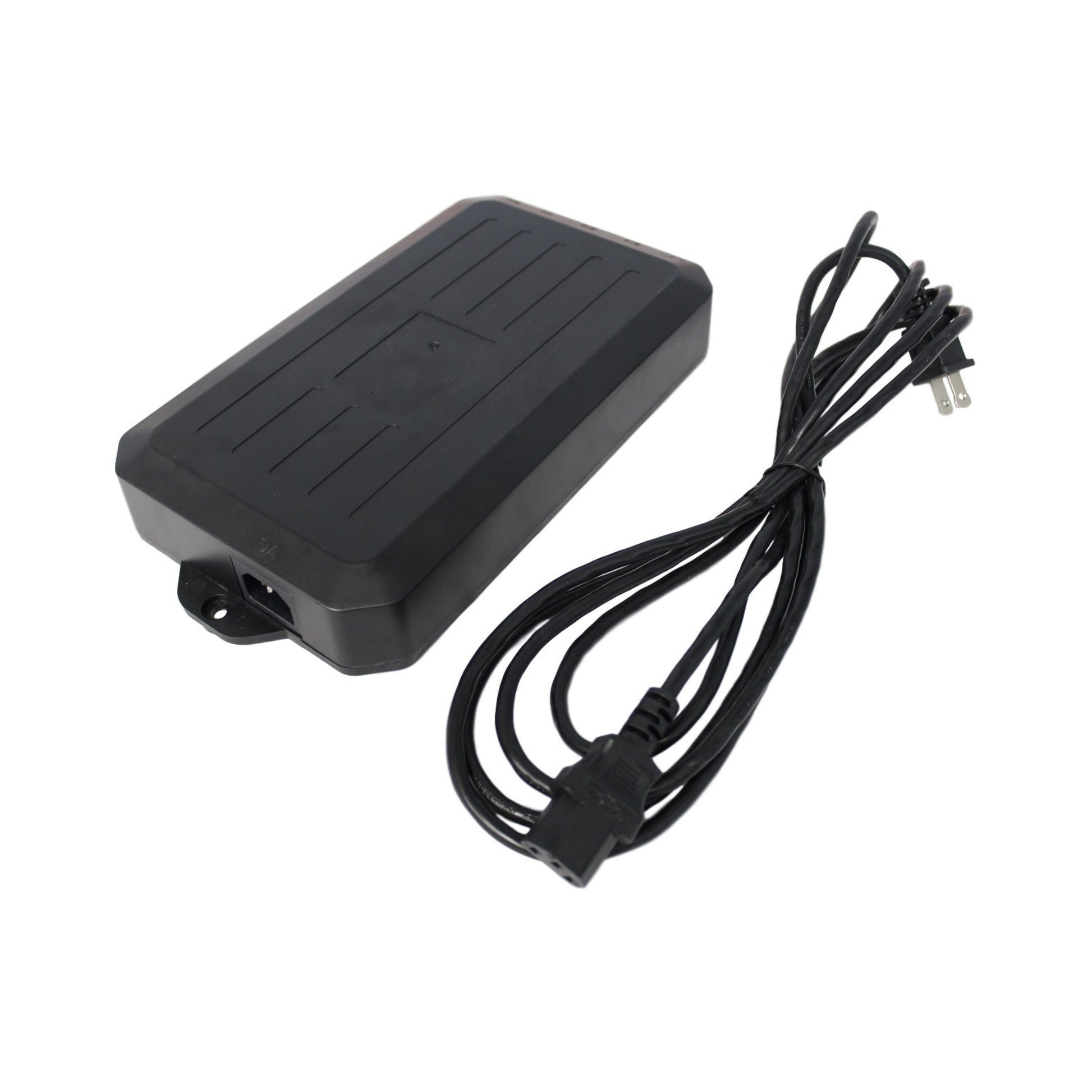

  • Input Voltage: Accepting 110-220 VAC input voltage ensures the FLTCON-4 can plug directly into standard wall outlets for added user convenience.

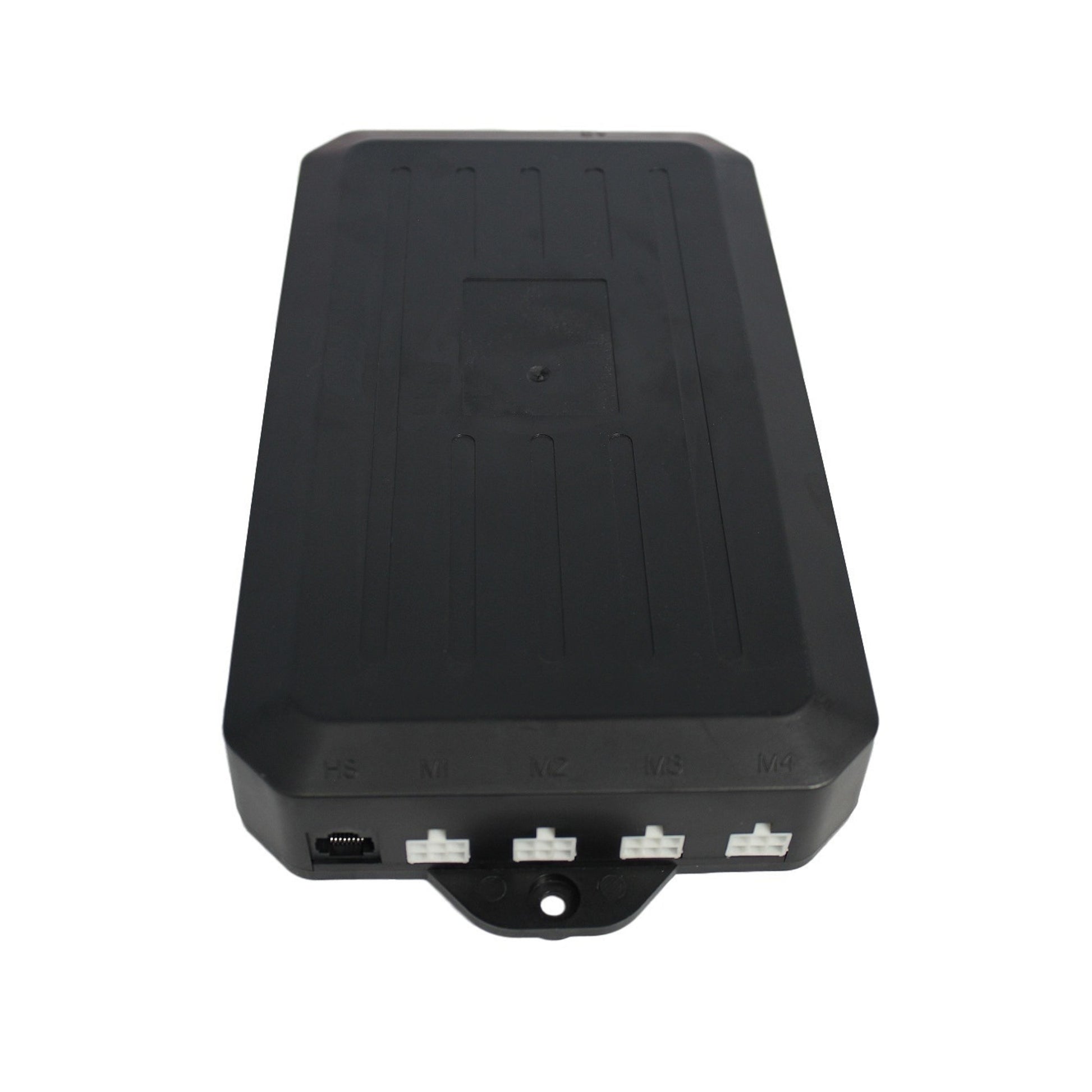

  • 4 Hall Effect Control: 4 matching hall effect actuators can be simultaneously controlled to travel together synchronously.
  • Current Draw: The FLTCON-4 control box output channels have a current draw rating of 6.25 Amps each.
  • Programmable Settings: Our FLTCON control boxes allow for programmable features such as memory presets when paired with the included RT-11 programmable wired remote.
Please contact sales@progressiveautomations.com.au for programming requirements for this product.
Overview
FLTCON-4 Specifications

The FLTCON-4 is a hall effect control box designed to function with four identical 24 VDC hall effect linear actuators or lifting columns. We’ve specifically designed this unit to overcome common challenges found in many actuator control box solutions with hall effect feedback, such as:

  • Easy Setup: Plug-n-play connectors of our hall effect type actuators and FLTCON control boxes allow for fast and simple wiring to your system.
  • Control Type: The FLTCON control boxes come with an RT-11 remote that offers stylish designs, an LED display, and programmable features.
  • Smart Safety Features: The FLTCON series of control boxes are designed with smart safety features such as overcurrent and overheat/duty cycle protection.

Key Benefits and Features of the FLTCON-4

  • Actuator Compatibility: The 24 VDC output allows compatibility with a wide range of 24 VDC type hall effect actuators.
  • Input Voltage: Accepting 110-220 VAC input voltage ensures the FLTCON-4 can plug directly into standard wall outlets for added user convenience.
  • 4 Hall Effect Control: 4 matching hall effect actuators can be simultaneously controlled to travel together synchronously.
  • Current Draw: The FLTCON-4 control box output channels have a current draw rating of 6.25 Amps each.
  • Programmable Settings: Our FLTCON control boxes allow for programmable features such as memory presets when paired with the included RT-11 programmable wired remote.
Please contact sales@progressiveautomations.com.au for programming requirements for this product.
Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Quality You Can Trust – Learn More

Data Sheets

FLTCON-4 Data Sheet

FLTCON-4 Data Sheet

View
Video & Articles
Videos
Related blog articles:
FLTCON Control boxes

How To Utilize FLTCON-2 & FLTCON-4 Control Boxes?

Nathan Bong

Our FLTCON control box series is primarily used to operate our table lifts and lifting column set...

Learn more
New PA-41 Control System: Controlling Multiple Linear Actuators

New PA-41 Control System: Controlling Multiple Linear Actuators

Nathan Bong

Many applications that operate with electromechanical systems require a single control system tha...

Learn more
FAQ
What actuators are compatible with the FLTCON-4 and how do I ensure proper synchronization for four channels?

Ensure FLTCON-4 compatibility by selecting actuators that have hall effect sensor feedback, 24 VDC operation, and current draw no higher than 6.25A each. To ensure proper synchronization, the setup requires 4 identical actuators paired together, similar wire length, and a reset procedure for initial setup. For more information, check our Control Boxes Compatibility Chart.

How can I use memory presets with the FLTCON-4 and what remote is needed to access this functionality?

The RT-11 recommended remote is the most popular for our FLTCON control boxes, which offers four memory presets, basic up/down keypads, and an LED display. With an RT-11 handset remote, move to a desired position using the UP and DOWN buttons, and then press a preset key to save; tap this preset key to recall the desired position.

Can I control the FLTCON-4 system wirelessly and what setup is needed for Bluetooth connectivity?

Wireless actuator control is possible with the RT-14 Wireless Remote and RF Receiver and/or use with our RT-BT1 Bluetooth Dongle. The RT-BT1 connects compatible FLTCON control boxes to your smartphone via the Progressive Motion app, available for both Android and iOS platforms.

Is the FLTCON-4 compatible as a replacement for FLT-04 table lifts, and what should I consider during the upgrade?

Assuming the FLT-04 table lift was already previously using an FLTCON-4 with the same pinouts, mounting, power requirements, and programming requirements, a newer FLTCON-4 could be used as a replacement control box. For more information on legacy table lift upgrades, reach out to our customer support team at sales@progressiveautomations.com.

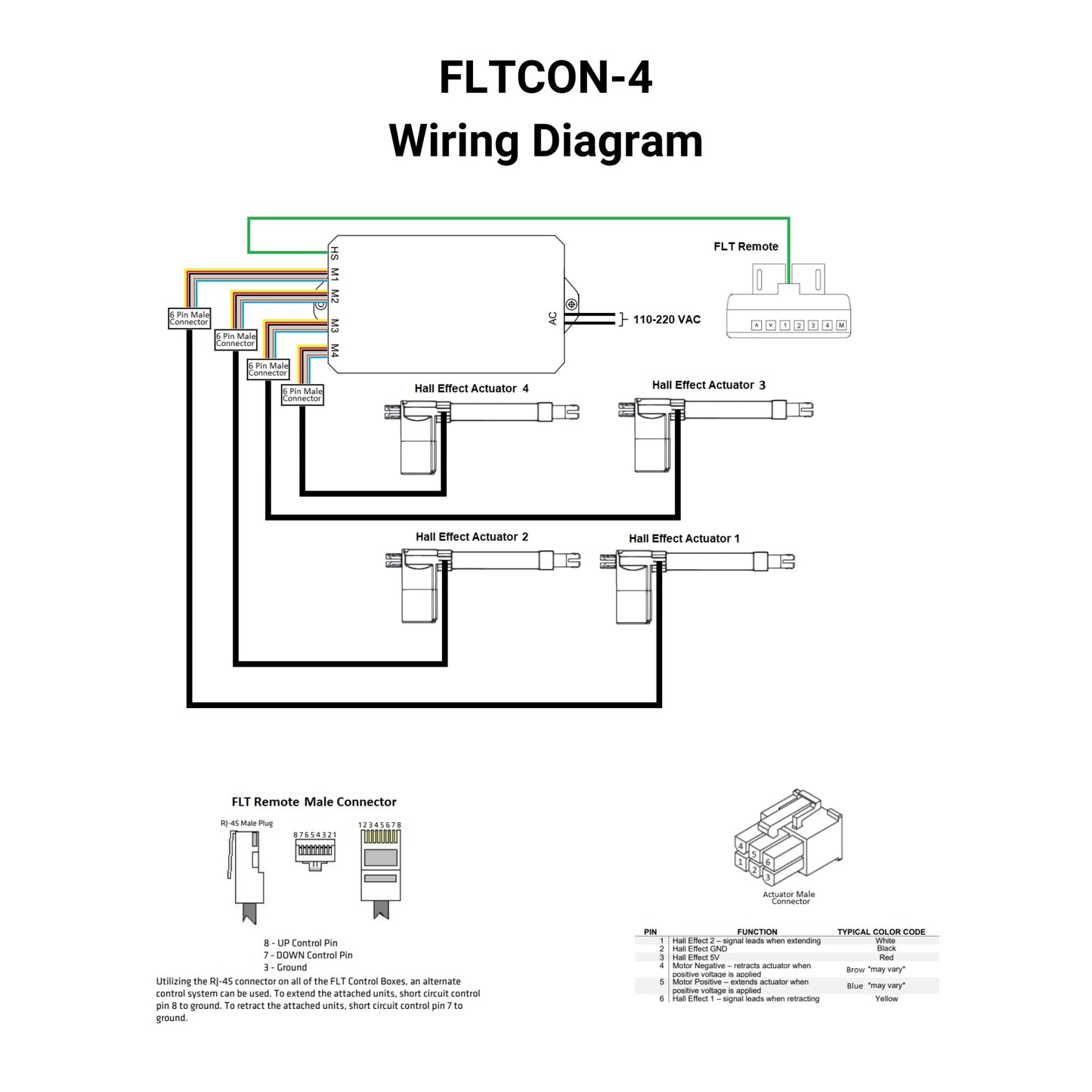

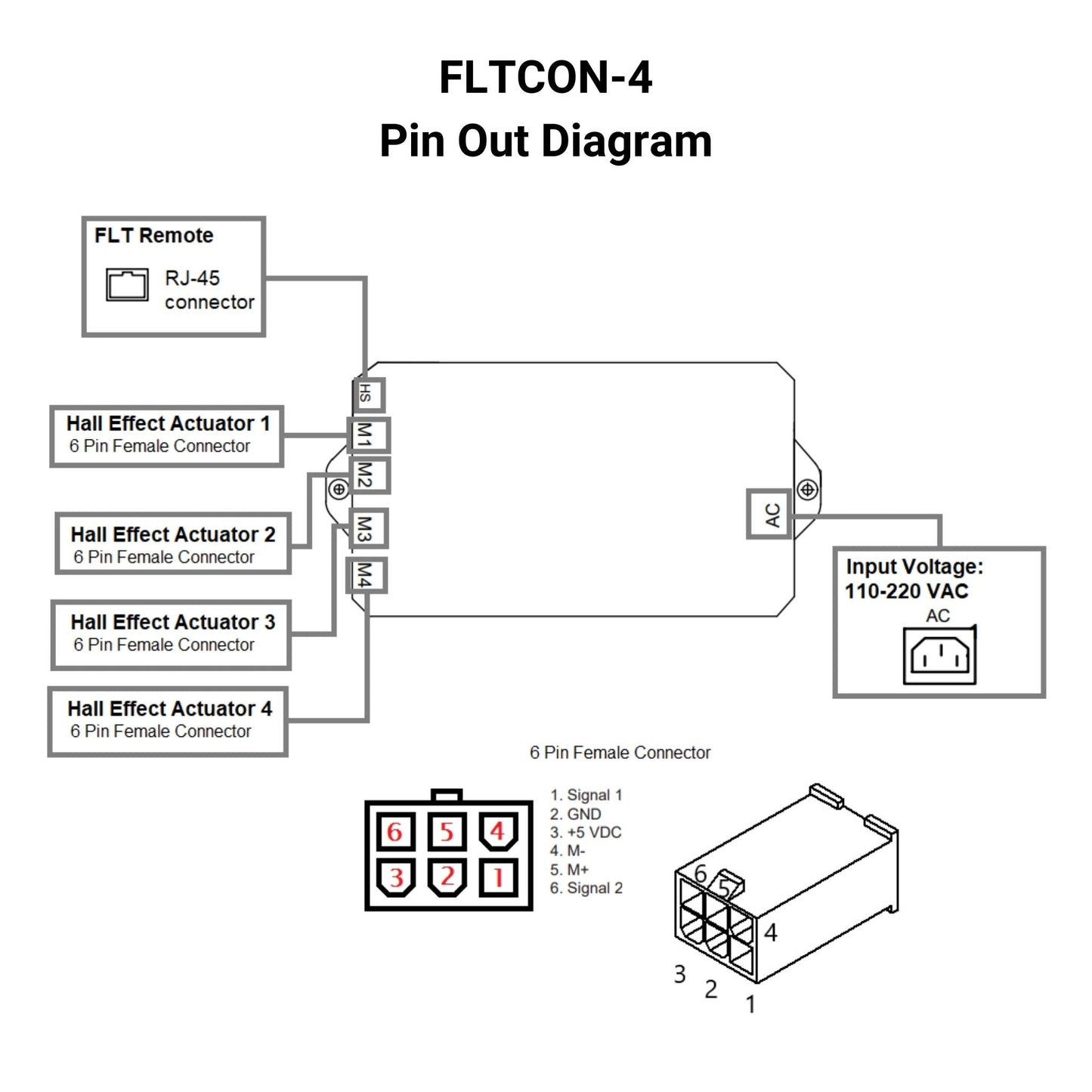

What are the power input and actuator output specs for the FLTCON-4 and how should the system be wired?

The FLTCON-4 accepts 110-220 VAC input power and has 24VDC actuator output ports that handle up to 6.25A per channel. To ensure safe operation, follow the 4-channel control box specs by wiring four matching 24V hall effect actuators that have similar wire length and do not draw over 6.25A of current each.
