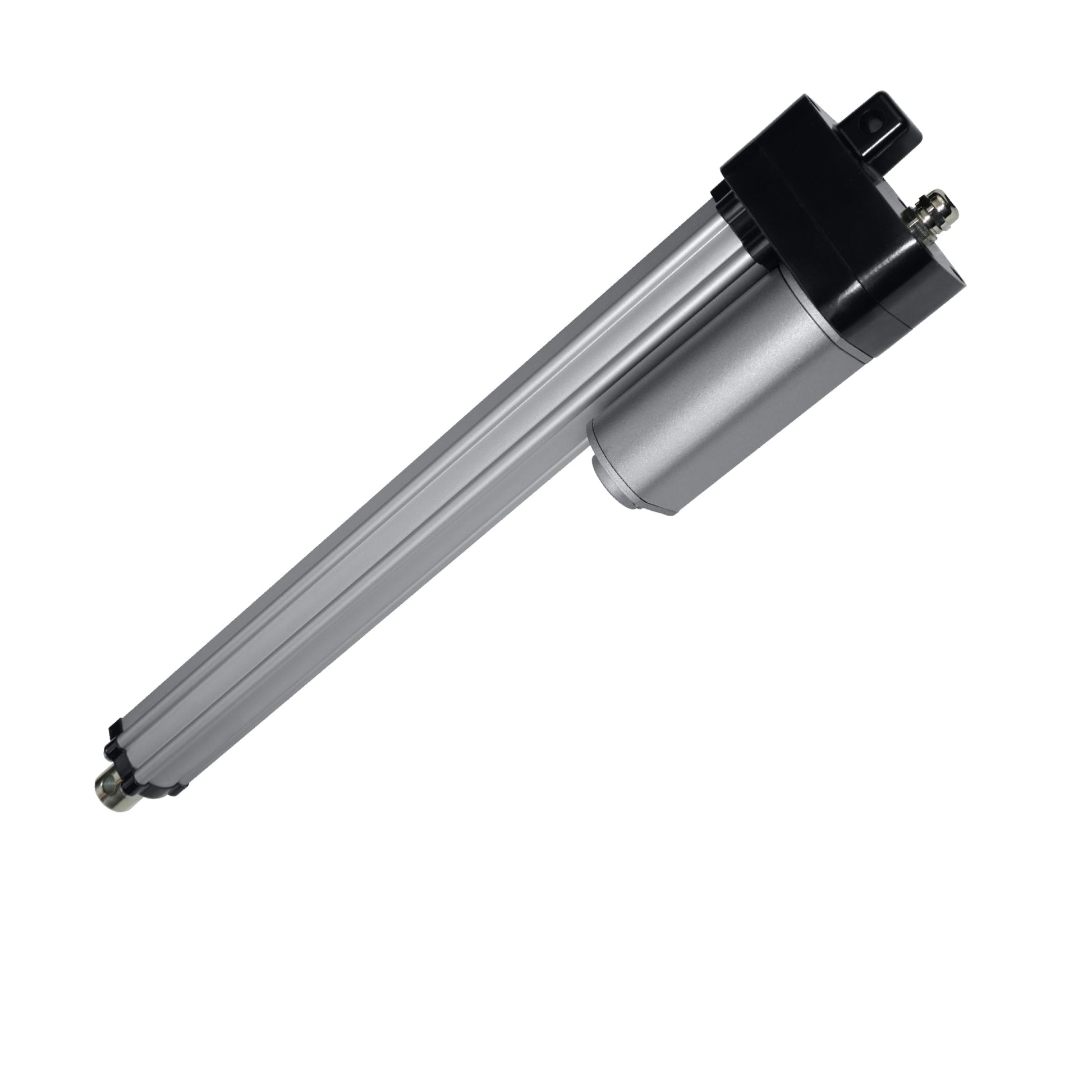

  • PA-10 waterproof electric linear actuator

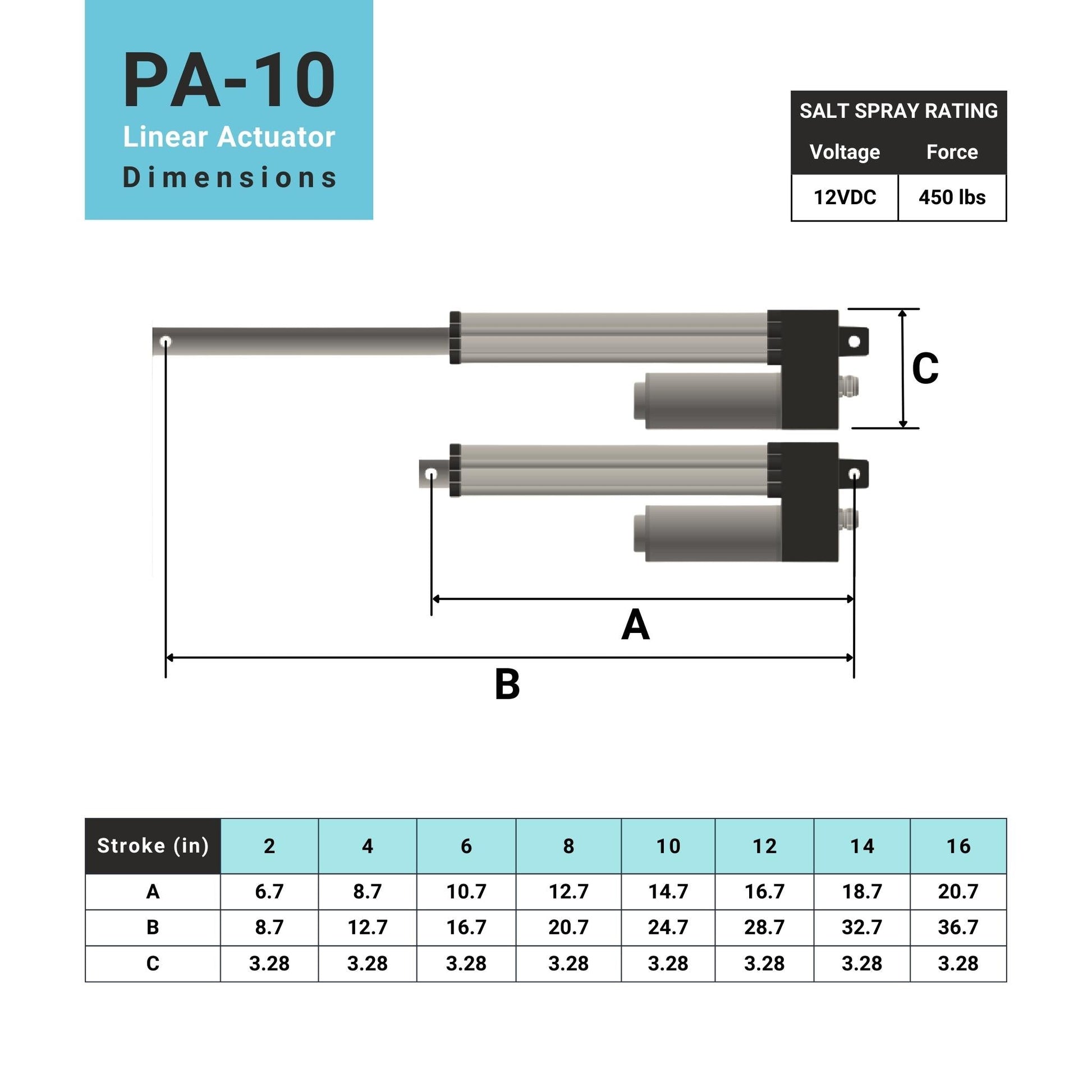

  • linear actuator dimensions

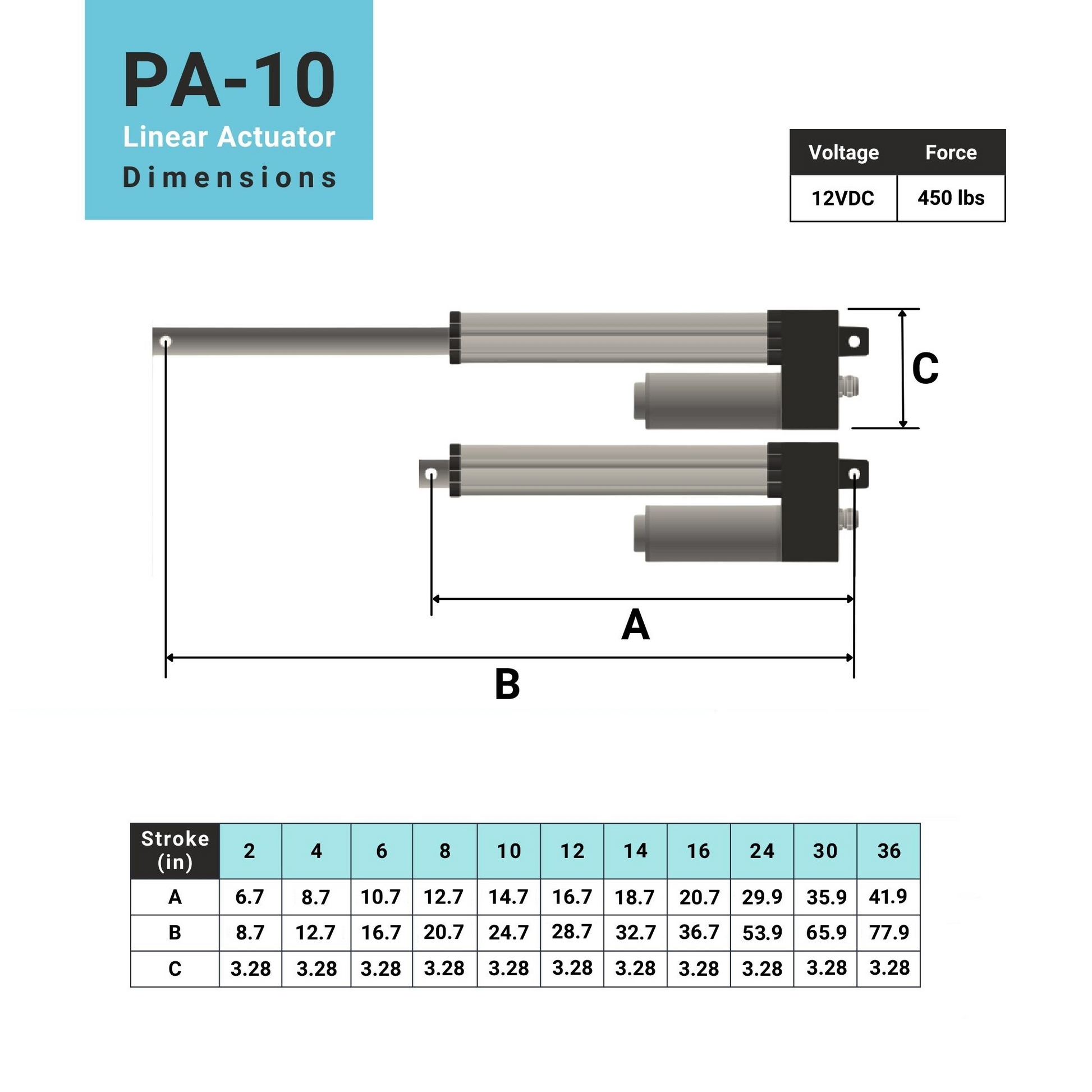

  • linear actuator dimensions 12vdc 450lbs

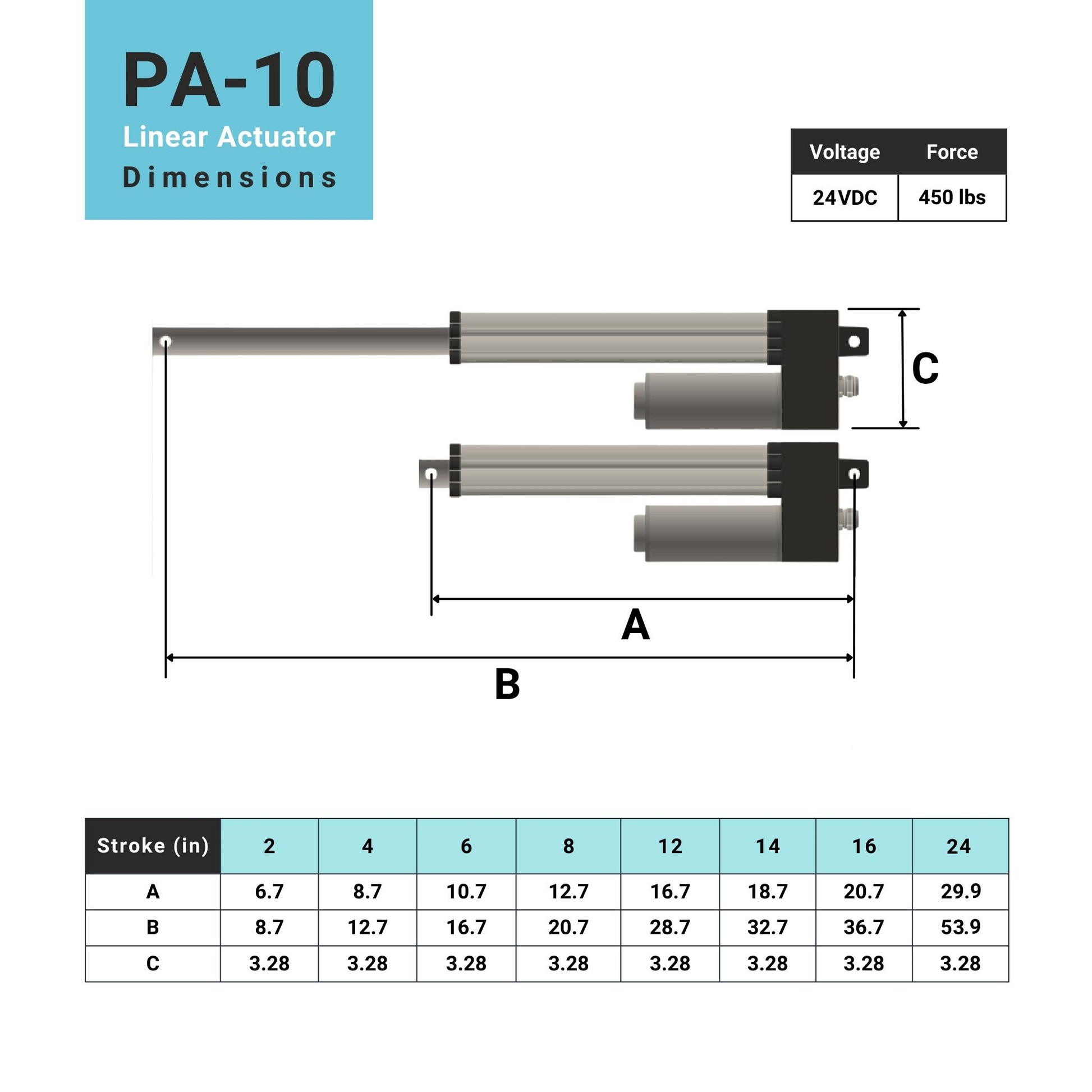

  • linear actuator dimensions 24vdc 450lbs

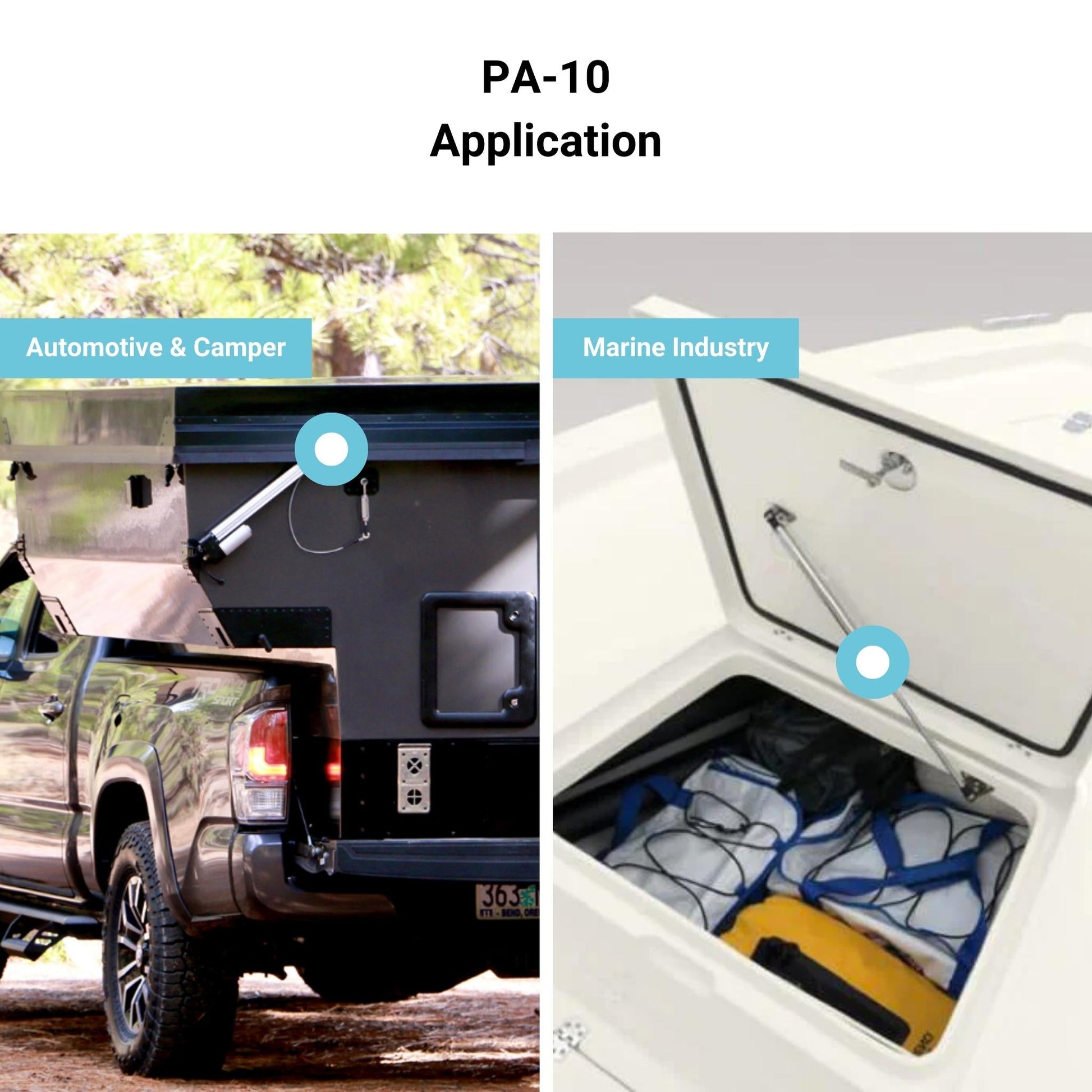

  • Waterproof Linear Actuator IP68M application options
  • IP68M electric linear actuator
  • waterproof linear actuator IP68M
  • waterproof linear actuator IP68M 2
  • waterproof linear actuator IP68M 2
1 11

Water-resistant Linear Actuator IP66 - Optional Feedback

Water-resistant Linear Actuator IP66 - Optional Feedback

Benefits

  • Durable Construction: Stainless Steel stroke rod, Anodic Oxidation housing (Standard), Porcelain Plating housing (Salt Spray Rating)
  • Ingress Protection Rating: IP66
  • Positional Feedback: Hall Effect Sensor Option
  • High Force Ratings: 2000 N dynamic and static
  • Voltage Compatibility: 12 or 24 VDC


Features

  • High-quality materials
  • Reliable brushed DC electric motor
  • 400-hour Salt Spray Rating option

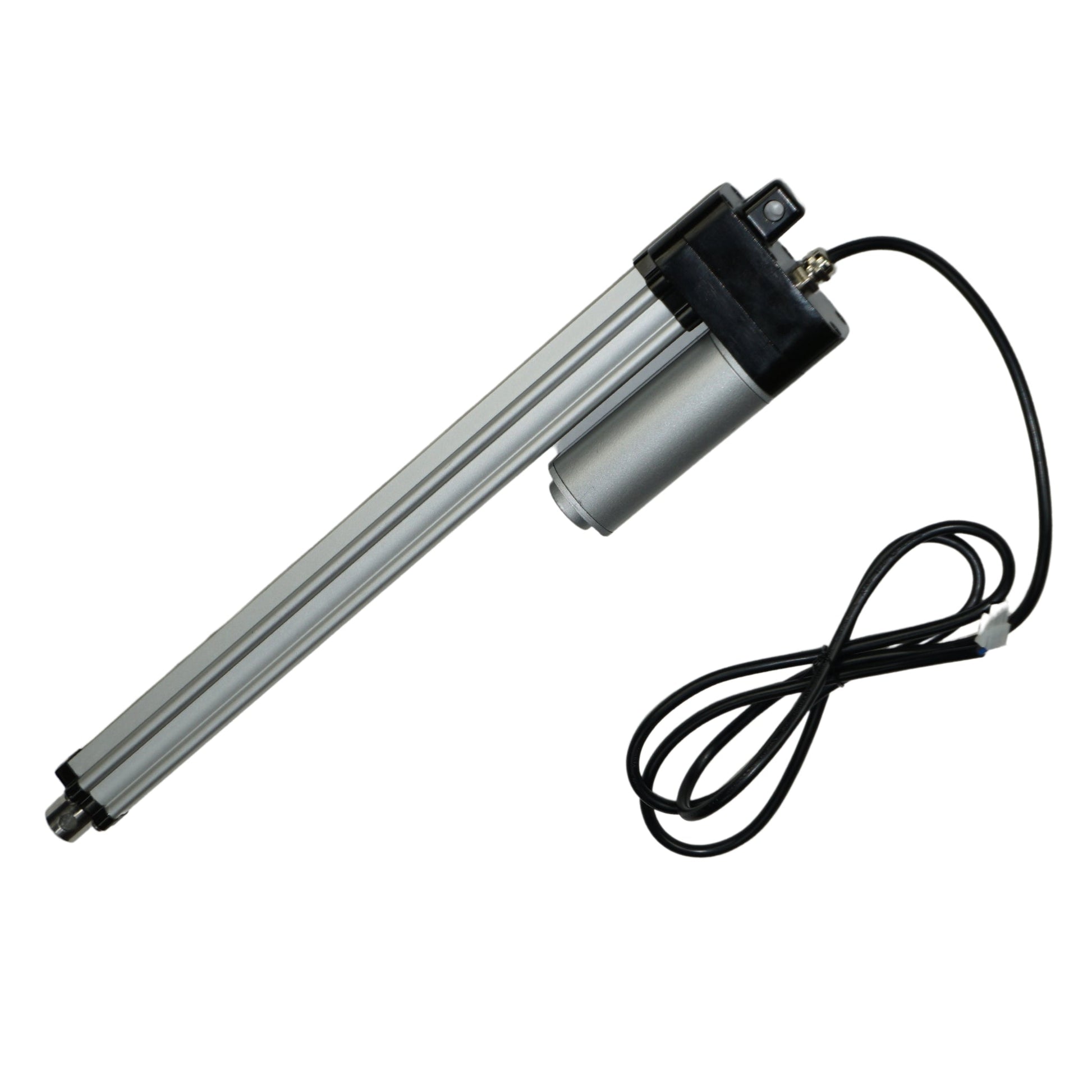

  • Simple 2-wire operation
  • Built-in, non-adjustable limit switches


Need more information?
Ask our experts.

Ask us
View full details
Description
PA-10 Specifications

The PA-10 water-resistant electric linear actuator has IP66 ingress protection rating to withstand harsh outdoor environments. We’ve specifically designed this unit to overcome common challenges found in many mini actuator solutions, such as:
  • Mechanical Wear and Tear: Many mini actuators are prone to early mechanical failures over time. The PA-10 actuator addresses this with robust construction and quality motors designed for longevity.
  • Safety Features: Built-in limit switches ensure the actuators automatically shut off electrical power when reaching the end of full retraction and extensions.
  • Water Ingress and Seals: Advanced seals in the PA-10 actuator provide robust water-resistant protection against ingress, extending the actuator's life in a wide range of harsh environments.

Key Benefits and Features of the PA-10

  • High Force Ratings: Designed with reliability and versatile capabilities to handle 2000 N dynamic and static force in a compact design.

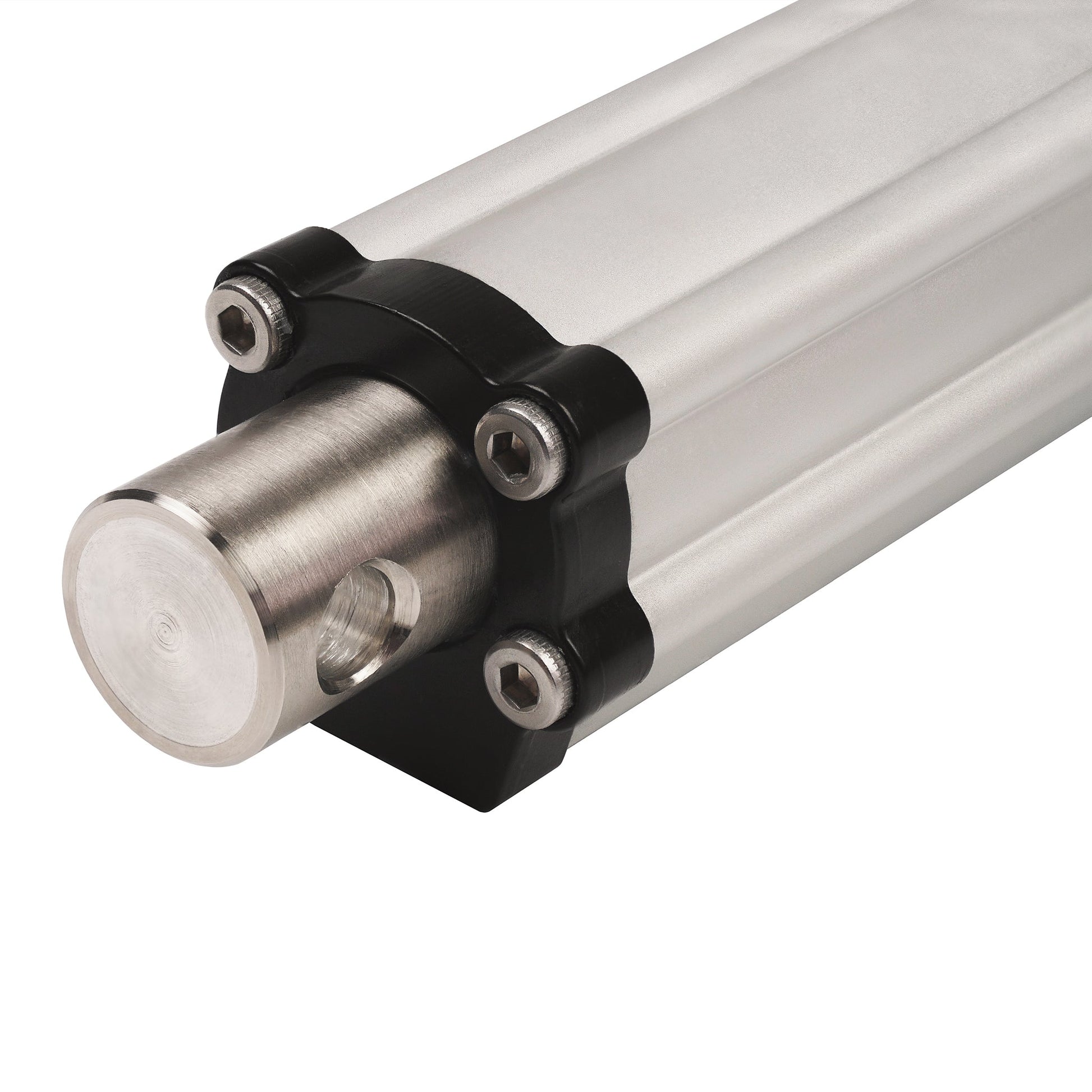

  • Durable Construction: Built with long-lasting materials, including a stainless steel stroke rod and anodic oxidation housing for standard or porcelain plating housing for salt spray rated versions, ensuring reliable performance even in harsh conditions.
  • Weather Protection: Rated IP66, offering excellent resistance against dust and water, making it suitable for a wide range of harsh environments.
  • Positional Feedback: The optional hall effect sensors allow for accuracy in reading position for precise movement such as synchronization and memory presets.
  • Integrated Limit Switches: Built-in, non-adjustable limit switches ensure precise control of the actuator's motion, enhancing safety and reliability.

Automotive, Industry, MOTORHOME, amp;, RV, CAMPERS, CABINETS, amp;, COUNTERS, Consumer, Goods, Industrial, amp;, Commercial, Industry, IRRIGATION, SYSTEM, FILTRATION, MACHINERY, CONVEYOR, SYSTEMS, AUTOMATED, STORAGE, amp;, RETRIEVAL, SYSTEMS, Mobile, amp;, Machinery, Industry, COMBINE, amp;, FORAGE, HARVESTERS, FRUIT, PICKERS, amp;, HARVESTERS, COMPACT, EXCAVATORS, LAWN, MOWERS, SNOW, PLOWS, amp;, BLOWERS, COMPACT, FORKLIFTS, Automotive Industry, MOTORHOME & RV, CAMPERS, CABINETS & COUNTERS, Consumer Goods, Industrial & Commercial Industry, IRRIGATION SYSTEM, FILTRATION MACHINERY, CONVEYOR SYSTEMS, AUTOMATED STORAGE & RETRIEVAL SYSTEMS, Mobile & Machinery Industry, COMBINE & FORAGE HARVESTERS, FRUIT PICKERS & HARVESTERS, COMPACT EXCAVATORS, LAWN MOWERS, SNOW PLOWS & BLOWERS, COMPACT FORKLIFTS,Automated Roof Hatch,Automated,Roof,Hatch,Drawer Slides,Drawer,Slide,Sprinkler & Nozzle Positioning,Sprinkler & Nozzle,Positioning,Sprinkler,Nozzle,Controlling Filtration Pressure,Controlling,Filtration,Pressure,Controlling Filtration,Automated Sorting,Automated,Sorting,Spout Adjustment,Spout,Adjustment,Adjusting Picking Mechanisms,Picking Mechanisms,Picking,pick,Automated Hood,Automated,Hood,Adjusting Grass Collection Systems,Adjusting Grass,Collection Systems,Adjusting ,Grass,Collection,System,Chute Adjustment,Chute

Actuators Comparison Chart Browse More Actuators
Get Free Actuator Guide Data Sheet
Overview
PA-10 Specifications

The PA-10 water-resistant electric linear actuator has IP66 ingress protection rating to withstand harsh outdoor environments. We’ve specifically designed this unit to overcome common challenges found in many mini actuator solutions, such as:
  • Mechanical Wear and Tear: Many mini actuators are prone to early mechanical failures over time. The PA-10 actuator addresses this with robust construction and quality motors designed for longevity.
  • Safety Features: Built-in limit switches ensure the actuators automatically shut off electrical power when reaching the end of full retraction and extensions.
  • Water Ingress and Seals: Advanced seals in the PA-10 actuator provide robust water-resistant protection against ingress, extending the actuator's life in a wide range of harsh environments.

Key Benefits and Features of the PA-10

  • High Force Ratings: Designed with reliability and versatile capabilities to handle 2000 N dynamic and static force in a compact design.
  • Durable Construction: Built with long-lasting materials, including a stainless steel stroke rod and anodic oxidation housing for standard or porcelain plating housing for salt spray rated versions, ensuring reliable performance even in harsh conditions.
  • Weather Protection: Rated IP66, offering excellent resistance against dust and water, making it suitable for a wide range of harsh environments.
  • Positional Feedback: The optional hall effect sensors allow for accuracy in reading position for precise movement such as synchronization and memory presets.
  • Integrated Limit Switches: Built-in, non-adjustable limit switches ensure precise control of the actuator's motion, enhancing safety and reliability.

Automotive, Industry, MOTORHOME, amp;, RV, CAMPERS, CABINETS, amp;, COUNTERS, Consumer, Goods, Industrial, amp;, Commercial, Industry, IRRIGATION, SYSTEM, FILTRATION, MACHINERY, CONVEYOR, SYSTEMS, AUTOMATED, STORAGE, amp;, RETRIEVAL, SYSTEMS, Mobile, amp;, Machinery, Industry, COMBINE, amp;, FORAGE, HARVESTERS, FRUIT, PICKERS, amp;, HARVESTERS, COMPACT, EXCAVATORS, LAWN, MOWERS, SNOW, PLOWS, amp;, BLOWERS, COMPACT, FORKLIFTS, Automotive Industry, MOTORHOME & RV, CAMPERS, CABINETS & COUNTERS, Consumer Goods, Industrial & Commercial Industry, IRRIGATION SYSTEM, FILTRATION MACHINERY, CONVEYOR SYSTEMS, AUTOMATED STORAGE & RETRIEVAL SYSTEMS, Mobile & Machinery Industry, COMBINE & FORAGE HARVESTERS, FRUIT PICKERS & HARVESTERS, COMPACT EXCAVATORS, LAWN MOWERS, SNOW PLOWS & BLOWERS, COMPACT FORKLIFTS,Automated Roof Hatch,Automated,Roof,Hatch,Drawer Slides,Drawer,Slide,Sprinkler & Nozzle Positioning,Sprinkler & Nozzle,Positioning,Sprinkler,Nozzle,Controlling Filtration Pressure,Controlling,Filtration,Pressure,Controlling Filtration,Automated Sorting,Automated,Sorting,Spout Adjustment,Spout,Adjustment,Adjusting Picking Mechanisms,Picking Mechanisms,Picking,pick,Automated Hood,Automated,Hood,Adjusting Grass Collection Systems,Adjusting Grass,Collection Systems,Adjusting ,Grass,Collection,System,Chute Adjustment,Chute

Actuators Comparison Chart Browse More Actuators
Get Free Actuator Guide Data Sheet
Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Quality You Can Trust – Learn More

Data Sheets

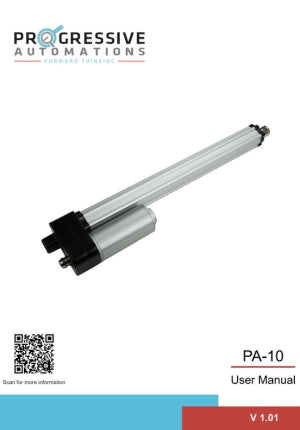

PA-10 User Manual
PA-10 User Manual

User Manual for PA-10

View

2D/3D models

3D Models

3D Models

Different stroke lengths of models are available upon request, please email us at: sales@progressiveautomations.com

Knowledge base
Video & Articles
Videos
Related blog articles:
How to Prevent Water Damage to your Actuator

How to Prevent Water Damage to your Actuator

Nathan Bong

Electric Linear Actuators are used to automate different types of applications in different envir...

Learn more

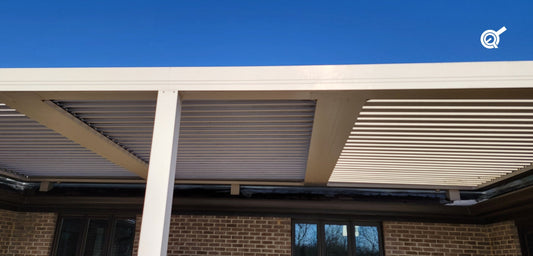

Motorized Louvered Roof Pergola Upgrade with PA-10 Actuators

Motorized Louvered Roof Pergola Upgrade with PA-10 Actuators

Nathan Bong

Motorized louvered roofs offer a convenient and efficient way of making accurate adjustments, pos...

Learn more
ATX West 2020 Trade Show

ATX West 2020 Trade Show

Nathan Bong

Progressive Automations just got back from the ATX West show. This trade show and conference are ...

Learn more

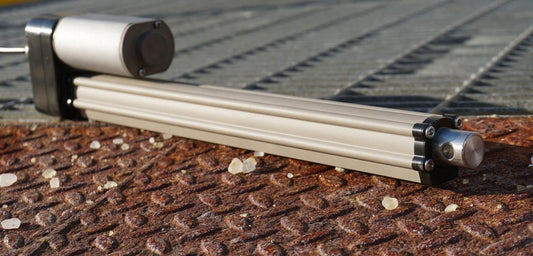

Salt Spray Testing to Evaluate Corrosion Resistance

Salt Spray Testing to Evaluate Corrosion Resistance

Mark Luciano

A salt spray test is a standardized and popular testing method conducted to evaluate corrosion re...

Learn more
FAQ
What makes the PA-10 actuator suitable for outdoor and harsh environment applications?

The PA-10 water-resistant actuator offers an IP66 linear actuator ingress protection rating, making it dust-tight and resistant to powerful water jets. This weatherproofing ensures it can be used in harsh conditions where exposure to the elements is common.

What is the Salt Spray rated version of the PA-10 and when should it be used?

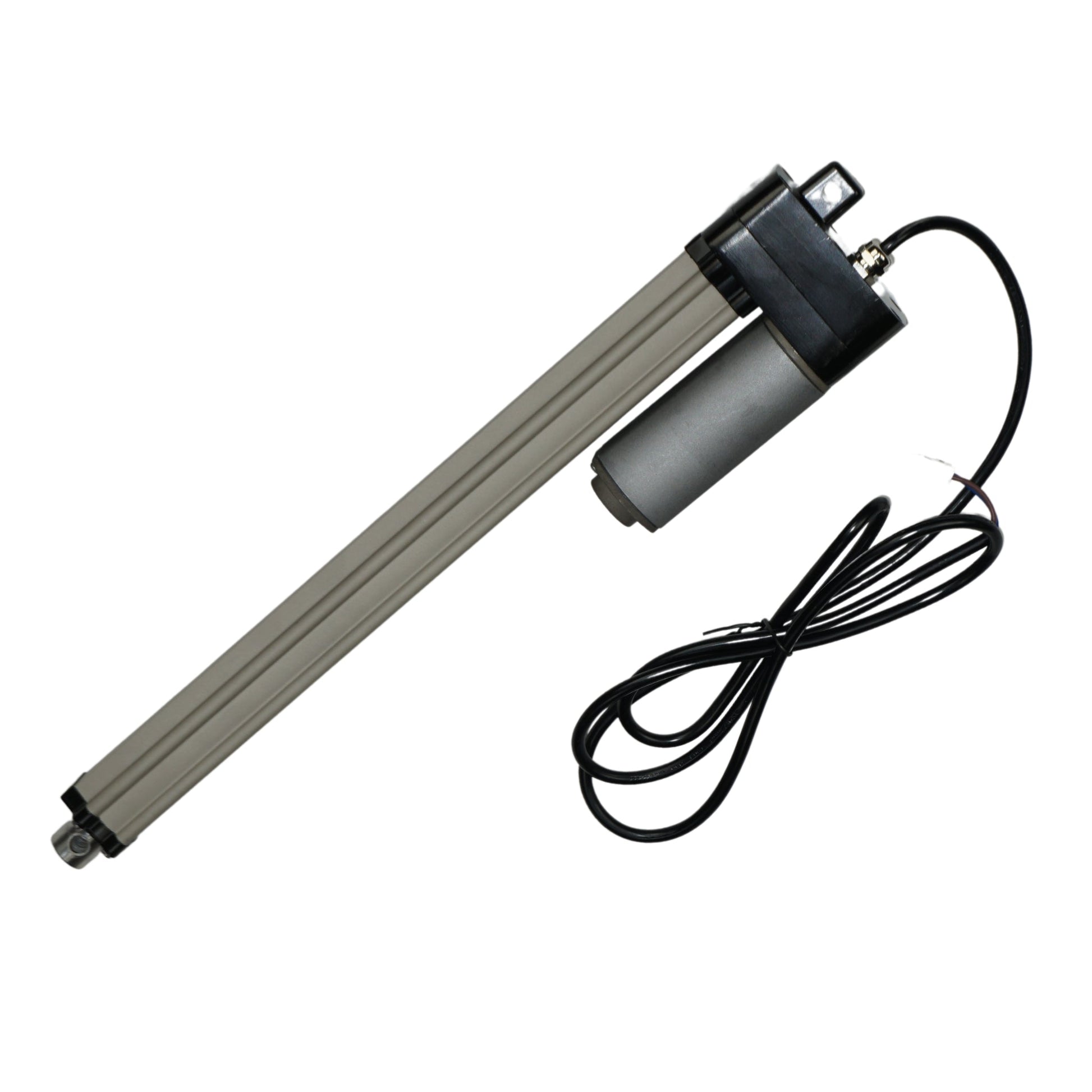

The PA-10 salt spray actuator is a version that includes a porcelain-plated housing to resist corrosion from salt exposure. It is ideal for applications requiring a marine actuator or corrosion-resistant actuator in installations near coastal environments.

How does the low power draw of the PA-10 benefit battery-operated systems?

The PA-10 low current actuator is designed for efficient low power operation, which helps extend battery life in 12VDC applications. This makes it suitable for off-grid systems, vehicles, or solar-powered setups that require low actuator power consumption.

What mounting options are available for the PA-10 and how does the 180° rotation feature work?

The PA-10 is compatible with the BRK-09 bracket, which allows for actuator mounting flexibility and full 180° rotation through the included pivoting cotter and clevis pin. This rotation provides greater installation versatility, particularly in tight or angled spaces.

Can the PA-10 be customized for stroke length, force, or feedback?

Yes, the PA-10 has actuator customization options to meet specific application requirements, including various stroke length options, force ratings, and optional Hall effect sensor feedback.
