12 VDC Control Box - 2 Channel - 30A - Parallel Control - Speed Control - Wireless Remote
12 VDC Control Box - 2 Channel - 30A - Parallel Control - Speed Control - Wireless Remote
Benefits
- Wireless Remote: 9.1-15.2 m distance (open air)
- In-line Fuse: Short Circuit Protection
- Input and Output Voltage: 12 VDC
- Control Ability: 2 Actuators Individually
-
Current: 15 Amps (each channel)
Features
- Momentary and non-momentary capabilities
- RF Frequency: 433Mhz
- Dual channels for multiple actuators
- 2 hand remotes included

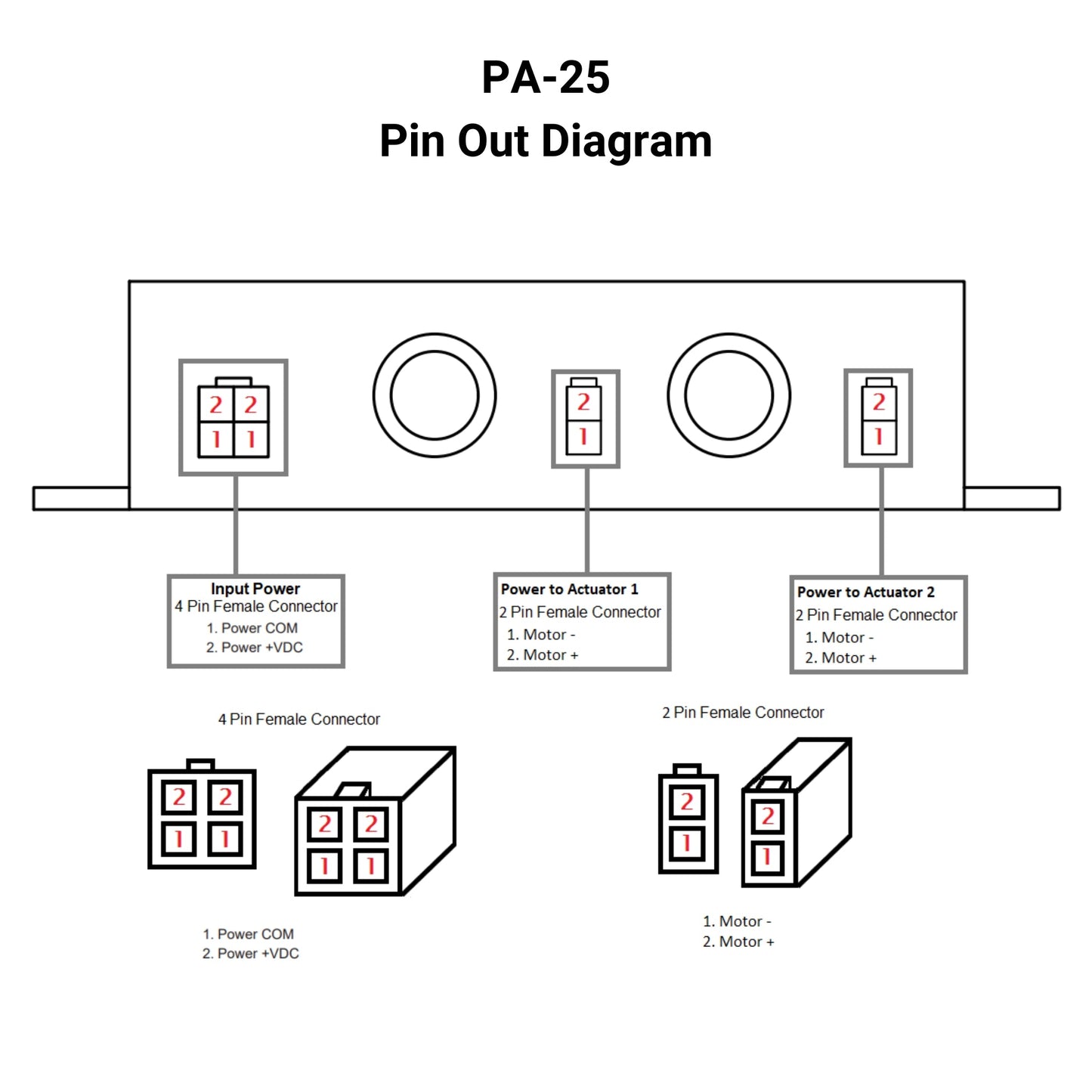

- Simple plug-n-play wiring

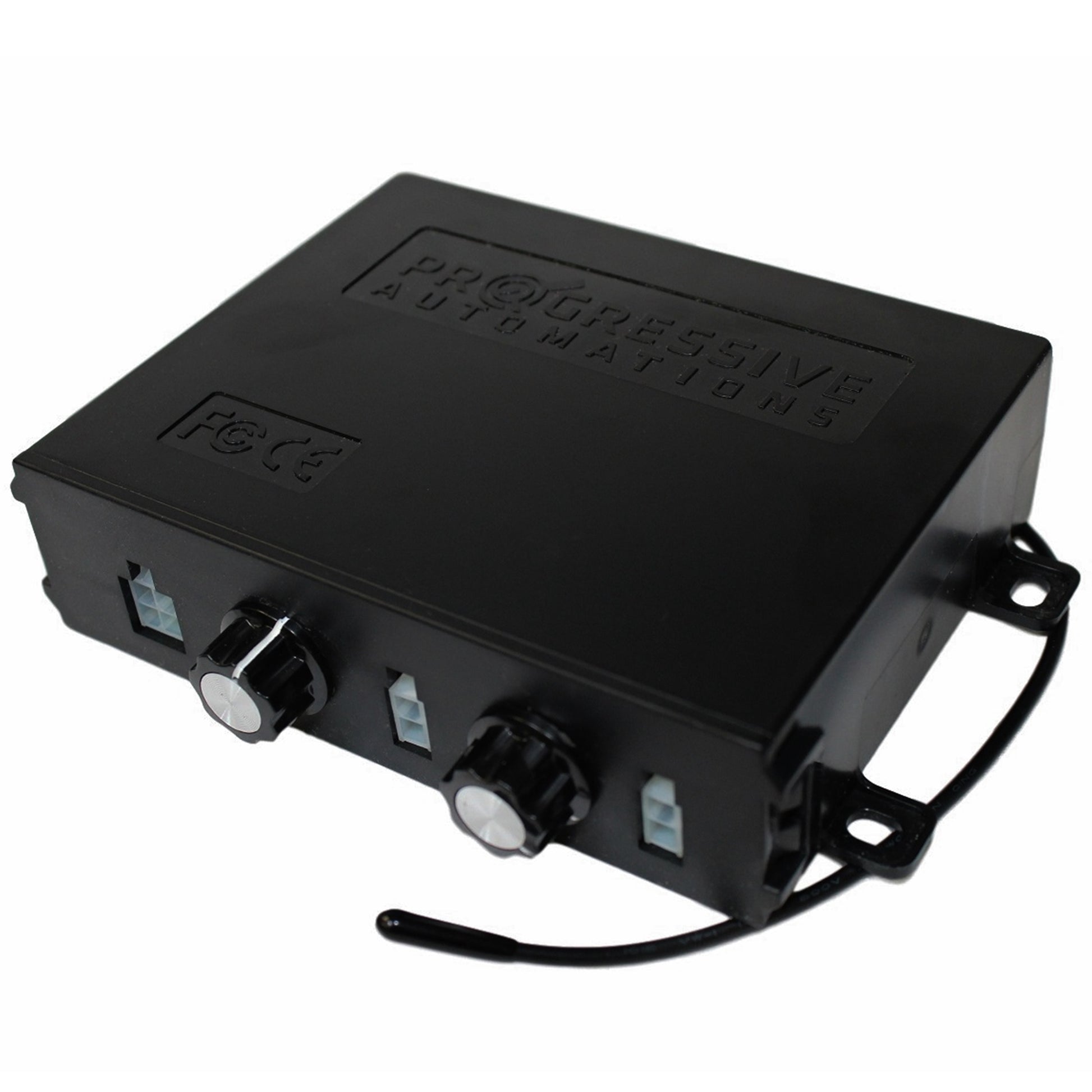

The PA-25 dual channel control box allows for speed control of linear actuators. We’ve specifically designed this unit to overcome common challenges found in many wireless actuator control box solutions, such as:

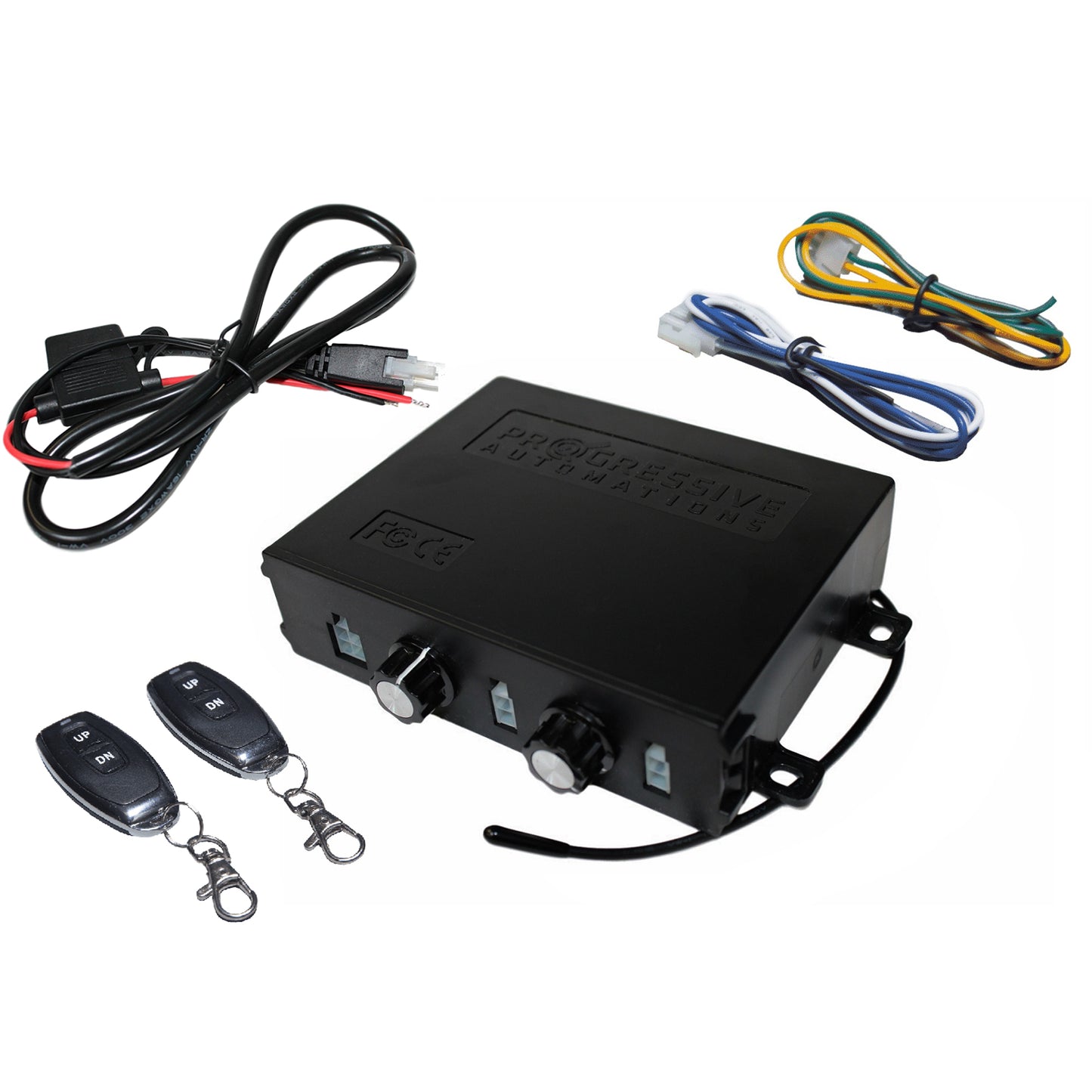

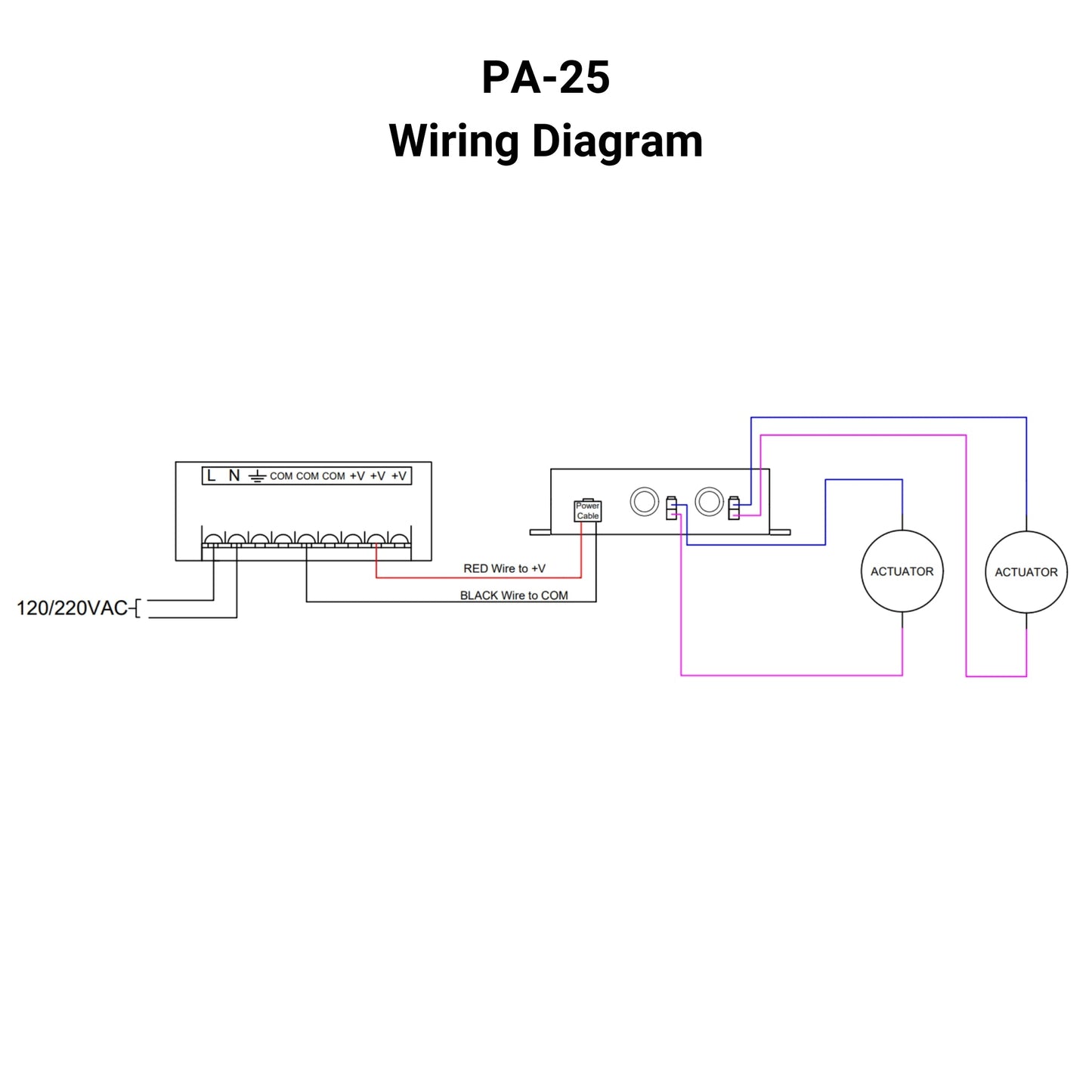

- Easy Setup: Plug-n-play connections with the included wire harness allow for fast and simple wiring to your system.

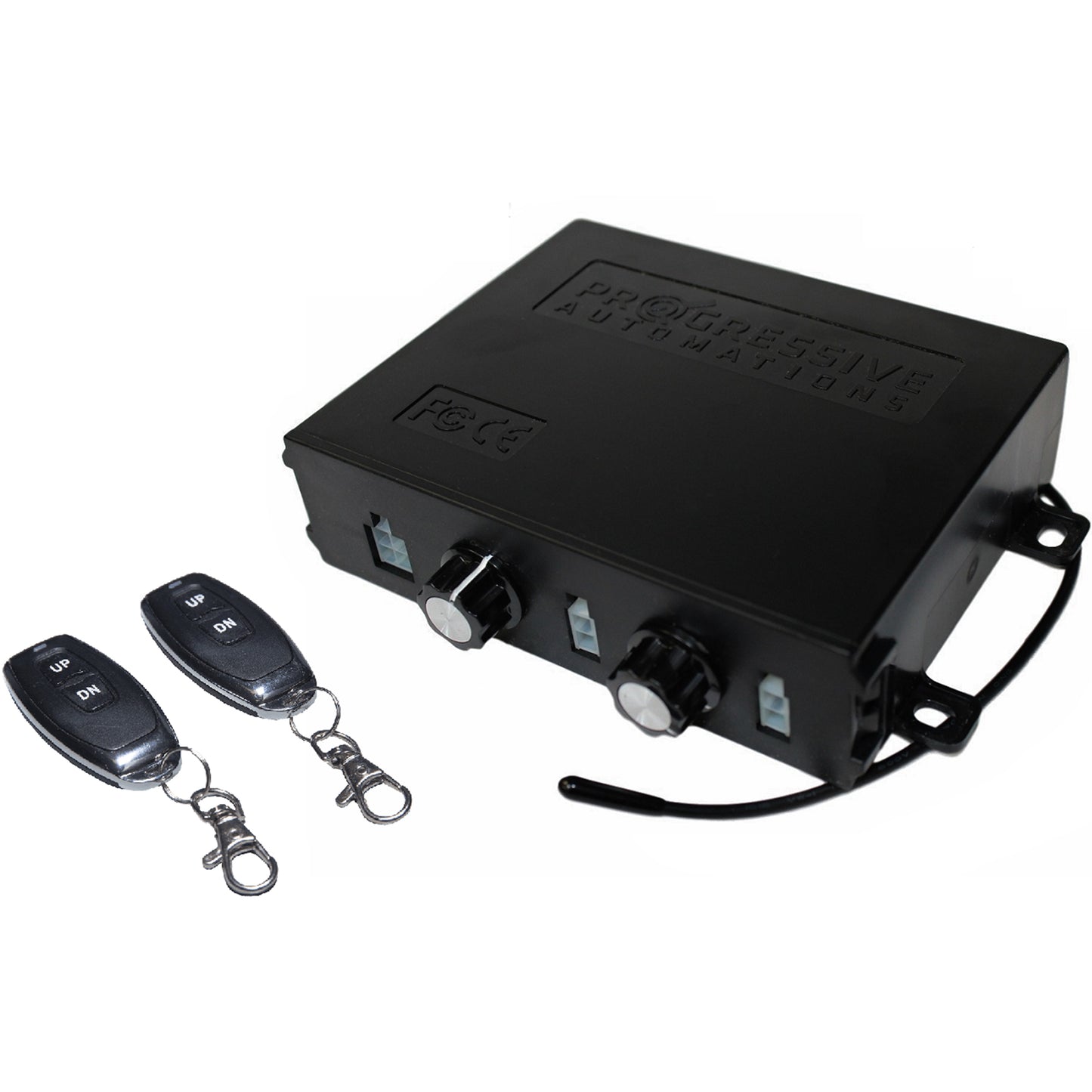

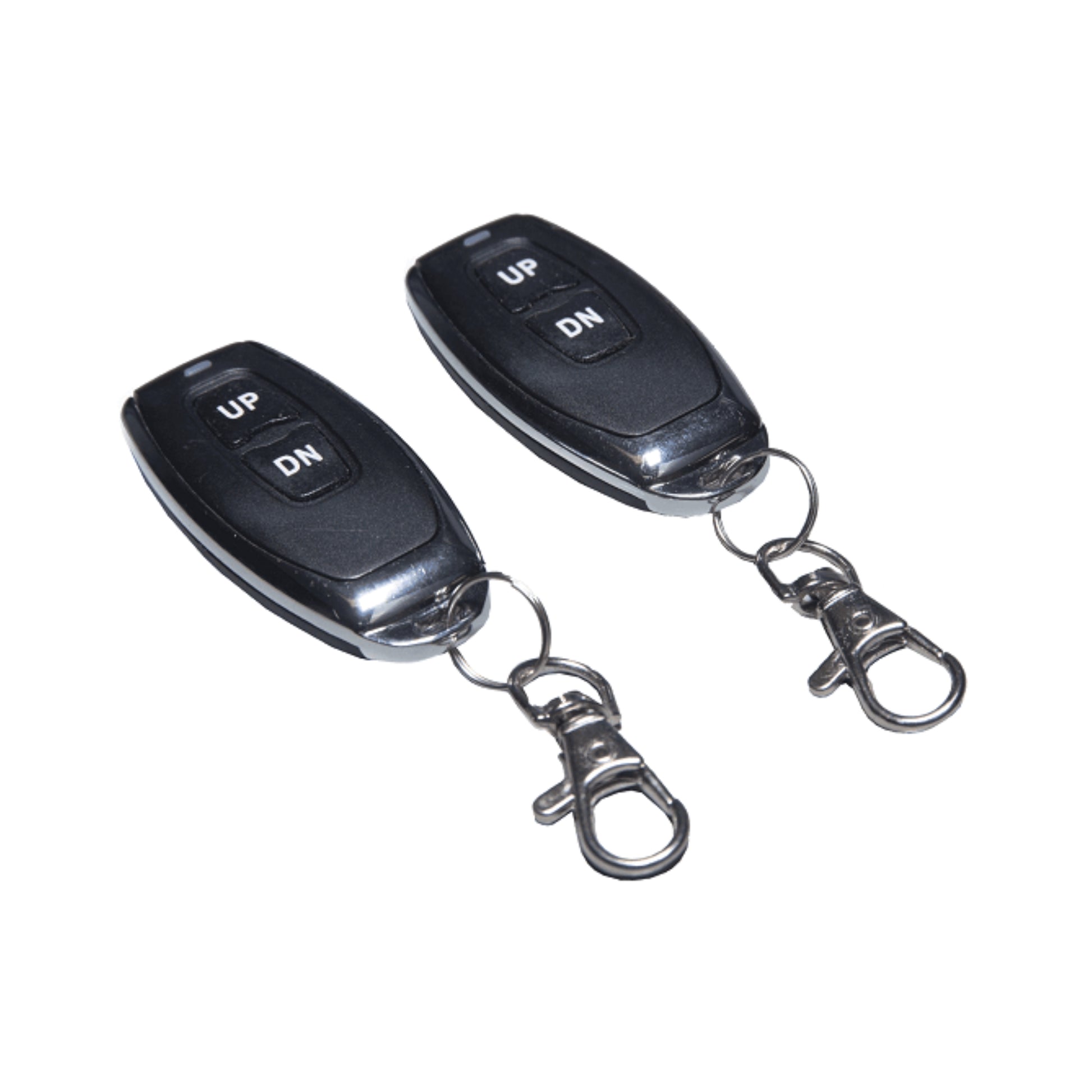

- Hand Remotes: Included in each kit are two hand remotes for flexibility in controlling your system with a spare backup or using multiple remotes in different places at the same time.
- Electrical Protection: The PA-25 control box is designed with safety features such as the included in-line fuse for short circuit protection.
Key Benefits and Features of the PA-25
- Voltage Compatibility: The 12 VDC input and output voltage operation allows compatibility with a wide range of actuators and power supplies.
- Current Draw: The PA-25 control box has each channel individually rated to handle a current draw of 15A.
- Dual Speed Controllers: Adjust speed from 0-100% using the two onboard knobs to fine-tune the actuator speed for each channel.
- Versatile Control: Supports both momentary and non-momentary operation modes to accommodate different user preferences.
- Wireless Remote: Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 9.1-15.2 m away (open air).
The PA-25 dual channel control box allows for speed control of linear actuators. We’ve specifically designed this unit to overcome common challenges found in many wireless actuator control box solutions, such as:
- Easy Setup: Plug-n-play connections with the included wire harness allow for fast and simple wiring to your system.
- Hand Remotes: Included in each kit are two hand remotes for flexibility in controlling your system with a spare backup or using multiple remotes in different places at the same time.
- Electrical Protection: The PA-25 control box is designed with safety features such as the included in-line fuse for short circuit protection.
Key Benefits and Features of the PA-25
- Voltage Compatibility: The 12 VDC input and output voltage operation allows compatibility with a wide range of actuators and power supplies.
- Current Draw: The PA-25 control box has each channel individually rated to handle a current draw of 15A.
- Dual Speed Controllers: Adjust speed from 0-100% using the two onboard knobs to fine-tune the actuator speed for each channel.
- Versatile Control: Supports both momentary and non-momentary operation modes to accommodate different user preferences.
- Wireless Remote: Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 9.1-15.2 m away (open air).
Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!
Quality You Can Trust – Learn MoreData Sheets
PA-25 Data Sheet
