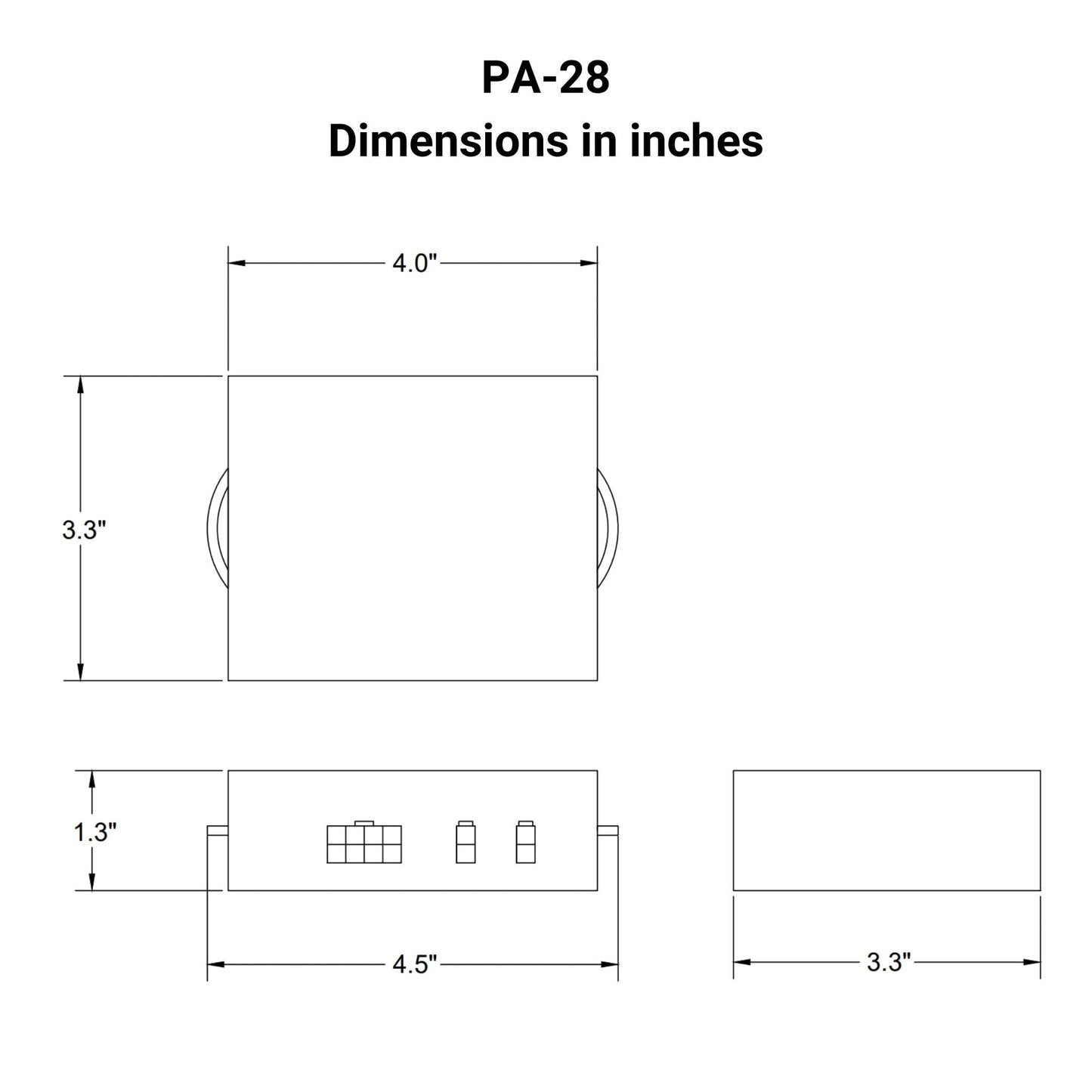

  • 12 VDC Control Box - 2 Channels - 30A - Individual Control - Wireless Remote Dimensions in Inches

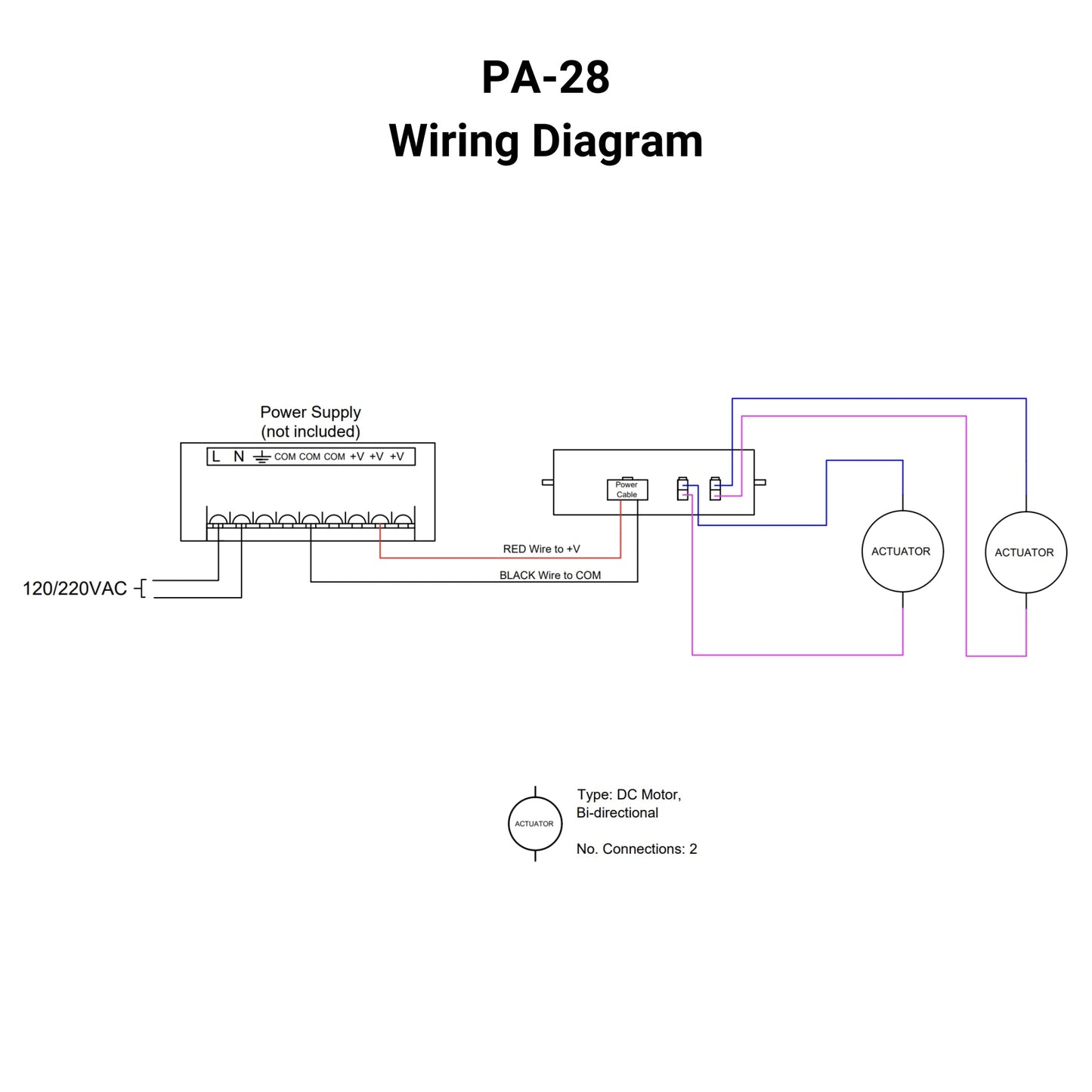

  • 12 VDC Control Box - 2 Channels - 30A - Individual Control - Wireless Remote Wiring Diagram

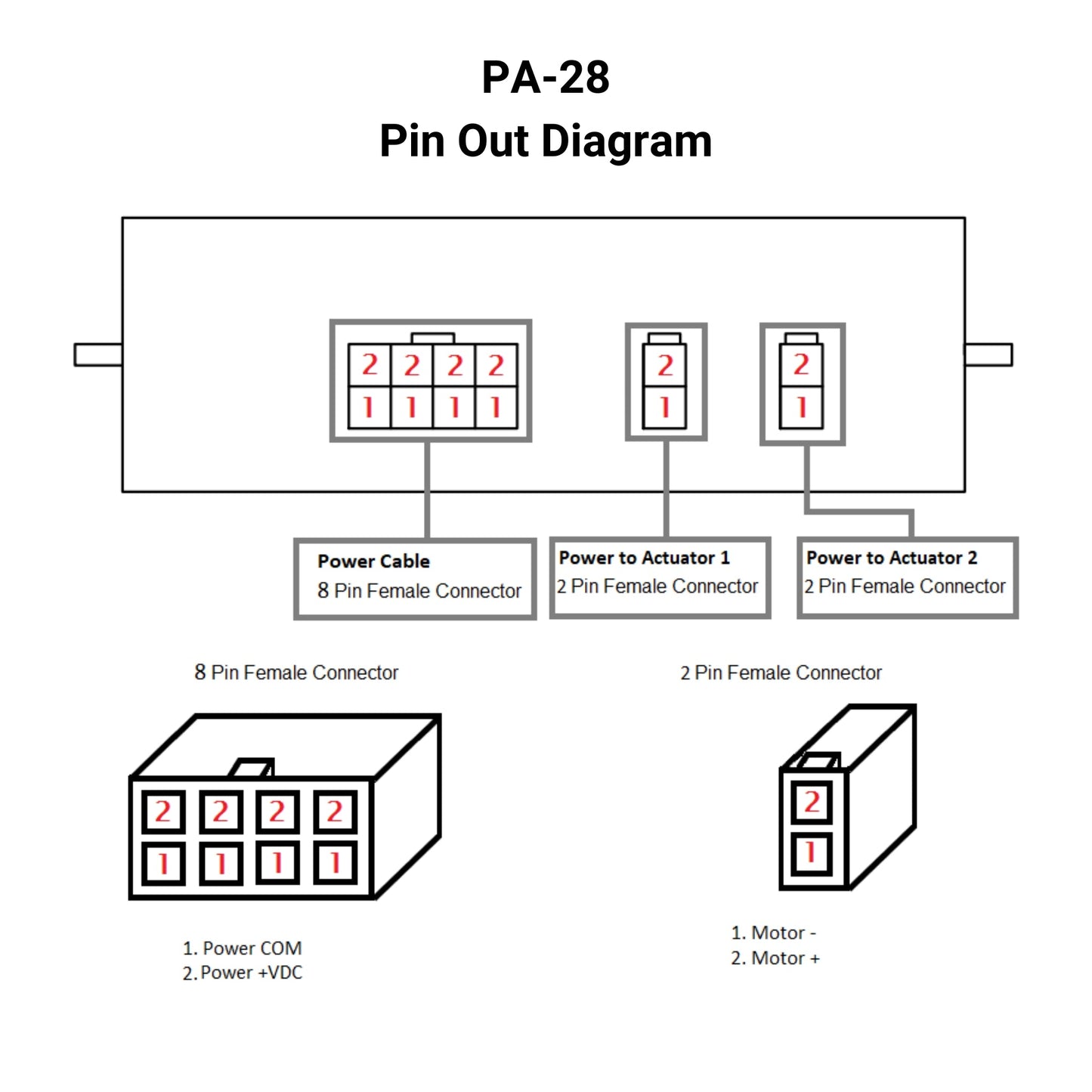

  • 12 VDC Control Box - 2 Channels - 30A - Individual Control - Wireless Remote Pin Out Diagram
1 7

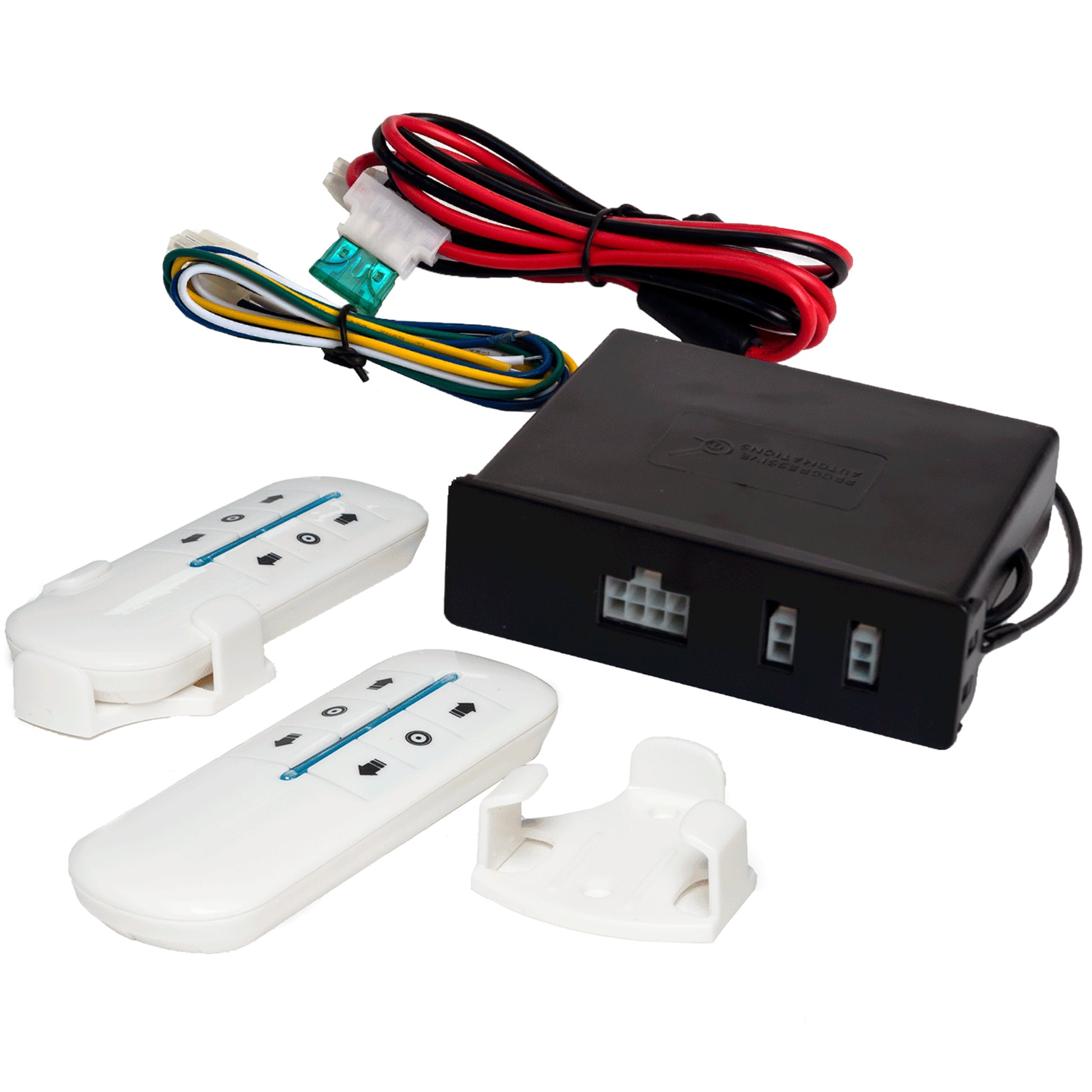

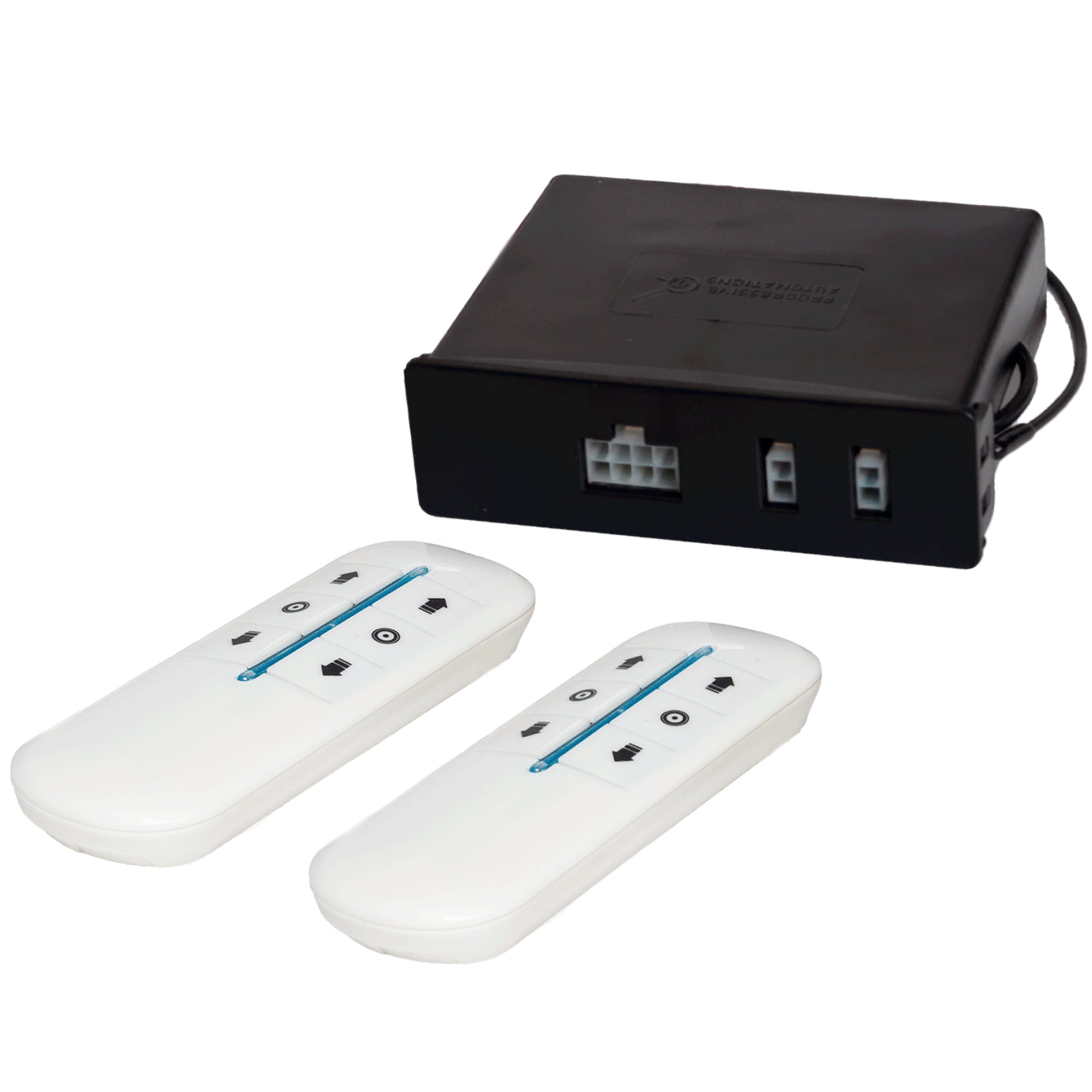

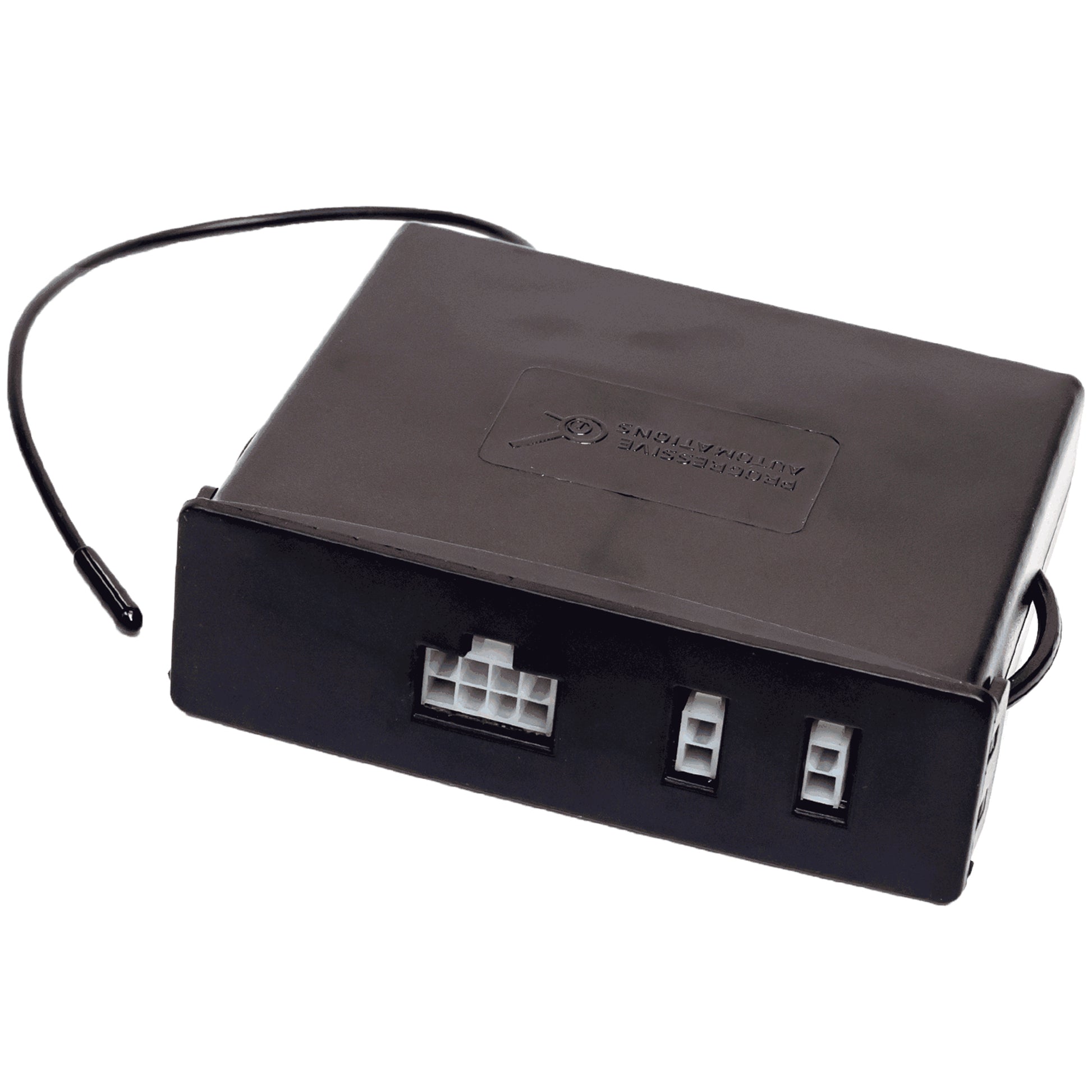

12 VDC Control Box - 2 Channel - 30A - Individual Control - Wireless Remote

12 VDC Control Box - 2 Channel - 30A - Individual Control - Wireless Remote

Benefits

  • Wireless Remote: 9.1-15.2 m distance (open air)
  • In-line Fuse: Short Circuit Protection
  • Input and Output Voltage: 12 VDC
  • Control Ability: 2 Actuators Individually

  • Current: 15 Amps (each channel)


Features

  • Momentary and non-momentary capabilities
  • RF Frequency: 433Mhz
  • Dual channels for multiple actuators

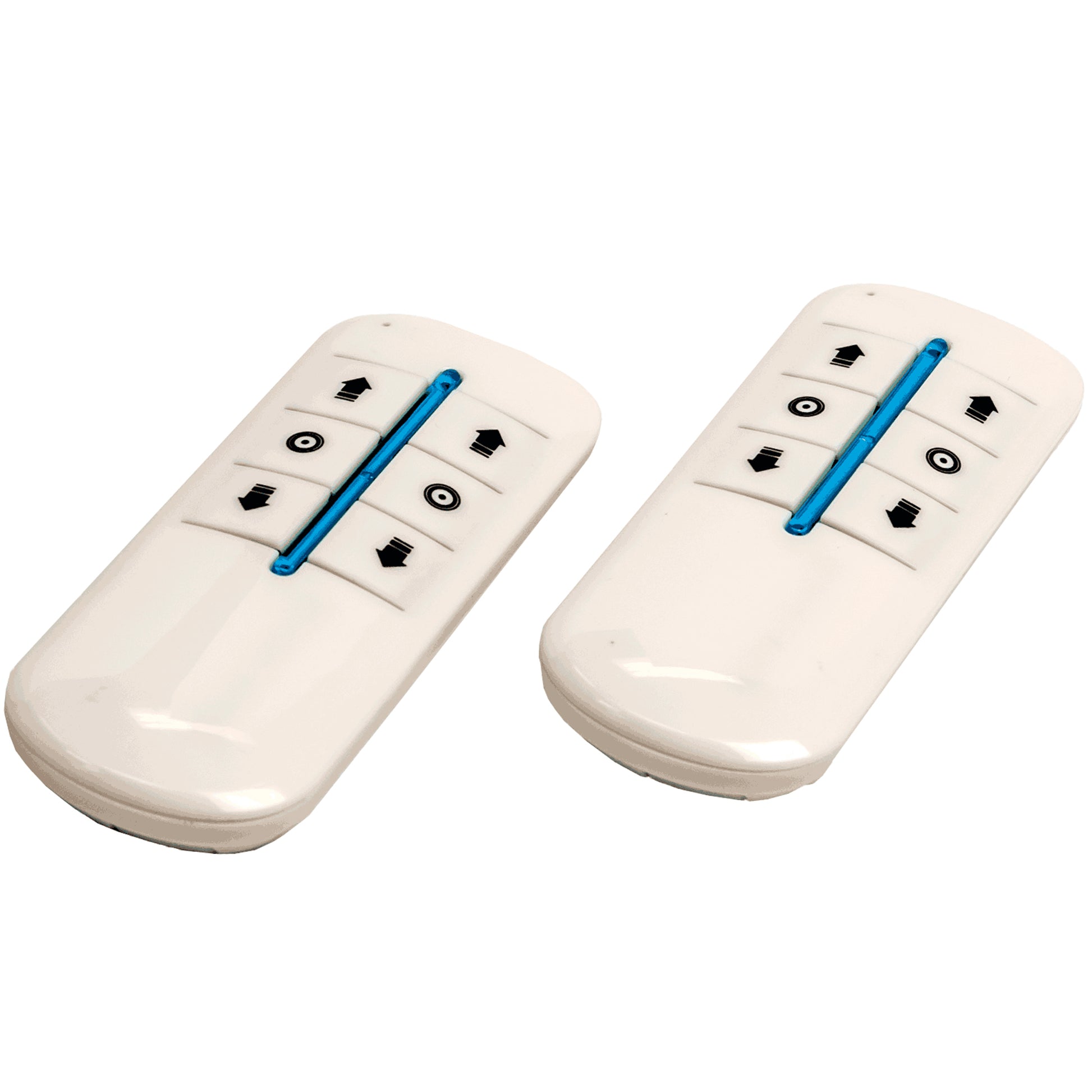

  • 2 hand remotes included
  • Simple plug-n-play wiring


Need more information?
Ask our experts.

Ask us
View full details
Description
PA-28 Specifications

The PA-28 dual channel control box allows for full individual control of linear actuators. We’ve specifically designed this unit to overcome common challenges found in many wireless actuator control box solutions, such as:

  • Easy Setup: Plug-n-play connections with the included wire harness allow for fast and simple wiring to your system.
  • Hand Remotes: Included in each kit are two hand remotes for flexibility in controlling your system with a spare backup or using multiple remotes in different places at the same time.
  • Electrical Protection: The PA-28 control box is designed with safety features such as the included in-line fuse for short circuit protection.

Key Benefits and Features of the PA-28

  • Voltage Compatibility: The 12 VDC input and output voltage operation allows compatibility with a wide range of actuators and power supplies.
  • Current Draw: The PA-28 control box has each channel individually rated to handle a current draw of 15A.
  • Dual Channel: Controls two channels independently, allowing the ability to manage multiple actuators with individual control.
  • Versatile Control: Supports both momentary and non-momentary operation modes to accommodate different user preferences.
  • Wireless Remote: Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 9.1-15.2 m away (open air).
PA-28 Compatibility Chart Data Sheet
Overview
PA-28 Specifications

The PA-28 dual channel control box allows for full individual control of linear actuators. We’ve specifically designed this unit to overcome common challenges found in many wireless actuator control box solutions, such as:

  • Easy Setup: Plug-n-play connections with the included wire harness allow for fast and simple wiring to your system.
  • Hand Remotes: Included in each kit are two hand remotes for flexibility in controlling your system with a spare backup or using multiple remotes in different places at the same time.
  • Electrical Protection: The PA-28 control box is designed with safety features such as the included in-line fuse for short circuit protection.

Key Benefits and Features of the PA-28

  • Voltage Compatibility: The 12 VDC input and output voltage operation allows compatibility with a wide range of actuators and power supplies.
  • Current Draw: The PA-28 control box has each channel individually rated to handle a current draw of 15A.
  • Dual Channel: Controls two channels independently, allowing the ability to manage multiple actuators with individual control.
  • Versatile Control: Supports both momentary and non-momentary operation modes to accommodate different user preferences.
  • Wireless Remote: Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 9.1-15.2 m away (open air).
PA-28 Compatibility Chart Data Sheet
Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Quality You Can Trust – Learn More

Data Sheets

PA-28 Data Sheet
PA-28 Data Sheet

Data Sheet for PA-28

View
Knowledge base
Video & Articles
Videos
Related blog articles:
New PA-41 Control System: Controlling Multiple Linear Actuators

New PA-41 Control System: Controlling Multiple Linear Actuators

Nathan Bong

Many applications that operate with electromechanical systems require a single control system tha...

Learn more
Relays to Control High Current Actuator with Low Current Control Box

Relays to Control High Current Actuator with Low Current Control Box

Nathan Bong

Have you ever faced a situation where you must connect a high current actuator with a low current...

Learn more
DIY Designs to Automate Your Home

DIY Designs to Automate Your Home

Zuriel Gonzalez

Linear actuators have totally revolutionized the way things move around us. This invention of mod...

Learn more
FAQ
How does individual control work with the PA-28, and what are the benefits over synchronized or parallel control setups?

The PA-28 outputs separate signals per actuator, with independent movement for each actuator. This is ideal for systems that do not require synchronized motion or where you need individual actuator control.

How can I switch between momentary and non-momentary modes on the PA-28 controller?

Changing between momentary vs non-momentary control box settings requires access inside the enclosure. Once you have access, follow the steps below:

Momentary Mode

  • Ensure the Jumper S1 on the PCB is connected
  • Hold UP to extend the actuator, let go to stop the actuator
  • Hold DOWN to retract the actuator, let go to stop the actuator

Non-Momentary Mode

  • Ensure the Jumpers S1 on the PCB is disconnected
  • Press UP to extend the actuator, Press UP again to stop the actuator
  • Press DOWN to retract the actuator, Press DOWN again to stop the actuator
  • If DOWN is pressed while the actuator is extending, it will reverse direction and begin to retract
What is the RF range of the remote and how do I assign each button to a specific actuator channel?

The PA-28 has an RF range of 30–50 ft in open air paired with the RF remote actuator controller. The buttons automatically assign to channels once a dual channel remote is paired successfully. For actuator remote pairing, please see the Remote Synchronization Process:

  • Open the control box and press the white button. the blue LED with turn on
  • Press any button on the remote and the LED will turn off
  • The remote is now saved to the control box
  • A maximum of two remotes can be saved to one control box
What types of linear actuators are compatible with the PA-28 and what wiring setup is required?

Actuator compatibility requirements for the PA-28 include models having brushed DC motors, 12 VDC operation, and a current draw below 15A per channel. The output ports are compatible with 2-Pin Molex Mini-Fit Jr connectors found on many actuators to ensure simple plug-and-play compatibility.

What safety protections are built into the PA-28 and how can I troubleshoot if a fuse blows or a channel stops working?

The PA-28 offers an in-line fuse as protection for short circuit safety. If a channel stops, check for pinched wires, shorts, blown fuses, reversed polarity, and undersized power supplies by measuring the output values and testing for continuity using a multimeter. Replace fuses as necessary with the listed rating only.
