12 VDC Control Box - 2 Channel - 30A - Parallel Control - Wireless Remote
12 VDC Control Box - 2 Channel - 30A - Parallel Control - Wireless Remote
Benefits
- Wireless Remote: 9.1-15.2 m distance (open air)
- In-line Fuse: Short Circuit Protection
- Input Voltage: 12 VDC
- Output Power: 12 VDC
-
Current: 30 Amps (15A per channel)
Features
- Momentary and non-momentary capabilities
- RF Frequency: 433Mhz
- Non-synchronous dual channel parallel control

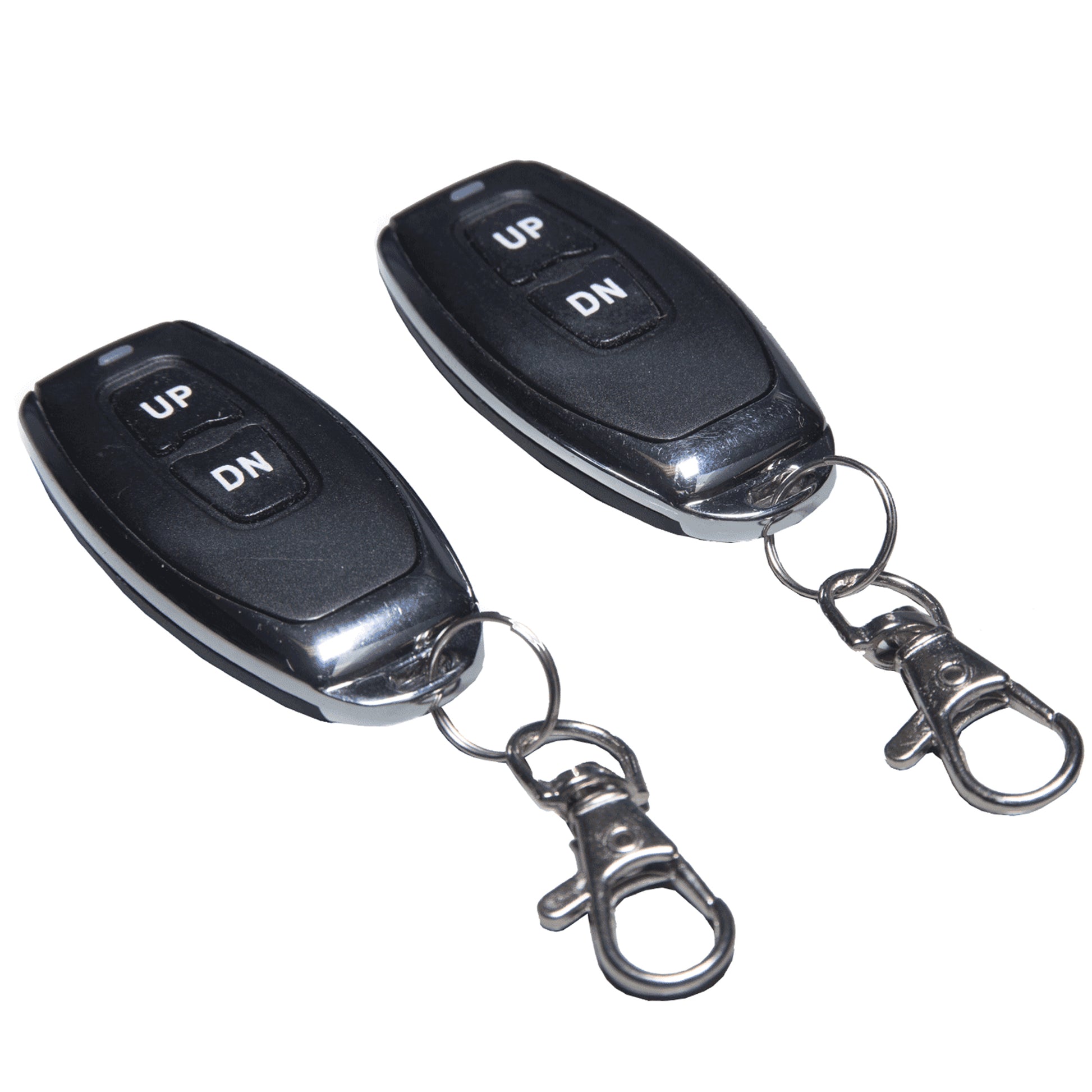

- 2 hand remotes included

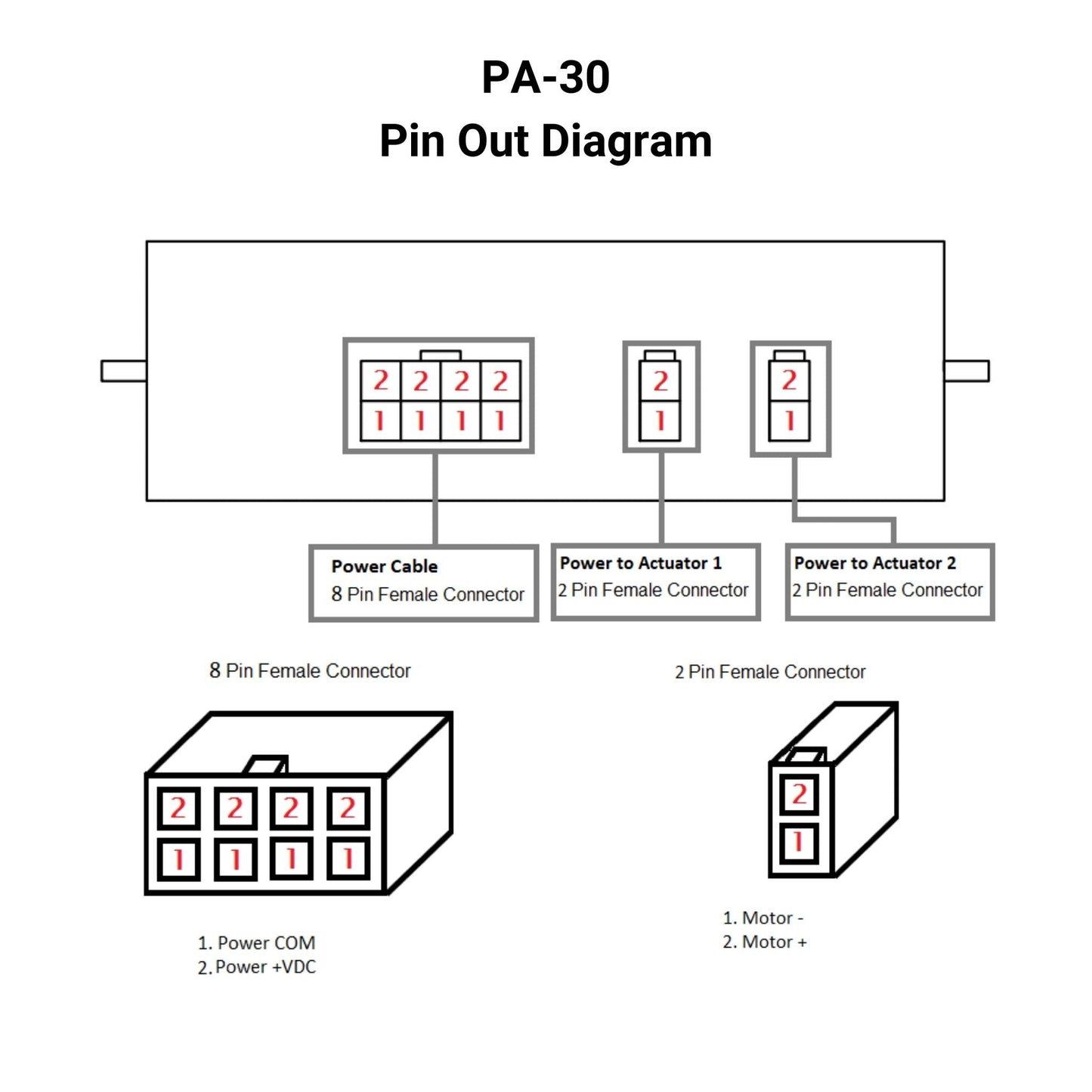

- Simple plug-n-play wiring
PA-30 Specifications

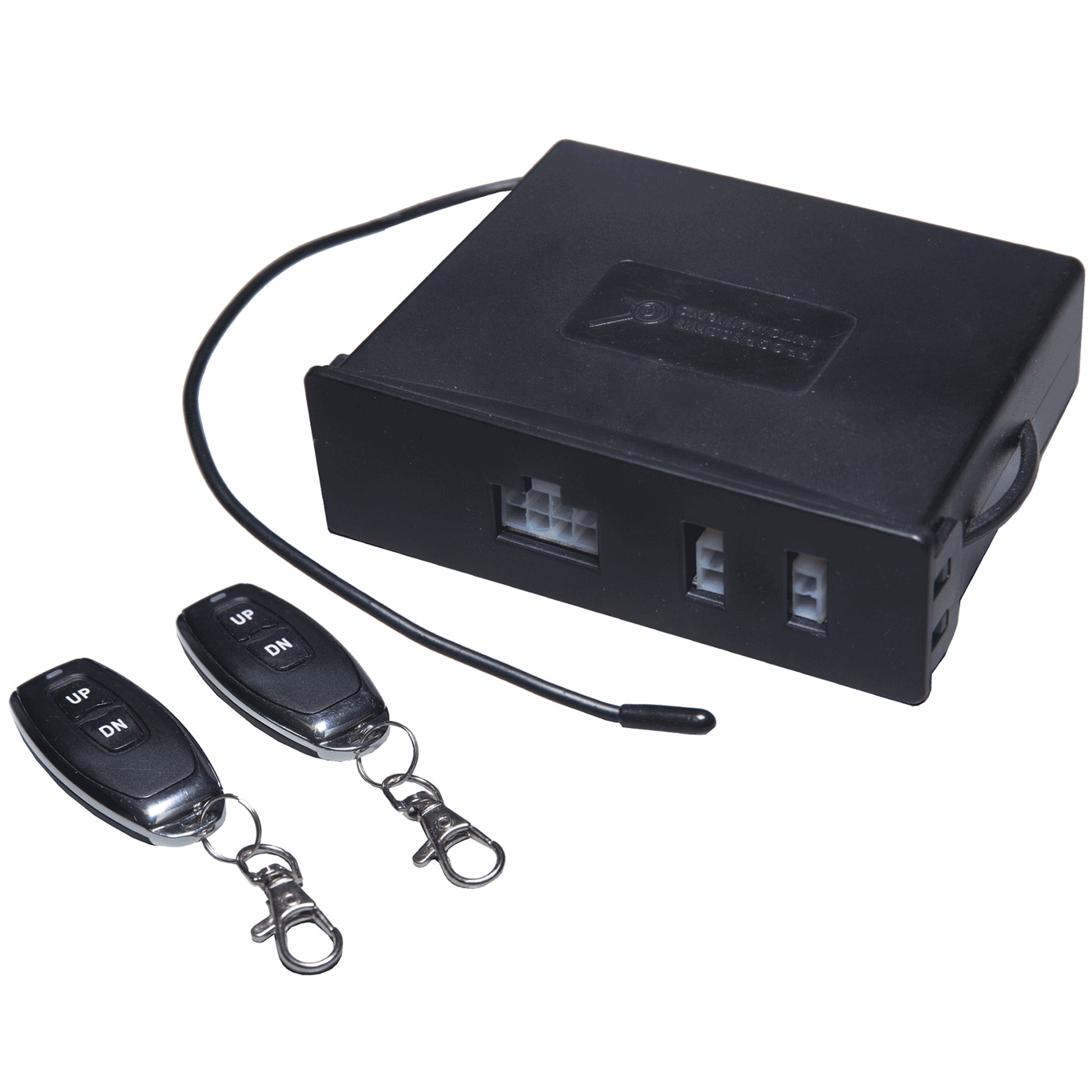

The PA-30 dual channel control box allows for parallel control of linear actuators. We’ve specifically designed this unit to overcome common challenges found in many wireless actuator control box solutions, such as:

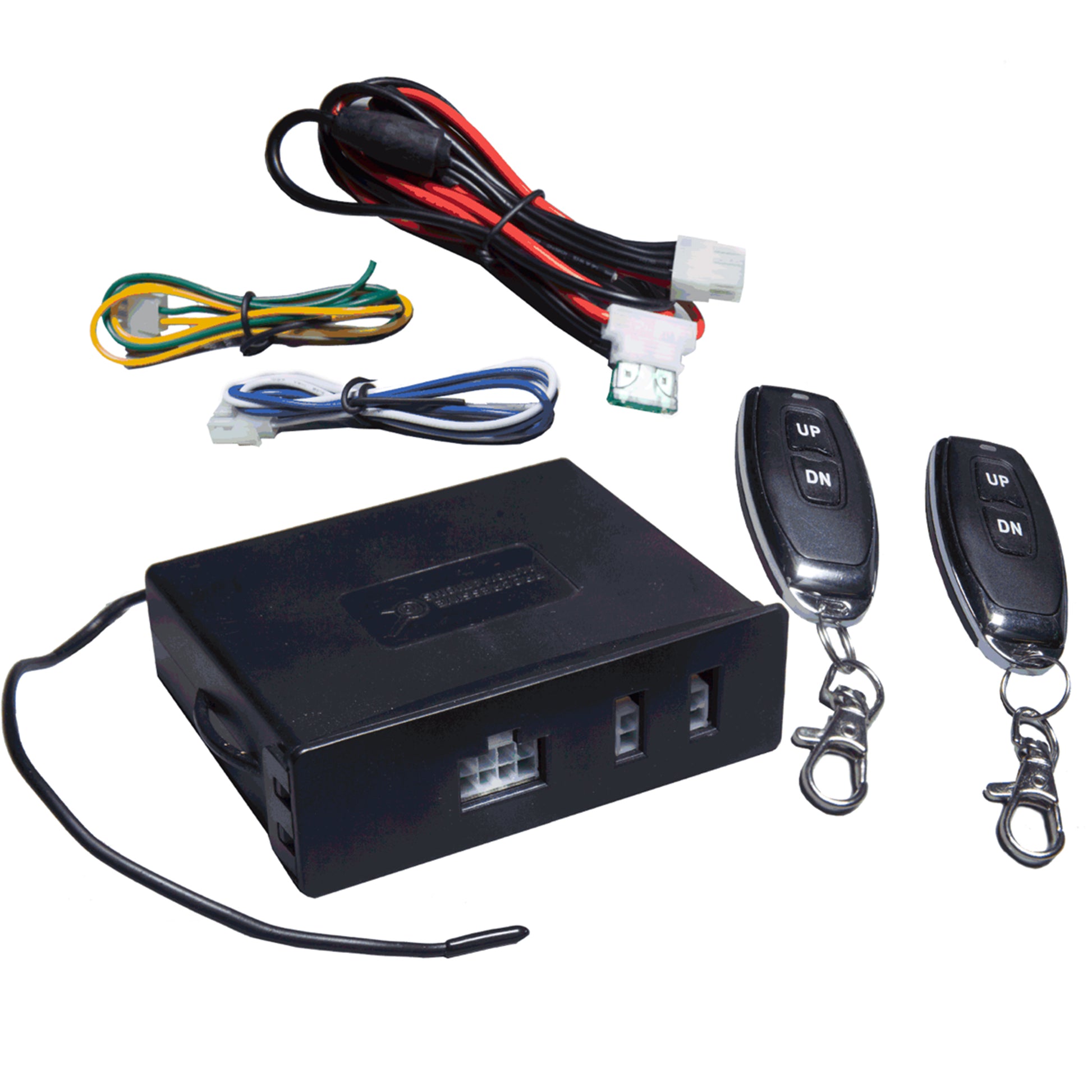

- Easy Setup: Plug-n-play connections with the included wire harness allow for fast and simple wiring to your system.
- Hand Remotes: Included in each kit are two hand remotes for flexibility in controlling your system with a spare backup or using multiple remotes in different places at the same time.
- Electrical Protection: The PA-30 control box is designed with safety features such as the included in-line fuse for short circuit protection.
Key Benefits and Features of the PA-30
- Voltage Compatibility: The 12 VDC input and output voltage operation allows compatibility with a wide range of actuators and power supplies.
- Current Draw: The PA-30 control box is rated for 30A, however, each channel individually is rated for 15A.

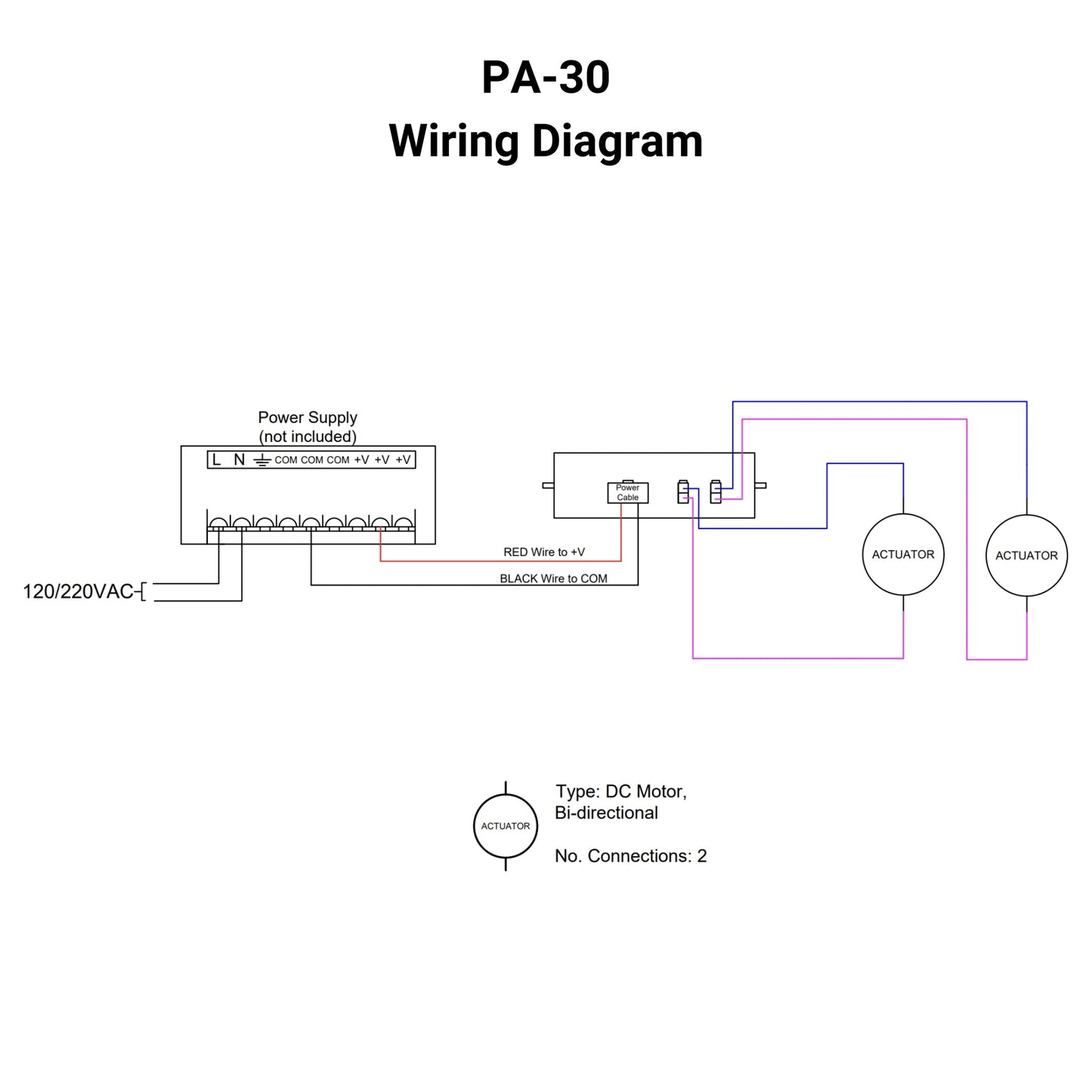

- Dual Channel Control: Multiple actuators wired in parallel can be non-synchronously controlled by the same control box as long as the current draw for each channel stays within 15A.
- Versatile Control: Supports both momentary and non-momentary operation modes to accommodate different user preferences.
- Wireless Remote: Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 9.1-15.2 m away (open air).
PA-30 Specifications
The PA-30 dual channel control box allows for parallel control of linear actuators. We’ve specifically designed this unit to overcome common challenges found in many wireless actuator control box solutions, such as:
- Easy Setup: Plug-n-play connections with the included wire harness allow for fast and simple wiring to your system.
- Hand Remotes: Included in each kit are two hand remotes for flexibility in controlling your system with a spare backup or using multiple remotes in different places at the same time.
- Electrical Protection: The PA-30 control box is designed with safety features such as the included in-line fuse for short circuit protection.
Key Benefits and Features of the PA-30
- Voltage Compatibility: The 12 VDC input and output voltage operation allows compatibility with a wide range of actuators and power supplies.
- Current Draw: The PA-30 control box is rated for 30A, however, each channel individually is rated for 15A.
- Dual Channel Control: Multiple actuators wired in parallel can be non-synchronously controlled by the same control box as long as the current draw for each channel stays within 15A.
- Versatile Control: Supports both momentary and non-momentary operation modes to accommodate different user preferences.
- Wireless Remote: Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 9.1-15.2 m away (open air).
Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!
Quality You Can Trust – Learn MoreData Sheets
PA-30 Data Sheet
