12 VDC Control Box - 1 Channel - 20A - IP65 - Wireless Remote
12 VDC Control Box - 1 Channel - 20A - IP65 - Wireless Remote
Benefits
- Wireless Remote: 9.1-15.2 m distance (open air)
- Ingress Protection Rating: IP65
- Input Voltage: 12 VDC
- Output Power: 12 VDC
-
Current: 20 Amps
Features
- Momentary and non-momentary capabilities
- In-line fuse: Short circuit protection
- Single channel control ability

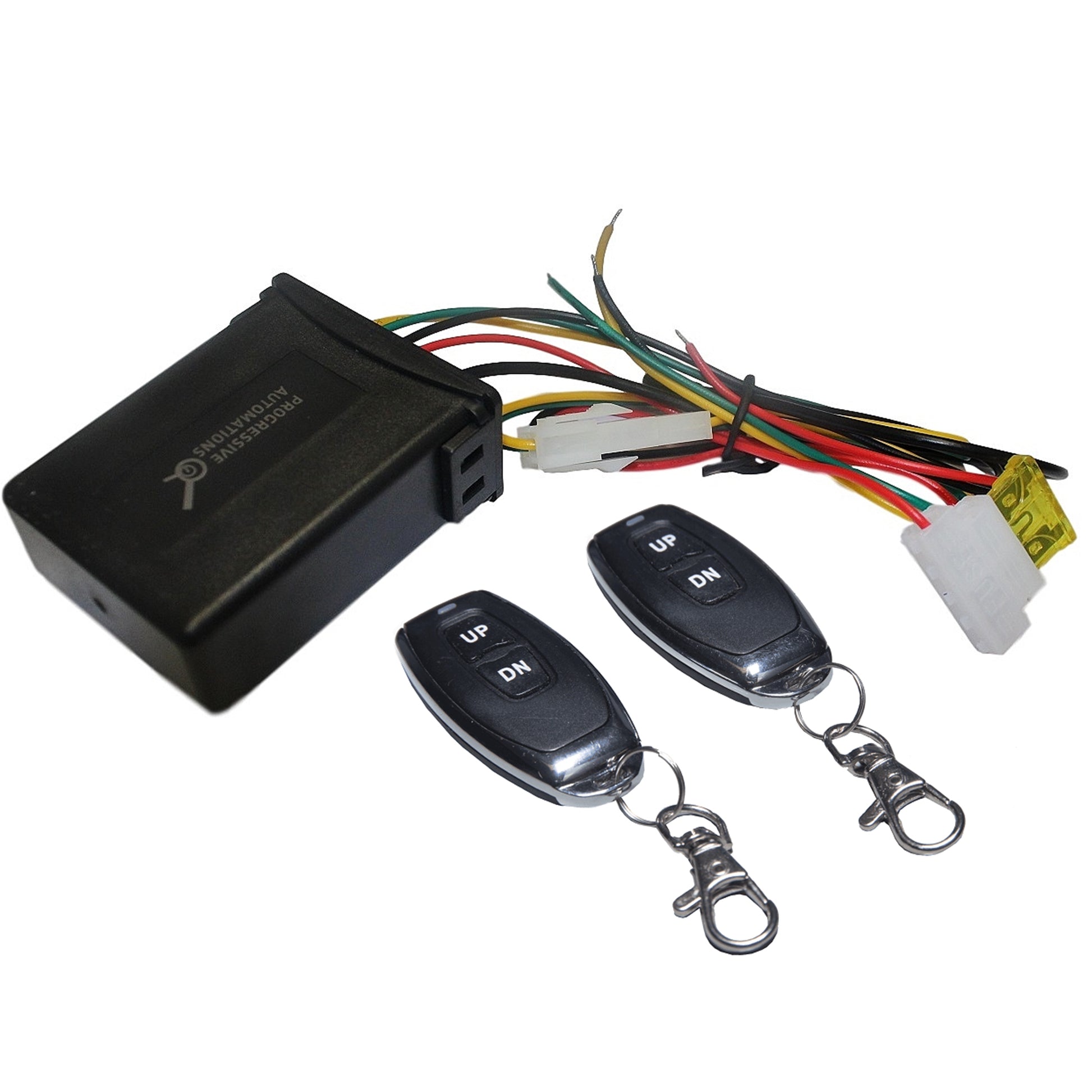

- 2 hand remotes included

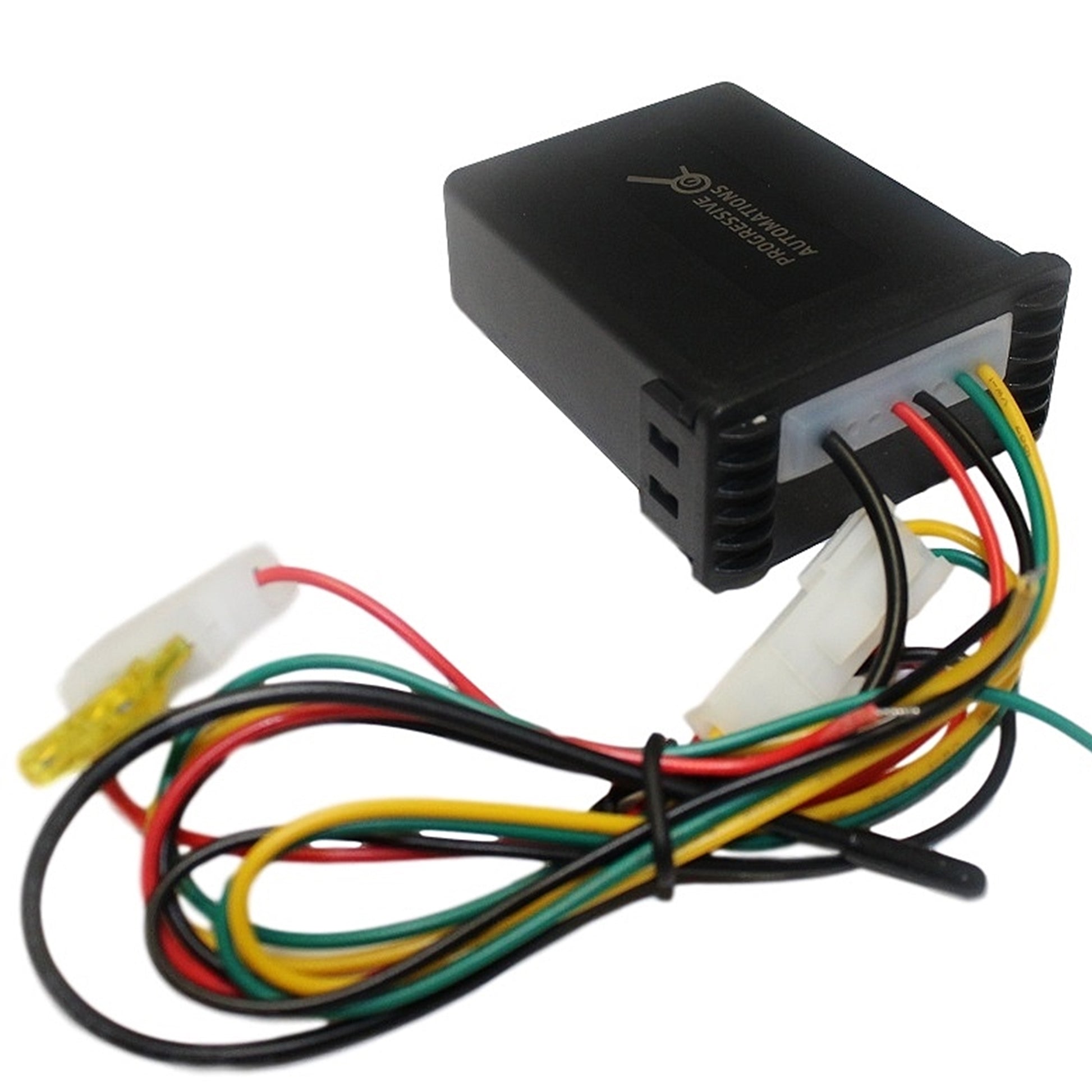

- Simple plug-n-play wiring
The PA-33 is our single channel control box with an increased environmental protection rating. We’ve specifically designed this unit to overcome common challenges found in many wireless actuator control box solutions, such as:
- Easy Setup: Plug-n-play connections with the included wire harness allow for fast and simple wiring to your system.

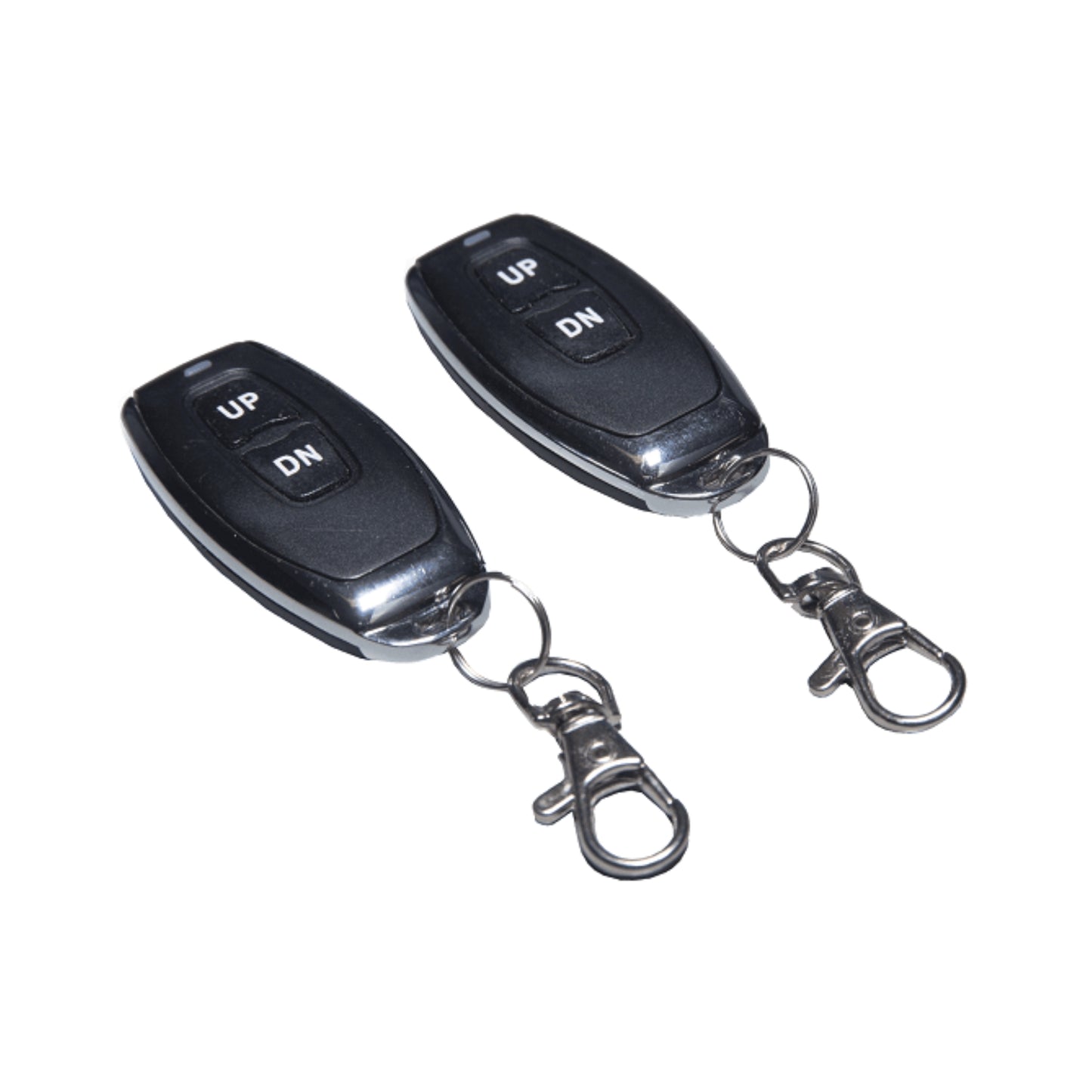

- Hand Remotes: Included in each kit are two hand remotes for flexibility in controlling your system with a spare backup or using multiple remotes in different places at the same time.
- Electrical Protection: The PA-33 control box is designed with safety features such as the included in-line fuse for short circuit protection.
Key Benefits and Features of the PA-33
- Voltage Compatibility: The 12 VDC input and output voltage operation allows compatibility with a wide range of actuators and power supplies.
- Environmental Protection: A high ingress protection rating of IP65 allows for the PA-33 to withstand harsh environments found in various outdoor applications.
- Versatile Control: Supports both momentary and non-momentary operation modes to accommodate different user preferences.
- Current Draw: The PA-33 is rated for 20A, however, using relays or modifying the wiring harness to a thicker gauge is recommended for 12 VDC actuators with a higher than 12A current rating.
- Wireless Remote: Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 9.1-15.2 m away (open air).
The PA-33 is our single channel control box with an increased environmental protection rating. We’ve specifically designed this unit to overcome common challenges found in many wireless actuator control box solutions, such as:
- Easy Setup: Plug-n-play connections with the included wire harness allow for fast and simple wiring to your system.
- Hand Remotes: Included in each kit are two hand remotes for flexibility in controlling your system with a spare backup or using multiple remotes in different places at the same time.
- Electrical Protection: The PA-33 control box is designed with safety features such as the included in-line fuse for short circuit protection.
Key Benefits and Features of the PA-33
- Voltage Compatibility: The 12 VDC input and output voltage operation allows compatibility with a wide range of actuators and power supplies.
- Environmental Protection: A high ingress protection rating of IP65 allows for the PA-33 to withstand harsh environments found in various outdoor applications.
- Versatile Control: Supports both momentary and non-momentary operation modes to accommodate different user preferences.
- Current Draw: The PA-33 is rated for 20A, however, using relays or modifying the wiring harness to a thicker gauge is recommended for 12 VDC actuators with a higher than 12A current rating.
- Wireless Remote: Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 9.1-15.2 m away (open air).
Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!
Quality You Can Trust – Learn MoreData Sheets
PA-33 Data Sheet
