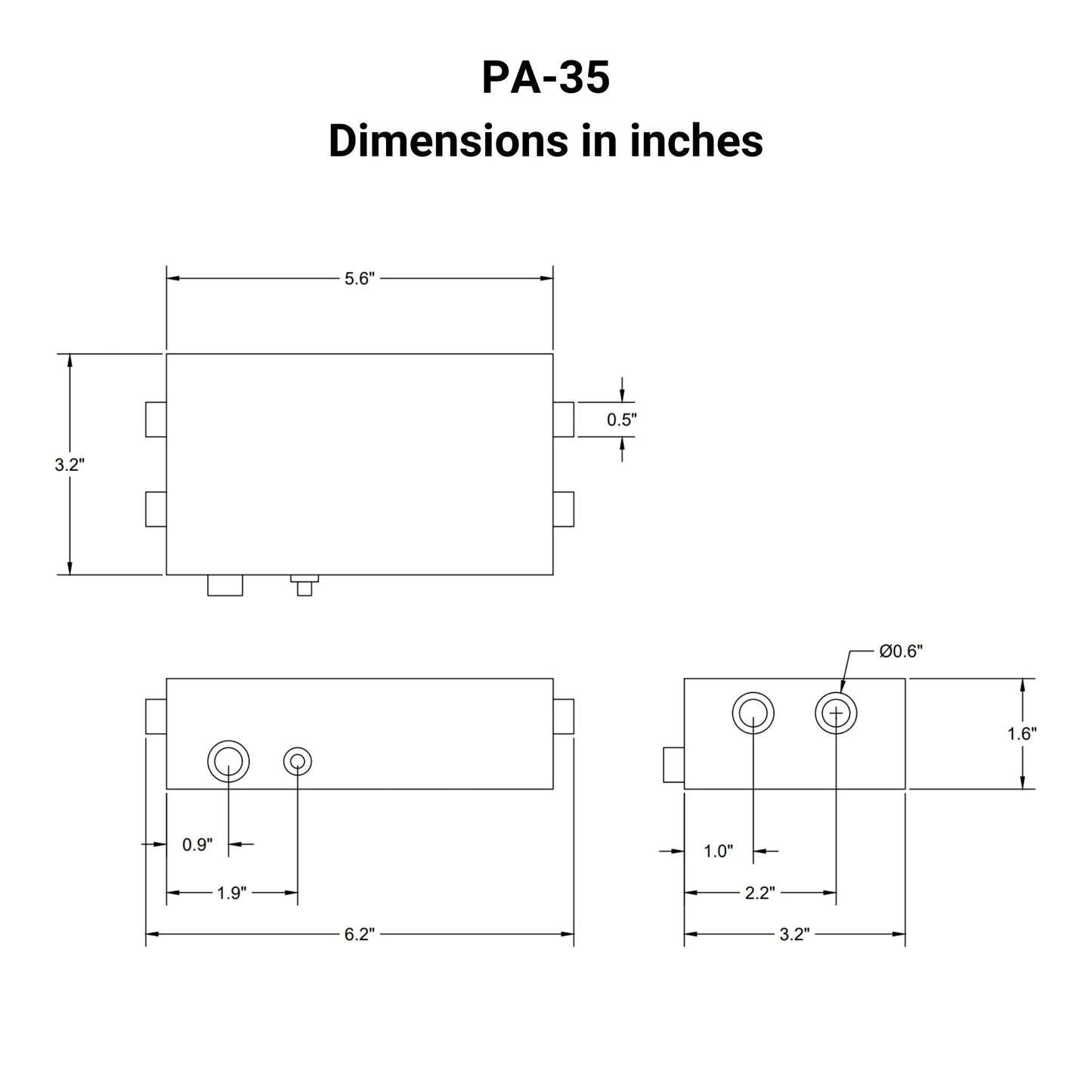

  • 12 VDC - Wi-Fi Actuator Control Box - 4 Channels - Android/IPhone Dimensions in inches
  • 12 VDC - Wi-Fi Actuator Control Box - 4 Channels - Android/IPhone Wiring Diagram

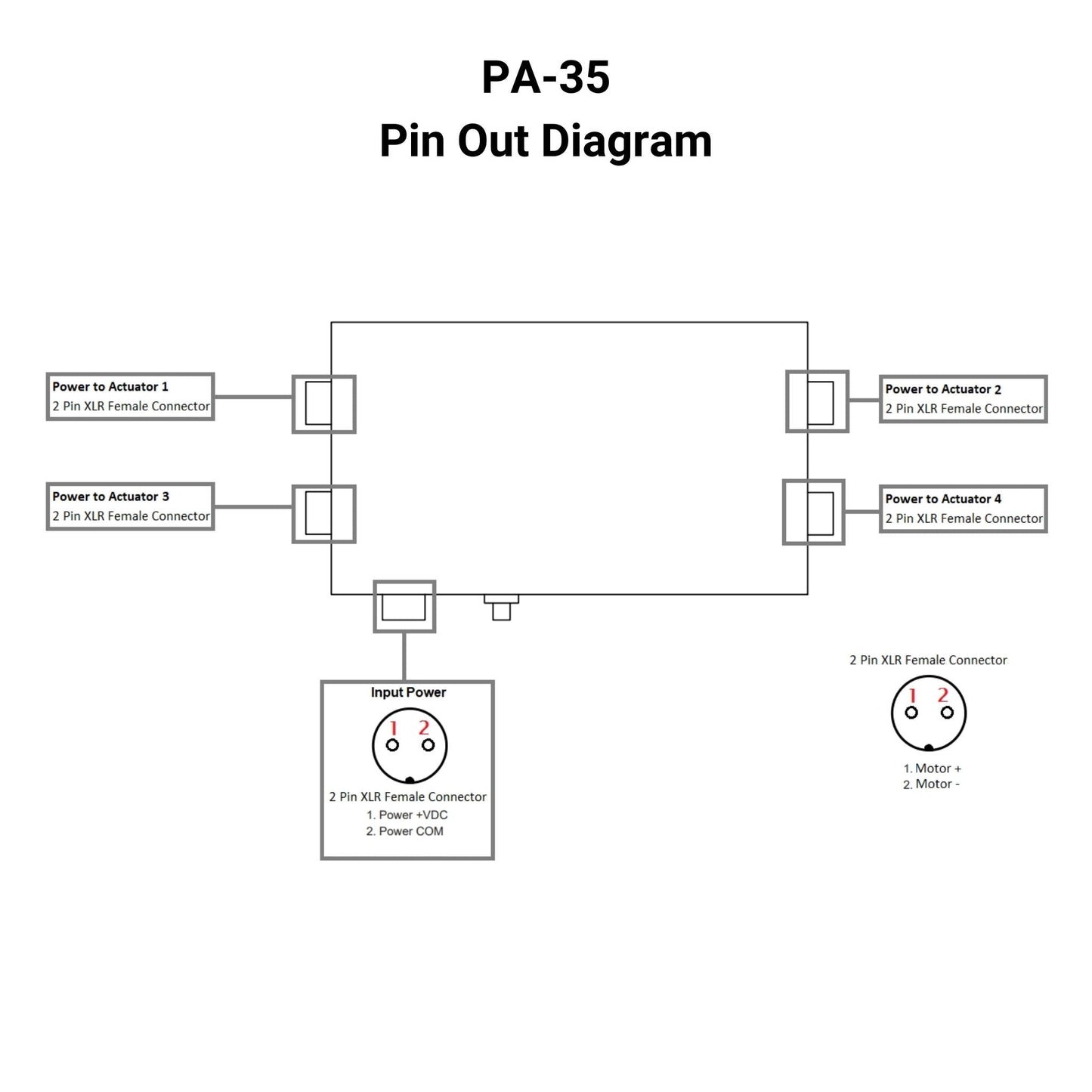

  • 12 VDC - Wi-Fi Actuator Control Box - 4 Channels - Android/IPhone Pin Out Diagram
1 8

12 VDC - Wi-Fi Actuator Control Box - 4 Channels - Android/IPhone

12 VDC - Wi-Fi Actuator Control Box - 4 Channels - Android/IPhone

Benefits

  • Seamless Integration: Connects iOS & Android devices
  • Wireless Control: Controls via WiFi using the Progressive Automations App.
  • Multi-Channel Support: Manages up to 4 channels.
  • Customizable Settings: Record and save actuator movements for precise control.


Features

  • WiFi Signal Emission

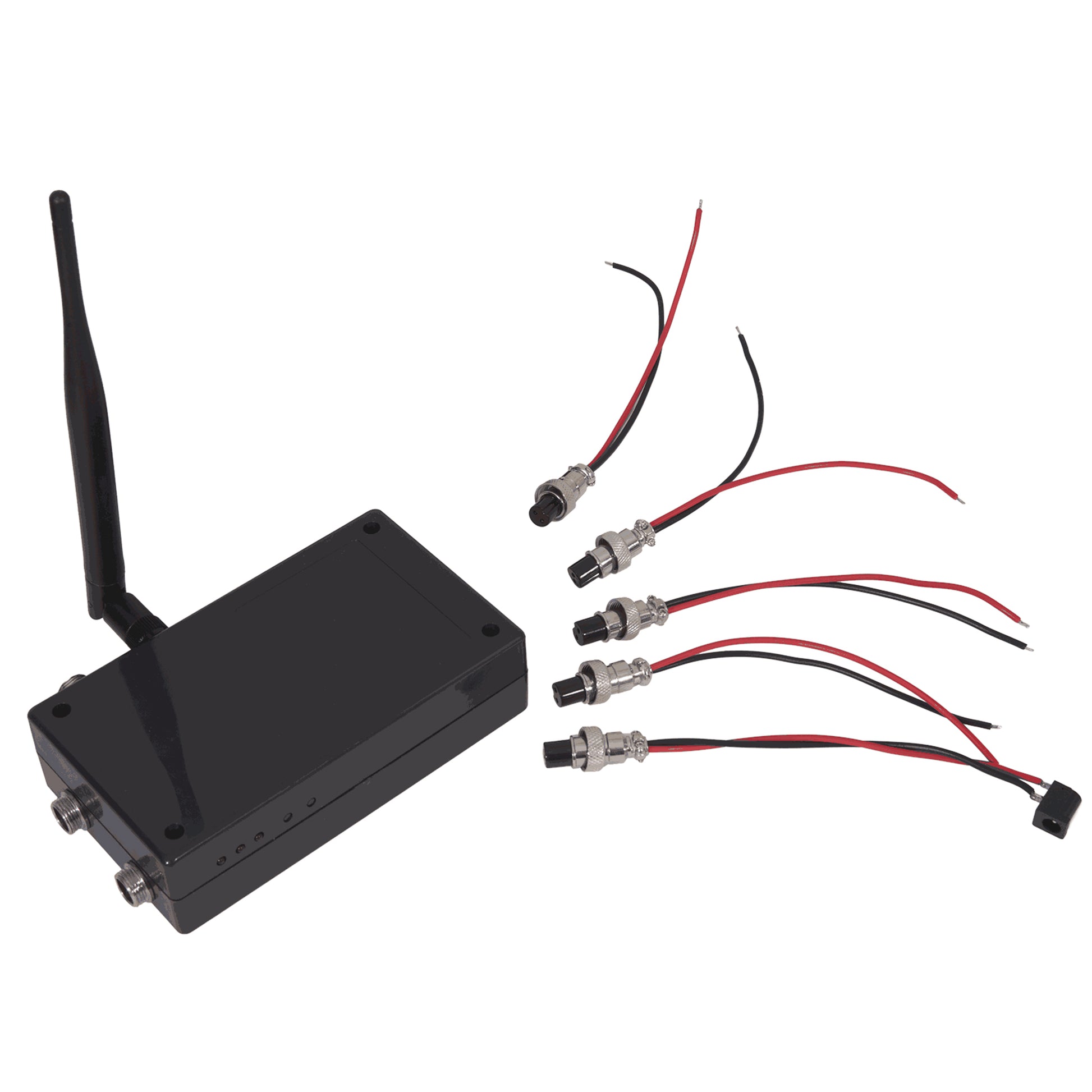

  • XLR Connectors included
  • 10A Current Capacity per channel
  • Androids & iPhone App Compatibility
  • Intuitive Interface
  • Momentary and Non-Momentary Modes

Need more information?
Ask our experts.

Ask us
View full details
Description
PA-35 Specifications

The PA-35 WiFi control box is used to integrate iOS and Android devices with linear actuators. We’ve specifically designed this unit to overcome common challenges found in many WiFi control boxes, such as:
  • Seamless Integration: Connects iOS and Android devices with linear actuators.
  • Wireless Control: Full motion control via WiFi using the Progressive Automations App.
  • Multi-Channel Support: Manages up to 4 unique channels.
  • Customizable Settings: Record and save actuator movements for precise control.

Key Benefits and Features of the PA-35

  • WiFi Signal Emission: Acts like a router for device connectivity.
  • XLR Connectors: Easy connection for linear actuators.
  • High Current Capacity: Supports up to 10A per channel.
  • App Compatibility: Works with both Android and iPhone devices.
  • Intuitive Interface: User-friendly controls with time delay settings up to 999 seconds.
  • Momentary and Non-Momentary Modes: Flexible control options.
PA-35 Compatibility Chart Data Sheet
Overview
PA-35 Specifications

The PA-35 WiFi control box is used to integrate iOS and Android devices with linear actuators. We’ve specifically designed this unit to overcome common challenges found in many WiFi control boxes, such as:
  • Seamless Integration: Connects iOS and Android devices with linear actuators.
  • Wireless Control: Full motion control via WiFi using the Progressive Automations App.
  • Multi-Channel Support: Manages up to 4 unique channels.
  • Customizable Settings: Record and save actuator movements for precise control.

Key Benefits and Features of the PA-35

  • WiFi Signal Emission: Acts like a router for device connectivity.
  • XLR Connectors: Easy connection for linear actuators.
  • High Current Capacity: Supports up to 10A per channel.
  • App Compatibility: Works with both Android and iPhone devices.
  • Intuitive Interface: User-friendly controls with time delay settings up to 999 seconds.
  • Momentary and Non-Momentary Modes: Flexible control options.
PA-35 Compatibility Chart Data Sheet
Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Quality You Can Trust – Learn More

Data Sheets

PA-35 User Manual
PA-35 User Manual

User Manual for PA-35

View
Knowledge base
Video & Articles
Videos
Related blog articles:
Wi-Fi Control of High Current Linear Actuators

Wi-Fi Control of High Current Linear Actuators

Nathan Bong

This article will show you how to use the PA-35 Wi-Fi control box to control actuators that requi...

Learn more
FAQ
How do I connect my iOS or Android device to the PA-35 control box, and what should I do if the connection fails?

For troubleshooting pairing and initial setup of the PA-35 Wi-Fi actuator control box, please check out the PA-35 manual starting from page 3

What actuator types are compatible with the PA-35 and what are the current limits per channel?

Actuator compatibility requirements for the PA-35 include models having brushed DC motors, 12 VDC operation, and a current draw below 10A per channel. Using the included XLR connectors, linear actuators can be connected to 4 unique channels.

What motion control features are available in the app, and how does the recording function work?

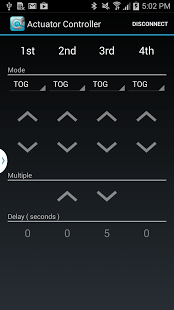

 The Wi-Fi actuator app control offers:

  •  Wi-Fi control of up to 4 channels (individual, parallel or combination).
  •  Compatible with Android devices and iPhone devices.
  •  Intuitive interface with easy-to-understand controls.
  •  Time delay of up to 999 seconds for each actuator.
  •  Momentary and non-momentary settings.
  •  Ability to record and save actuator movements.

The Wi-Fi actuator app control features up to 5 recordable presets with 30 minutes of recording time available for each. It is designed to run in the background of your Android or iOS device; however, certain device settings may prevent this from working properly. Ensure that your device allows the app to work in the background through your settings.

Can I control actuators individually and in groups using the PA-35 app, and how is that configured?

Yes, with the app’s multiple actuator control feature, you can control every aspect of your actuators. There is the option for individual actuator control or grouped control of two, three, or four actuators separately, or all together. There is also an option to turn off electric actuators that were not needed.

Are there any known compatibility issues with the PA-35 and certain operating systems?

The PA-35 is currently experiencing IOS 10 compatibility issues. We are working hard to correct this issue.
