120 VAC - 12/24 VDC Control Box - 4 Channel - Wired Remote
120 VAC - 12/24 VDC Control Box - 4 Channel - Wired Remote
Benefits
- Control Type: Wired Hand Remote (included)
- Input Voltage: 120VAC
- Output Voltage: 12VDC or 24VDC
- Current Draw Per Channel: 8.3A (12VDC), 4.2A (24VDC)
-
Control Ability: Up to 4 Actuators (1 Operational Per Use)
Features
- Overcurrent protection
- Momentary Up and Down remote functions
- 4 channels for multiple actuators
- Detachable wire lock
- Neat coiled cable and handle for remote
PA-CB1-4 Specifications

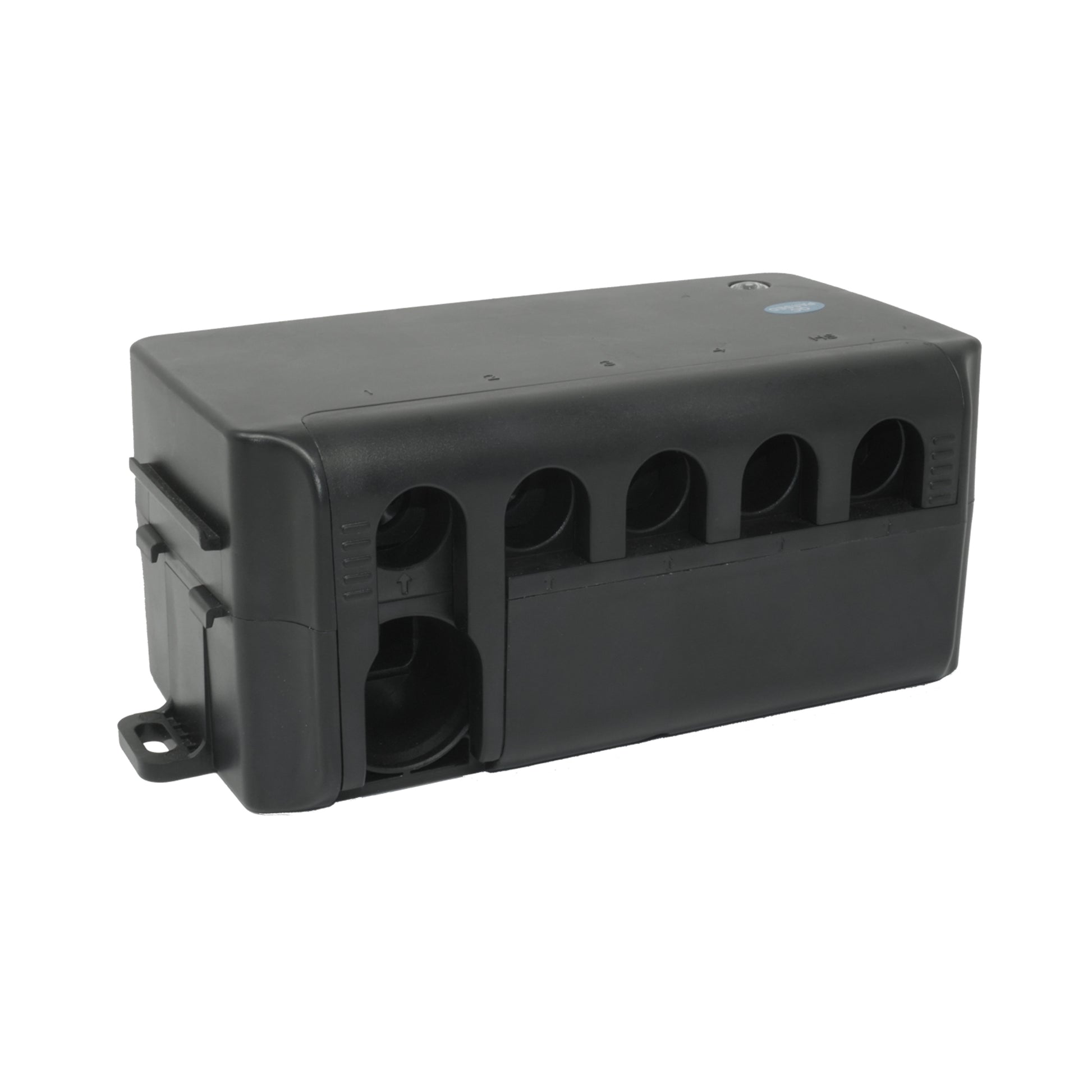

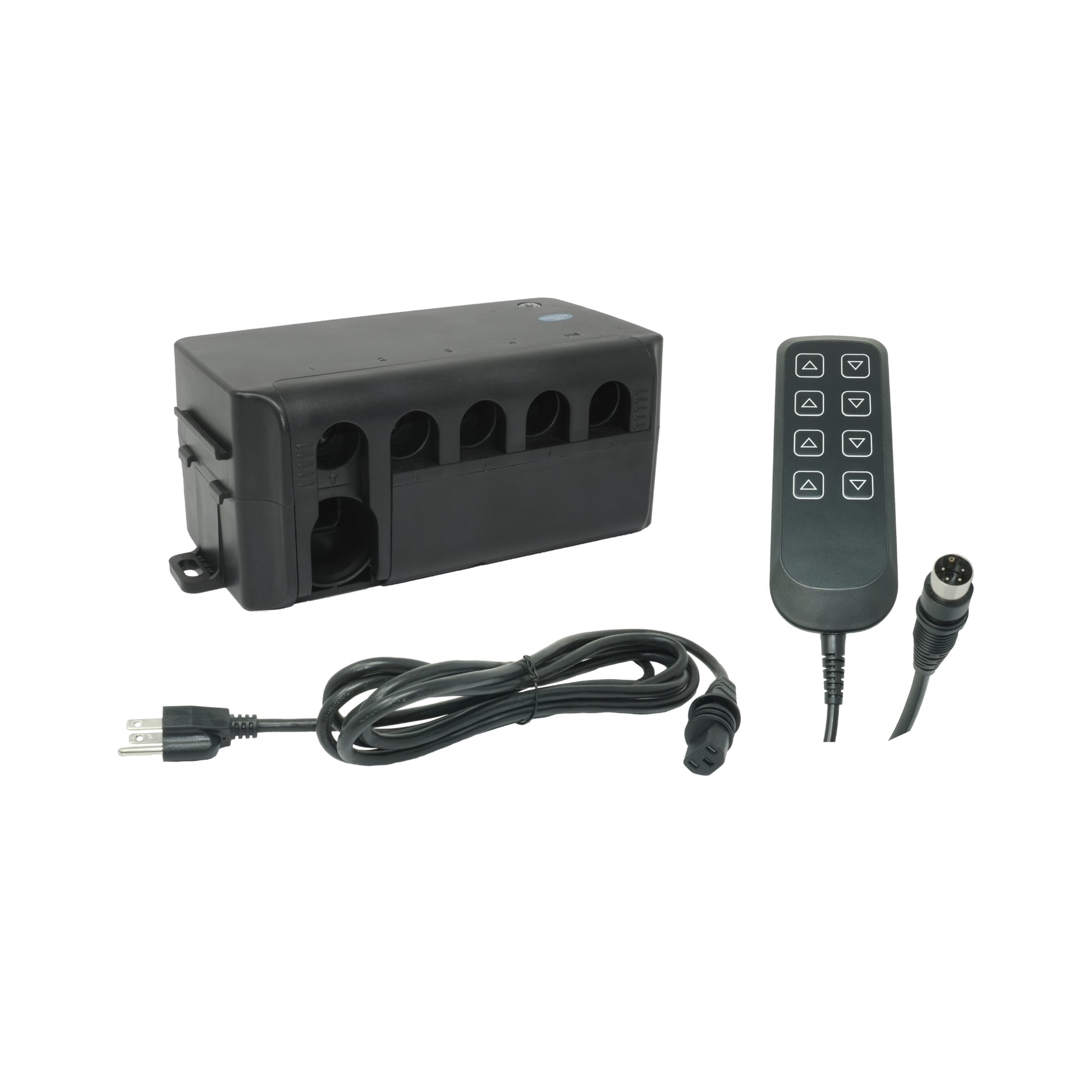

The PA-CB1-4 is a four-channel control box that is a plug-and-play solution to individually control up to 4 actuators on a single remote. We’ve specifically designed this unit to overcome common challenges found in many actuator control box solutions such as:
- Detachable wire lock: Helps to prevent any accidental wire disconnections.
- Coiled cable and handle: Ensures the large hand remote has a secure grip as well as keeping the cable well organized.
- Overcurrent protection: Equipped with overcurrent protection that triggers when any channel exceeds 11A.
Key Benefits and Features of the PA-CB1-4
- Control Ability: Individually controls up to 4 actuators on a single remote (1 Operational Per Use)
- Actuator Compatibility: The choice for 12VDC or 24VDC output allows compatibility with a wide range of electric linear actuators.
- Input Voltage: Accepting 120VAC input voltage ensures the PA-CB1-4 can plug directly into AC power sources without any AC to DC converters needed.

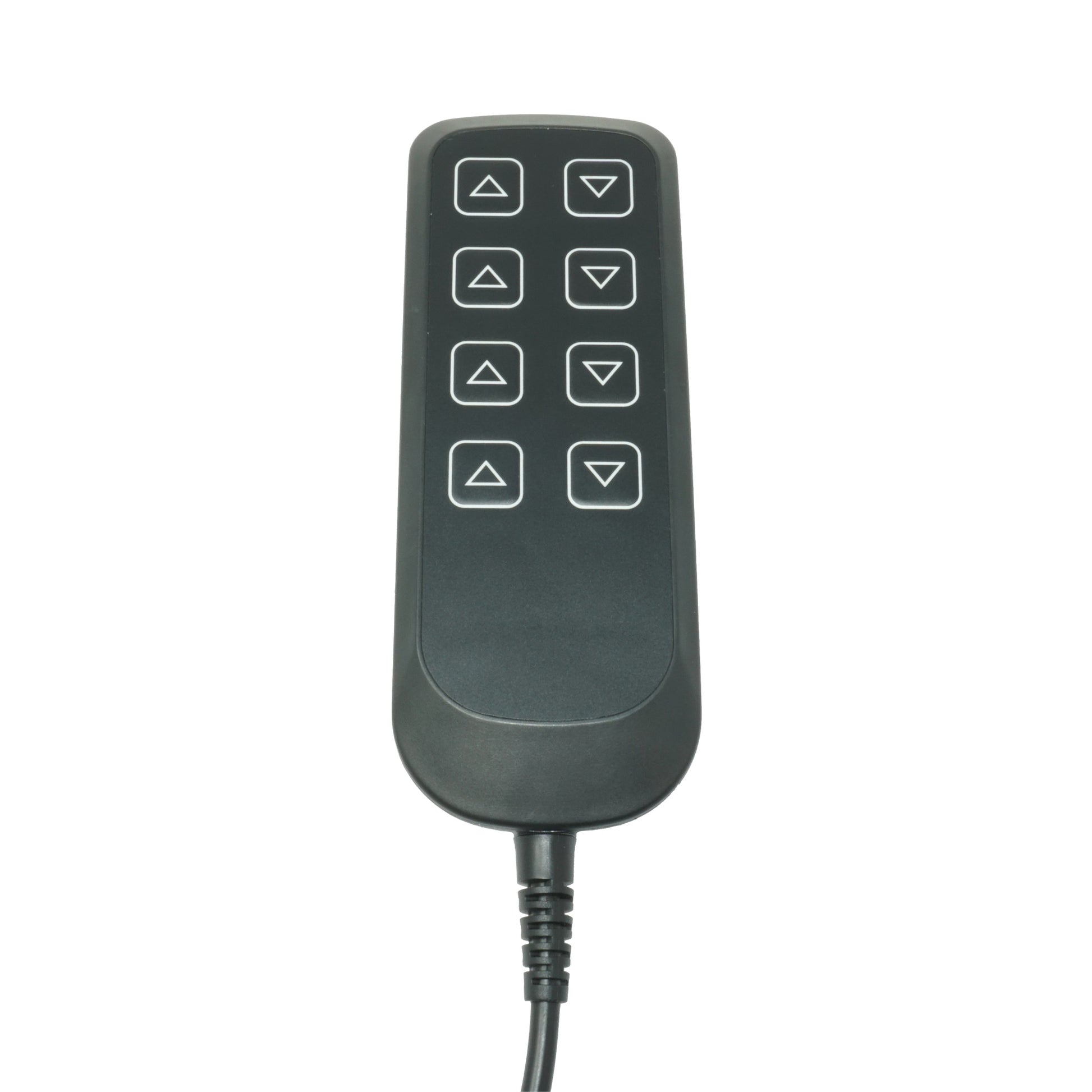

- Control Type: Momentary Up and Down functions through a wired hand remote.
- Current Draw: Each channel of the PA-CB1-4 is rated to handle 8.3A for the 12VDC version and 4.2A for the 24VDC version.
PA-CB1-4 Specifications
The PA-CB1-4 is a four-channel control box that is a plug-and-play solution to individually control up to 4 actuators on a single remote. We’ve specifically designed this unit to overcome common challenges found in many actuator control box solutions such as:
- Detachable wire lock: Helps to prevent any accidental wire disconnections.
- Coiled cable and handle: Ensures the large hand remote has a secure grip as well as keeping the cable well organized.
- Overcurrent protection: Equipped with overcurrent protection that triggers when any channel exceeds 11A.
Key Benefits and Features of the PA-CB1-4
- Control Ability: Individually controls up to 4 actuators on a single remote (1 Operational Per Use)
- Actuator Compatibility: The choice for 12VDC or 24VDC output allows compatibility with a wide range of electric linear actuators.
- Input Voltage: Accepting 120VAC input voltage ensures the PA-CB1-4 can plug directly into AC power sources without any AC to DC converters needed.
- Control Type: Momentary Up and Down functions through a wired hand remote.
- Current Draw: Each channel of the PA-CB1-4 is rated to handle 8.3A for the 12VDC version and 4.2A for the 24VDC version.
Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!
Quality You Can Trust – Learn MoreData Sheets

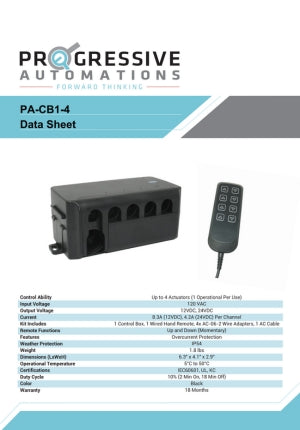

PA-CB1-4 Data Sheet
