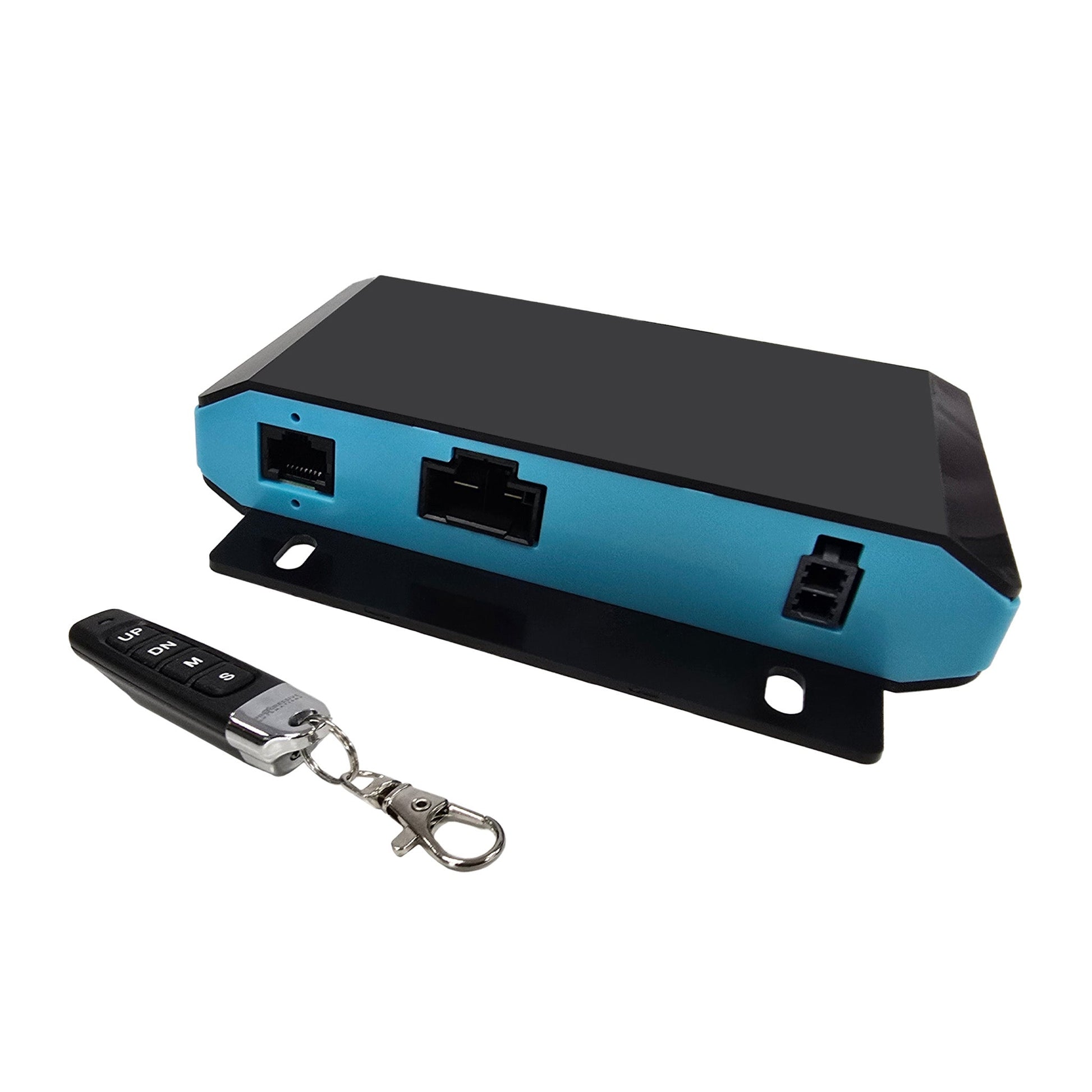

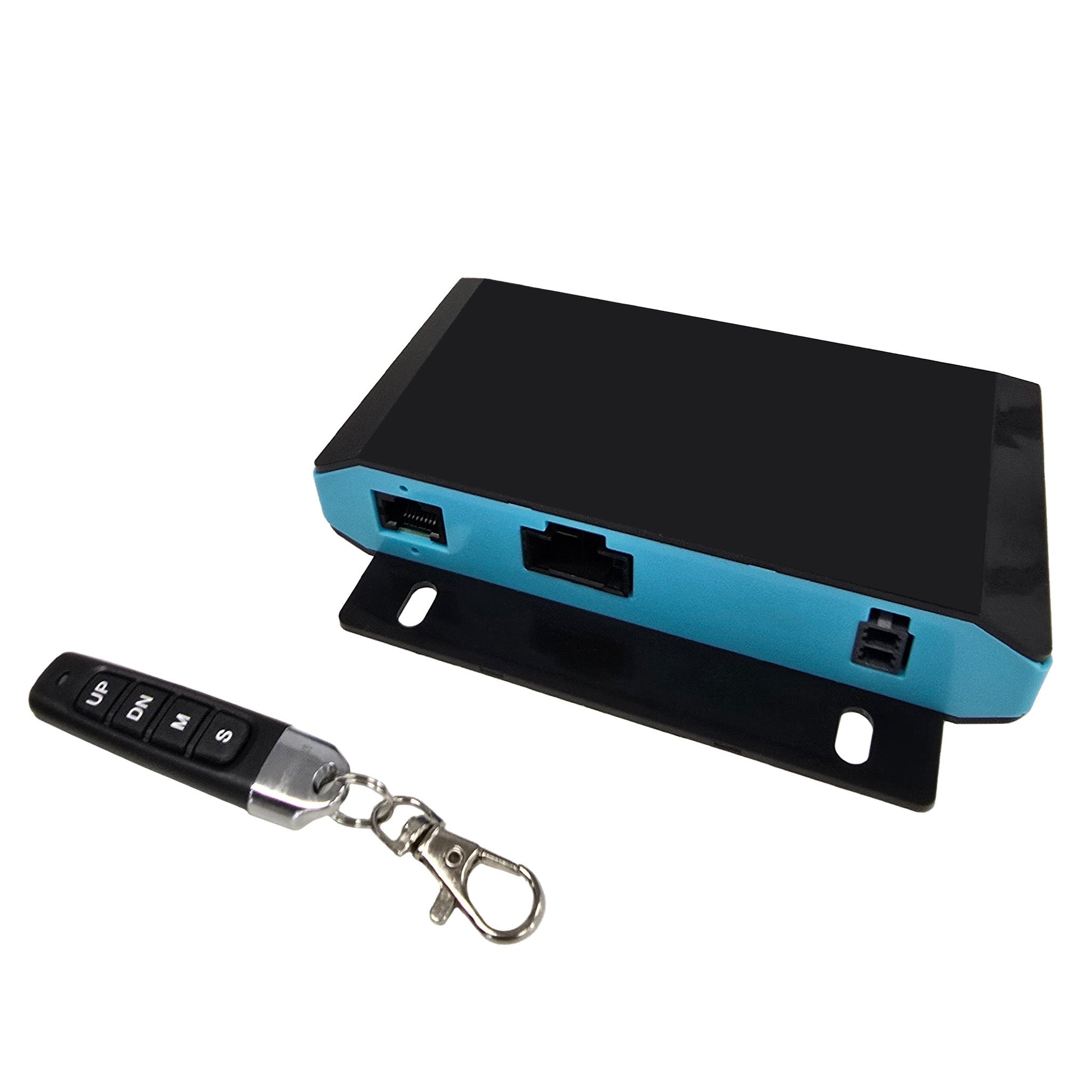

12/24VDC - 25/12.5A High Power Control Box - 1 Channel - Wireless Remote
12/24VDC - 25/12.5A High Power Control Box - 1 Channel - Wireless Remote
Benefits
- Included Wireless Remote: 30.48 m range (open air)
- Remote Functions: Up, Down, Programming Modes, Stop
- Input Voltage: 12/24VDC (10VDC - 26VDC)
- Output Power: 12/24VDC (10VDC - 26VDC)
-
Current: 25A @12VDC, 12.5A @24VDC
Features
- 300-Watt High Power Output
- Automatic Power Saving Mode
- Instant Wake Up
- Smooth Motion Mode
- Momentary and Non-momentary Control

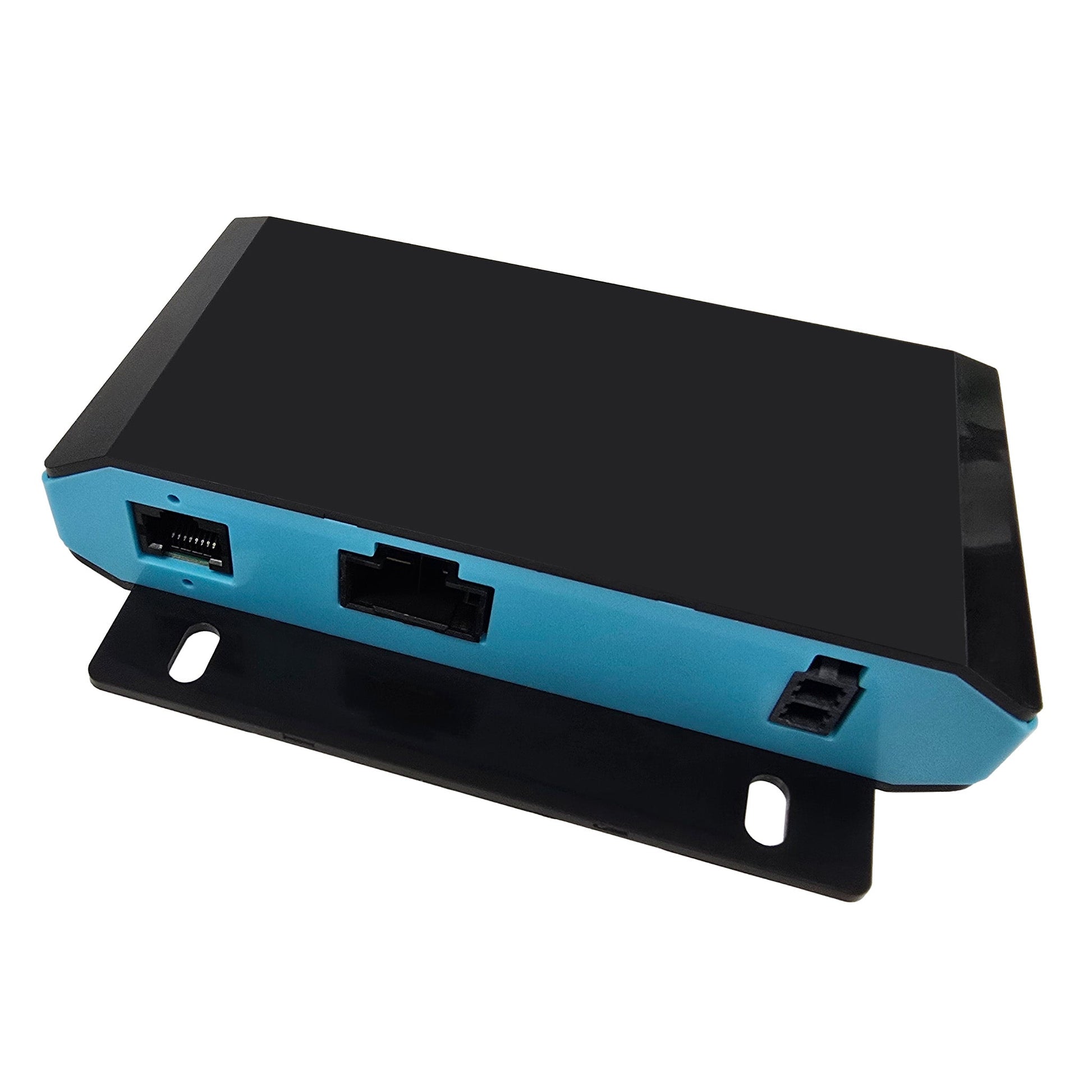

The PA-CB31-1-12V24V is Progressive Automations’ first High Power (300-Watt) actuator control box, purpose-built to drive heavy-duty industrial Linear Actuators. We’ve specifically designed this unit to overcome common challenges found in many wireless actuator control box solutions, such as:
-
Easy Setup: Simple plug-and-play with all load-compatible Heavy Duty Linear Actuators and Power Supplies, with the appropriate wiring harness selected (sold separately).
-
Rugged Design: This durable actuator control solution features high-current MOSFET motor drivers, reinforced PCB traces, and robust connectors.
-
Safety Features: Output Short Circuit, Out of Range Input Voltage, and Reverse Input Voltage Protection come standard for added safety.
Key Benefits and Features of the PA-CB31-1-12V24V
-
High Power Output: The PA-CB31-1-12V24V is Progressive Automations’ first High Power (300-Watt) actuator control box, purpose-built to drive heavy-duty industrial Linear Actuators.
- Voltage Compatibility: The 12/24VDC (10VDC - 26VDC) input and output voltage operation allows compatibility with a wide range of actuators and power supplies.
-
Energy Efficiency: Automatic Power Saving Mode and Instant Wake Up (Single press, 100mS response time) ensures high operational efficiency.
- Versatile Control: Offers wireless remote mode selection, pairing, momentary and non-momentary operation options, and pairs up to 4 remotes.

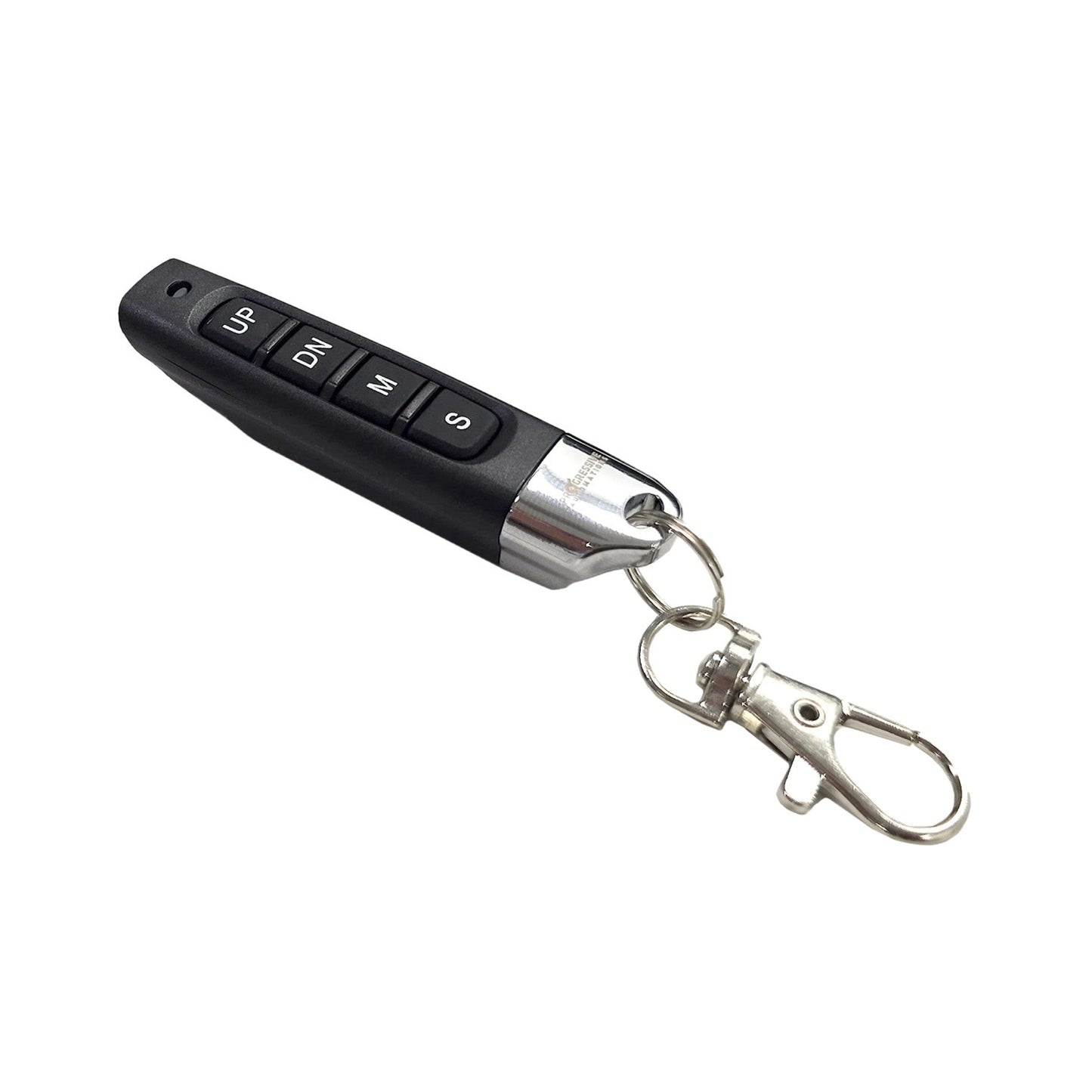

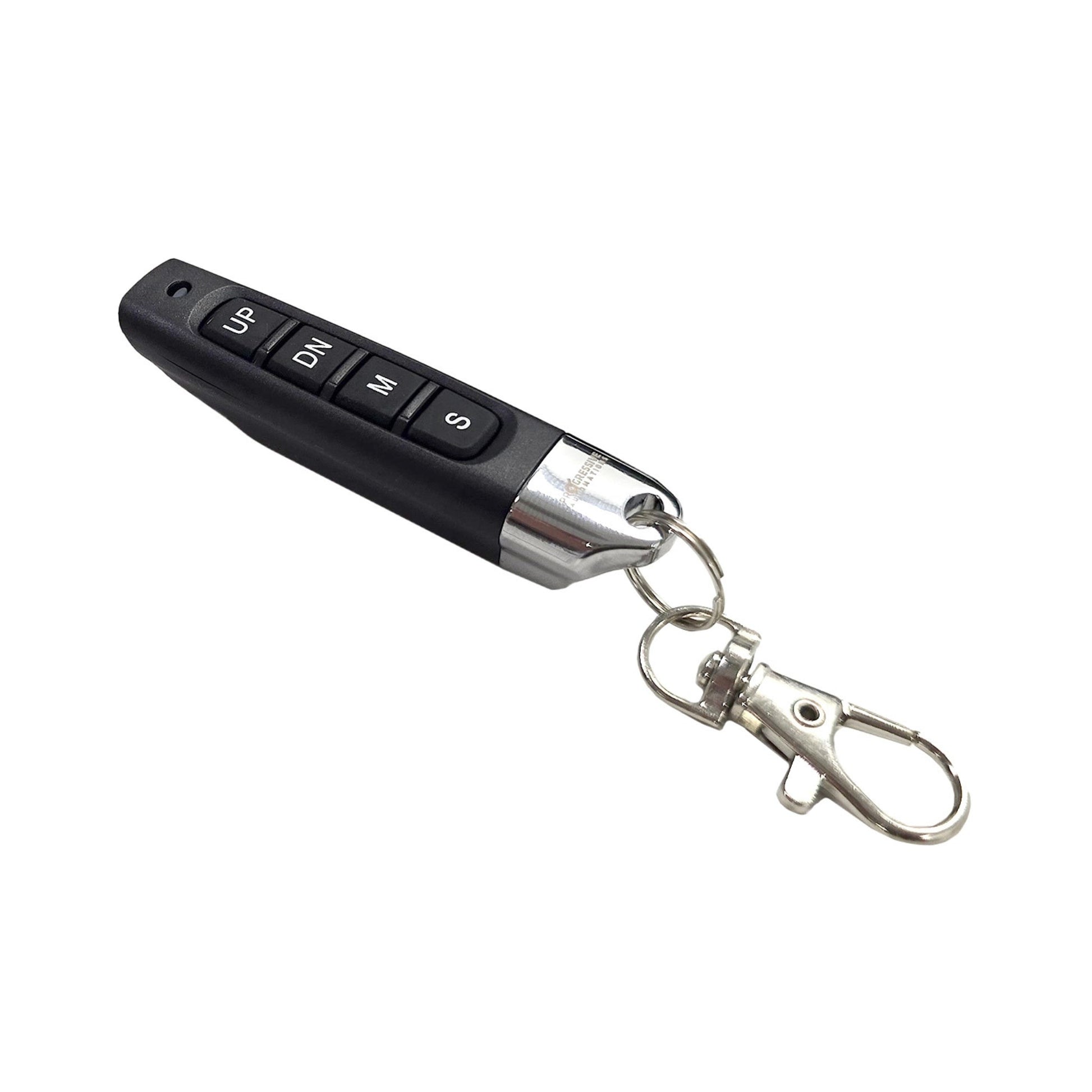

- Wireless Remote: Using the RF remote provided, users have the ability to access programming modes, extend, stop, and retract their actuators from up to 30.48 m away (open air).
The PA-CB31-1-12V24V is Progressive Automations’ first High Power (300-Watt) actuator control box, purpose-built to drive heavy-duty industrial Linear Actuators. We’ve specifically designed this unit to overcome common challenges found in many wireless actuator control box solutions, such as:
-
Easy Setup: Simple plug-and-play with all load-compatible Heavy Duty Linear Actuators and Power Supplies, with the appropriate wiring harness selected (sold separately).
-
Rugged Design: This durable actuator control solution features high-current MOSFET motor drivers, reinforced PCB traces, and robust connectors.
-
Safety Features: Output Short Circuit, Out of Range Input Voltage, and Reverse Input Voltage Protection come standard for added safety.
Key Benefits and Features of the PA-CB31-1-12V24V
-
High Power Output: The PA-CB31-1-12V24V is Progressive Automations’ first High Power (300-Watt) actuator control box, purpose-built to drive heavy-duty industrial Linear Actuators.
- Voltage Compatibility: The 12/24VDC (10VDC - 26VDC) input and output voltage operation allows compatibility with a wide range of actuators and power supplies.
-
Energy Efficiency: Automatic Power Saving Mode and Instant Wake Up (Single press, 100mS response time) ensures high operational efficiency.
- Versatile Control: Offers wireless remote mode selection, pairing, momentary and non-momentary operation options, and pairs up to 4 remotes.
- Wireless Remote: Using the RF remote provided, users have the ability to access programming modes, extend, stop, and retract their actuators from up to 30.48 m away (open air).
Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!
Quality You Can Trust – Learn MoreData Sheets

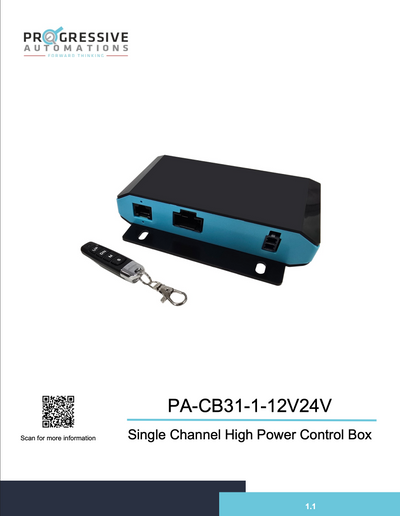

PA-CB31-1-12V24V Data Sheet
