Description
PA-ED1 Specifications

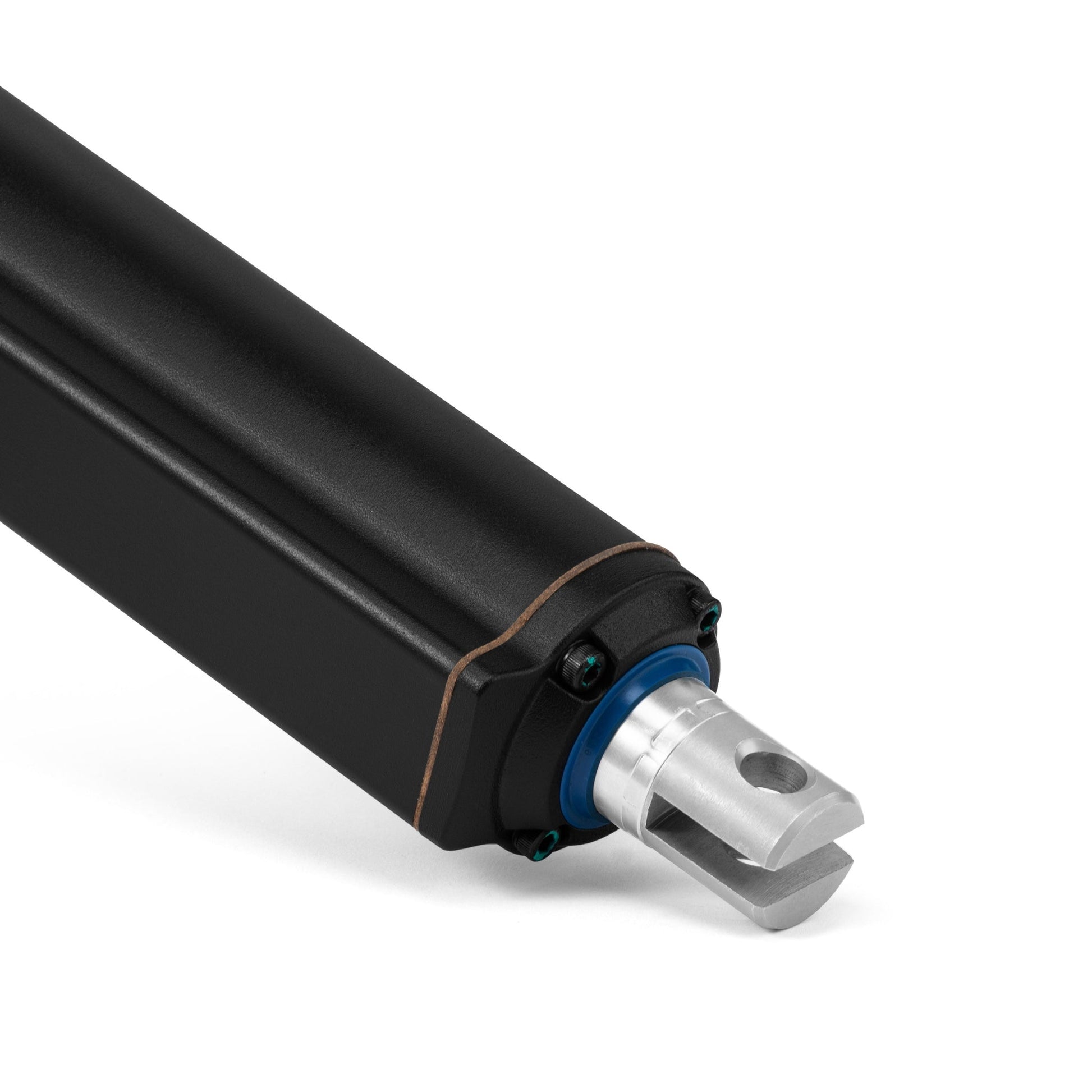

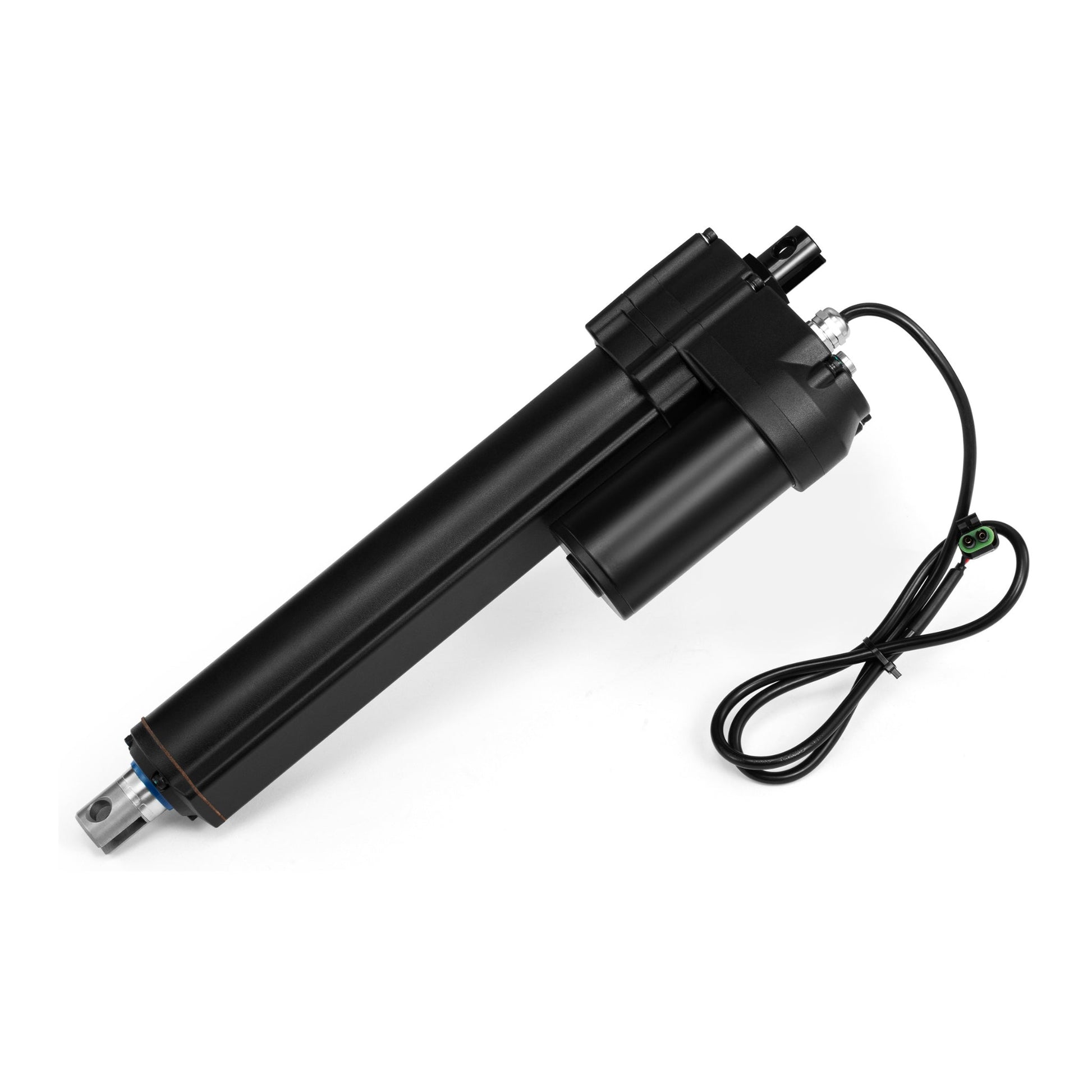

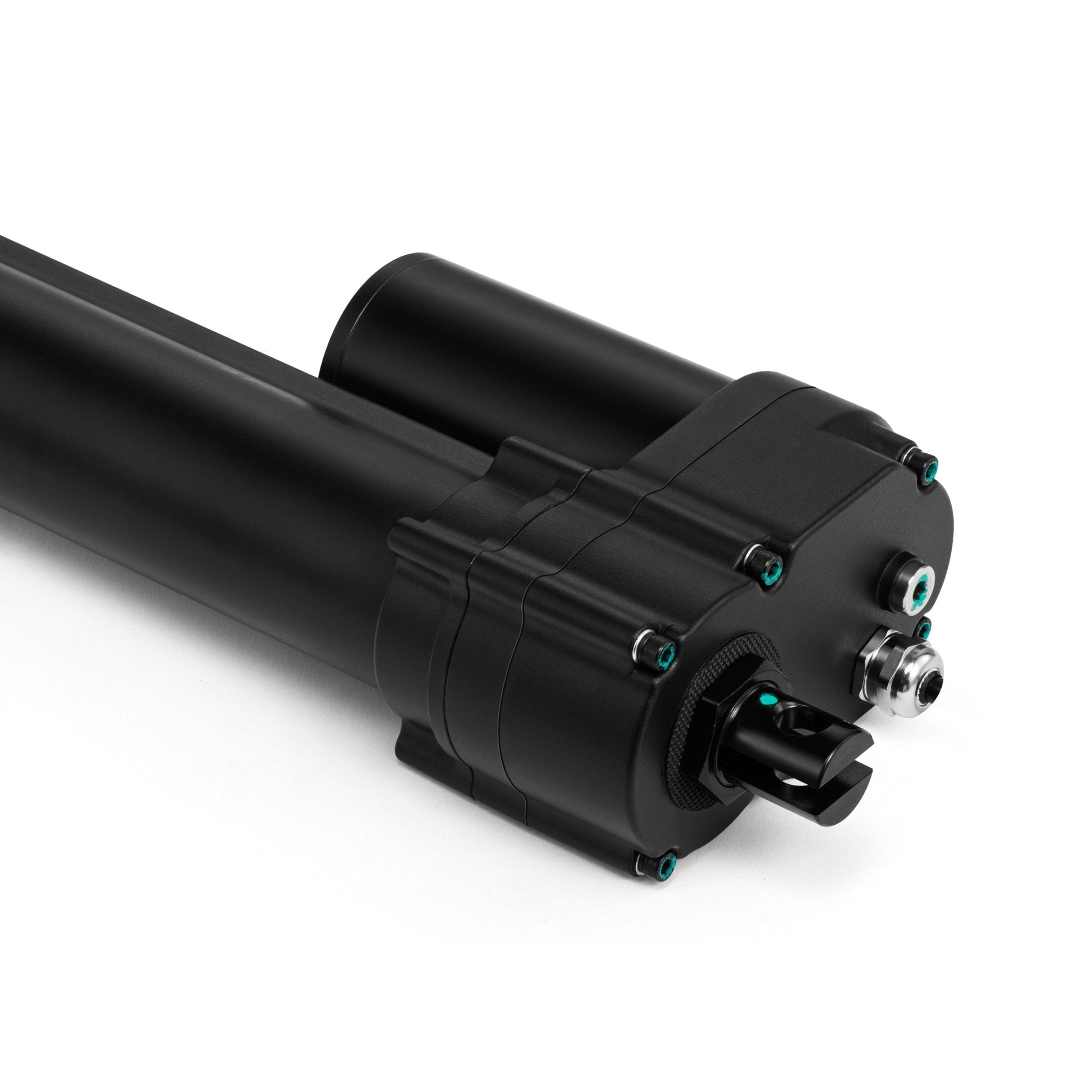

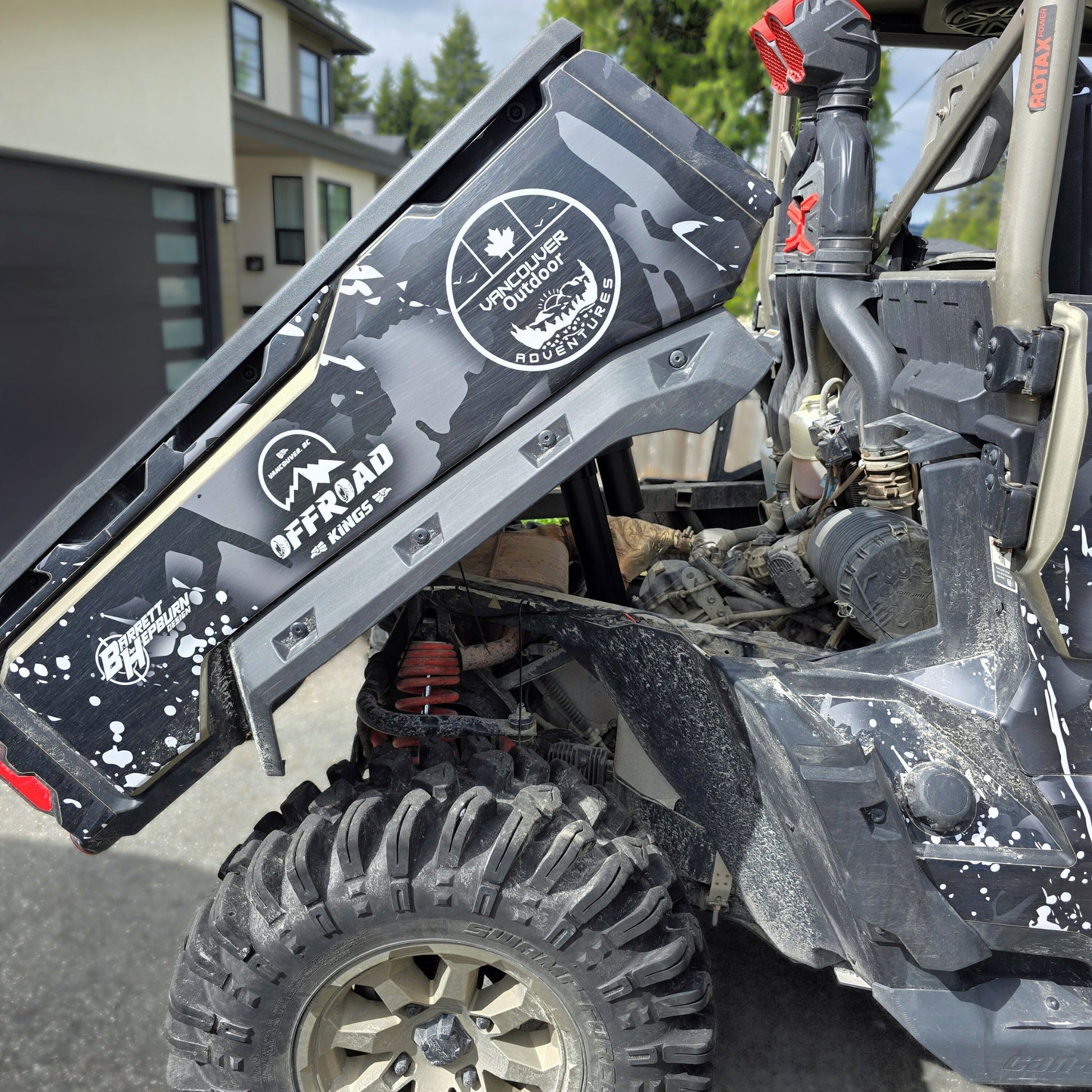

The PA-ED1 Electric Dump Bed Assist Kit is a complete solution for upgrading manual or hydraulic dump beds into a fully electric system. Ideal for ATVs and UTVs used in agriculture, landscaping, or utility tasks, this kit includes a high-force electric actuator, a pre-wired harness, a rocker switch, and all required mounting hardware.

Capable of lifting up to 899 lbs, this electric dump bed actuator kit provides smooth and consistent motion with the push of a button. Designed with durability in mind, the actuator features IP65-rated weather resistance and stainless steel components, making it suitable for outdoor environments and year-round use.

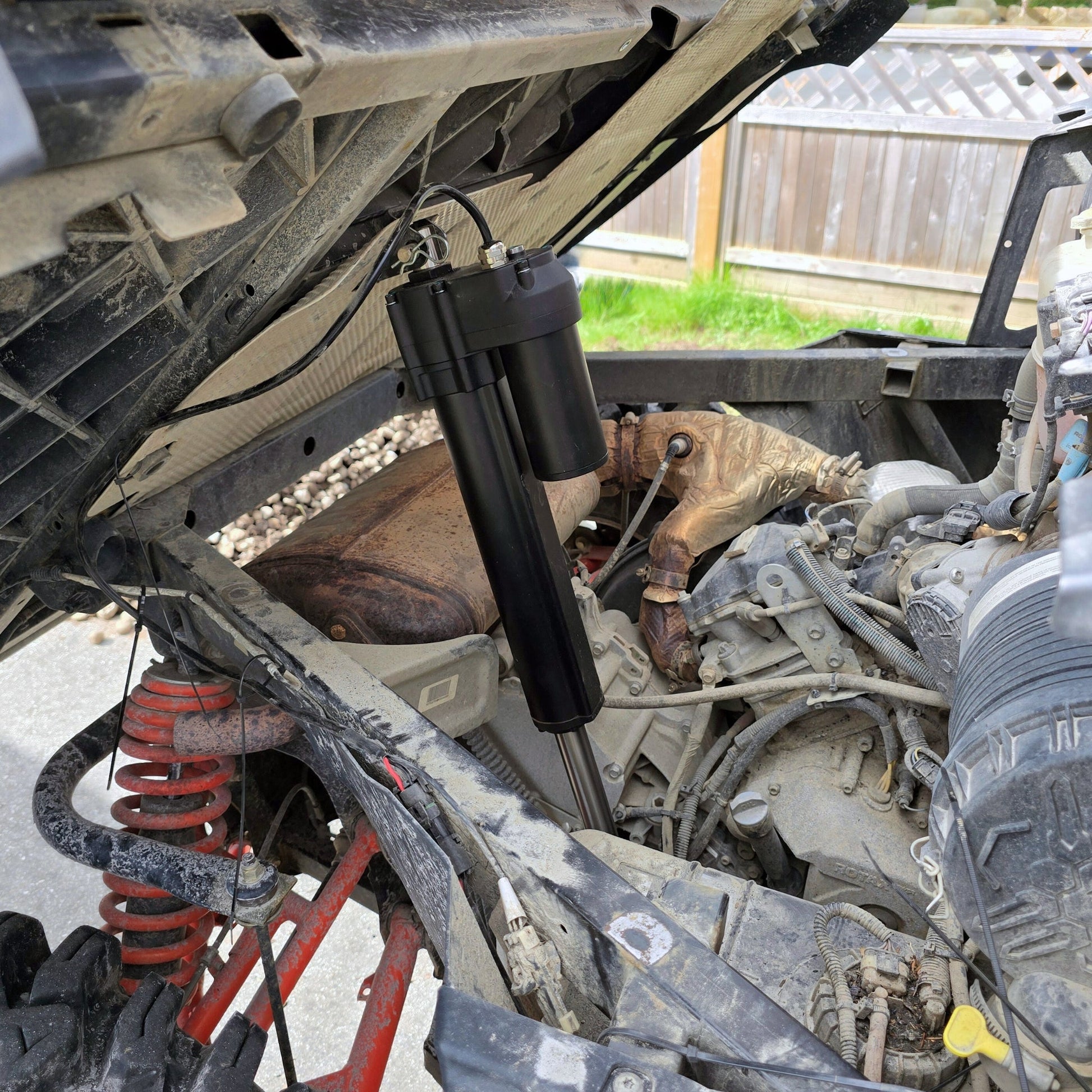

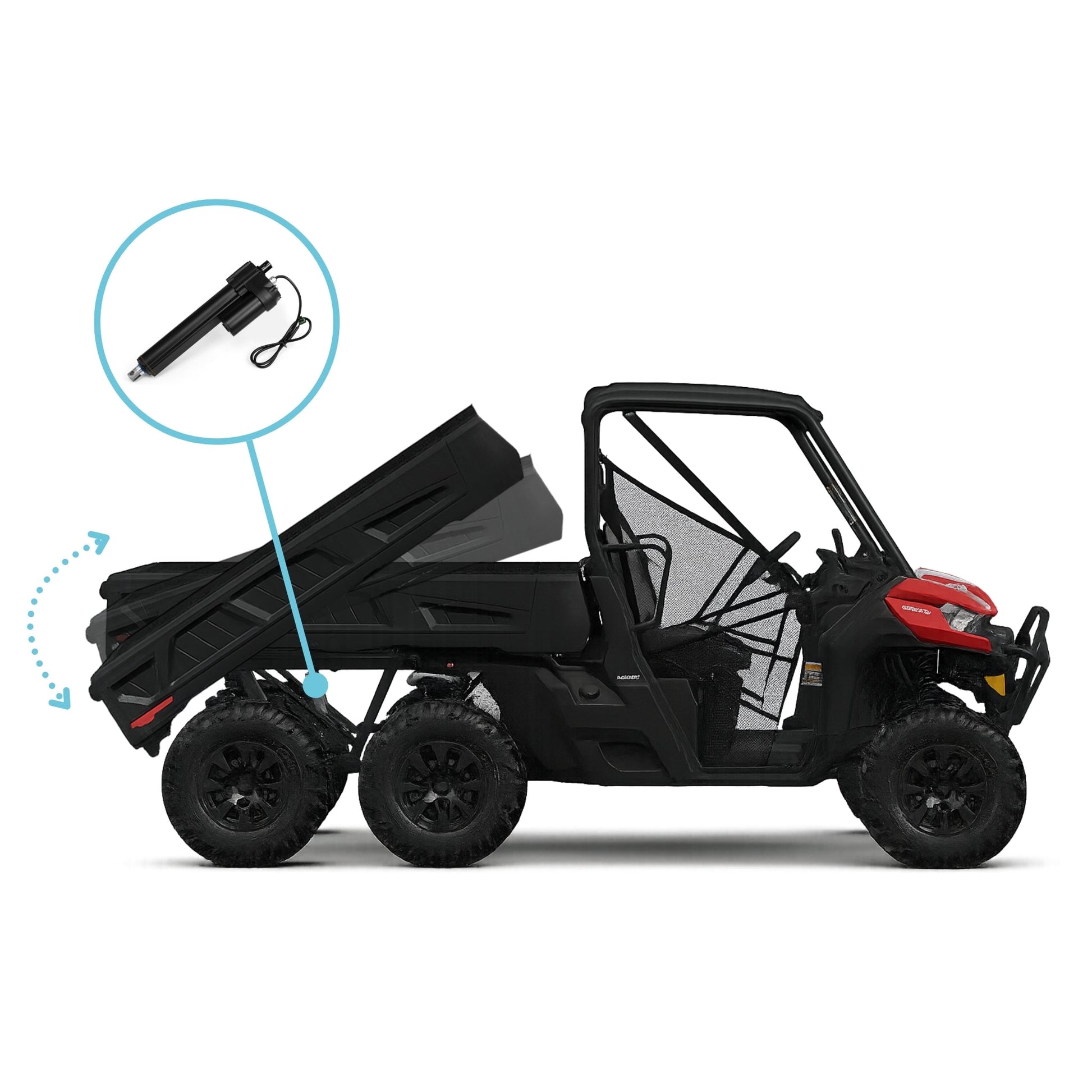

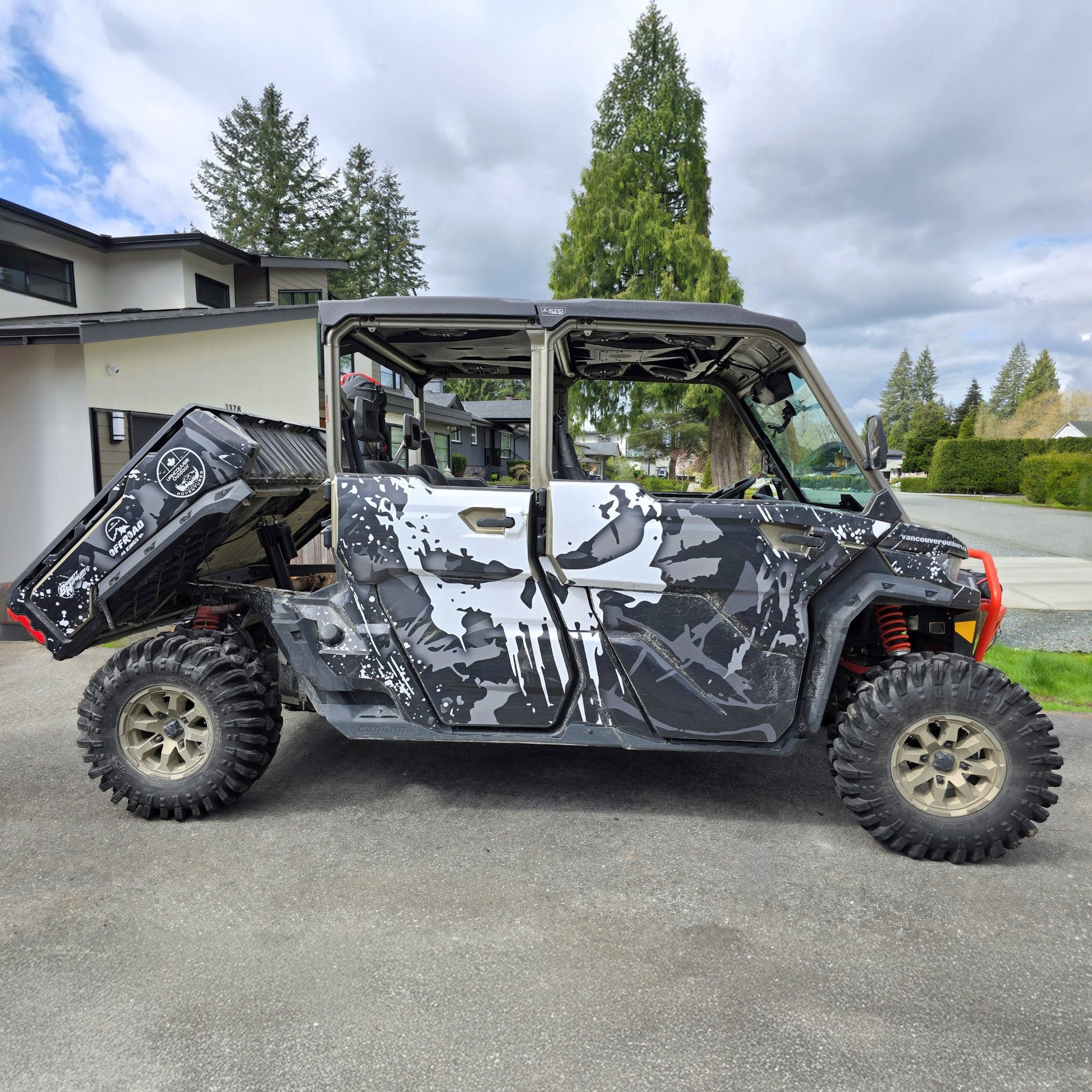

The dump bed conversion kit for UTV or ATV setups integrates easily with standard cargo beds and trailers—and is best compatible with select Can-Am Defender models (See datasheet for full compatibility), offering a seamless fit and reliable performance for these popular utility vehicles.

The system runs on 12V and includes a clear, step-by-step installation manual with setup instructions. Select this electric dump bed conversion kit to streamline your workflow and reduce manual labor, all while increasing your equipment’s functionality.

*This product may affect how your machine operates. It is the customer’s responsibility to confirm compatibility with their equipment, ensure proper installation, and understand any potential impact on performance.
Overview
PA-ED1 Specifications

The PA-ED1 Electric Dump Bed Assist Kit is a complete solution for upgrading manual or hydraulic dump beds into a fully electric system. Ideal for ATVs and UTVs used in agriculture, landscaping, or utility tasks, this kit includes a high-force electric actuator, a pre-wired harness, a rocker switch, and all required mounting hardware.

Capable of lifting up to 899 lbs, this electric dump bed actuator kit provides smooth and consistent motion with the push of a button. Designed with durability in mind, the actuator features IP65-rated weather resistance and stainless steel components, making it suitable for outdoor environments and year-round use.

The dump bed conversion kit for UTV or ATV setups integrates easily with standard cargo beds and trailers—and is best compatible with select Can-Am Defender models (See datasheet for full compatibility), offering a seamless fit and reliable performance for these popular utility vehicles.

The system runs on 12V and includes a clear, step-by-step installation manual with setup instructions. Select this electric dump bed conversion kit to streamline your workflow and reduce manual labor, all while increasing your equipment’s functionality.

*This product may affect how your machine operates. It is the customer’s responsibility to confirm compatibility with their equipment, ensure proper installation, and understand any potential impact on performance.
FAQ
What is included in the PA-ED1 Electric Dump Bed Assist Kit and how does each component contribute to the system?

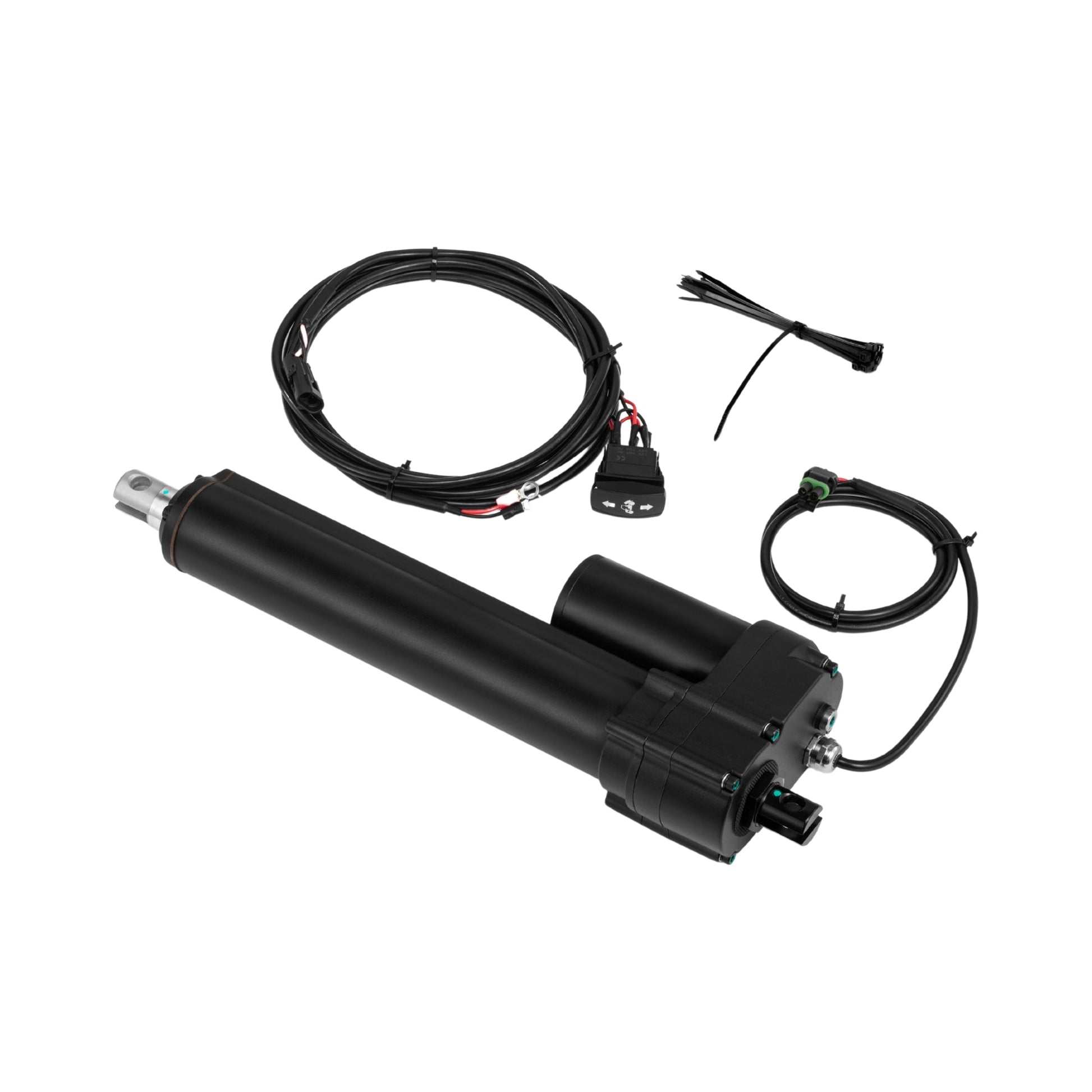

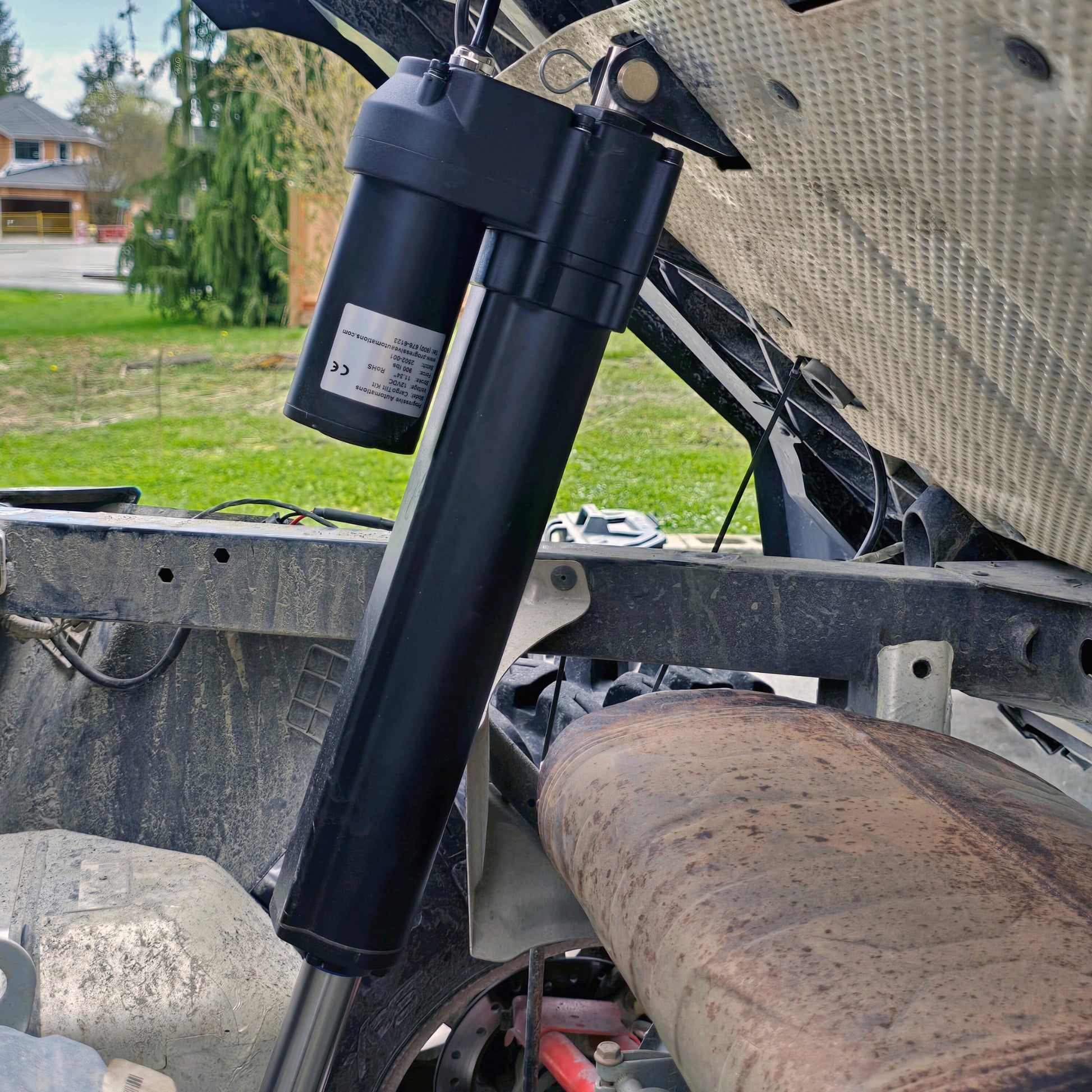

The electric dump bed kit contents include a high-force actuator with wiring harness that has a pre-wired rocker switch for simple integration, and 20x Zipties as the mounting hardware.

What makes the PA-ED1 suitable for use with ATVs and UTVs in agricultural or landscaping environments?

It is designed as a rugged outdoor actuator with water-resistant and high force capabilities to handle the requirements found in ATVs and UTV conversion kits for dump beds in farming and landscaping.

What is the maximum lifting capacity of the actuator in this kit and how is performance affected under load?

The high force actuator is rated for 899 lbs of dynamic force, where the actuator’s travel speed changes based on the load applied while offering reliable dump bed lifting power.

Is the PA-ED1 actuator weather-resistant and suitable for year-round outdoor operation?

Yes, the IP65 actuator ingress protection rating is dustproof and water-resistant, offering outdoor electric actuator durability for harsh environments.

How does the PA-ED1 compare to hydraulic dump bed systems in terms of ease of use and maintenance?

The electric PA-ED1 dump bed conversion benefits include being easier to install, requiring less maintenance, and being safer to operate compared to hydraulic alternatives.

Can the PA-ED1 be retrofitted to older ATV/UTV models or only specific machines like Can-Am Defender?

It has ATV and UTV compatibility that integrate easily with standard cargo beds and trailers, and is best compatible with select Can-Am Defender models (See datasheet for full compatibility)

What electrical requirements must be met to install the PA-ED1 actuator system properly?

The system requires a 12VDC power supply for actuator operation with 12V actuator wiring that meets the actuator fuse requirements to ensure safe operation.

Does the kit come with an installation manual, and what is the estimated time and difficulty of installation?

Yes, a dump bed installation guide is included. Install times can vary on a case-by-case basis; however, it is common to take 1–2 hours.

How does the rocker switch function, and can it be mounted in different locations on the vehicle?

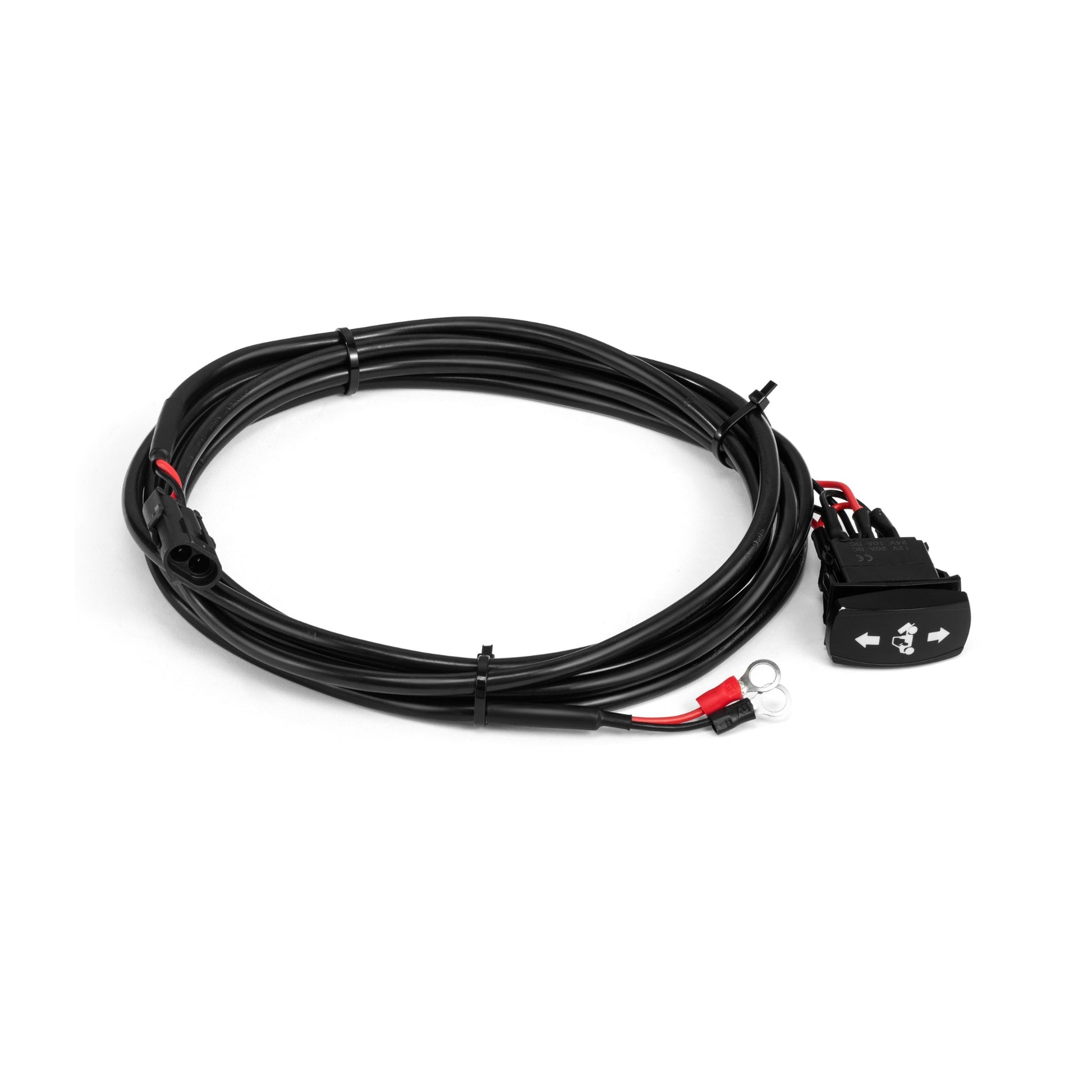

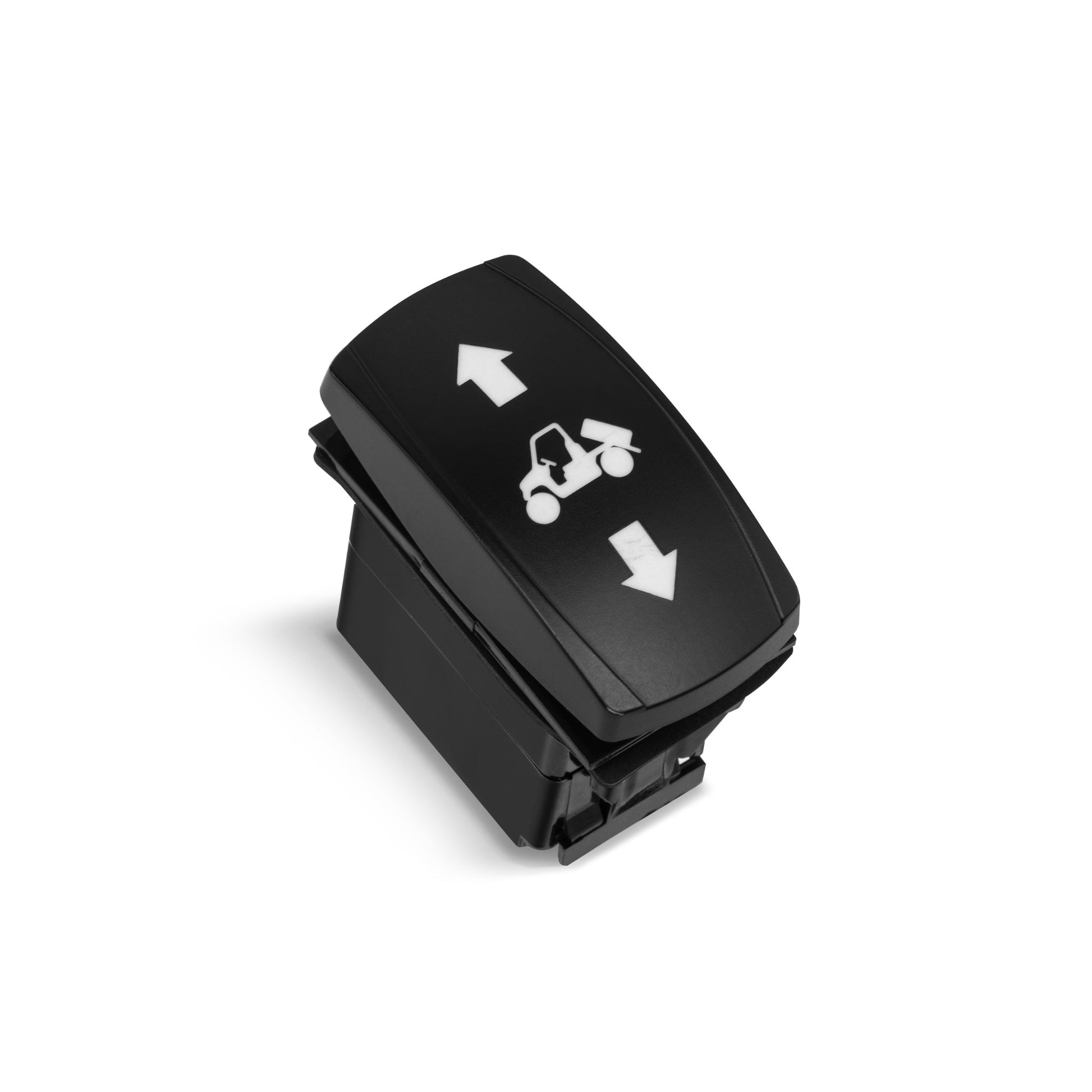

The dump bed rocker switch offers momentary controls for up/down motion and has an IP68 waterproof ingress protection rating that can be mounted anywhere that is convenient on the vehicle.

Are there any safety considerations or operational changes to be aware of after installing this kit?

Yes, users should avoid overloading and follow actuator usage precautions to ensure long-term dump bed safety and performance. This product may affect how your machine operates. It is the customer’s responsibility to confirm compatibility with their equipment, ensure proper installation, and understand any potential equipment performance impacts.
