IP65 Micro Linear Actuator
Skip to product information
1 of 9

IP65 Micro Linear Actuator

IP65 Micro Linear Actuator

Benefits

  • Compact Size: Hole to hole of 70 mm + Stroke Length
  • Ingress Protection Rating: IP65
  • Low Current Draw: ≤700 mA (full load)
  • Versatile Force Ratings: 36-174 N dynamic, 36-249 N static
  • Voltage Compatibility: 12 VDC


Features

  • High-quality materials
  • Reliable brushed DC electric motor
  • Efficient 20% duty cycle
  • Simple 2-wire operation
  • Built-in Overload Protection


Need more information?
Ask our experts.

Ask us
View full details
Description
PA-MC1 Specifications

As our smallest linear actuators, the PA-MC1 micro linear actuators have a compact design that is ideal for use cases with limited spacing. We’ve specifically designed this unit to overcome common challenges found in many micro actuator solutions, such as:
  • Versatile Force Ratings: Many micro actuators are limited to low force ratings that can lead to early mechanical failures. The PA-MC1 actuator addresses this with robust construction and quality motors to handle versatile force ratings in the given compact size.
  • Safety Features: Standard models feature a current detection circuit that automatically halts the actuator at end-of-travel limits.
  • Water Ingress and Seals: Advanced seals in the PA-MC1 actuator provide robust protection against water ingress, extending the actuator's life in outdoor environments.

Key Benefits and Features of the PA-MC1

  • Versatile Force Ratings: Designed with reliability and versatility to handle 36-174 N dynamic and 36-249 N static force.
  • Durable Construction: Built with long-lasting materials, including a stainless steel stroke rod and PA6-GF35 housing, ensuring reliable performance even in harsh conditions.
  • Weather Protection: Rated IP65, offering excellent resistance against dust and water, making it suitable for outdoor environments.
  • Operational Efficiency: Brushed DC motor with 20% duty cycle for efficient operation within specified timeframes.
  • Integrated Overload Protection: Built-in, overload protection safety feature automatically halts the actuator at end-of-travel limits.
Overview
PA-MC1 Specifications

As our smallest linear actuators, the PA-MC1 micro linear actuators have a compact design that is ideal for use cases with limited spacing. We’ve specifically designed this unit to overcome common challenges found in many micro actuator solutions, such as:
  • Versatile Force Ratings: Many micro actuators are limited to low force ratings that can lead to early mechanical failures. The PA-MC1 actuator addresses this with robust construction and quality motors to handle versatile force ratings in the given compact size.
  • Safety Features: Standard models feature a current detection circuit that automatically halts the actuator at end-of-travel limits.
  • Water Ingress and Seals: Advanced seals in the PA-MC1 actuator provide robust protection against water ingress, extending the actuator's life in outdoor environments.

Key Benefits and Features of the PA-MC1

  • Versatile Force Ratings: Designed with reliability and versatility to handle 36-174 N dynamic and 36-249 N static force.
  • Durable Construction: Built with long-lasting materials, including a stainless steel stroke rod and PA6-GF35 housing, ensuring reliable performance even in harsh conditions.
  • Weather Protection: Rated IP65, offering excellent resistance against dust and water, making it suitable for outdoor environments.
  • Operational Efficiency: Brushed DC motor with 20% duty cycle for efficient operation within specified timeframes.
  • Integrated Overload Protection: Built-in, overload protection safety feature automatically halts the actuator at end-of-travel limits.
Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Quality You Can Trust – Learn More

Data Sheets

PA-MC1 Data Sheet

Data Sheet for PA-MC1

View

2D/3D models

Different stroke lengths of models are available upon request, please email us at: sales@progressiveautomations.com

Video & Articles
Videos
Related blog articles:
Complete Guide to IP Ratings

Complete Guide to IP Ratings

Yarina Li

Some of the most frequently asked questions we receive is to do with IP protection and ratings. W...

Learn more

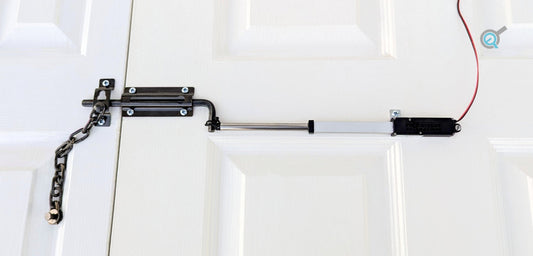

Sliding Bolt Latch Using PA-MC1 Micro Linear Actuators

Sliding Bolt Latch Using PA-MC1 Micro Linear Actuators

Nathan Bong

Sliding bolt latches can be found nearly everywhere we go as a means of locking and securing door...

Learn more
12:1 Scale Caterpillar tractor Using Micro Linear Actuators

12:1 Scale Caterpillar tractor Using Micro Linear Actuators

Nathan Bong

Linear actuators are being popularly used across different industries and for various application...

Learn more
DIY Automatic Chicken Coop Door by April Wilkerson

DIY Automatic Chicken Coop Door by April Wilkerson

Nathan Bong

Raising chickens and having access to fresh eggs everyday is truly rewarding, however, there are ...

Learn more
Hairdresser Robotic Arm Assistant by Joseph Dukes

Hairdresser Robotic Arm Assistant by Joseph Dukes

Nathan Bong

Innovation is a crucial aspect of promoting growth in any business and a fresh customer experienc...

Learn more
Sponsorship Donut Bot by University of Waterloo

Sponsorship Donut Bot by University of Waterloo

Nathan Bong

There are several reasons why some donuts may be deemed low-quality or unsatisfactory. Sometimes,...

Learn more
FAQ
What is the minimum installation space required for the micro linear actuator?

Our shortest stroke length for PA-MC1 is 0.5”; however, the stroke length that was selected based on how much travel distance was required for the application can result in a different minimum installation length requirement. The width and height of our PA-MC1 are always the same at 0.79” by 0.71”.

Does the PA-MC1 support precise positioning for small-scale automation tasks?

The PA-MC1 is not designed for high precision tasks, however, the PA-12-T or PA-12-R offers high precision and positional feedback options better suited for precise positioning applications.

Are the internal limit switches on the PA-MC1 fixed or adjustable?

The internal limit switches of the PA-MC1 are fixed and non-adjustable.

Is the PA-MC1 suitable for horizontal and vertical mounting orientations?

Horizontal and vertical mounting orientations are suitable for the PA-MC1 as long as side loading is not applied to the shaft.

Why is the PA-MC1 a better alternative to the PA-07?

The PA-MC1 actuator is a more advanced and versatile alternative to the PA-07, offering improved performance while maintaining the same trusted reliability. It supports higher dynamic load options—up to 39 lbs compared to the PA-07’s 5 lbs—and operates at significantly faster speeds, reaching up to 1.18"/sec. The PA-MC1 also includes built-in overload protection and allows for side mounting with an optional bracket. These enhancements make it suitable for a wider range of applications, while still preserving the core features of the PA-07.
