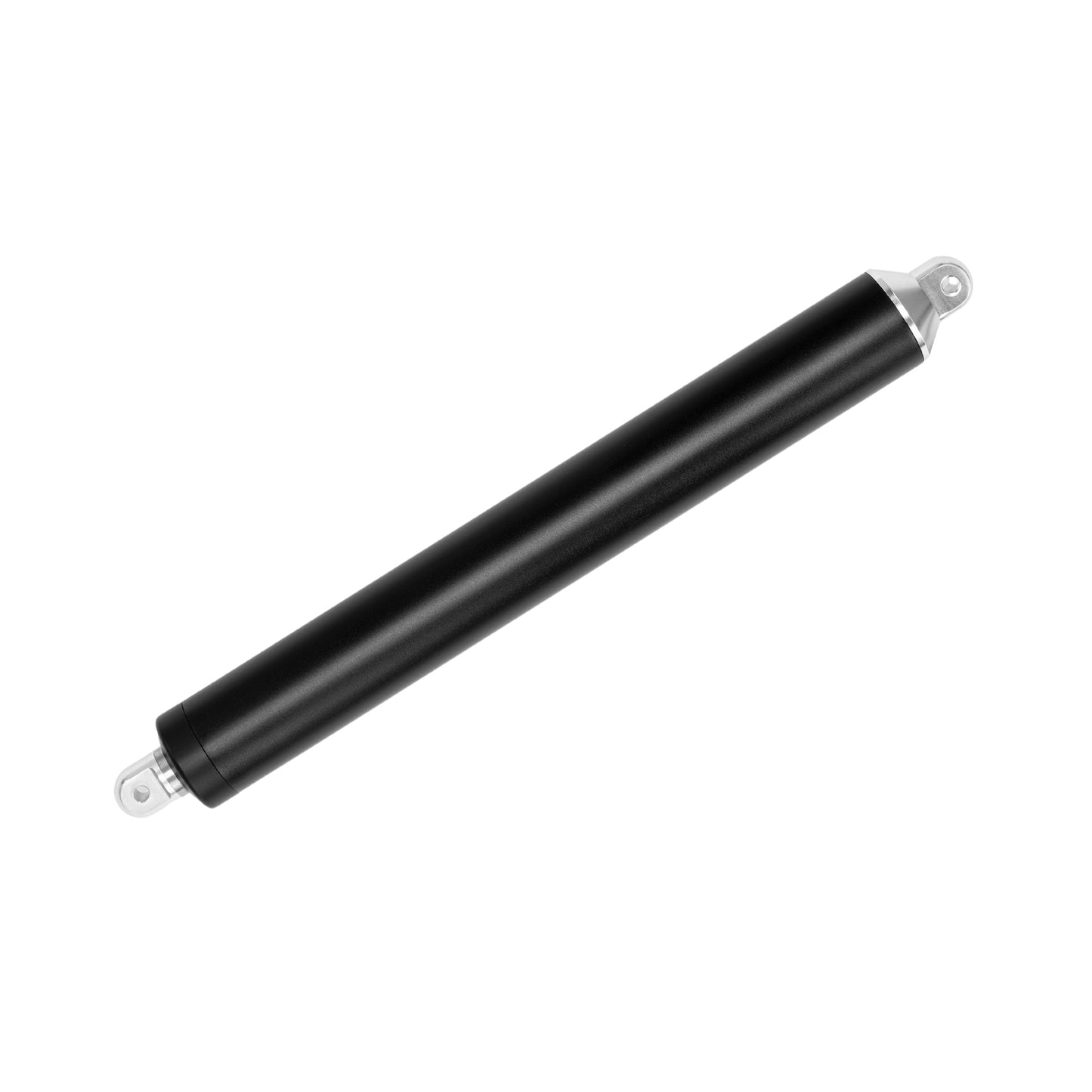

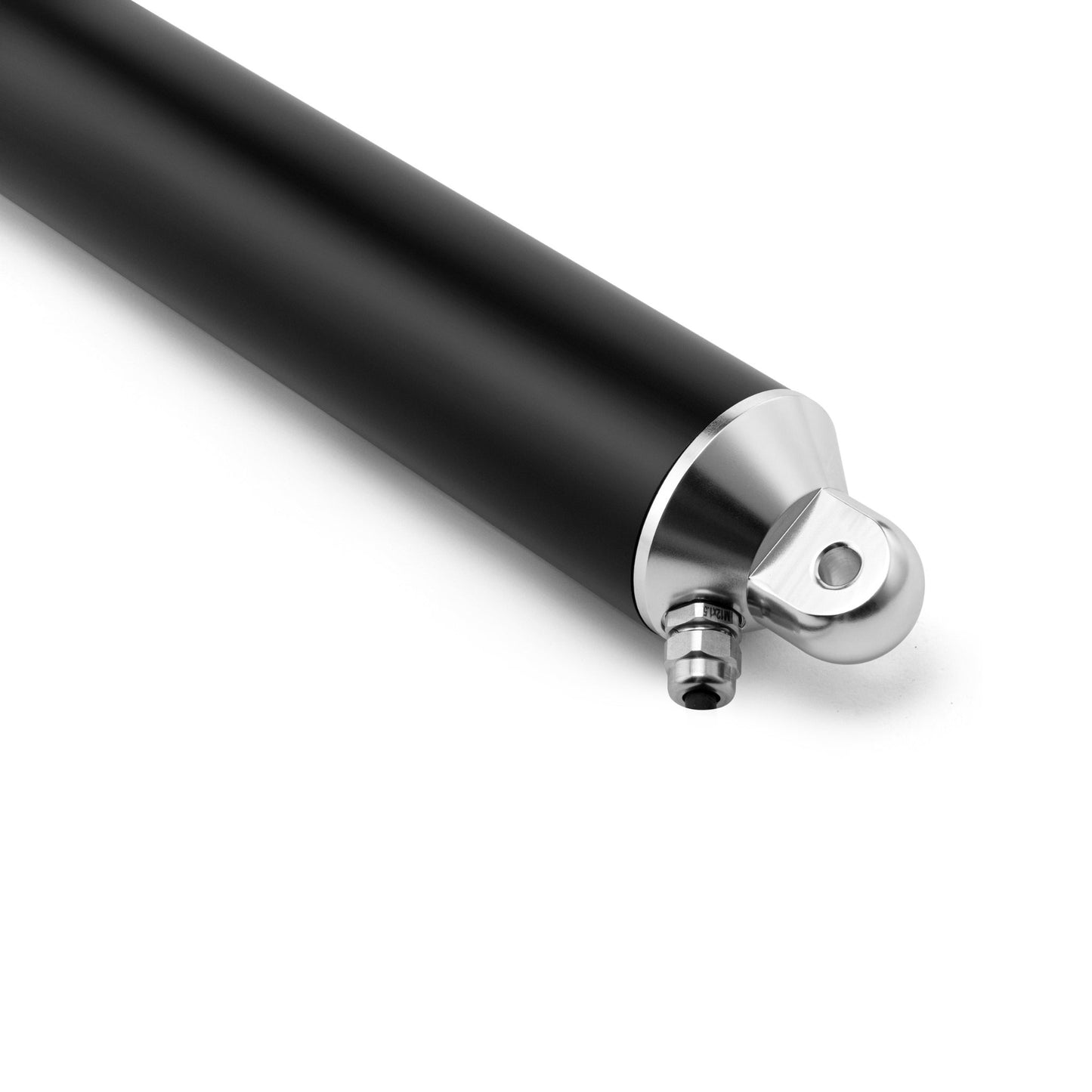

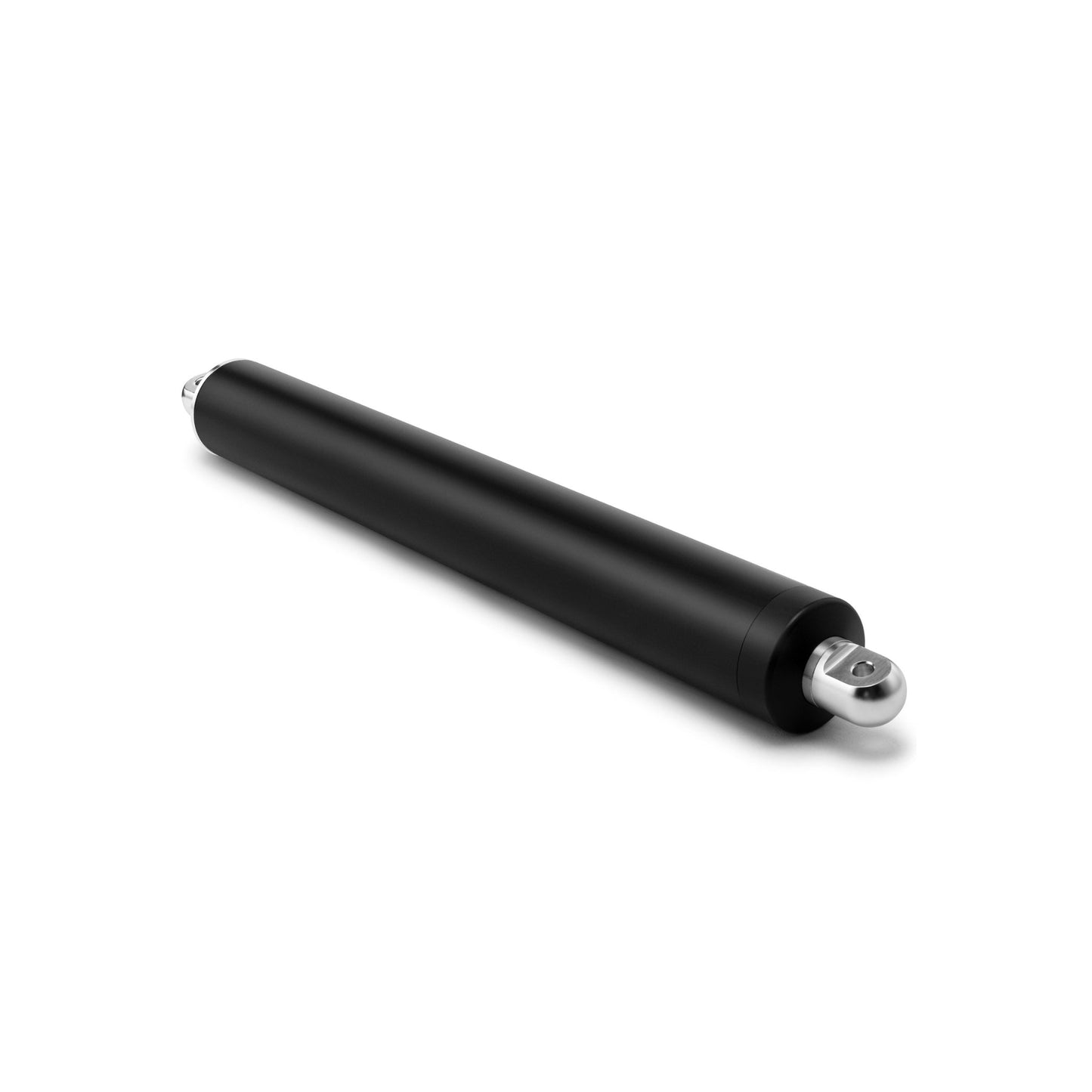

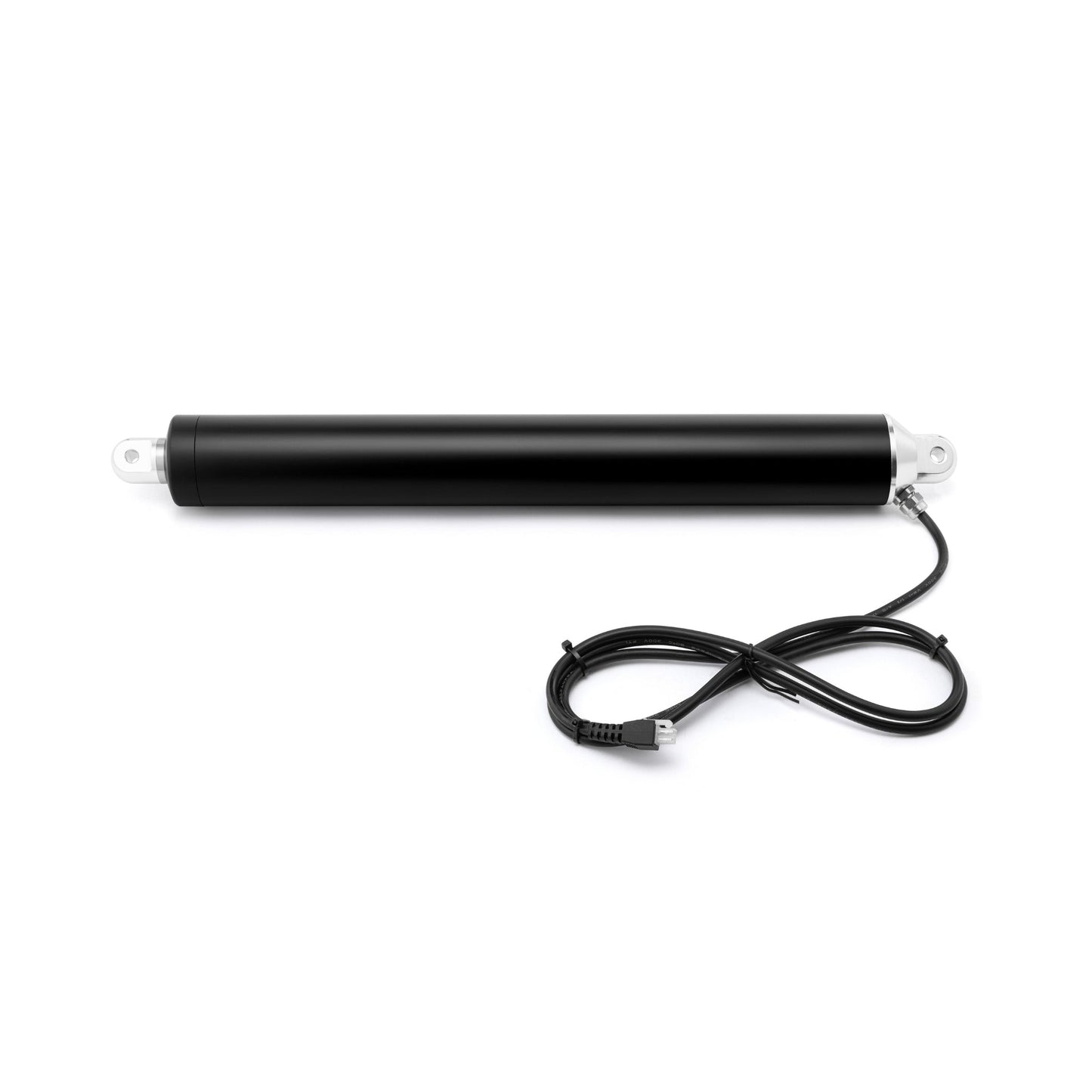

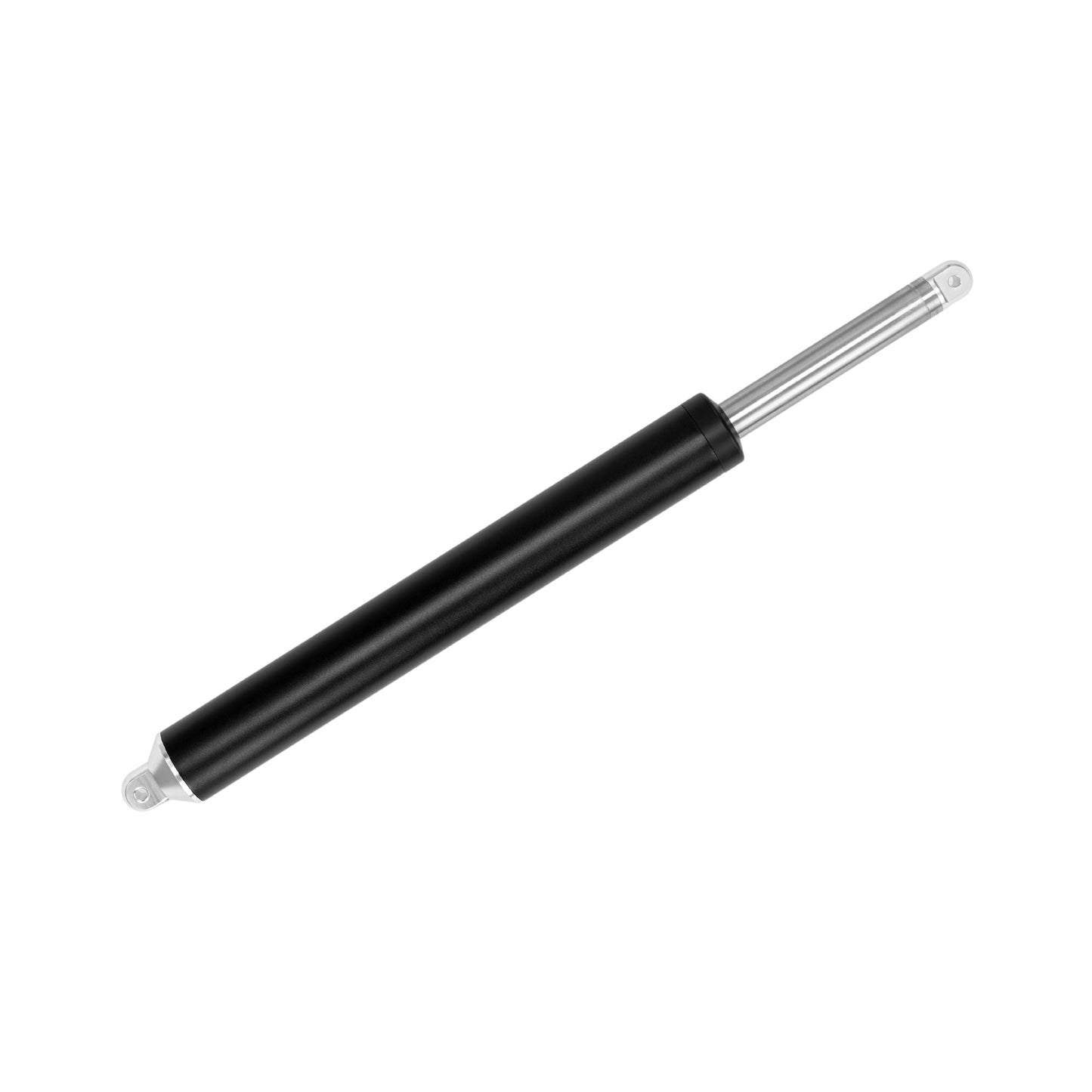

IP66 High Speed Linear Actuator

IP66 High Speed Linear Actuator

Benefits

  • Durable Construction: Stainless steel 304 stroke rod, Aluminum 6063 housing
  • Ingress Protection Rating: IP66
  • High Speed: 120 mm/sec (full load)
  • Versatile Force Ratings: 250 N dynamic, 1000 N static
  • Voltage Compatibility: 12 VDC


Features

  • High-quality materials
  • Reliable brushed DC electric motor
  • Efficient 15% duty cycle

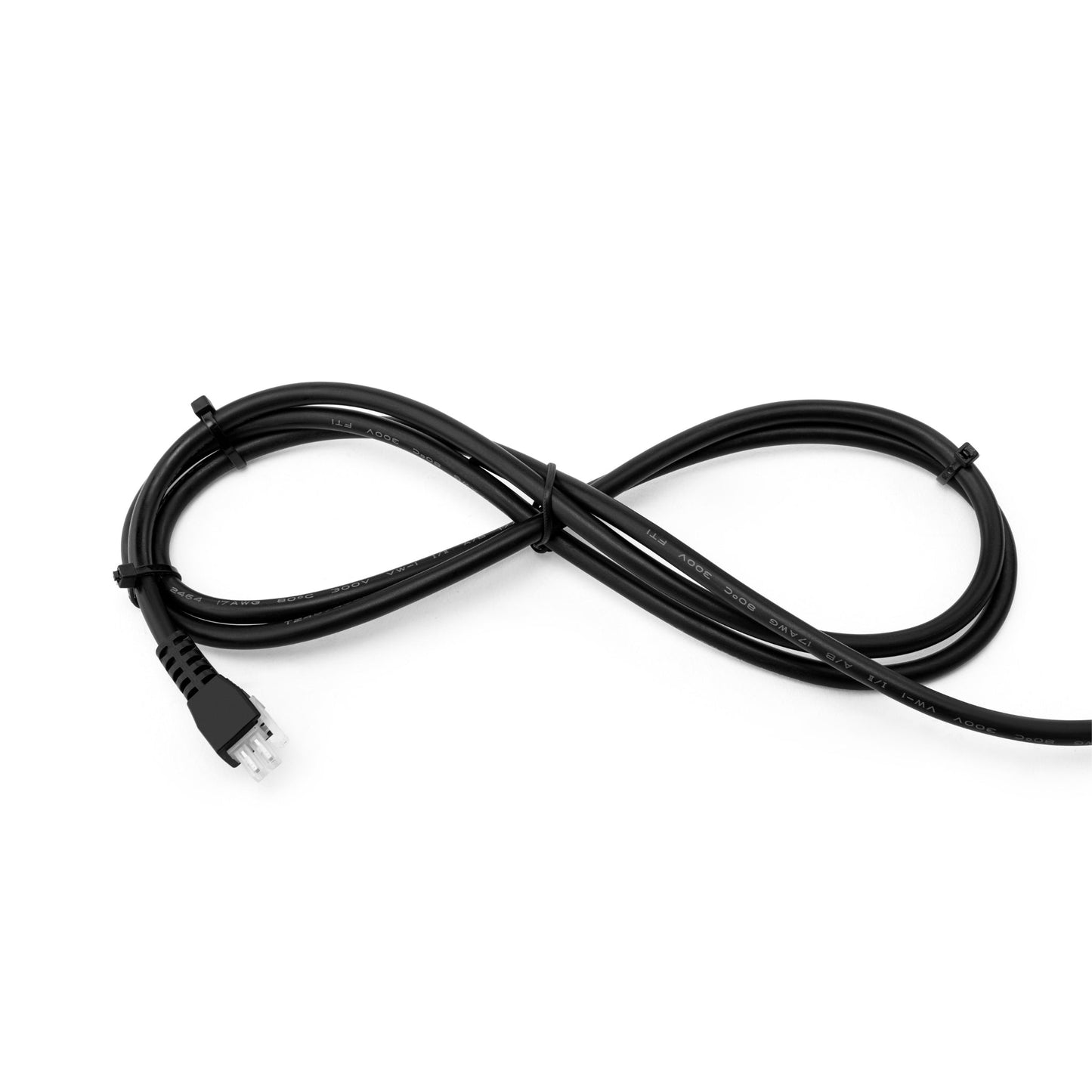

  • Simple 2-wire operation
  • Built-in, non-adjustable limit switches


Need more information?
Ask our experts.

Ask us
View full details
Description
PA-ST1 Specifications

The PA-ST1 is designed for applications that require rapid movement through a drive with fast travel speeds in a linear path. We’ve specifically designed this unit to overcome common challenges found in many high-speed actuator solutions, such as:
  • Mechanical Wear and Tear: Many high-speed actuators are prone to early mechanical failures over time. The PA-ST1 actuator addresses this with robust construction and quality motors designed for longevity.
  • Safety Features: Built-in limit switches ensure the actuators automatically shut off electrical power when reaching the end of full retraction and extensions to ensure user safety and avoid damage.
  • Water Ingress and Seals: Advanced seals in the PA-ST1 actuator provide robust protection against water ingress, extending the actuator's life in outdoor environments.

Key Benefits and Features of the PA-ST1

  • High Speed: Designed to travel high speeds with reliability and versatility of 250 N dynamic force and 1000 N static force ratings.
  • Durable Construction: Built with long-lasting materials, including a stainless steel 304 stroke rod and aluminum housing, ensuring reliable performance even in harsh conditions.
  • Weather Protection: Rated IP66, offering excellent resistance against dust and water, making it suitable for outdoor environments.
  • Operational Efficiency: Brushed DC motor with 15% duty cycle for efficient operation within specified timeframes.
  • Integrated Limit Switches: Built-in, non-adjustable limit switches ensure precise control of the actuator's motion, enhancing safety and reliability.
Overview
PA-ST1 Specifications

The PA-ST1 is designed for applications that require rapid movement through a drive with fast travel speeds in a linear path. We’ve specifically designed this unit to overcome common challenges found in many high-speed actuator solutions, such as:
  • Mechanical Wear and Tear: Many high-speed actuators are prone to early mechanical failures over time. The PA-ST1 actuator addresses this with robust construction and quality motors designed for longevity.
  • Safety Features: Built-in limit switches ensure the actuators automatically shut off electrical power when reaching the end of full retraction and extensions to ensure user safety and avoid damage.
  • Water Ingress and Seals: Advanced seals in the PA-ST1 actuator provide robust protection against water ingress, extending the actuator's life in outdoor environments.

Key Benefits and Features of the PA-ST1

  • High Speed: Designed to travel high speeds with reliability and versatility of 250 N dynamic force and 1000 N static force ratings.
  • Durable Construction: Built with long-lasting materials, including a stainless steel 304 stroke rod and aluminum housing, ensuring reliable performance even in harsh conditions.
  • Weather Protection: Rated IP66, offering excellent resistance against dust and water, making it suitable for outdoor environments.
  • Operational Efficiency: Brushed DC motor with 15% duty cycle for efficient operation within specified timeframes.
  • Integrated Limit Switches: Built-in, non-adjustable limit switches ensure precise control of the actuator's motion, enhancing safety and reliability.

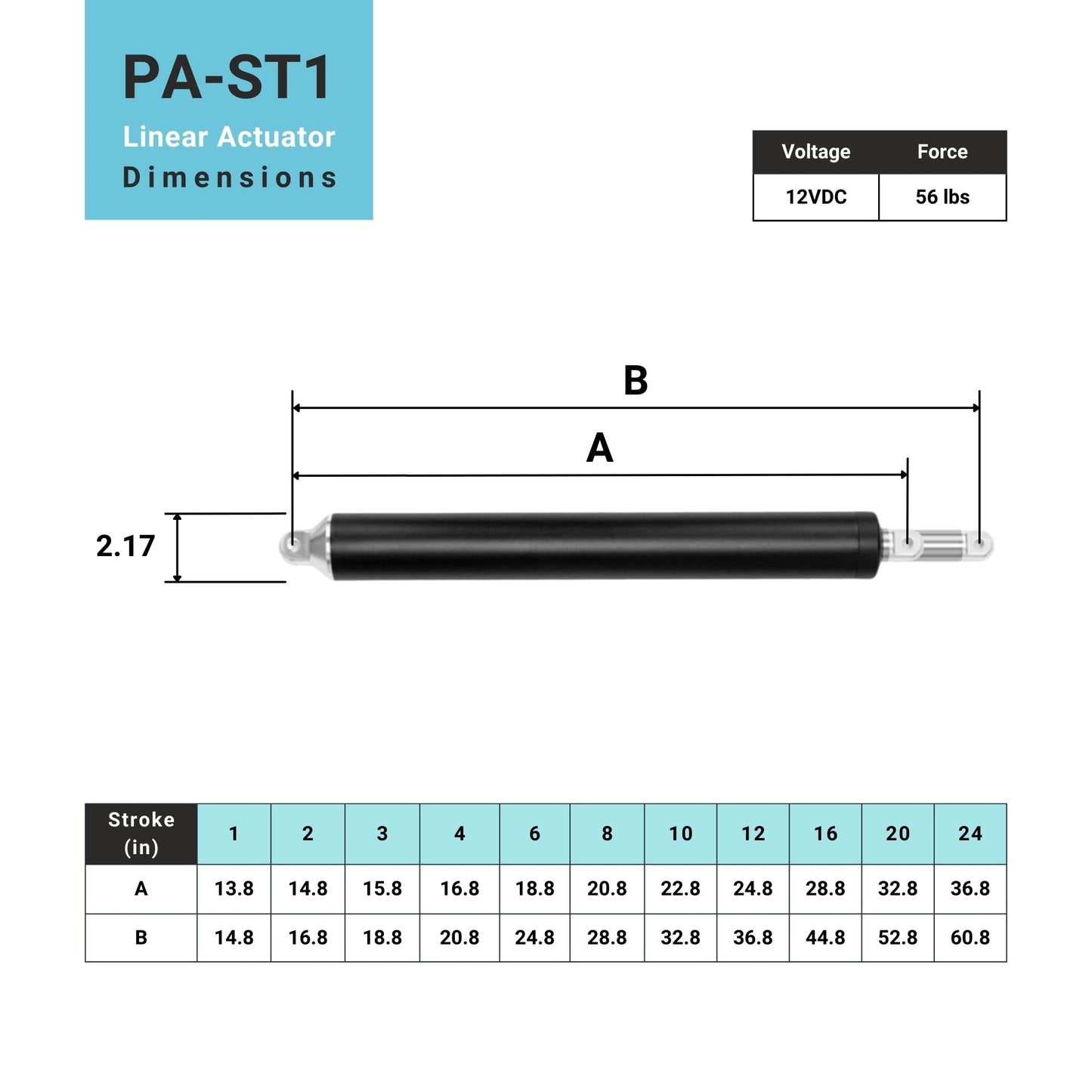

Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Read More

Data Sheets

PA-ST1 Data Sheet

Data Sheet for PA-ST1

View

2D/3D models

Different stroke lengths of models are available upon request, please email us at: [email protected]

Video & Articles
Videos
Related blog articles:
Complete Guide to IP Ratings

Complete Guide to IP Ratings

Yarina Li

Some of the most frequently asked questions we receive is to do with IP protection and ratings. W...

Learn more
Automated Football Throwing Machine By AFTM Team

Automated Football Throwing Machine By AFTM Team

Nathan Bong

A high-speed actuator, Arduino, code and a camera propels a football throwing machine into the fu...

Learn more
Hidden TV Cabinet Compartment Using Our Fast Actuator

Hidden TV Cabinet Compartment Using Our Fast Actuator

Nathan Bong

This customer used our compact, PA-15 High-Speed Linear Actuator for this hidden compartment proj...

Learn more
Sponsorship: Dr. Decks Phantom Rail Using High-speed Actuators

Sponsorship: Dr. Decks Phantom Rail Using High-speed Actuators

Nathan Bong

Dr. Decks has brought us another great and exciting invention from his Phantom line of products. ...

Learn more
Support
FAQ
How Can I Determine Which Progressive Automations Linear Actuator is Best Suited for My Application?

Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.

What Is Duty Cycle and How Is It Calculated?

Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)

For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.

What Does Stroke Mean? How Am I Supposed to Know Which Size to Choose?

Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.

How Do I Know Which Force Rating Is Right for My Application?

We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator

Can I Synchronize My Linear Actuators?

Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.

Controlling Multiple Linear Actuators at the Same Time

How To Utilize FLTCON-2 & FLTCON-4 Control Boxes?

What Are the Control Box Options For My Actuator?

The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.

Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.

What Is Backdriving? -- What Does Dynamic and Static Load Ratings Mean? -- What Is Lateral Loading?
What Is Backdriving?

Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.

What Does Dynamic and Static Load Ratings Mean?

Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.

What Is Lateral Loading?

Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
