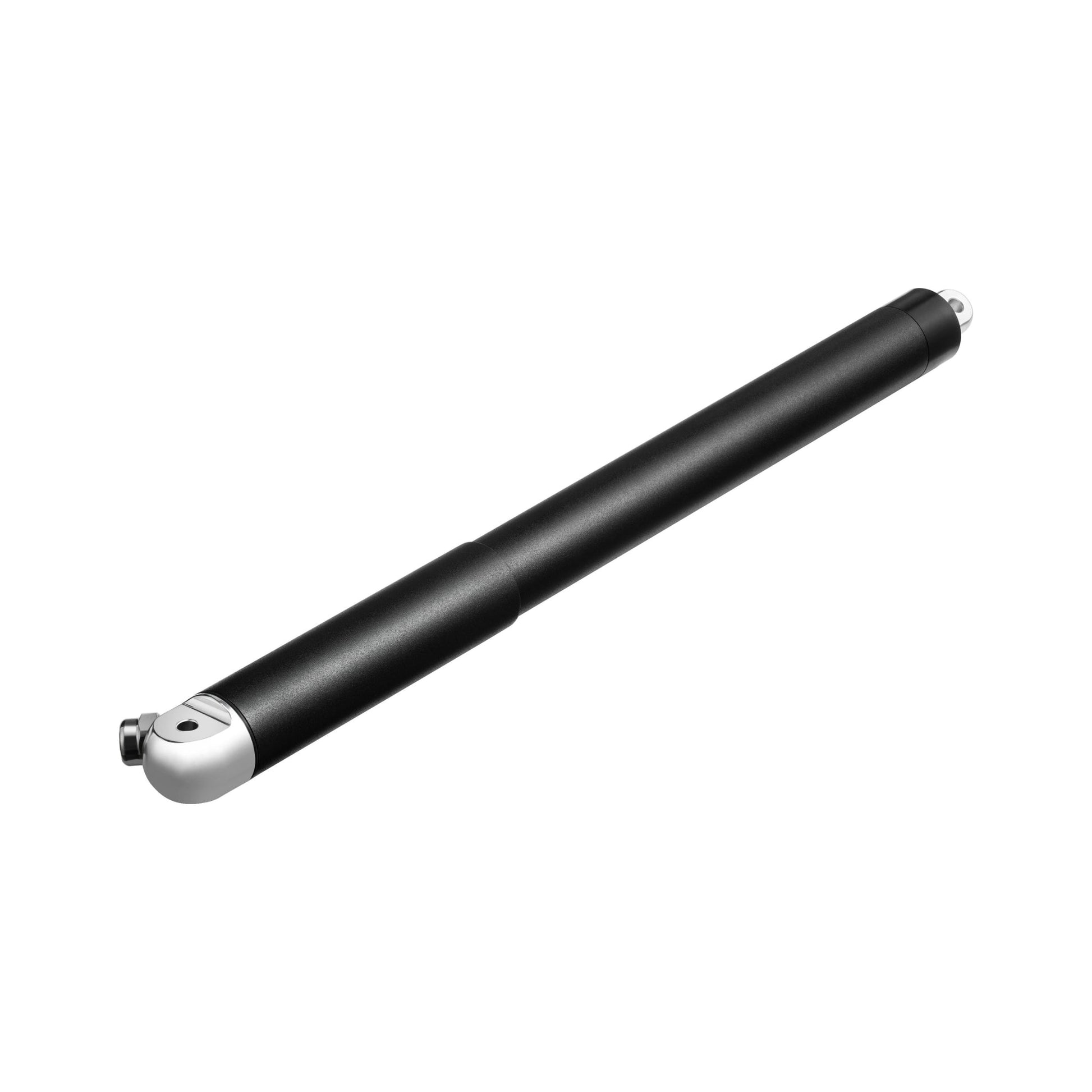

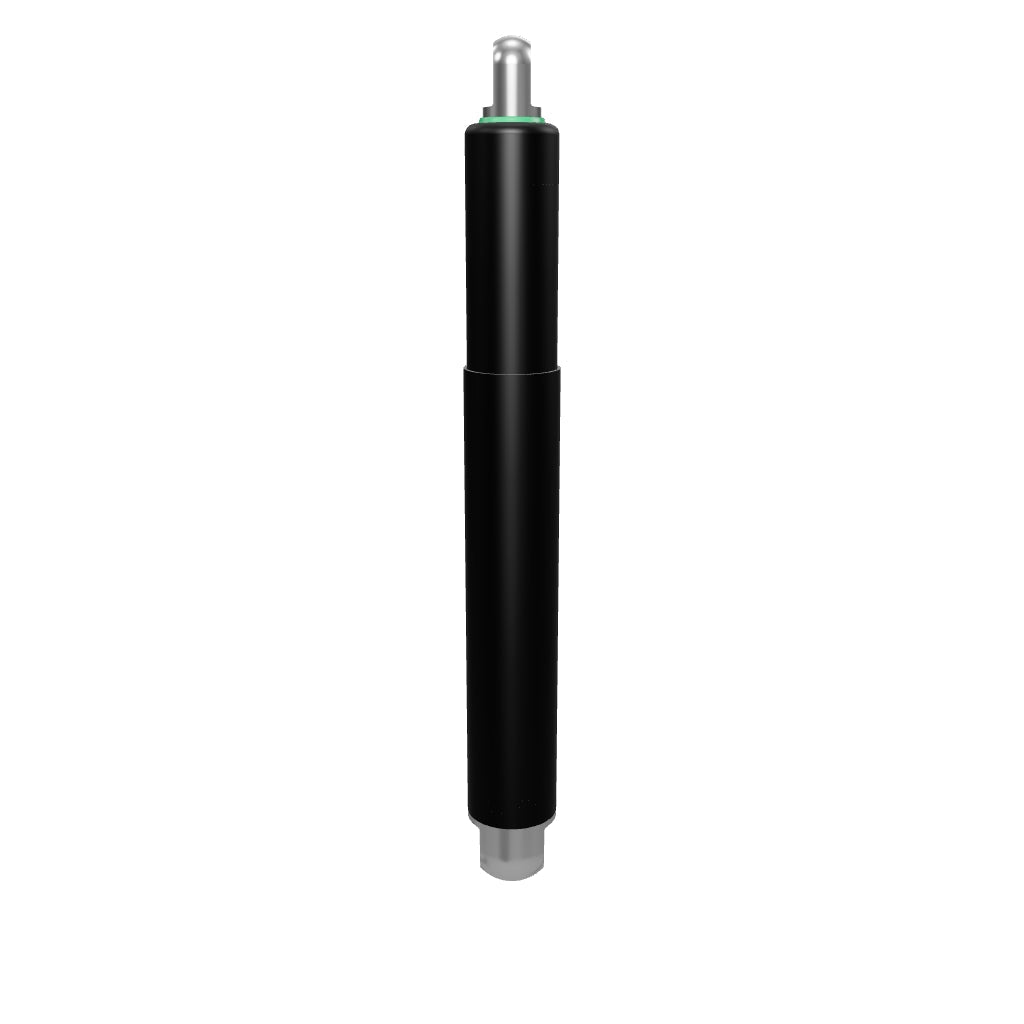

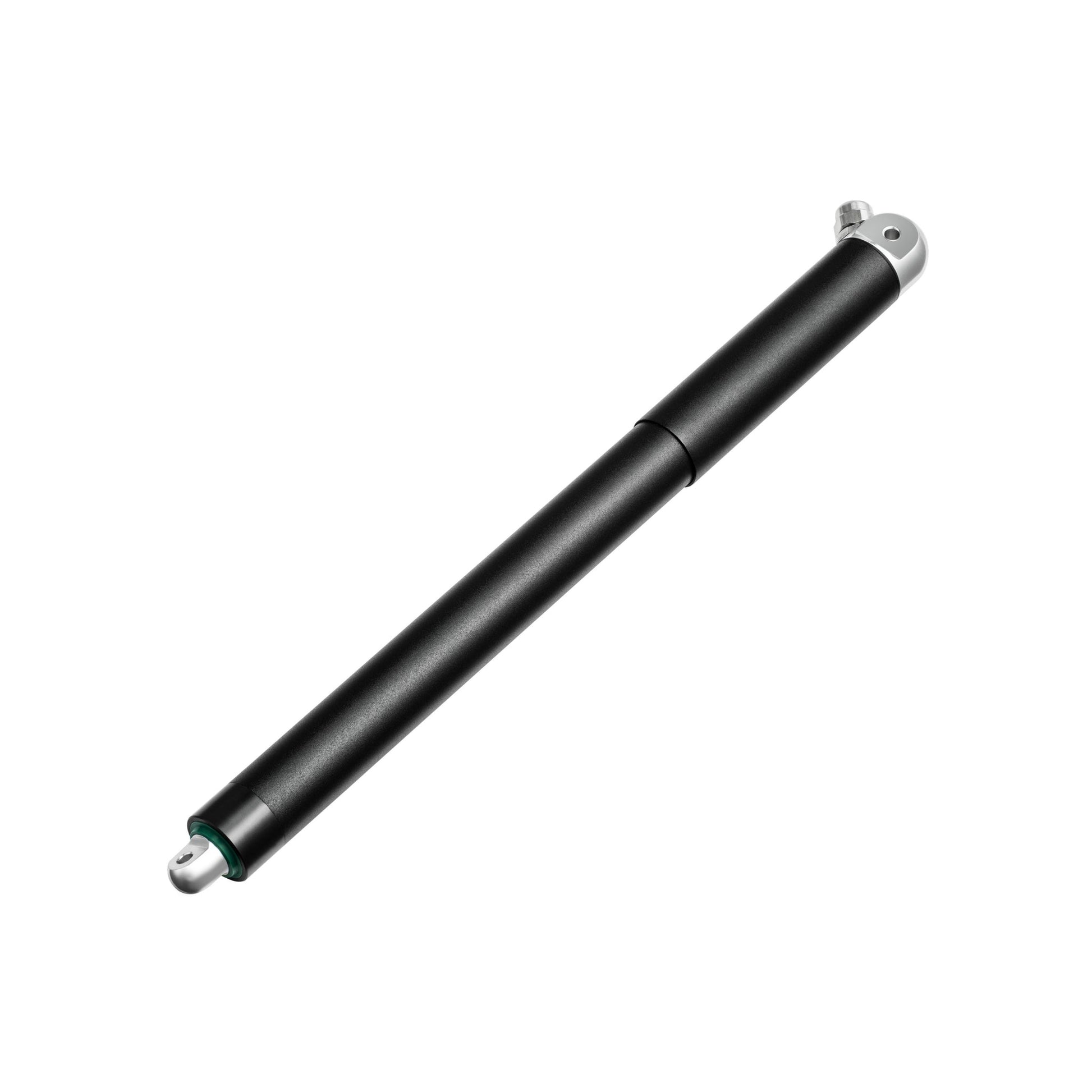

Our PA-ST4 compact waterproof tubular linear actuators are specialized for outdoor applications with tight space constraints. An ingress protection rating of IP67M ensures the compact waterproof linear actuator is well protected against dust and water submersions. Considering the compact tubular design, waterproof protection, and low full load current draw of 1.3 A, the PA-ST4 offers versatile force capabilities with a 45 lbs dynamic and 225 lbs static force rating.

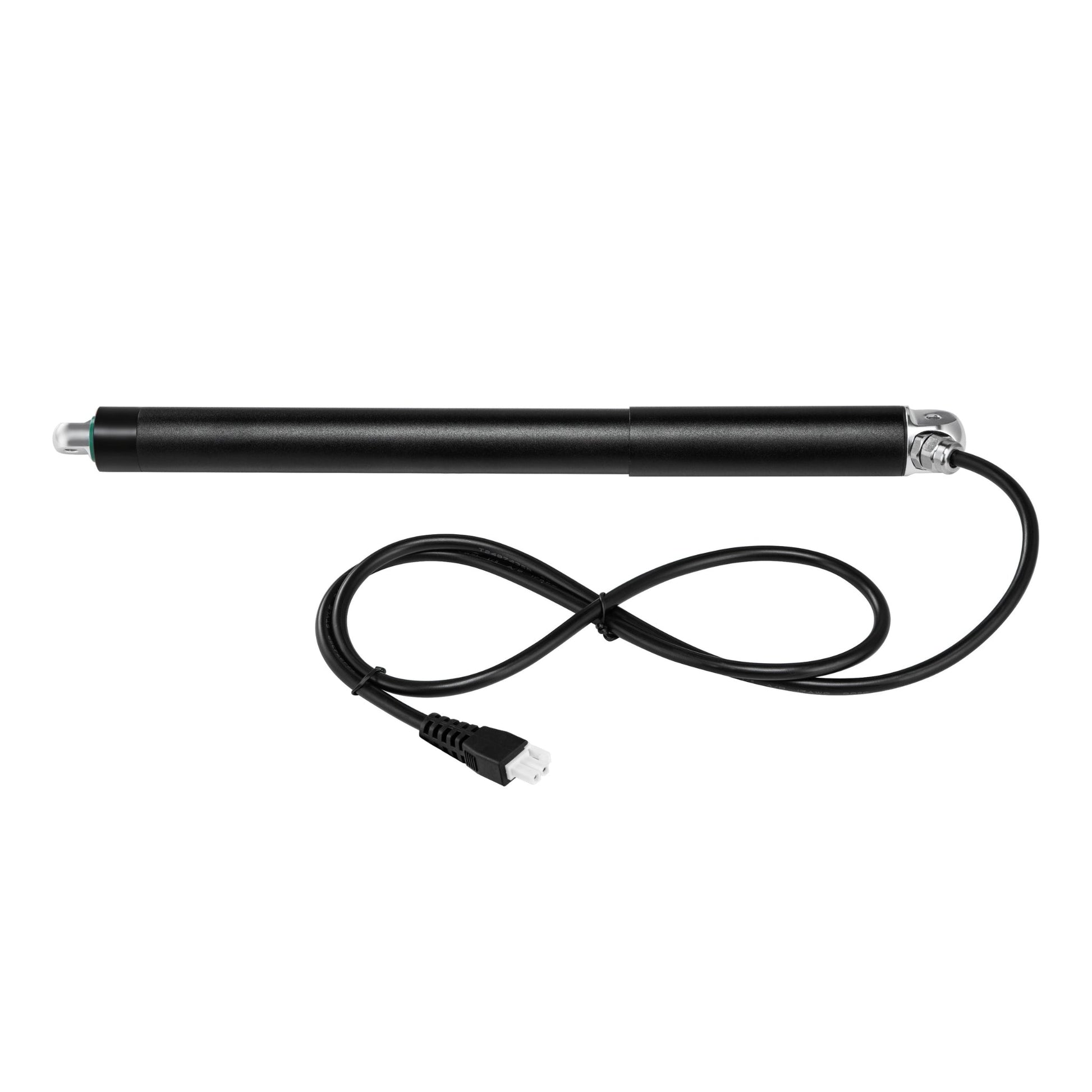

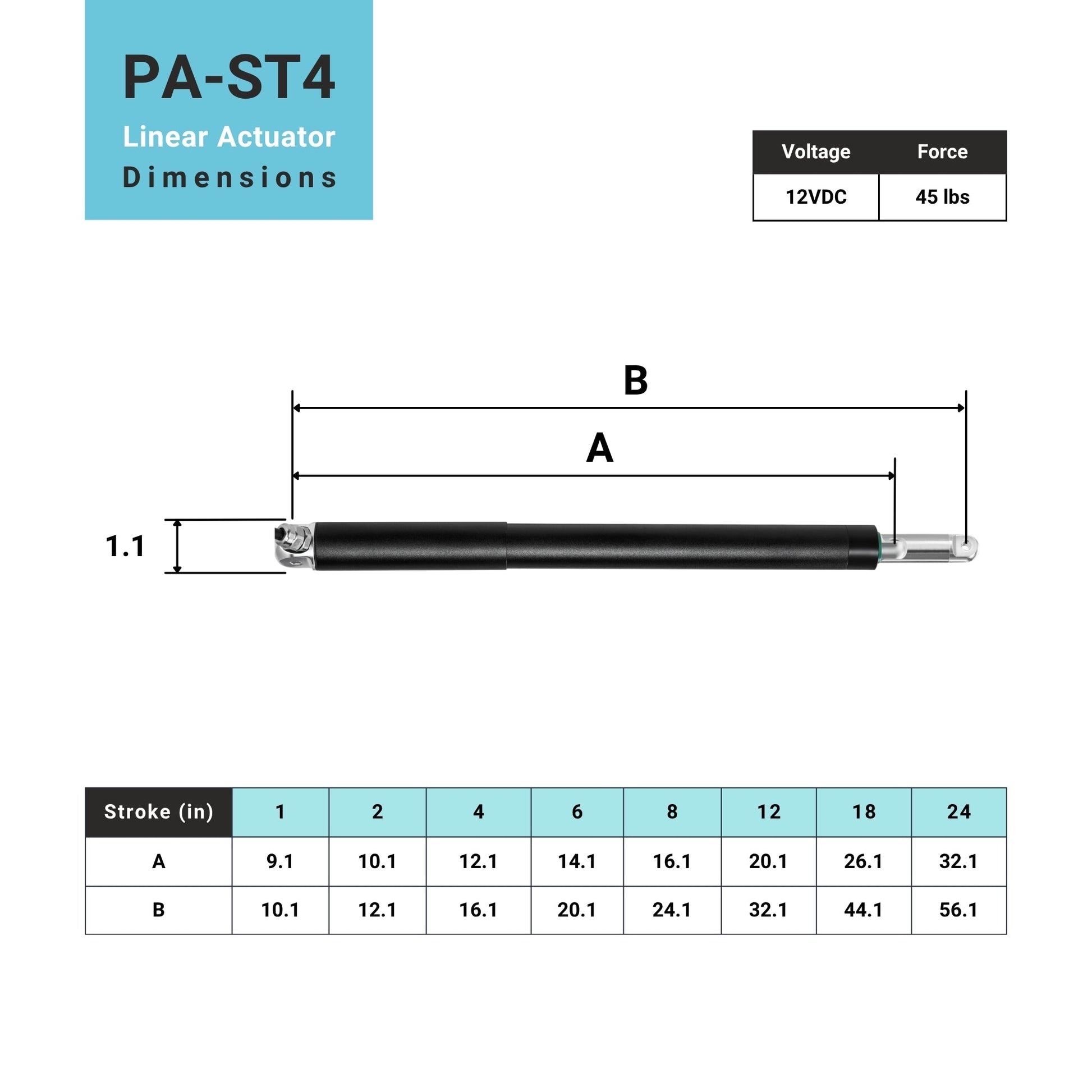

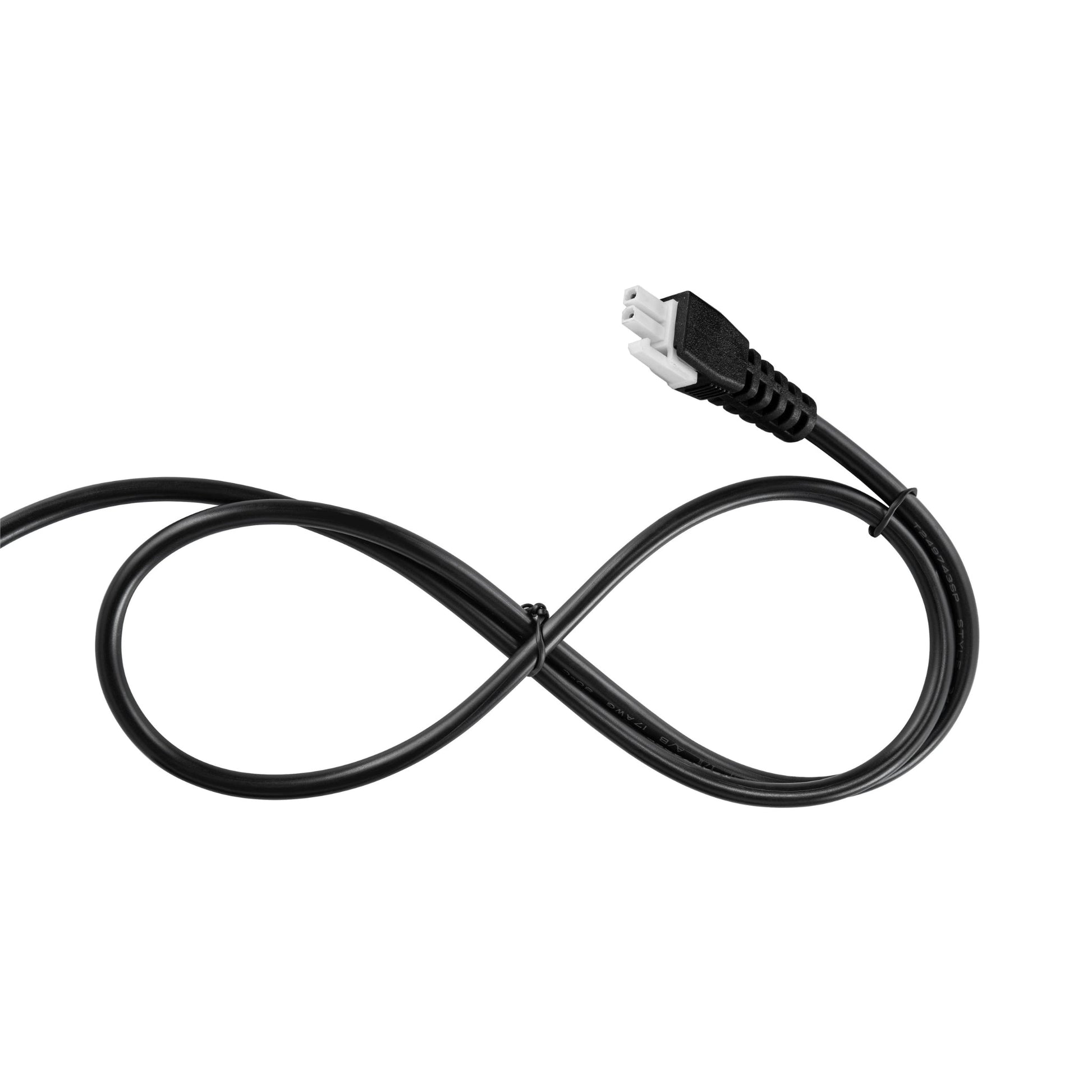

The Molex Mini-Fit Jr 2-Pin Connector at the end of the cable, combined with a low current draw, allows for plug-and-play integration with existing systems across multiple applications and industries. A sleek, tubular form factor with versatile specifications works perfectly for home automation, machinery, automotive applications, and manufacturing use cases. For a full list of specifications and dimensional drawings, please see our PA-ST4 compact waterproof linear actuator Data Sheet.
MOUNTING OPTIONS:

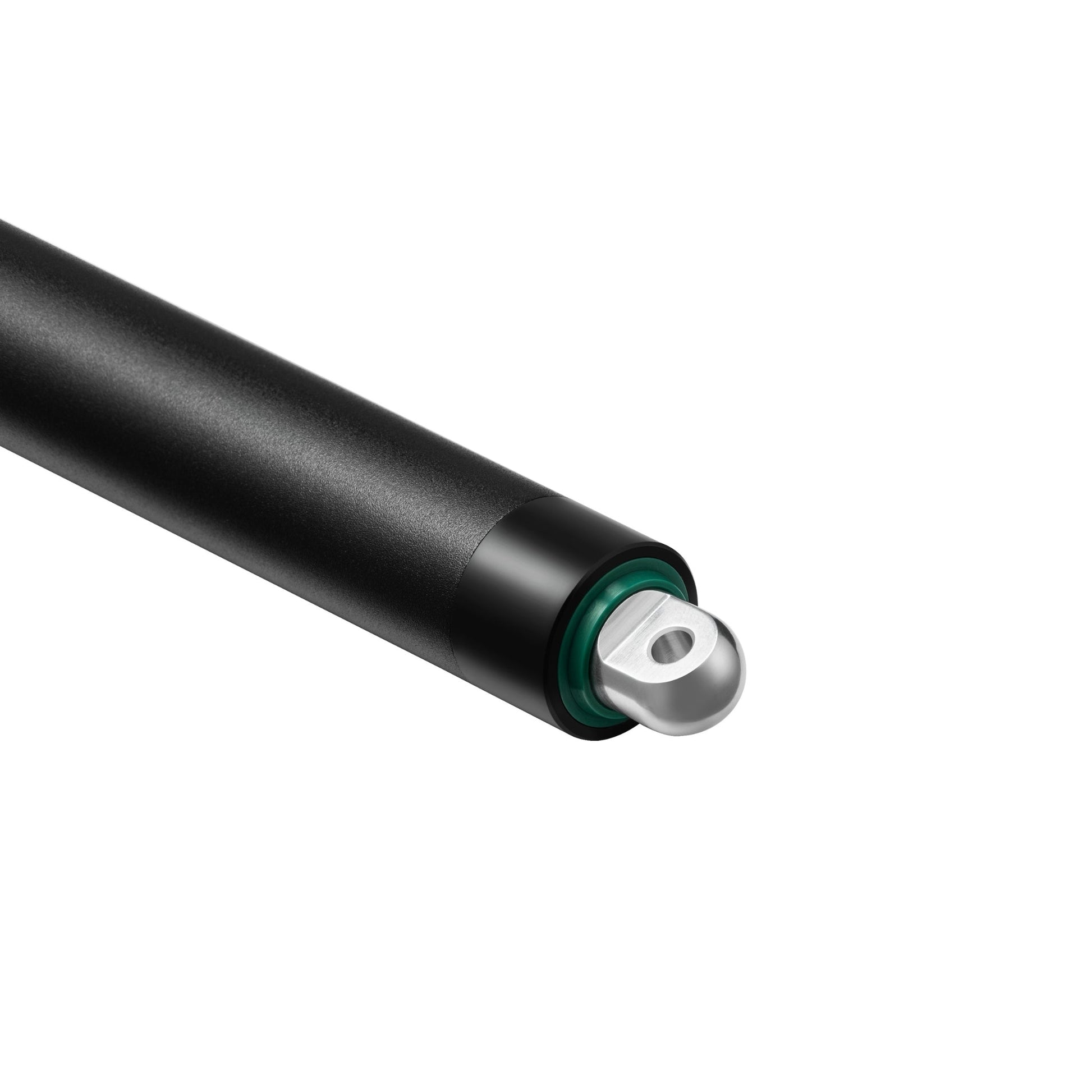

The BRK-ST4 bracket set is designed for our PA-ST4 compact waterproof tubular linear actuators and allows for a simple installation process on the stroke rod and motor-end mounting points. For more detailed information and specifications, please see our brackets product page.
CONTROL SYSTEMS:
The low current draw allows for connectivity with most of our control systems. For more information about our plug-n-play control boxes and development micro-controllers, please see our control systems page.
Our PA-ST4 compact waterproof tubular linear actuators are specialized for outdoor applications with tight space constraints. An ingress protection rating of IP67M ensures the compact waterproof linear actuator is well protected against dust and water submersions. Considering the compact tubular design, waterproof protection, and low full load current draw of 1.3 A, the PA-ST4 offers versatile force capabilities with a 45 lbs dynamic and 225 lbs static force rating.
The Molex Mini-Fit Jr 2-Pin Connector at the end of the cable, combined with a low current draw, allows for plug-and-play integration with existing systems across multiple applications and industries. A sleek, tubular form factor with versatile specifications works perfectly for home automation, machinery, automotive applications, and manufacturing use cases. For a full list of specifications and dimensional drawings, please see our PA-ST4 compact waterproof linear actuator Data Sheet.
MOUNTING OPTIONS:
The BRK-ST4 bracket set is designed for our PA-ST4 compact waterproof tubular linear actuators and allows for a simple installation process on the stroke rod and motor-end mounting points. For more detailed information and specifications, please see our brackets product page.
CONTROL SYSTEMS:
The low current draw allows for connectivity with most of our control systems. For more information about our plug-n-play control boxes and development micro-controllers, please see our control systems page.
