Feedback Telescopic Linear Actuator
Skip to product information
1 of 8

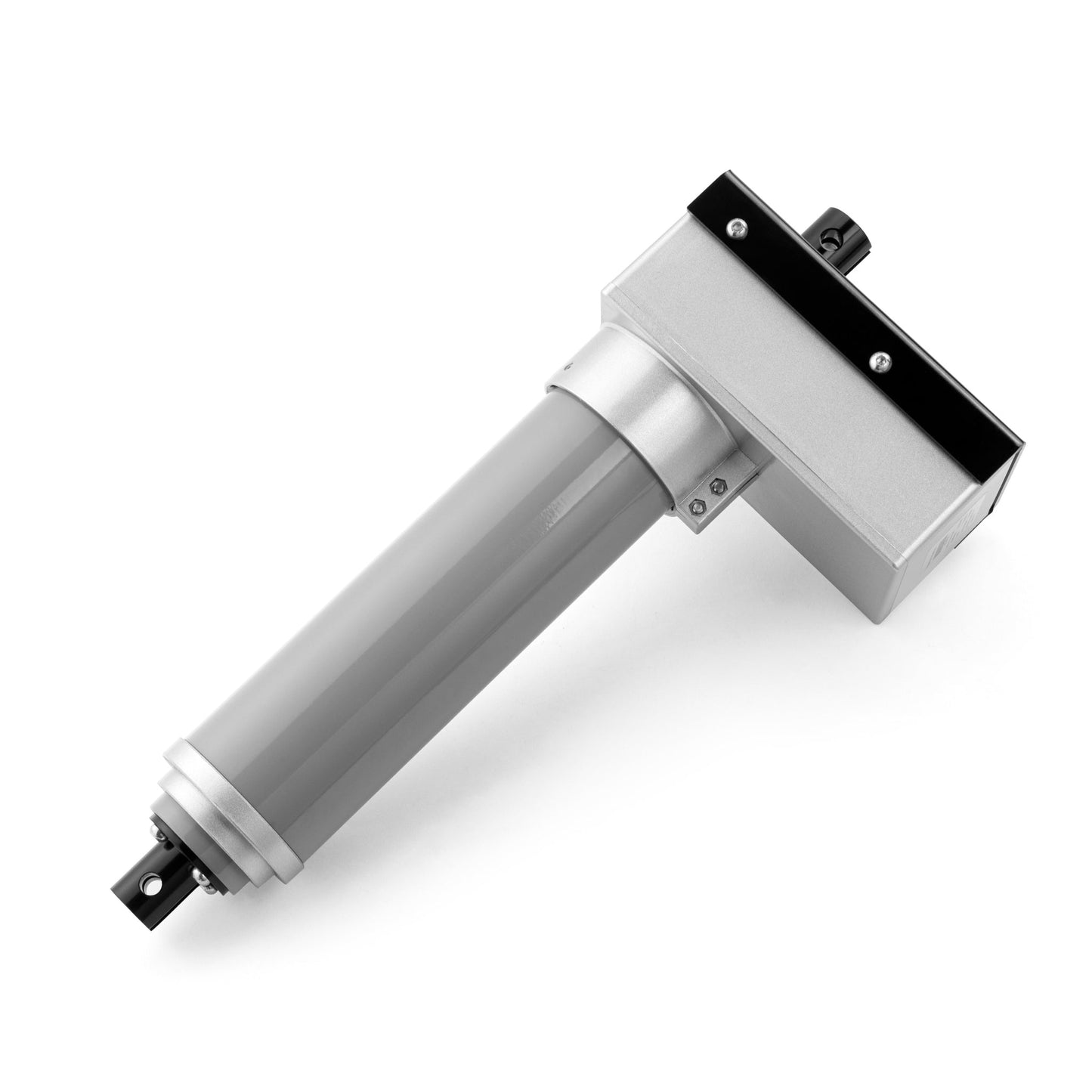

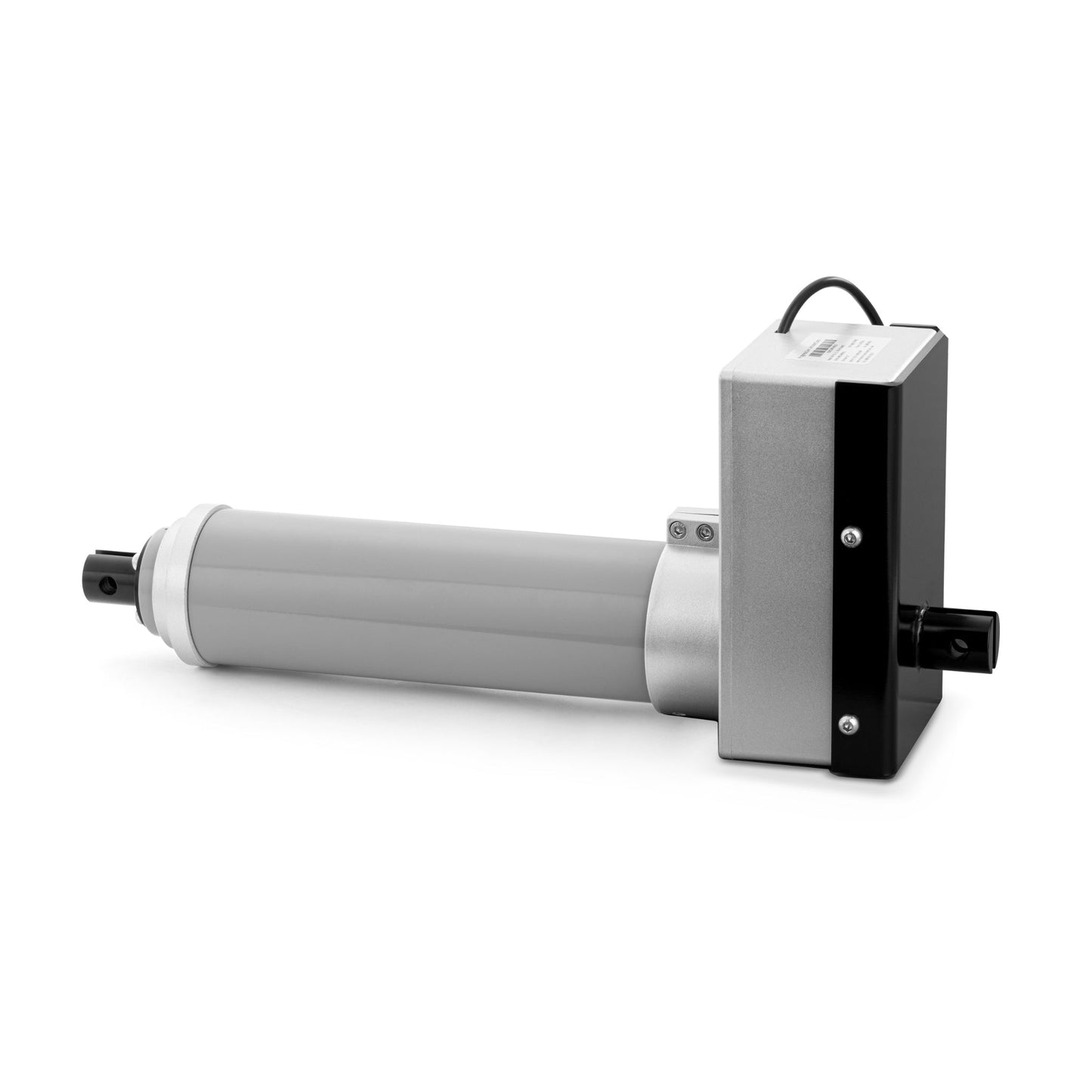

Feedback Telescopic Linear Actuator

Feedback Telescopic Linear Actuator

Benefits

  • Durable Construction: Steel stroke rod and steel housing
  • Low Operating Noise: 45 dBA
  • Positional Feedback: Hall effect sensor
  • Versatile Force Ratings: 1200 N dynamic, 1200 N static
  • Voltage Compatibility: 24 VDC


Features

  • High-quality materials
  • Reliable brushed DC electric motor
  • 3-stage telescopic design

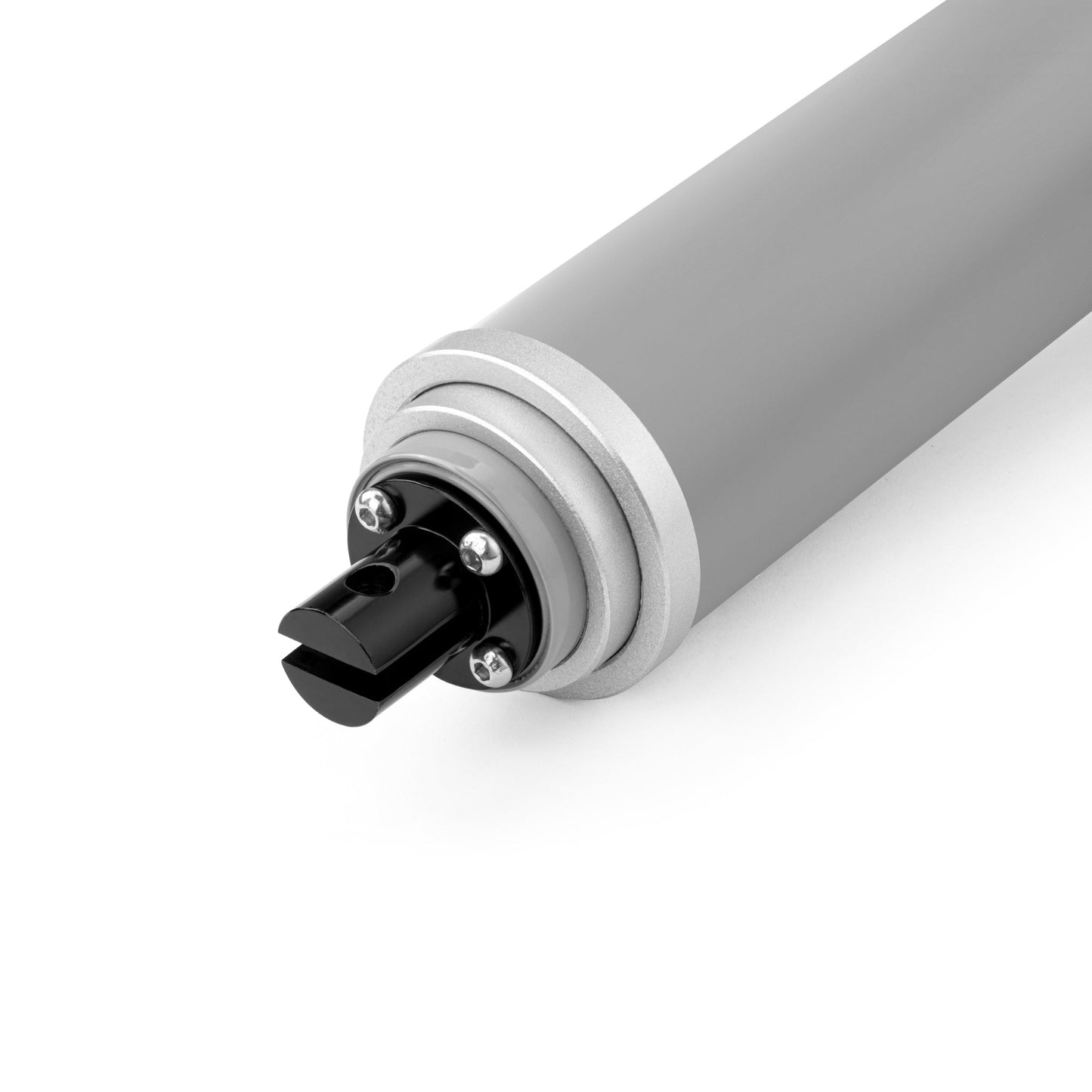

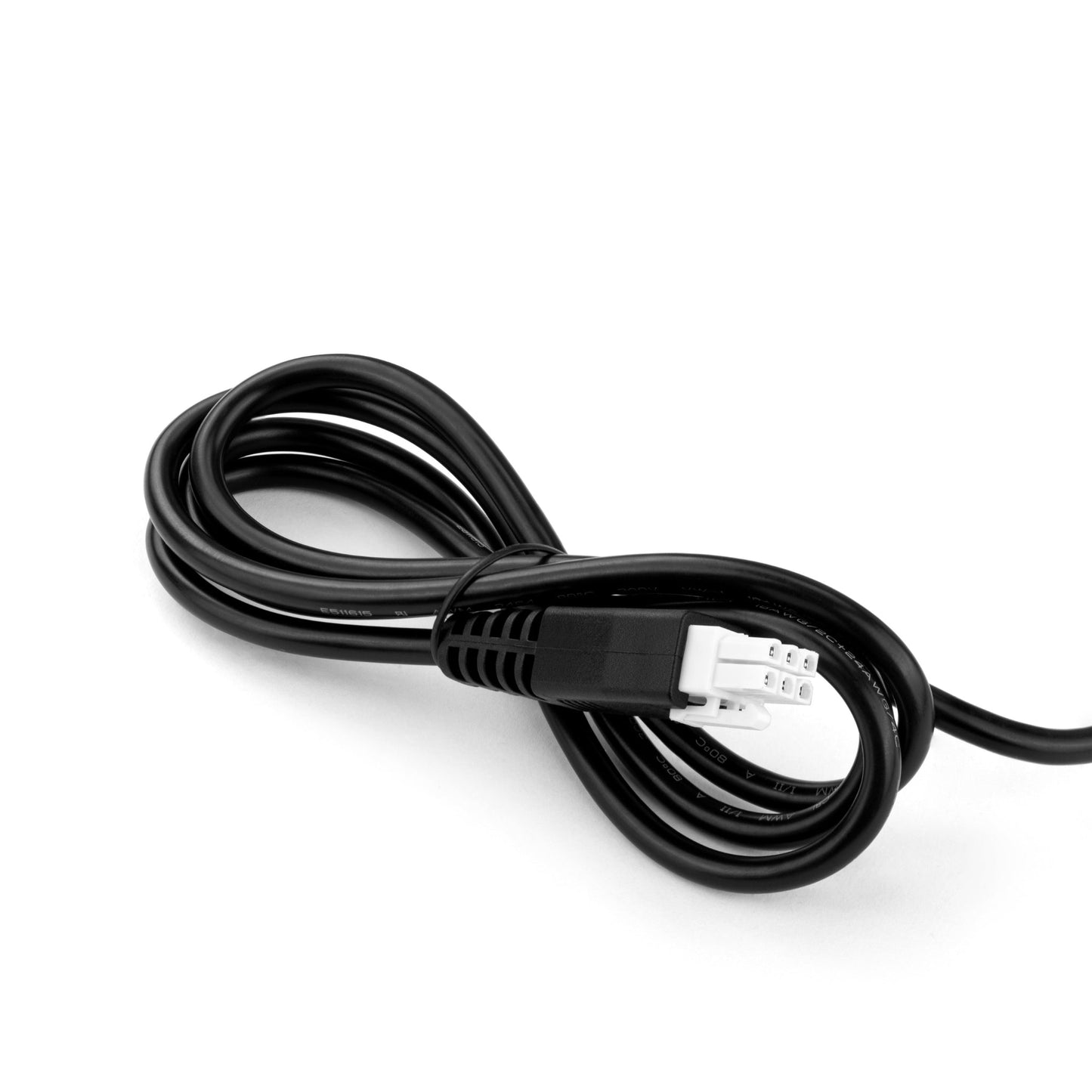

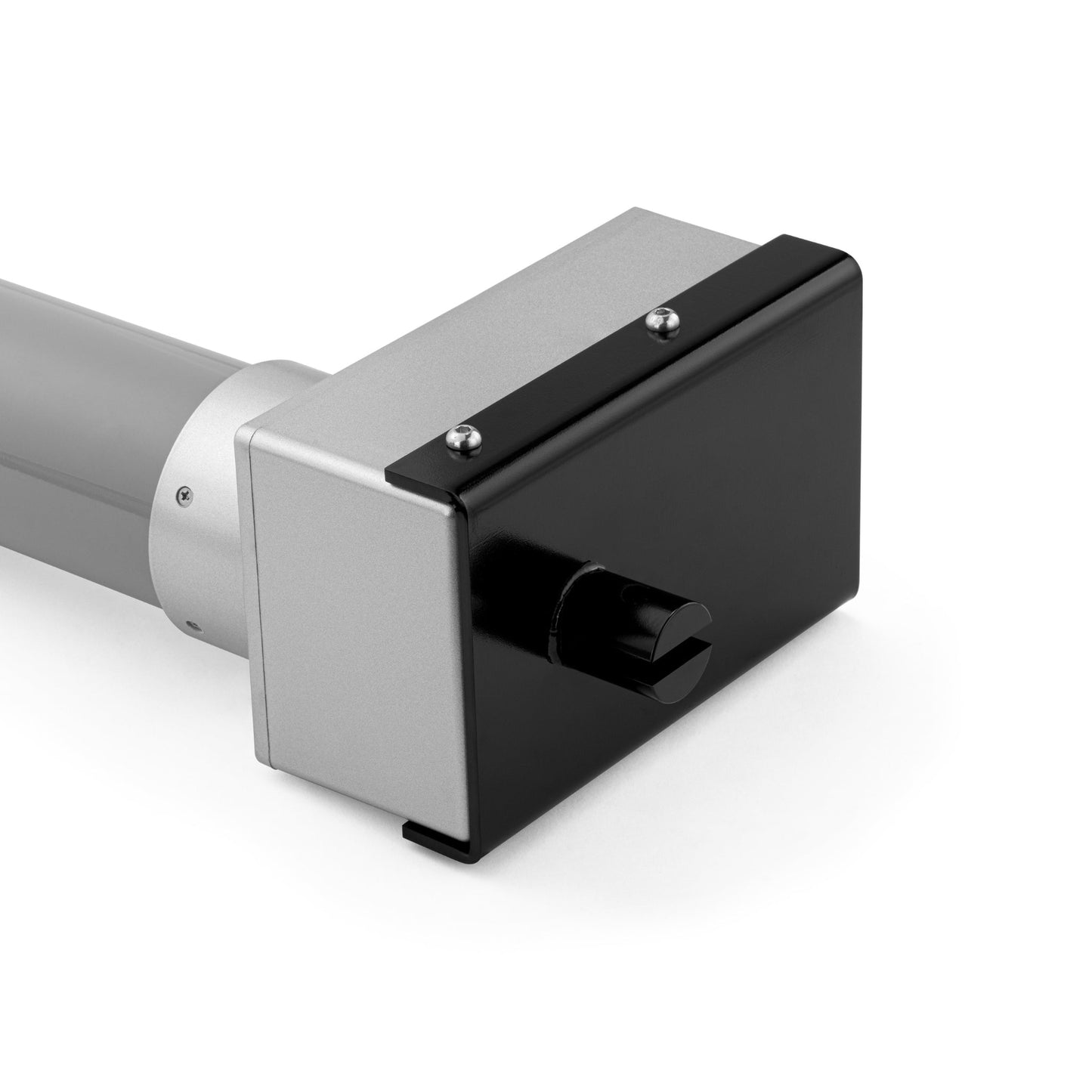

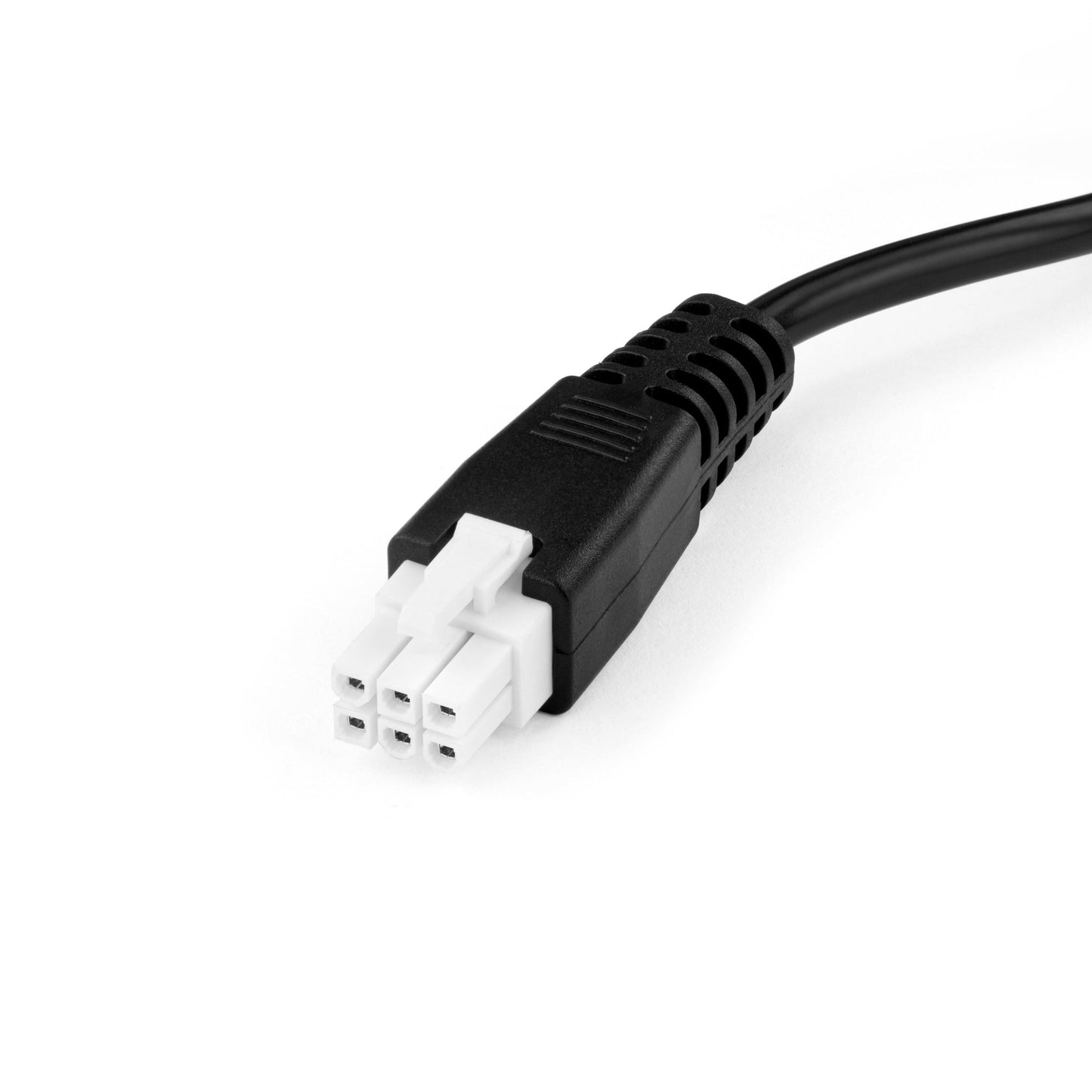

  • Molex Mini-Fit Jr 6-Pin Connector
  • Built-in, non-adjustable limit switches


Need more information?
Ask our experts.

Ask us
View full details
Description

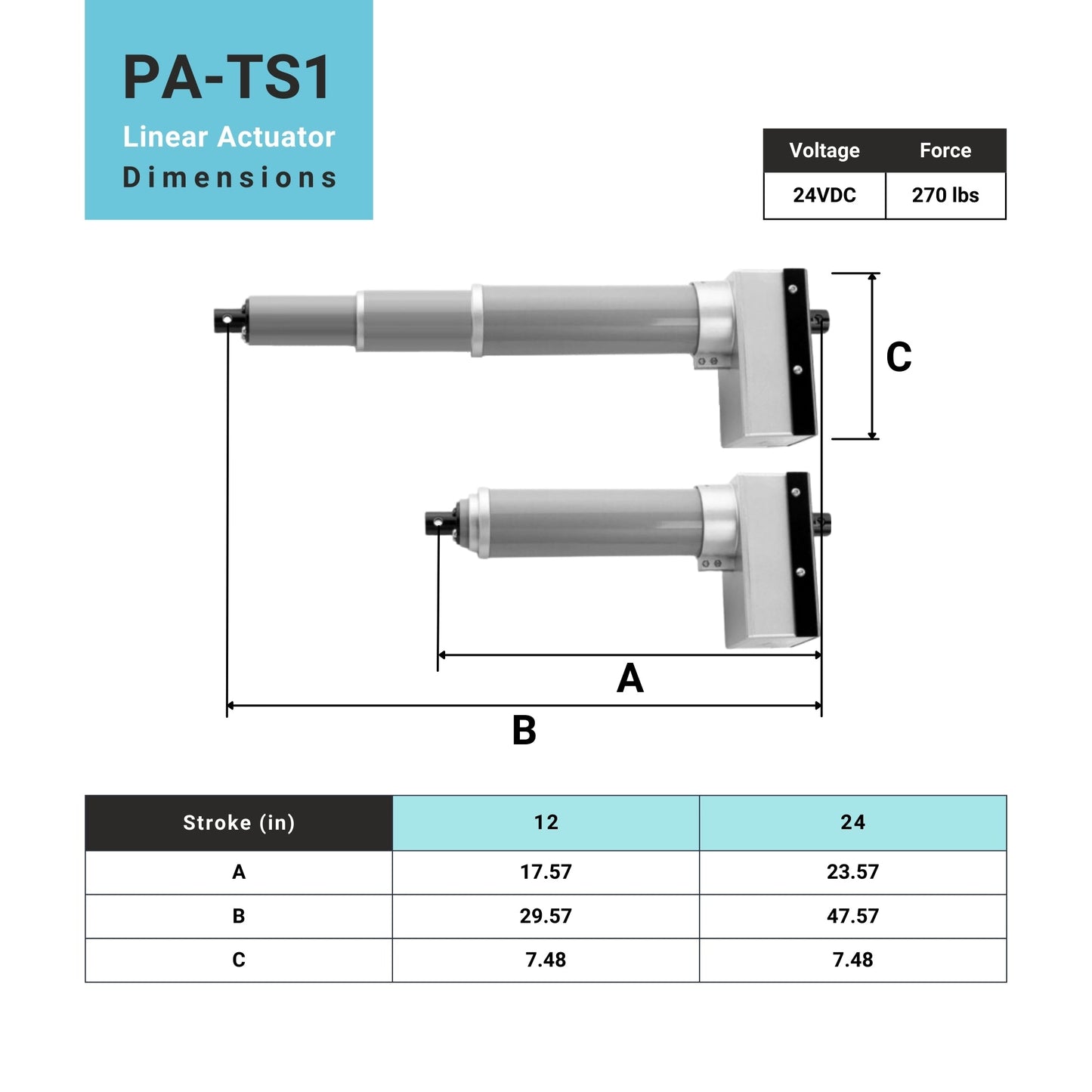

PA-TS1 Specifications

The PA-TS1 telescopic linear actuator has a 3-stage design that aids users in mounting the actuator in places that need a compact retracted length while still requiring a longer stroke. We’ve specifically designed this unit to overcome common challenges found in many telescopic actuator solutions, such as:
  • Telescopic Design: Many applications require solutions with a compact retracted length while still extending to a long stroke. The PA-TS1 actuator addresses this with a 3 Stage Telescopic Configuration, allowing for a shorter retracted length than the stroke.
  • Safety Features: Built-in limit switches ensure the actuators automatically shut off electrical power when reaching the end of full retraction and extensions.
  • Control Systems Compatibility: The Molex Mini-Fit Jr 6-Pin Connector and 24 VDC motor operation allow for compatibility with a wide range of hall effect compatible control boxes we carry.

Key Benefits and Features of the PA-TS1

  • Versatile Force Ratings: Designed with reliability and versatile capabilities to handle 1200 N dynamic and 1200 N static force.
  • Durable Construction: Built with long-lasting materials, including steel stroke rod and steel housing, ensuring reliable performance even in harsh conditions.
  • Low Noise: The operating noise of 45 dBA makes this solution suitable for quiet indoor spaces in customer-facing applications.
  • Positional Feedback: The hall effect sensors allow for accuracy in reading position for precise movement such as synchronization and memory presets.
  • Integrated Limit Switches: Built-in, non-adjustable limit switches ensure precise control of the actuator's motion, enhancing safety and reliability.
Overview
PA-TS1 Specifications

The PA-TS1 telescopic linear actuator has a 3-stage design that aids users in mounting the actuator in places that need a compact retracted length while still requiring a longer stroke. We’ve specifically designed this unit to overcome common challenges found in many telescopic actuator solutions, such as:
  • Telescopic Design: Many applications require solutions with a compact retracted length while still extending to a long stroke. The PA-TS1 actuator addresses this with a 3 Stage Telescopic Configuration, allowing for a shorter retracted length than the stroke.
  • Safety Features: Built-in limit switches ensure the actuators automatically shut off electrical power when reaching the end of full retraction and extensions.
  • Control Systems Compatibility: The Molex Mini-Fit Jr 6-Pin Connector and 24 VDC motor operation allow for compatibility with a wide range of hall effect compatible control boxes we carry.

Key Benefits and Features of the PA-TS1

  • Versatile Force Ratings: Designed with reliability and versatile capabilities to handle 1200 N dynamic and 1200 N static force.
  • Durable Construction: Built with long-lasting materials, including steel stroke rod and steel housing, ensuring reliable performance even in harsh conditions.
  • Low Noise: The operating noise of 45 dBA makes this solution suitable for quiet indoor spaces in customer-facing applications.
  • Positional Feedback: The hall effect sensors allow for accuracy in reading position for precise movement such as synchronization and memory presets.
  • Integrated Limit Switches: Built-in, non-adjustable limit switches ensure precise control of the actuator's motion, enhancing safety and reliability.
Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Quality You Can Trust – Learn More

Data Sheets

PA-TS1 Data Sheet

Data Sheet for PA-TS1

View

2D/3D models

Different stroke lengths of models are available upon request, please email us at: sales@progressiveautomations.com

Video & Articles
Videos
Related blog articles:
New PA-41 Control System: Controlling Multiple Linear Actuators

New PA-41 Control System: Controlling Multiple Linear Actuators

Nathan Bong

Many applications that operate with electromechanical systems require a single control system tha...

Learn more
FAQ
What are the benefits of the telescopic design of the PA-TS1 compared to standard actuators?

The PA-TS1 telescopic linear actuator features a compact retracted length and long stroke through the multi-stage actuator design, offering space-saving advantages.

How does the built-in hall effect feedback enable synchronization and position control?

Its Hall effect feedback delivers digital pulse-based signals that are readable by compatible controllers to allow for controls such as actuator synchronization, preset position controls, and enhanced precision movement.

What control boxes are compatible with the PA-TS1 and when should wireless vs. wired options be used?

It has plug-and-play compatibility with PA-41-4-12V24V, PA-CB40-2-12V24V, PA-40-24VDC, and FLTCON actuator controller boxes, with wireless options for remote use and wired options for stable installations.

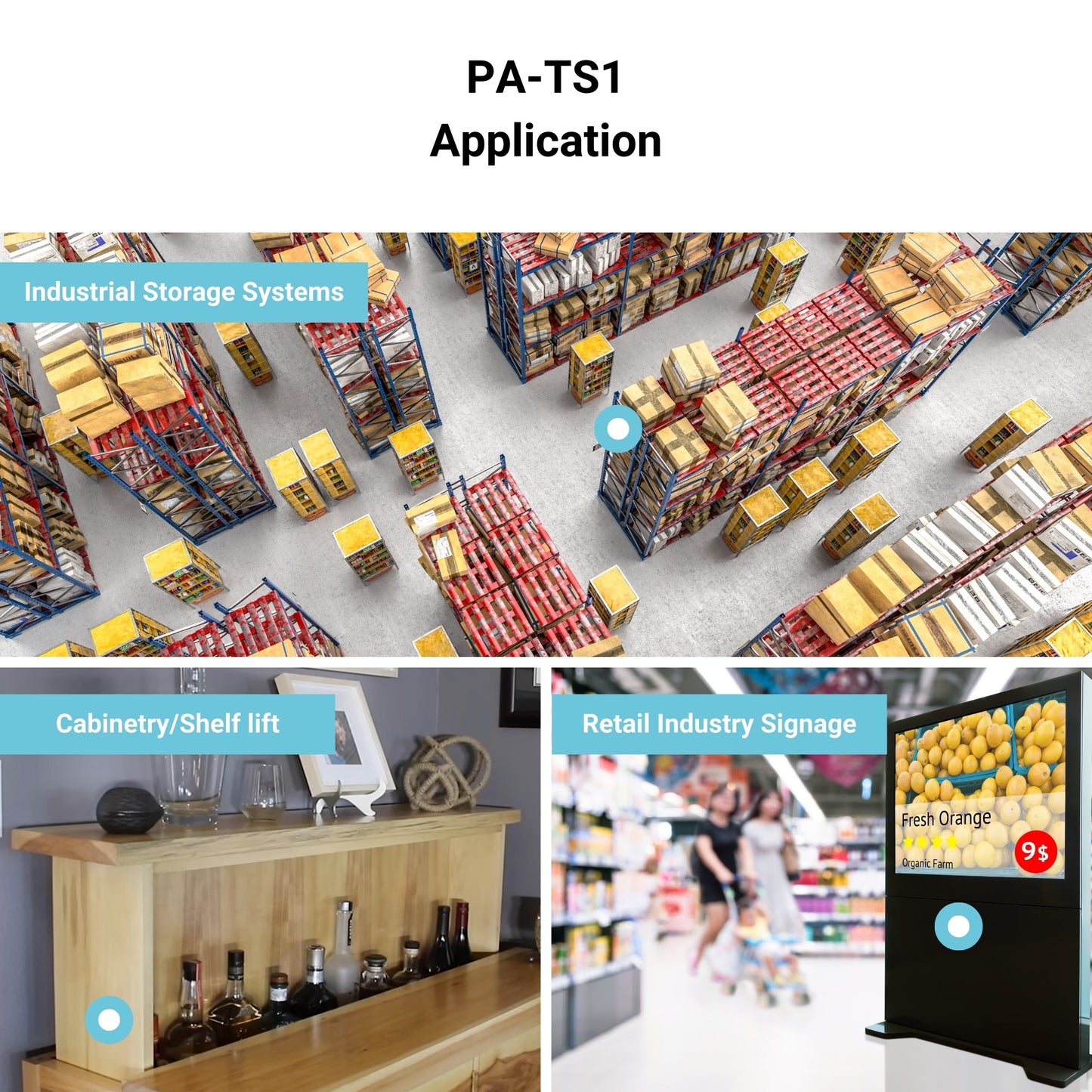

In which applications is the PA-TS1 actuator most commonly used and why is it preferred there?

The PA-TS1 is commonly used as a medical actuator, home automation actuator, and general automation actuator for projects where a compact retracted length is required.

What mounting brackets are compatible with the PA-TS1 and how do they affect installation flexibility?

The T-shaped BRK-01 brackets and U-shaped BRK-02 brackets are both compatible, providing secure mounting for the front and rear ends with the flexibility to have a full 180-degree rotation.
