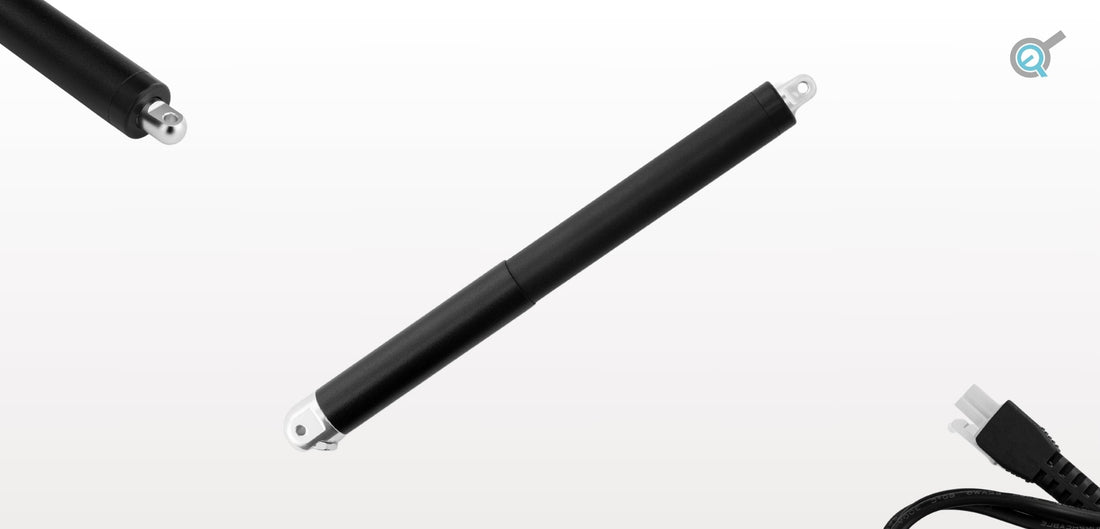

Micro linear actuators are essential for enabling motion in compact applications, offering versatile performance without compromising on space or efficiency. The PA-ST5 tubular micro linear actuator combines a slim tubular design with versatile force ratings and high water resistance, delivering enhanced durability and reliability. In this product overview, we’ll explore the key features and benefits of the newly released PA-ST5 tubular micro linear actuator and highlight several real-world applications where it excels.
WHAT MAKES THE PA-ST5 MICRO LINEAR ACTUATOR SPECIAL?
High Protection Materials and Ratings
As a stainless steel stroke rod actuator with aluminum 6063 housing material and an IP66 ingress protection rating, the PA-ST5 is a durable tubular actuator for outdoor use. Built-in limit switches help protect our PA-ST5 micro linear actuator for limited space applications from over-extending or over-retracting past the intended travel positions. Operational temperature ratings of -15°C to 40°C also ensure reliable operation during the different seasons throughout the year in various conditions and outdoor settings.
Versatile Capabilities in A Tubular Micro Linear Actuator
|
Stroke |
1" |
2" |
3" |
3.9" |
|
Retracted H2H |
5.1" |
6.1" |
7.1" |
8.0" |
|
Extended H2H |
6.1" |
8.1" |
10.1" |
11.9" |
Travelling 0.20 "/second at a full load, the PA-ST5 compact waterproof tubular linear actuators offer smooth motion for stability during travel. The PA-ST5 offers a stroke range from 1 inch to 3.9 inches off the shelf and has a sleek, micro appearance with its tubular actuator design having the internal DC motor mounted in-line with the actuator’s shaft. Despite its micro form factor and water-resistant capabilities, the PA-ST5 also has a dynamic force rating of 22 lbs and a high static force rating of 90 lbs to securely lock in position when not moving.
Compatibility Through Simple Operation
The PA-ST5 tubular micro linear actuator features a 2-pin Molex Mini-Fit Jr Connector and operates at 12 VDC. This allows for plug-and-play integration with existing systems across multiple applications and industries, simplifying the installation process. When fully loaded to its force rating, the standard model has a current draw of no more than 0.16 A and is suitable for use with most of the current ratings found in our rocker switches and control boxes. To check out a full list of specifications and dimensional drawings, please visit our PA-ST5 compact waterproof linear actuator data sheet.
|
Voltage |
12 VDC |
|
Dynamic Force |
22 lbs |
|
Static Force |
90 lbs |
|
Speed - No Load |
0.30 "/sec |
|
Speed - Full Load |
0.20 "/sec |
|
Current - No Load |
0.01 A |
|
Current - Full Load |
0.16 A |
MOUNTING BRACKETS
The BRK-ST5 bracket set is designed for our PA-ST5 tubular linear actuator for confined spaces and allows for a simple installation process on the stroke rod and motor-end mounting points. The bracket is lightweight, durable, and allows 180 degrees of rotation for your application. For more detailed information and specifications, please see our mounting brackets product page.
USE CASES IN DIFFERENT INDUSTRIES
In terms of design features and specifications, our PA-ST5 shares overlapping qualities with those of our PA-07 and PA-MC1 micro linear actuator, and PA-06 tubular actuator. Combining a tubular sleek shape like the PA-06 with a micro category size like our PA-MC1 and PA-07 while offering a weather resistance of IP66 allows for the PA-ST5 to be useful in various applications and industries:
- Machinery
- Home automation
- Outdoor projects
- Automotive use cases
We have many success stories of customer projects that used our other micro actuators, which offer several features similar to what is now available in the PA-ST5, and we are excited to see all the new possibilities our PA-ST5 will bring in the future!
IN SUMMARY
Our PA-ST5 Linear Actuators have versatile capabilities in a sleek, compact tubular design while offering water-resistant IP66 ingress protection suitable for outdoor uses. The standard 2-pin Molex Mini-Fit Jr Connector and low current draw at full load simplify installation and integration, being compatible with many existing systems.
We hope you found this as informative and interesting as we did, especially if you were looking to use a 12V compact linear actuator with low current draw for your next project. If you have any queries or wish to discuss our products further, please do not hesitate to contact us! We are experts in what we do and will be happy to assist however we can.
